Cisco Catalyst C1000-24P-4X-L 24-Port Ethernet Managed Switch | Refresh
SKU: C1000-24P-4X-L-RF
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us
Same Day Shipping - Arrives in 3-5 Business Days 30-day Returns Overview

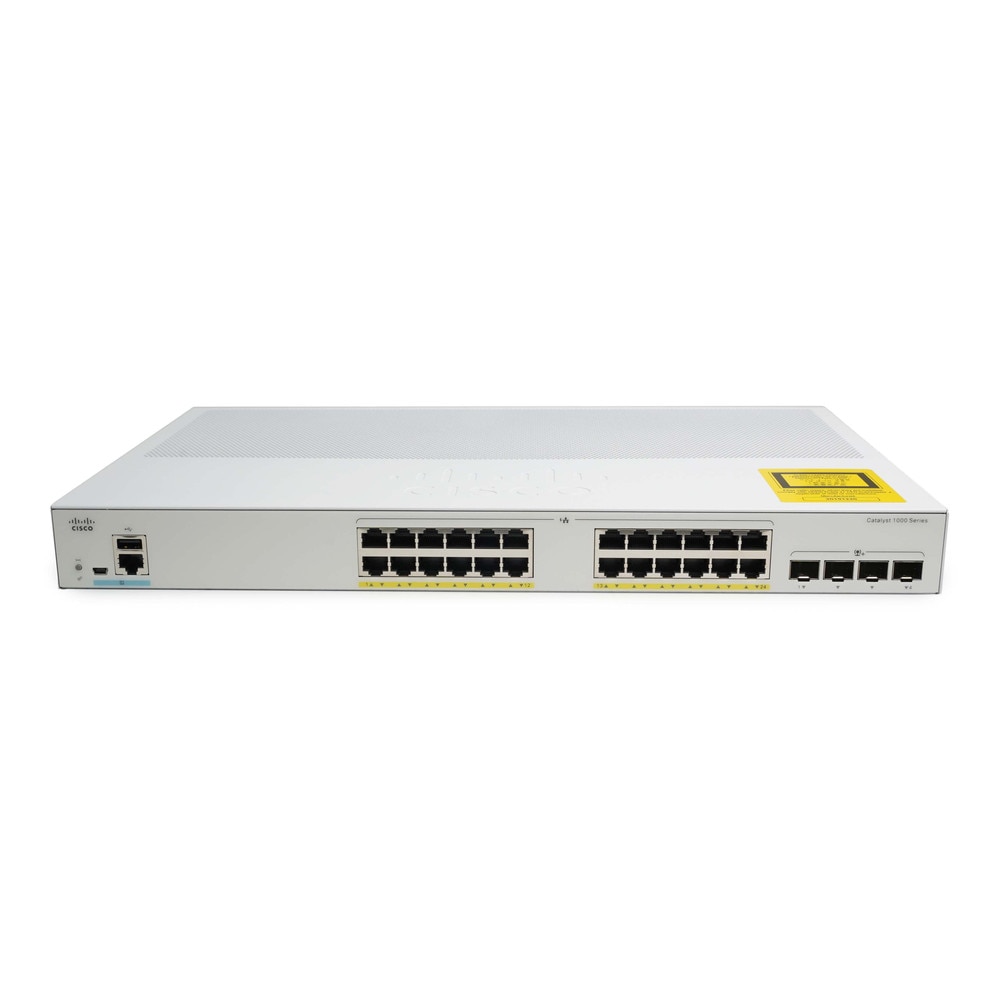

Overview of Cisco Catalyst C1000-24P-4X-L 24-Port Ethernet Managed Switch | Refresh
The Cisco Catalyst 1000-24P-4X-L 24-Port Ethernet Managed Switch (C1000-24P-4X-L) is an enterprise-class fixed managed Gigabit Ethernet Layer 2 switch designed for small businesses and branch offices. This simple, flexible, and secure network switch is ideal for critical IoT (Internet of Things) deployments. It operates on Cisco IOS Software and features a CLI (command-line interface) as well as an intuitive web user interface.
Key Features of Cisco Catalyst 1000-24P-4X-L 24-Port Ethernet Managed Switch
24 Gigabit Ethernet data or PoE+ ports with line-rate forwarding
4 fixed 1 Gigabit Ethernet Small Form-Factor Pluggable (SFP)/RJ 45 Combo uplinks or 4 fixed 0 Gigabit Ethernet Enhanced SFP (SFP+) uplinks
Perpetual PoE+ support with a power budget of up to 740W
CLI and/or intuitive web UI manageability options
Network monitoring through sampled flow (sFlow)
Security with 802.1X support for connected devices, Switched Port Analyzer (SPAN), and Bridge Protocol Data Unit (BPDU) Guard
Compact fanless models available with a depth of less than 13 inches (33 cm)
Device management support with over-the-air access via Bluetooth, Simple Network Management Protocol (SNMP), RJ-45, or USB console access
Reliability with a higher Mean Time Between Failures (MTBF) and an enhanced limited lifetime warranty support(E-LLW)
Specifications
Specification for Cisco Catalyst C1000-24P-4X-L 24-Port Ethernet Managed Switch | Refresh
| Manufacturer | Cisco |
| Manufacturer Part Number | C1000-24P-4X-L |
| Product Name | Cisco Catalyst C1000-24P-4X-L 24-Port Ethernet Managed Switch |
| Product Type | Networking Switch |
Enclosure Type | Rack-mountable |
Subtype | Gigabit Ethernet |
Ports | 13 x 10/100/1000 (PoE+) + 11 x 10/100/1000 + 4 x 10 Gigabit SFP+ (uplink) |
Power Over Ethernet (PoE) | PoE+ |
PoE Budget | 195 W |
Performance | Forwarding bandwidth: 64 Gbps ¦ Switching bandwidth: 128 Gbps ¦ Forwarding rate (64‑byte L3 packets): 41.67 Mpps |
Capacity | Unicast MAC addresses: 15360 ¦ IPv4 unicast direct routes: 542 ¦ IPv4 unicast indirect routes: 256 ¦ IPv6 unicast direct routes: 414 ¦ IPv6 unicast indirect routes: 128 ¦ IPv4 routes (static): 16 ¦ IPv6 routes (static): 16 ¦ IPv4 routes (Multicast): 1024 ¦ IPv6 groups (Multicast): 1024 ¦ IPv4/MAC security ACEs: 600 ¦ IPv6 security ACEs: 600 ¦ Active VLANs: 256 ¦ VLAN IDs: 4094 ¦ STP instances: 64 ¦ SPAN sessions: 4 ¦ MTU-L3 packet: 9198 byte |
Jumbo Frame Support | 10240 bytes |
Routing Protocol | IGMP, MLDv2, MLD, MSTP, RSTP, STP |
Remote Management Protocol | SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, SSH-2, CLI, NTP, ICMP, DHCP, RSTP, TACACS+, RADIUS |
Authentication Method | Kerberos, Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
Features | BOOTP support, ARP support, auto-uplink (auto MDI/MDI-X), Intrusion Detection System (IDS), Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Dying Gasp support, sFlow, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), fanless, Shaped Round Robin (SRR), LACP support, LLDP support, MAC Address Notification, Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), 802.1x authentication, DiffServ Code Point (DSCP) support, IGMP filtering, IP source guard, Weighted Tail Drop (WTD), SmartPort technology, VLAN Trunking Protocol (VTP), Spanning-tree Root Guard (STRG), Authentication, Authorization and Accounting (AAA), User Datagram Protocol (UDP), proxy ARP, Switched Port Analyzer (SPAN), loopback detection, MAC Access Bypass (MAB), BPDU Guard, Network Edge Access Topology (NEAT) |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, Bluetooth 4.0, IEEE 802.1AX |
Processor | X ARM: 800 MHz |
RAM | 512 MB |
Flash Memory | 256 MB |
Status Indicators | Status |
Interfaces | 13 x 1000Base-T RJ-45 PoE+ - 15 W ¦ 11 x 1000Base-T RJ-45 ¦ 4 x 10GBase-X SFP+ uplink ¦ 1 x management RJ-45 ¦ 1 x mini-USB Type B ¦ 1 x USB Type A |
Power Device | Internal power supply |
Installed Qty | 1 |
Voltage Required | AC 120/230 V (50 - 60 Hz) |
MTBF | 2,026,793 hours |
Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, EN 61000-4-5, RoHS, UL 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2011/65/EU, VCCI Class A, KN24, KN22 Class A, EN 55022 Class A, FCC CFR47 Part 15 A, CNS 13438 Class A, EN 300 386, CAN/CSA-C22.2 No. 60950-1-07 Second Edition, AS/NZS CISPR22 Class A |
Width | 17.5 in |
Depth | 11.8 in |
Height | 1.7 in |
Weight | 8.11 lbs |
Service & Support | Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - consulting - 90 days |
Min Operating Temperature | 23 °F |
Max Operating Temperature | 122 °F |
Humidity Range Operating | 5 - 90% |
Min Storage Temperature | -13 °F |
Max Storage Temperature | 158 °F |
Humidity Range Storage | 5 - 95% |
User Guides
Frequently Asked Questions
Cisco Catalyst C1000-24P-4X-L 24-Port Ethernet Managed Switch
Frequently Asked Questions (FAQ's)
What are the key features of the Cisco Catalyst C1000-24P-4X-L Switch? The switch offers 24 Gigabit Ethernet ports, full Power over Ethernet (PoE+), four 10G SFP+ uplinks, advanced security features, and Layer 2 switching.
How many PoE+ ports are available on the Cisco Catalyst C1000-24P-4X-L? All 24 ports support PoE+, delivering up to 370W of power to connected devices like IP phones and access points.
Does the Cisco Catalyst C1000-24P-4X-L support 10G uplinks? Yes, it provides four 10G SFP+ uplink ports for high-speed data transmission.
What is the total switching capacity of the Cisco Catalyst C1000-24P-4X-L? The switch offers a switching capacity of 56 Gbps, ensuring smooth network performance.
Can the Cisco Catalyst C1000-24P-4X-L be used in small to medium-sized businesses? Yes, it is designed to meet the needs of small to medium-sized businesses, providing enterprise-grade performance and security.
Is the Cisco Catalyst C1000-24P-4X-L switch stackable? No, the C1000 series switches are not stackable. However, they are suitable for standalone deployments.
What is the power consumption of the Cisco Catalyst C1000-24P-4X-L switch? The switch has a typical power consumption of 18W, with PoE power consumption depending on connected devices.
Does the Cisco Catalyst C1000-24P-4X-L support VLANs? Yes, it supports up to 256 VLANs, allowing segmentation of the network for better management and security.
What security features are included in the Cisco Catalyst C1000-24P-4X-L? The switch includes security features such as IEEE 802.1X, Port Security, and Access Control Lists (ACLs) to enhance network security.
Is the Cisco Catalyst C1000-24P-4X-L managed or unmanaged? It is a fully managed switch with an intuitive web-based user interface and CLI access for advanced configurations.
Can the Cisco Catalyst C1000-24P-4X-L support IP phones and wireless access points? Yes, with PoE+ support, it is ideal for powering IP phones, wireless access points, and other PoE-enabled devices.
Does the Cisco Catalyst C1000-24P-4X-L switch support QoS (Quality of Service)? Yes, it supports QoS to prioritize network traffic, ensuring smooth performance for voice, video, and critical data applications.

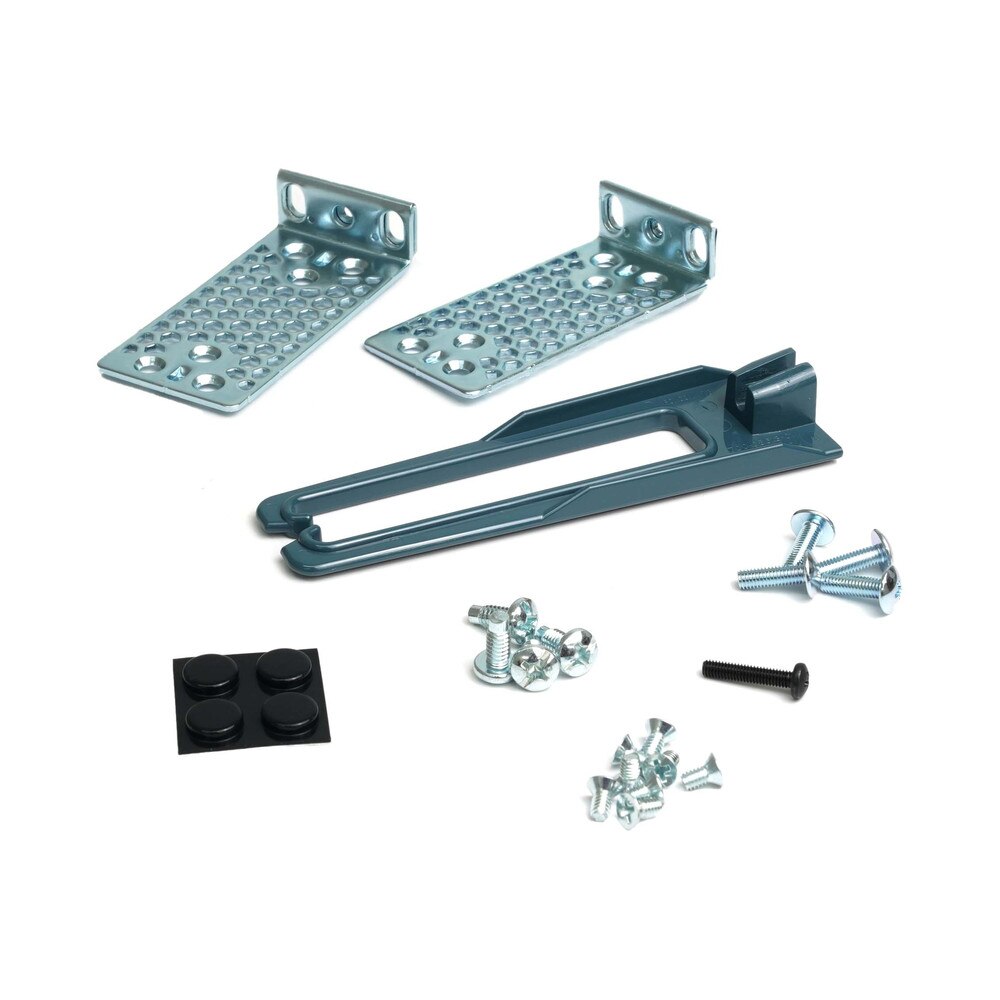

What mounting options are available for the Cisco Catalyst C1000-24P-4X-L? The switch can be rack-mounted using standard 19-inch racks and includes mounting brackets for easy installation.
What is the maximum power output per PoE+ port on the Cisco Catalyst C1000-24P-4X-L? Each PoE+ port can deliver up to 30W of power to connected devices.
Does the Cisco Catalyst C1000-24P-4X-L support IPv6? Yes, it supports both IPv4 and IPv6, ensuring compatibility with modern networking standards.
What is the operating temperature range of the Cisco Catalyst C1000-24P-4X-L? The switch operates within a temperature range of 0°C to 50°C (32°F to 122°F).
How can I manage the Cisco Catalyst C1000-24P-4X-L remotely? You can manage the switch remotely through Cisco's web-based user interface, CLI, or Simple Network Management Protocol (SNMP).
What type of traffic monitoring is available on the Cisco Catalyst C1000-24P-4X-L? The switch supports traffic monitoring features like Cisco’s Switched Port Analyzer (SPAN) and Remote SPAN (RSPAN).
What is the forwarding rate of the Cisco Catalyst C1000-24P-4X-L? The switch has a forwarding rate of up to 41.67 Mpps (million packets per second).
Does the Cisco Catalyst C1000-24P-4X-L support energy-saving features? Yes, it supports Energy Efficient Ethernet (EEE) to reduce power consumption during periods of low data activity.
