Overview

Overview of Cisco CBS350-8T-E-2G 8-Port Gigabit Managed Network Switch with SFP/RJ45 Combo (NA) | Refresh

The Cisco CBS350-8T-E-2G 8-Port Gigabit Managed Network Switch with SFP/RJ45 Combo (NA) is a high-performance managed network switch intended for small and medium-sized enterprises that want a reliable, secure, and scalable network solution. This adaptable switch combines advanced capabilities, various connectivity options, and simple management to enable modern corporate applications and future network development. The CBS350-8S-E-2G has 8 Gigabit SFP slots for connecting to a range of wired devices, including computers and network-attached storage. It also includes two Gigabit SFP/RJ45 combination ports for versatile uplink connectivity. This switch's 20 Gbps switching capacity and 14.88 Mpps forwarding rate provide smooth and efficient data transfer for your business-critical applications. It has an 800 MHz ARM processor and 512MB of RAM, which provides dependable performance and supports advanced Layer 2 and Layer 3 capabilities.


Key Features of Cisco CBS350-8T-E-2G 8-Port Gigabit Managed Network Switch with SFP/RJ45 Combo


8 Gigabit SFP ports for high-speed fiber connectivity

Two Gigabit SFP/RJ45 combo ports for versatile uplink options

20 Gbps switching capacity and 14.88 Mpps forwarding rate

• Advanced Layer 2 and Layer 3 features including static routing

True stacking capability for unified management of up to 4 switches

Robust security features including ACLs, 802.1X authentication, and DHCP snooping

• Energy-efficient design with Energy Efficient Ethernet (IEEE 802.3az) support

• Intuitive web-based interface and Cisco Business Dashboard for easy configuration

• Compact, fanless design for quiet operation in office environments

IPv6 support for future-proof networking


Benefits of Cisco CBS350-8T-E-2G 8-Port Gigabit Managed Network Switch with SFP/RJ45 Combo


🗹 Enhance network performance with Gigabit SFP connectivity

🗹 Improve network reliability with advanced QoS and security features

🗹 Simplify management and troubleshooting with true stacking capability

🗹 Ensure business continuity with robust security and high availability

🗹 Future-proof your investment with advanced Layer 3 features and IPv6 support

🗹 Optimize application performance with advanced traffic management

🗹 Reduce operational costs with energy-efficient design

🗹 Scale your network easily with flexible SFP/RJ45 combo uplink options

🗹 Deploy in various environments thanks to the compact, fanless design

🗹 Leverage Cisco's renowned quality and support for peace of mind

Specifications

Specifications for Cisco CBS350-8T-E-2G 8-Port Gigabit Managed Network Switch with SFP/RJ45 Combo (NA) | Refresh

ManufacturerCisco
Manufacturer Part NumberCBS350-8T-E-2G-NA-RF
Product NameCisco CBS350-8T-E-2G 8-Port Gigabit Managed Network Switch with SFP/RJ45 Combo
Product TypeNetworking Switch
Enclosure Type
Rack-mountable
Subtype
Gigabit Ethernet
Ports
8 x 10/100/1000 + 2 x combo Gigabit SFP
Performance
Switching capacity: 20 Gbps ¦ Forwarding performance (64-byte packet size): 14.88 Mpps
Capacity
RPVST+ instances: 126 ¦ MSTP instances: 8 ¦ VLANs supported: 4094 ¦ ACL rules: 1024 ¦ Buffer capacity (MB): 1.5
MAC Address Table Size
16K entries
Jumbo Frame Support
2KB
Max Units In A Stack
4
Routing Protocol
IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), MLDv2, MLD, CIDR, MSTP, RSTP, STP
Remote Management Protocol
SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RSTP, TACACS+, RADIUS
Encryption Algorithm
SSL
Authentication Method
Secure Shell (SSH), RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2)
Features
Flow control, BOOTP support, ARP support, VLAN support, Syslog support, DoS attack prevention, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, firmware upgradable, SNTP support, DHCP snooping, Quality of Service (QoS), DHCP server, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), reset button, STP Root Guard, Uni-Directional Link Detection (UDLD), fanless, LACP support, LLDP support, DHCP relay, Management Information Base (MIB), Multicast VLAN Registration (MVR), Generic VLAN Registration Protocol (GVRP), 802.1x authentication, Type of Service (ToS), DiffServ Code Point (DSCP) support, cable test, IP source guard, SmartPort technology, dual image support, DNS client, Secure Core Technology (SCT), Private VLAN Edge (PVE), LLDP-MED, IP/Mac/Port Binding (IPMB), Secure Sensitive Data (SSD), ISATAP tunnel support, RA guard, User Datagram Protocol (UDP), Weighted Round Robin (WRR), Head-of-line (HOL) Blocking Prevention, loopback detection, Unknown Storm Control, BPDU Guard, Link Aggregation Group (LAG), Voice Services Discovery Protocol (VSDP), Rapid PVST+ (RPVST+), Duplicate Address Detection (DAD)
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3az
Processor
X ARM: 800 MHz
RAM
512 MB
Flash Memory
256 MB
Status Indicators
Status, link/activity/speed
Interfaces
8 x 10/100/1000 Base-T RJ-45 ¦ 2 x 1000Base-T / 1000Base-X RJ-45/SFP ¦ 1 x console (mini-USB) Type B ¦ 1 x USB Type A ¦ 1 x console RJ-45

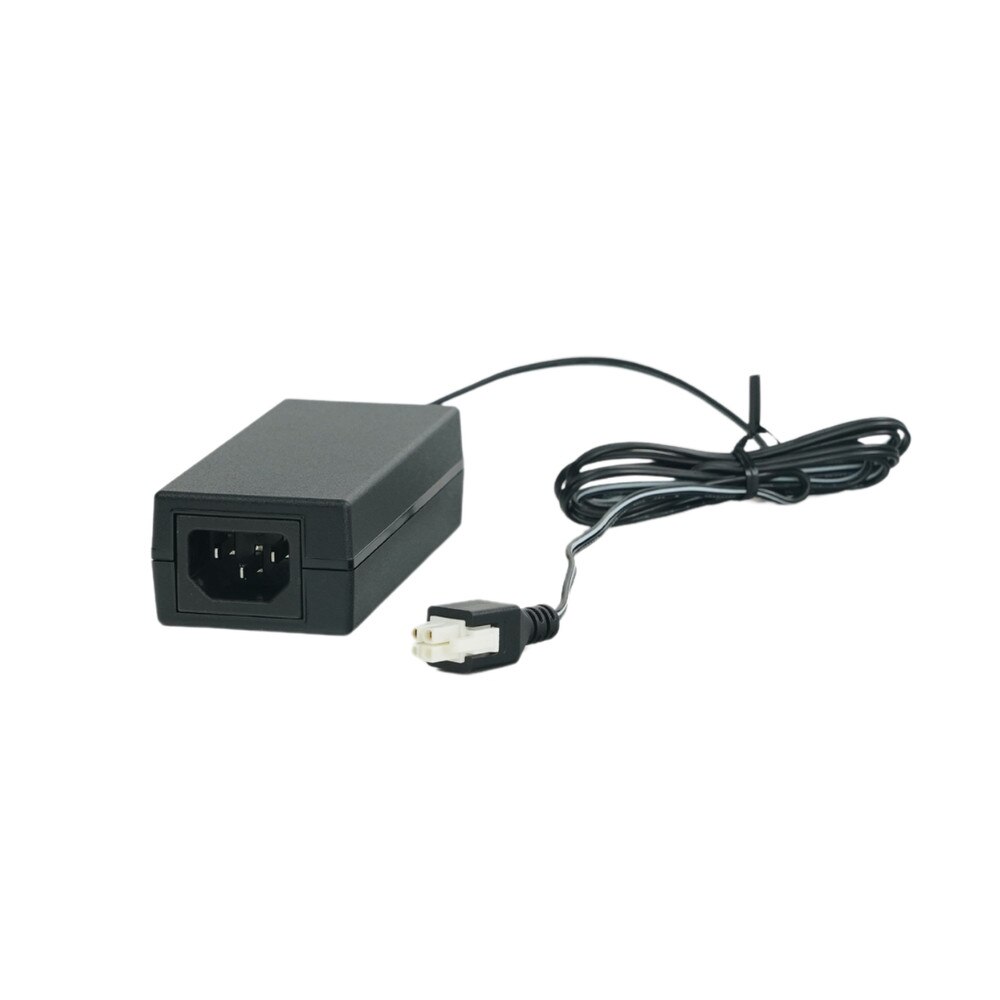

Power Device
External power adapter
Voltage Required
AC 120/230 V (50/60 Hz)
Power Consumption Operational
12.56 Watt

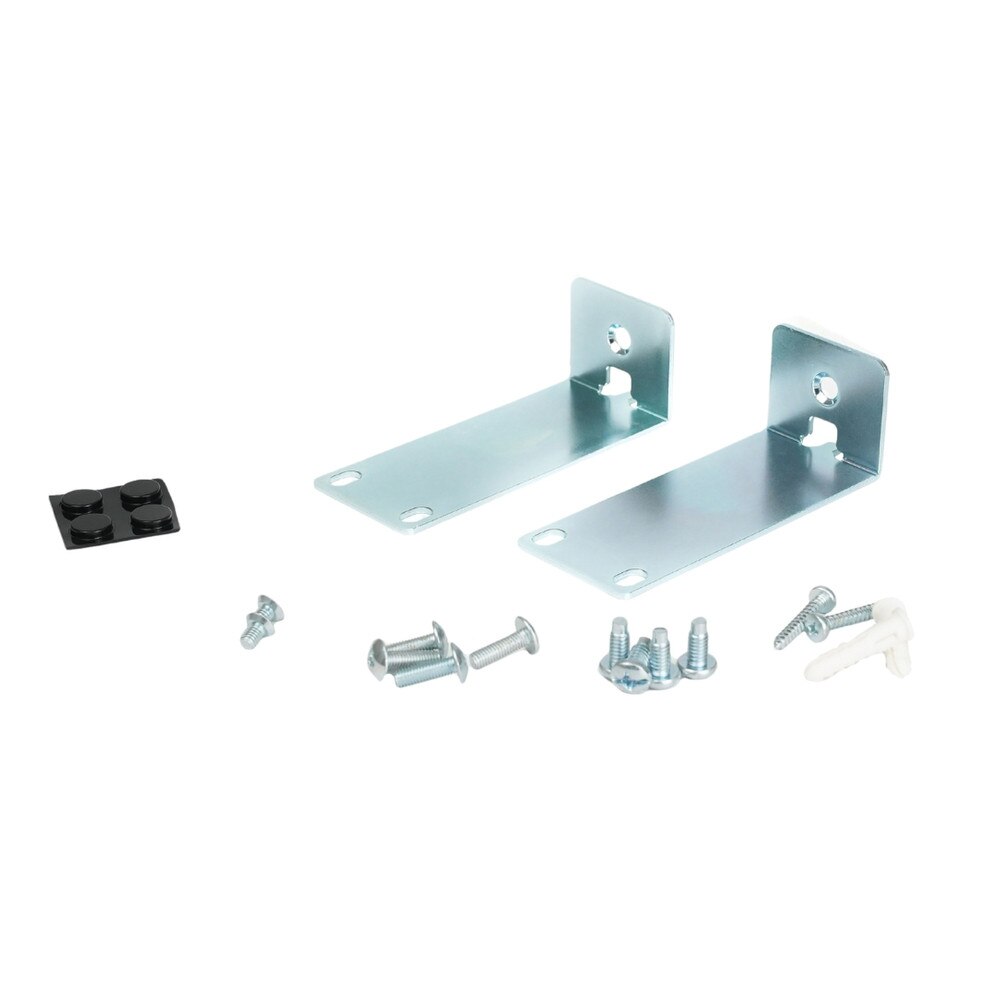

Rack Mounting Kit
Included
MTBF
2,171,669 hours
Compliant Standards
UL 60950, CSA 22.2, FCC CFR47 Part 15 B Class A, USGv6
Localization
Colombia, Canada, Chile, Mexico, Latin America, United States
Width
10.6 in
Depth
7.3 in
Height
1.7 in
Weight
3.75 lbs
Service & Support
Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - web support - 1 year ¦ Technical support - phone consulting - 1 year
Min Operating Temperature
23 °F
Max Operating Temperature
122 °F
Humidity Range Operating
10 - 90% (non-condensing)
Min Storage Temperature
-13 °F
Max Storage Temperature
158 °F
Humidity Range Storage
10 - 90% (non-condensing)

User Guides

Frequently Asked Questions

Cisco CBS350-8T-E-2G 8-Port Gigabit Managed Network Switch with SFP/RJ45 Combo
Frequently Asked Questions (FAQ's)



What are the main features of the Cisco CBS350-8T-E-2G switch?
  • The switch offers 8 Gigabit Ethernet ports, 2 combo Gigabit SFP ports, advanced security features, Layer 2 and Layer 3 functionalities, and energy-efficient technologies.
  • What is the maximum data transfer rate of the switch?
  • The maximum data transfer rate is 1 Gbps per port.
  • Does the switch support PoE (Power over Ethernet)?
  • No, the CBS350-8T-E-2G model does not support PoE.
  • What management options are available for this switch?
  • The switch can be managed via a web-based interface, CLI, SNMP, and Cisco's FindIT Network Management platform.
  • Can the switch be integrated into a larger network with other Cisco devices?
  • Yes, the switch is designed to integrate seamlessly with other Cisco devices and network management tools.
  • What is the power consumption of the switch?
  • The power consumption is approximately 8.9 watts.
  • Does the switch support VLANs (Virtual Local Area Networks)?
  • Yes, the switch supports VLANs, including voice VLANs and private VLANs.
  • What security features are included in the switch?
  • The switch includes features such as port security, DHCP snooping, IP-MAC binding, 802.1X authentication, and access control lists (ACLs).
  • How many MAC addresses can the switch handle?
  • The switch can handle up to 16,000 MAC addresses.
  • What type of QoS (Quality of Service) features are available?
  • The switch supports advanced QoS features including traffic prioritization, bandwidth management, and traffic shaping.
  • Can the switch be mounted on a rack?
  • Yes, the switch can be mounted on a rack using an optional rack-mount kit.
  • What are the dimensions and weight of the switch?
  • The switch measures 1.73 x 10.55 x 6.73 inches (H x W x D) and weighs approximately 2.5 pounds.
  • Does the switch support stacking?
  • No, this model does not support stacking.
  • Is IPv6 supported on the switch?
  • Yes, the switch supports both IPv4 and IPv6.
  • What are the combo ports used for?
  • The combo ports can be used for either Gigabit Ethernet or SFP connections, providing flexibility for network expansion.
  • Does the switch have energy-efficient features?
  • Yes, it supports Energy Efficient Ethernet (EEE) and has power-saving features.
  • What type of cables are recommended for use with this switch?
  • The switch supports Cat5e or higher cables for copper connections and compatible SFP modules for fiber connections.
  • Is there a console port on the switch for management?
  • Yes, the switch includes a console port for CLI management.
  • What is the switching capacity of the Cisco CBS350-8T-E-2G switch?
  • The switch has a switching capacity of 20 Gbps.
  • Can this switch be managed remotely?
  • Yes, it supports both cloud and on-premise management through Cisco's intuitive dashboard.
