  • Cisco CBS350-8FP-2G 8-Port 2 Gigabit PoE+ Managed Network Switch with SFP+ (NA) | Refresh
Cisco CBS350-8FP-2G 8-Port 2 Gigabit PoE+ Managed Network Switch with SFP+ (NA) | Refresh

Cisco CBS350-8FP-2G 8-Port 2 Gigabit PoE+ Managed Network Switch with SFP+ (NA) | Refresh

SKU: CBS350-8FP-2G-NA-RF
(0)No Reviews yet

🗹 8 x PoE+ Gigabit Ports
🗹 2 x 1GbE SFP Ports
🗹 20 Gbs Switching Capacity
🗹 14.88 Mpps Forwarding Rate
🗹 800 MHz ARM Processor
🗹 512MB RAM
🗹 Rack-Mountable Design
🗹 120W Power Budget
🗹 Comprehensive Layer 2 & 3 Features
🗹 Works with Cisco Business Dashboard

Cisco Refresh offers fully remanufactured, Cisco Certified products with SmartNet eligibility (OEM Refurbished).

Clean Serial: YES

Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns
$159.99 $159.99
Available Quantity:
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

Overview for Cisco CBS350-8FP-2G 8-Port 2 Gigabit PoE+ Managed Network Switch with SFP+ (NA) | Refresh

The Cisco CBS350-8FP-2G 8-Port 2 Gigabit PoE+ Managed Network Switch with SFP+ is a high-performance managed network switch intended for small to medium-sized enterprises that require sophisticated networking features. This flexible switch has 8 Gigabit Ethernet ports with PoE+ compatibility and 2 combo Gigabit Ethernet/SFP ports, allowing for maximum flexibility in demanding network situations. The CBS350-8FP-2G provides enterprise-class capability in a compact form factor, due to its robust 120W PoE budget and 20 Gbps switching capacity. Its sophisticated Layer 2 and Layer 3 features, complete security capabilities, and user-friendly control interface make it an excellent choice for enterprises wishing to upgrade their network infrastructure.


Key Features of Cisco CBS350-8FP-2G 8-Port 2 Gigabit PoE+ Managed Network Switch with SFP+


• 8 Gigabit Ethernet ports provides high-speed connectivity for various devices across your network.

• 4 PoE+ ports delivers up to 120W of power to connected devices through Ethernet cables.

• 2 SFP+ uplink ports offers flexibility in connecting to other switches or devices for expanded capabilities.

• 20 Gbps switching capacity ensures optimal performance for bandwidth-intensive applications.

• Layer 2/3 capabilities supports advanced networking features like VLANs, static routing, and QoS for efficient traffic management.

• Cisco Business dashboard with user-friendly management interface for easy configuration and monitoring.

• Compact design is ideal for deployment in various environments including offices, retail locations, and classrooms.

Specifications

Specifications for Cisco CBS350-8FP-2G 8-Port 2 Gigabit PoE+ Managed Network Switch with SFP+ (NA) | Refresh

Manufacturer Cisco
Manufacturer Part Number CBS350-8FP-2G-NA-RF
Product Name Cisco CBS350-8FP-2G 8-Port 2 Gigabit PoE+ Managed Network Switch with SFP+
Product Type Networking Switch
Enclosure Type
Rack-mountable
Subtype
Gigabit Ethernet
Ports
8 x 10/100/1000 (PoE+) + 2 x combo Gigabit Ethernet/Gigabit SFP
Power Over Ethernet (PoE)
PoE+
PoE Budget
120 W
Performance
Switching capacity: 20 Gbps ¦ Forwarding performance (64-byte packet size): 14.88 Mpps
Capacity
Link aggregation groups: 8 ¦ VLANs supported: 4094 ¦ Buffer capacity (MB): 1.5 MB
MAC Address Table Size
16K entries
Jumbo Frame Support
2KB
Routing Protocol
IGMP, policy-based routing (PBR), CIDR
Remote Management Protocol
SNMP 1, RMON, SNMP 3, SNMP 2c, SSH, SSH-2, ICMP
Encryption Algorithm
SSL
Authentication Method
Secure Shell (SSH), RADIUS, TACACS+
Features
DHCP support, ARP support, VLAN support, DoS attack prevention, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, DHCP server, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), STP Root Guard, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), fanless, Multicast VLAN Registration (MVR), Dynamic VLAN Support (GVRP), Type of Service (ToS), Storm Control, IP source guard, Bridge protocol data unit (BPDU), Voice VLAN, Secure Core Technology (SCT), LLDP-MED, IP/Mac/Port Binding (IPMB), Secure Sensitive Data (SSD), Private VLAN, ISATAP tunnel support, STP loop guard, Weighted Round Robin (WRR), multiple tag protocol identifiers (TPID)
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3at, IEEE 802.3az
Processor
X ARM: 800 MHz
RAM
512 MB
Flash Memory
256 MB
Status Indicators
Status, link/activity
Interfaces
8 x 10/100/1000 Base-T RJ-45 PoE+ ¦ 2 x Gigabit LAN RJ-45/SFP ¦ 1 x console (USB) Type B ¦ 1 x USB Type A ¦ 1 x console RJ-45
Power Device
Internal power supply
Voltage Required
AC 120/230 V (50/60 Hz)

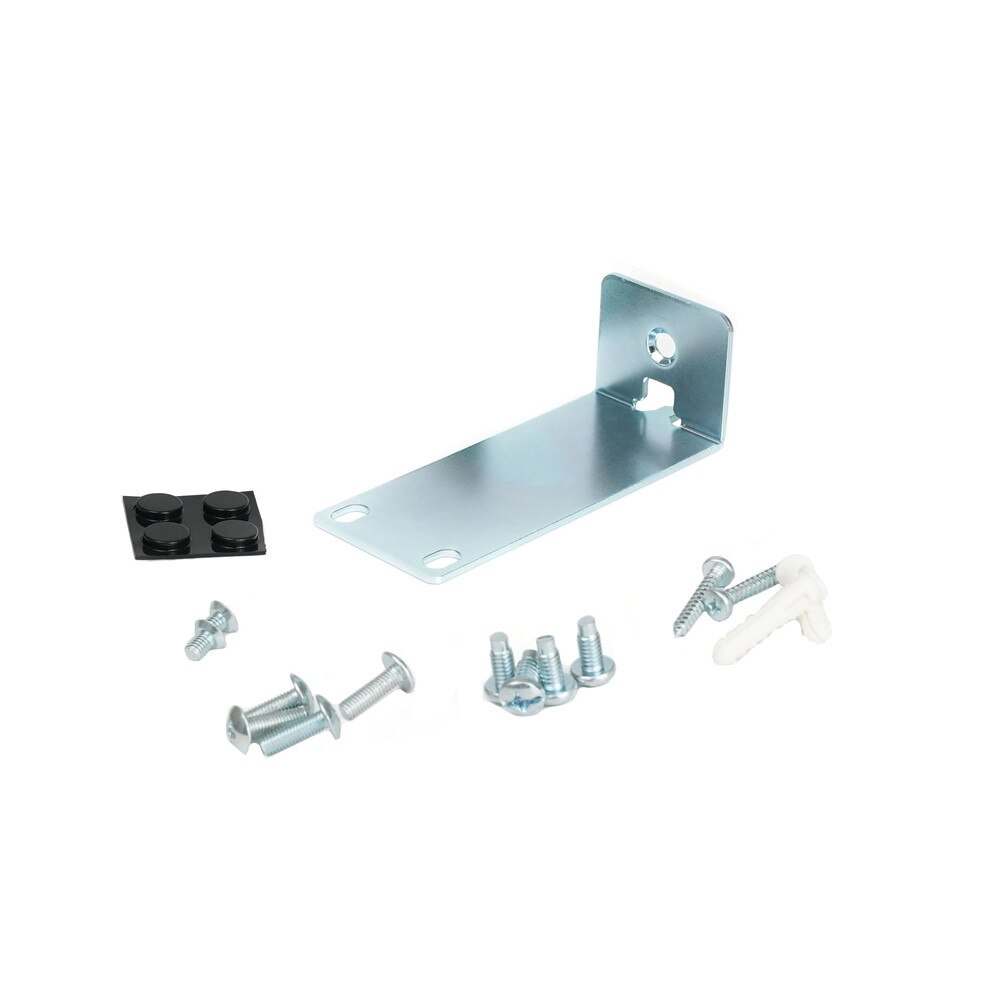

Rack Mounting Kit
Included
MTBF
1,786,412 hours
Compliant Standards
UL 60950, CSA C22.2, FCC CFR47, USGv6
Localization
Colombia, Canada, Chile, Mexico, Latin America, United States
Width
10.6 in
Depth
12.7 in
Height
1.7 in
Weight
7.72 lbs
Service & Support
Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - web support - 1 year ¦ Technical support - phone consulting - 1 year
Min Operating Temperature
23 °F
Max Operating Temperature
122 °F
Humidity Range Operating
10 - 90% (non-condensing)
Min Storage Temperature
-13 °F
Max Storage Temperature
158 °F
Humidity Range Storage
10 - 90% (non-condensing)

User Guides

Cisco CBS350-8FP-2G 8-Port 2 Gigabit PoE+ Managed Network Switch with SFP+ Data Sheet

Frequently Asked Questions

Cisco CBS350-8FP-2G 8-Port 2 Gigabit PoE+ Managed Network Switch with SFP+ (NA)
Frequently Asked Questions (FAQ's)



What is the Cisco CBS350-8FP-2G switch used for?
  • It has 8 Gigabit Ethernet ports with PoE+ and two SFP uplink ports for high-speed network connectivity and device power.
    • What is the power budget of the PoE+ on the CBS350-8FP-2G?
  • The total PoE power budget is 120W, which can deliver up to 30W per port to PoE-enabled devices.
    • What types of devices can be powered by the PoE+ ports?
  • The PoE+ ports can power IP phones, wireless access points, IP cameras, and other devices that support PoE.
    • Does this switch support Layer 3 routing?
  • Yes, the Cisco CBS350-8FP-2G can perform Layer 3 static routing.
    • How many uplink ports are available on this switch?
  • It is equipped with 2 dedicated Gigabit SFP uplink ports for fiber or copper connections.
    • What is the maximum throughput of the CBS350-8FP-2G switch?
  • The switch has a maximum switching speed of 20 Gbps.
    • Can the CBS350-8FP-2G be managed remotely?
  • Yes, it can be managed remotely using a web-based GUI, command-line interface, or SNMP.
    • Is this switch rack-mountable?
  • No, it is a compact desktop switch that is not intended for rack mounting.
    • Does the switch support VLANs?
  • Yes, it can handle up to 4,096 VLANs for network segmentation and security.
    • What security features are available on the CBS350-8FP-2G?
  • It includes advanced security features such as 802.1X authentication, port security, and access control lists (ACLs).
    • Does this switch support QoS (Quality of Service)?
  • Yes, it includes advanced QoS features that prioritize critical traffic like voice, video, and data.
    • Can the switch operate in both Layer 2 and Layer 3 modes?
  • Yes, it operates as a Layer 2 switch with Layer 3 static routing capabilities.
    • Does the switch support IPv6?
  • Yes, it fully supports IPv6.
    • What is the operating temperature range of the CBS350-8FP-2G?
  • It offers a web-based GUI, Command Line Interface (CLI), SNMP, and remote management.
    • Does the switch have fanless operation?
  • Yes, the Cisco CBS350-8FP-2G runs without fans, making it quiet and suitable for office use.
    • Does the Cisco CBS350-8FP-2G have Energy Efficient Ethernet (EEE) support?
  • Yes, it supports Energy Efficient Ethernet, which reduces power consumption during low traffic periods.
    • How many MAC addresses can the switch store?
  • It can store up to 16,000 MAC address entries.
    • Does the switch support link aggregation?
  • Yes, it supports link aggregation, which combines multiple ports for increased bandwidth.
    • Does the CBS350-8FP-2G support stacking?
  • No, this model does not support physical stacking. However, it can be managed as part of a virtual stack using Cisco management tools.
    • How many devices can be powered simultaneously using PoE+?
  • Depending on each device's power consumption, the switch can power up to four devices at the same time using the full 30W PoE+ power limit.
