Cisco Refresh offers fully remanufactured, Cisco Certified products with SmartNet eligibility (OEM Refurbished).
Clean Serial: YES
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us

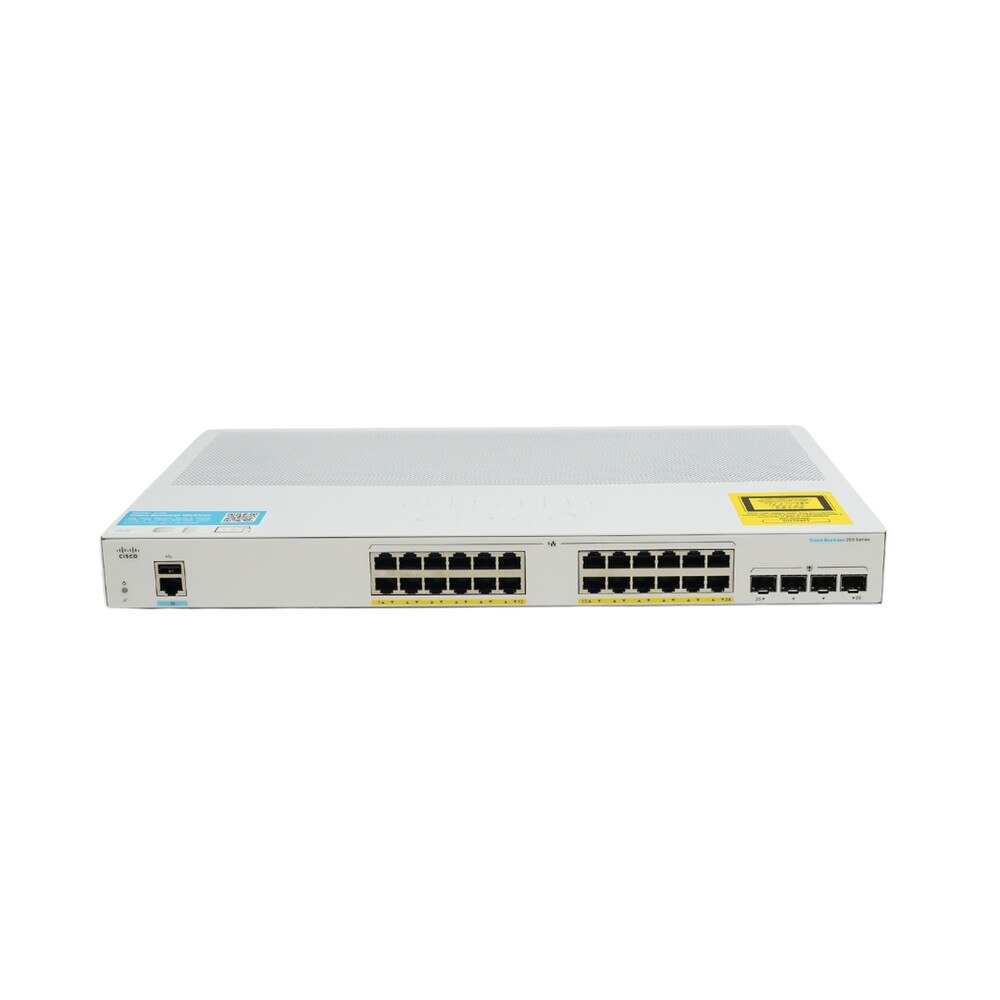

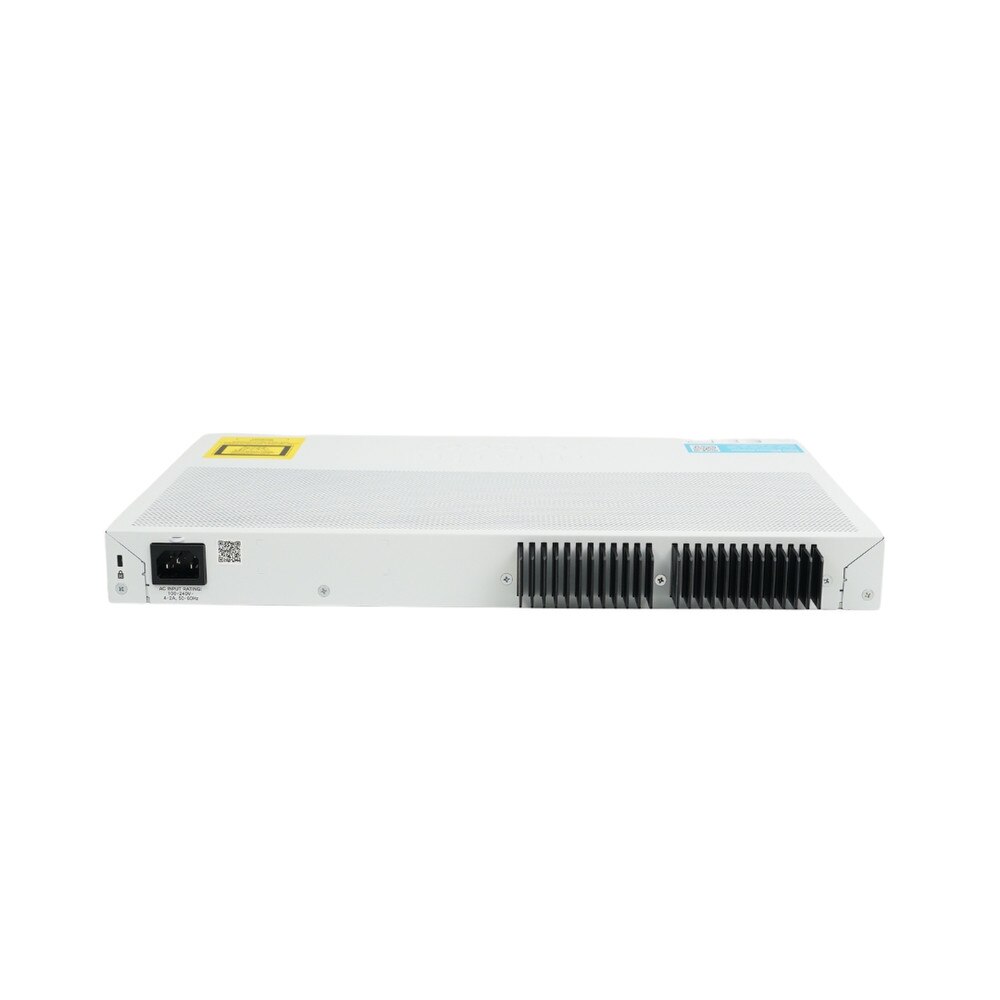

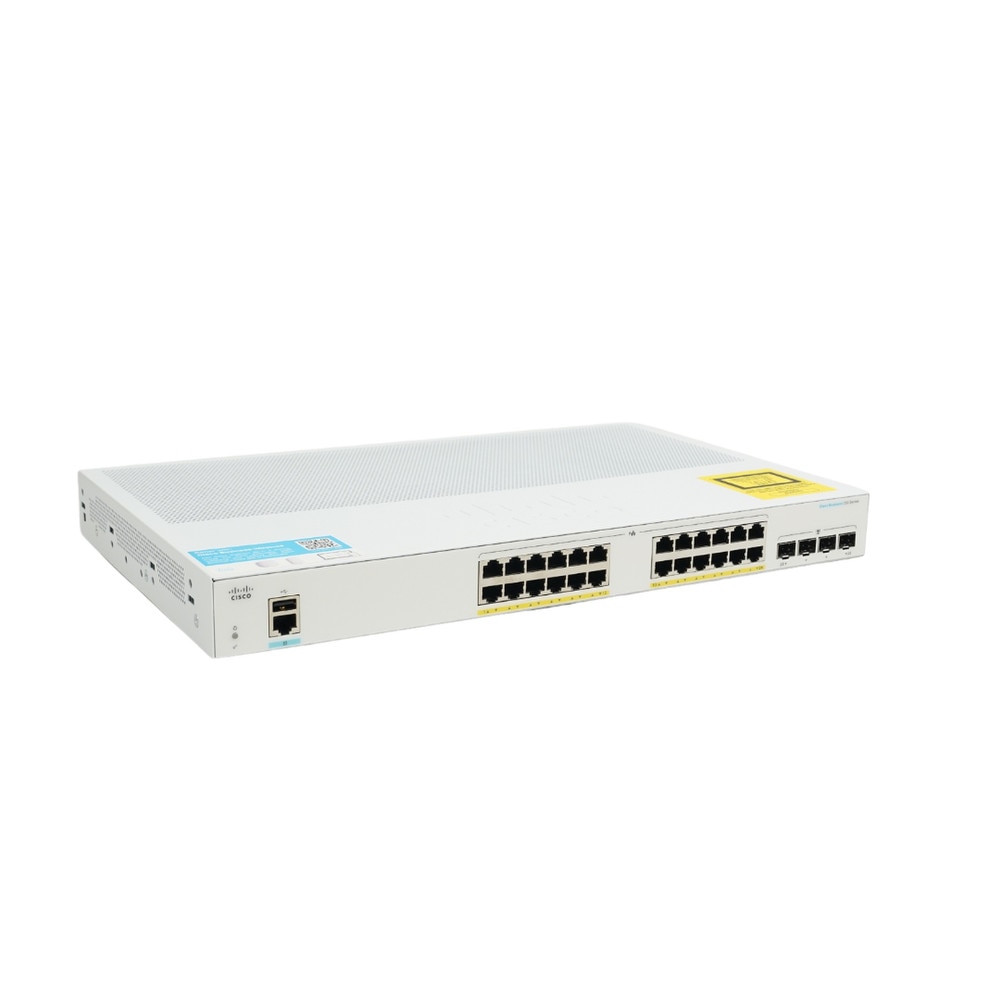

The Cisco CBS250-24PP-4G 24-Port Gigabit Ethernet PoE+ Smart Switch with SFP (NA) is a powerful smart switch intended for small and medium-sized enterprises that require a dependable, secure, and scalable network solution. This versatile switch combines advanced features, Power over Ethernet capabilities, and a variety of connectivity options to enable modern business applications and future network expansion. The CBS250-24PP-4G has 24 Gigabit Ethernet ports that support PoE+ and a huge 195W power budget, allowing you to power devices like IP phones, wireless access points, and security cameras directly via network cables. It also includes four Gigabit SFP connectors for fiber uplink connections, allowing for more flexible network expansion. With a switching capacity of 56 Gbps and a forwarding rate of 41.66 Mpps, this switch ensures seamless and efficient data transport for your mission-critical applications.
• 24 Gigabit Ethernet ports with PoE+ support (up to 30W per port)
• Four Gigabit SFP ports for fiber uplink connections
• 195W total PoE budget for powering multiple devices
• Advanced Layer 2 and basic Layer 3 features for efficient traffic management
• Intuitive web-based interface and Cisco Business Dashboard for easy configuration
• Robust security features including ACLs and 802.1X authentication
• Energy-efficient design with Energy Efficient Ethernet (EEE) support
• QoS capabilities for prioritizing critical network traffic
• IPv6 support for future-proof networking
🗹 Enhance network performance with Gigabit speeds and PoE+ support
🗹 Simplify deployment of IP phones, cameras, and wireless access points
🗹 Improve network reliability with advanced QoS and security features
🗹 Reduce operational costs with energy-efficient design
🗹 Scale your network easily with flexible SFP uplink options
🗹 Simplify management and troubleshooting with intuitive interfaces
🗹 Ensure business continuity with robust security and high availability
🗹 Future-proof your investment with IPv6 support and software updates
🗹 Optimize application performance with advanced traffic management
🗹 Leverage Cisco's renowned quality and support for peace of mind
| Manufacturer | Cisco |
| Manufacturer Part Number | CBS250-24PP-4G-NA-RF |
| Product Name | Cisco CBS250-24PP-4G 24-Port Gigabit Ethernet PoE+ Smart Switch with SFP |
| Product Type | Networking Switch |
Enclosure Type | Rack-mountable |
Subtype | Gigabit Ethernet |
Ports | 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP |
Power Over Ethernet (PoE) | PoE+ |
PoE Budget | 100 W |
Performance | Switching capacity: 56 Gbps ¦ Forwarding performance (64-byte packet size): 41.66 Mpps |
Capacity | Link aggregation groups: 8 ¦ VLANs supported: 4094 ¦ Buffer capacity (MB): 1.5 MB |
MAC Address Table Size | 8K entries |
Jumbo Frame Support | 2KB |
Routing Protocol | IGMP, policy-based routing (PBR), CIDR |
Remote Management Protocol | SNMP 1, RMON, SNMP 3, SNMP 2c, SSH, SSH-2, ICMP |
Encryption Algorithm | SSL |
Authentication Method | Secure Shell (SSH), RADIUS, TACACS+ |
Features | DHCP support, ARP support, VLAN support, DoS attack prevention, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, DHCP server, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), STP Root Guard, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), fanless, Multicast VLAN Registration (MVR), Dynamic VLAN Support (GVRP), Type of Service (ToS), Storm Control, IP source guard, Bridge protocol data unit (BPDU), Voice VLAN, Secure Core Technology (SCT), LLDP-MED, IP/Mac/Port Binding (IPMB), Secure Sensitive Data (SSD), Private VLAN, ISATAP tunnel support, STP loop guard, Weighted Round Robin (WRR), multiple tag protocol identifiers (TPID) |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3at, IEEE 802.3az |
Processor | X ARM: 800 MHz |
RAM | 512 MB |
Flash Memory | 256 MB |
Status Indicators | Status, PoE, link/activity |
Interfaces | 24 x 10/100/1000 Base-T RJ-45 PoE+ ¦ 4 x 1000Base-X SFP ¦ 1 x console (USB) Type B ¦ 1 x USB Type A ¦ 1 x console RJ-45 |
Power Device | Internal power supply |
Voltage Required | AC 120/230 V (50/60 Hz) |

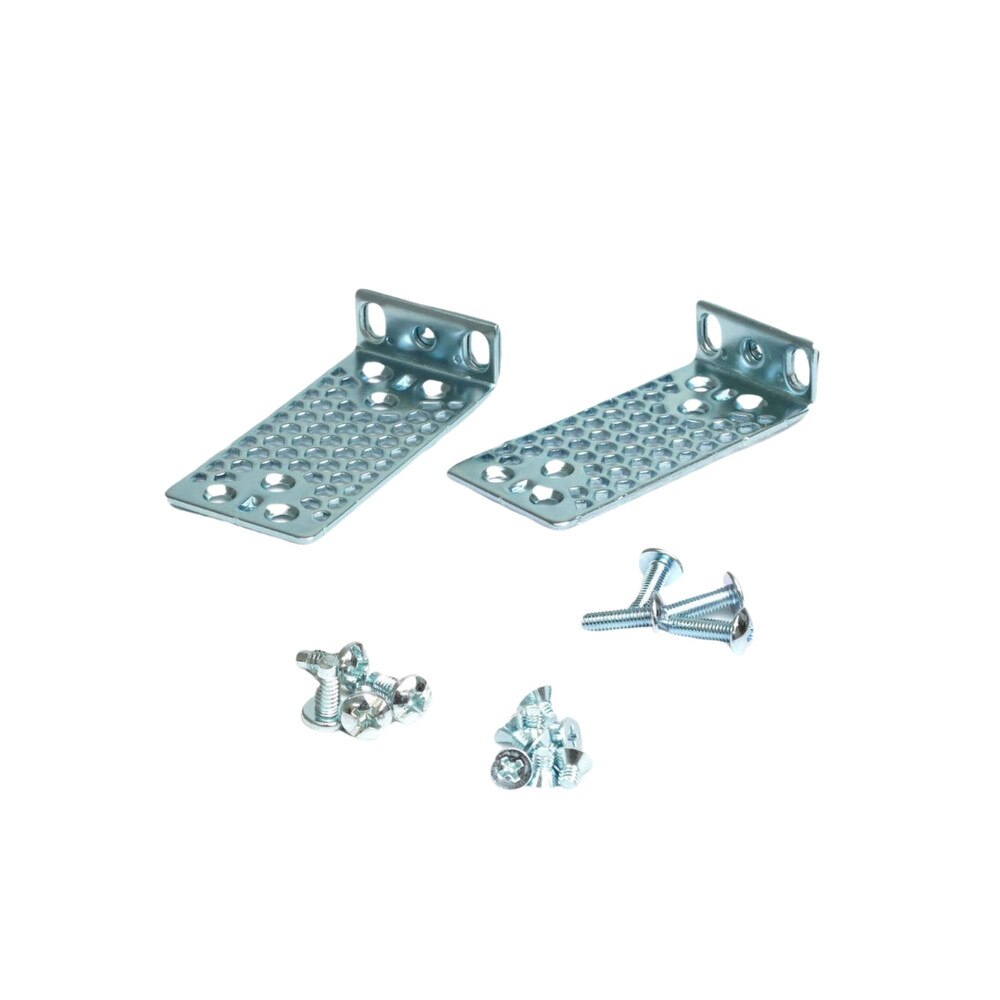

Rack Mounting Kit | Included |
MTBF | 698,220 hours |
Compliant Standards | UL 60950, CSA C22.2, FCC CFR47, USGv6 |
Localization | Colombia, Canada, Chile, Mexico, Latin America, United States |
Width | 17.5 in |
Depth | 11.8 in |
Height | 1.7 in |
Weight | 7.78 lbs |
Service & Support | Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - web support - 1 year ¦ Technical support - phone consulting - 1 year |
Min Operating Temperature | 23 °F |
Max Operating Temperature | 122 °F |
Humidity Range Operating | 10 - 90% (non-condensing) |
Min Storage Temperature | -13 °F |
Max Storage Temperature | 158 °F |
Humidity Range Storage | 10 - 90% (non-condensing) |
