Cisco CBS250-8PP-D 8-Port Gigabit PoE+ Managed Switch (NA) | Refresh

Cisco CBS250-8PP-D 8-Port Gigabit PoE+ Managed Switch (NA) | Refresh

SKU: CBS250-8PP-D-NA-RF
(0)No Reviews yet

🗹 8 x PoE+ Gigabit Ethernet Ports
🗹 16 Gbs Switching Capacity
🗹 11.9 Mpps Forwarding Rate
🗹 800 MHz ARM Processor
🗹 512MB RAM
🗹 45W Power Budget
🗹 Desktop Design
🗹 Comprehensive Layer 2 & 3 Features
🗹 Works with Cisco Business Dashboard

Cisco Refresh offers fully remanufactured, Cisco Certified products with SmartNet eligibility (OEM Refurbished).

Clean Serial: YES

Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns
$89.99 $89.99
Available Quantity:
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

Overview of Cisco CBS250-8PP-D 8-Port Gigabit PoE+ Managed Switch (NA) | Refresh

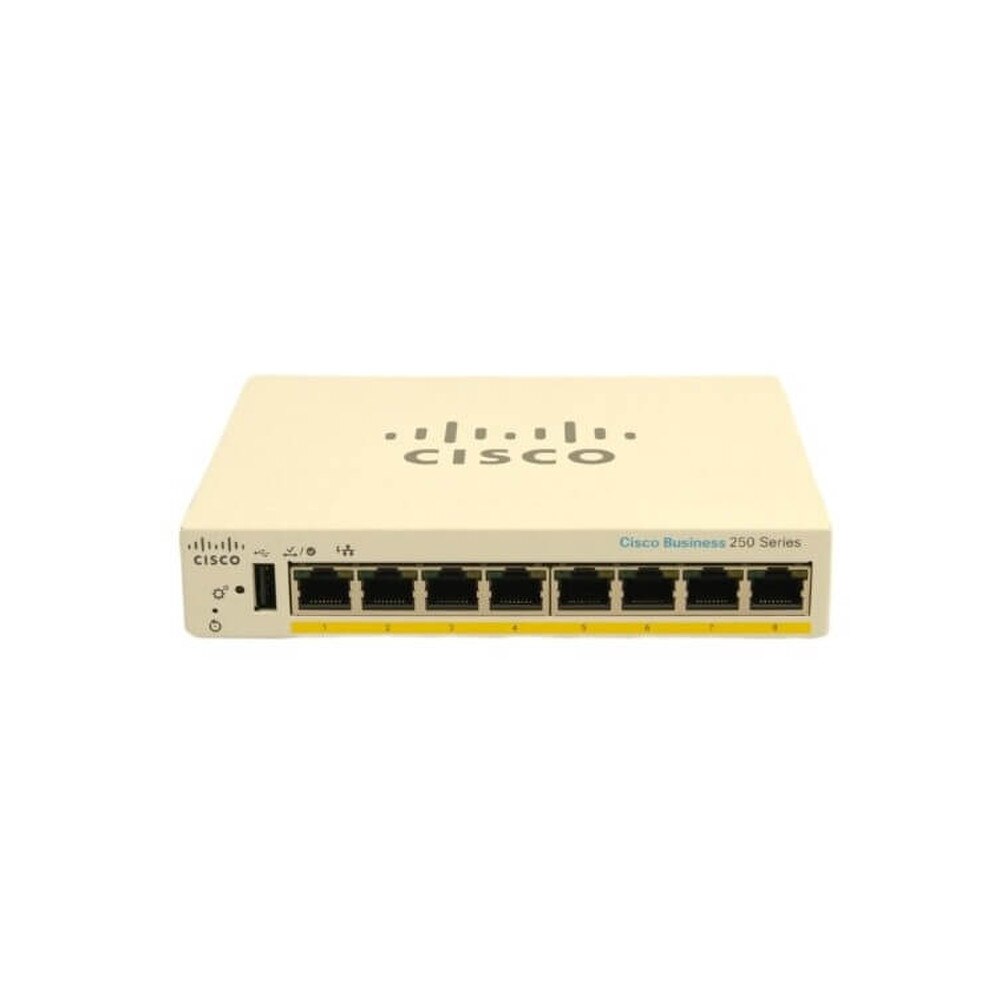

The Cisco CBS250-8PP-D 8-Port Gigabit PoE+ Managed Switch is a small but powerful managed switch built for small enterprises and remote offices who want enterprise-class features in a desktop package. This flexible switch has 8 Gigabit Ethernet ports with PoE+ functionality, allowing for both high-speed connectivity and power delivery to connected devices. With a 45W PoE budget and extensive control capabilities, the CBS250-8PP-D is ideal for deploying IP phones, cameras, and wireless access points in small office settings. Its strong Layer 2 and minimal Layer 3 features, combined with simple control choices, make it an excellent choice for enterprises wishing to improve network speed and security.


Key Features of Cisco CBS250-8PP-D 8-Port Gigabit PoE+ Managed Switch


• 8 Gigabit Ethernet ports with PoE+ support (up to 30W per port)

• 45W total PoE budget for powering multiple devices

• 16 Gbps switching capacity for efficient data transfer

• Layer 2 and basic Layer 3 features including static routing

• Intuitive web-based interface for easy configuration and management

• Advanced security features including ACLs and 802.1X authentication

• Energy Efficient Ethernet (IEEE 802.3az) for reduced power consumption

• Quality of Service (QoS) for traffic prioritization

• VLAN support for network segmentation (up to 4,094 VLANs)

• IPv6 support for future-proof networking

• Fanless design for silent operation in office environments

• Compact desktop form factor with wall-mount option

• Auto Smartports for intelligent port configuration

• Limited lifetime warranty with next-business-day replacement

• Cisco FindIT Network Management for centralized control

Specifications

Specifications for Cisco CBS250-8PP-D 8-Port Gigabit PoE+ Managed Switch (NA) | Refresh

Manufacturer Cisco
Manufacturer Part Number CBS250-8PP-D-NA-RF
Product Name Cisco CBS250-8PP-D 8-Port Gigabit PoE+ Managed Switch
Product Type Networking Switch
Enclosure Type
Desktop
Subtype
Gigabit Ethernet
Ports
8 x 10/100/1000 (PoE+)
Power Over Ethernet (PoE)
PoE+
PoE Budget
45 W
Performance
Forwarding performance (64-byte packet size): 11.9 Mpps ¦ Switching capacity: 16 Gbps
Capacity
RPVST+ instances: 126 ¦ MSTP instances: 8 ¦ VLANs supported: 255 ¦ ACL rules: 512 ¦ Buffer capacity (MB): 1.5
MAC Address Table Size
8K entries
Jumbo Frame Support
2KB
Routing Protocol
IGMPv2, IGMP, IGMPv3, MLDv2, MLD, CIDR, MSTP, RSTP, STP
Remote Management Protocol
SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RSTP, RADIUS
Encryption Algorithm
SSL
Authentication Method
Secure Shell (SSH), RADIUS, Secure Shell v.2 (SSH2)
Features
Flow control, BOOTP support, VLAN support, Syslog support, port mirroring, Broadcast Storm Control, IPv6 support, Multicast Storm Control, firmware upgradable, SNTP support, DDos attack prevention, Quality of Service (QoS), DHCP server, Per-VLAN Spanning Tree Plus (PVST+), reset button, fanless, LACP support, LLDP support, DHCP relay, Port Security, DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), Neighbor Discovery Protocol (NDP), Generic Attribute Registration Protocol (GARP), Generic VLAN Registration Protocol (GVRP), 802.1x authentication, Duplicated Address Detection, Type of Service (ToS), DiffServ Code Point (DSCP) support, SmartPort technology, dual image support, VLAN mirroring, DNS client, Secure Core Technology (SCT), LLDP-MED, Head-of-line (HOL) blocking, Secure Sensitive Data (SSD), ISATAP tunnel support, User Datagram Protocol (UDP), STP loop guard, Denial of Service (DoS) protection, Weighted Round Robin (WRR), loopback detection, Unknown Storm Control, Link Aggregation Group (LAG), Voice Services Discovery Protocol (VSDP), Rapid PVST+ (RPVST+)
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
Processor
X ARM: 800 MHz
RAM
512 MB
Flash Memory
256 MB
Status Indicators
Status, PoE, link/activity/speed
Interfaces
8 x 10/100/1000 Base-T RJ-45 PoE+ ¦ 1 x USB Type A
Power Device

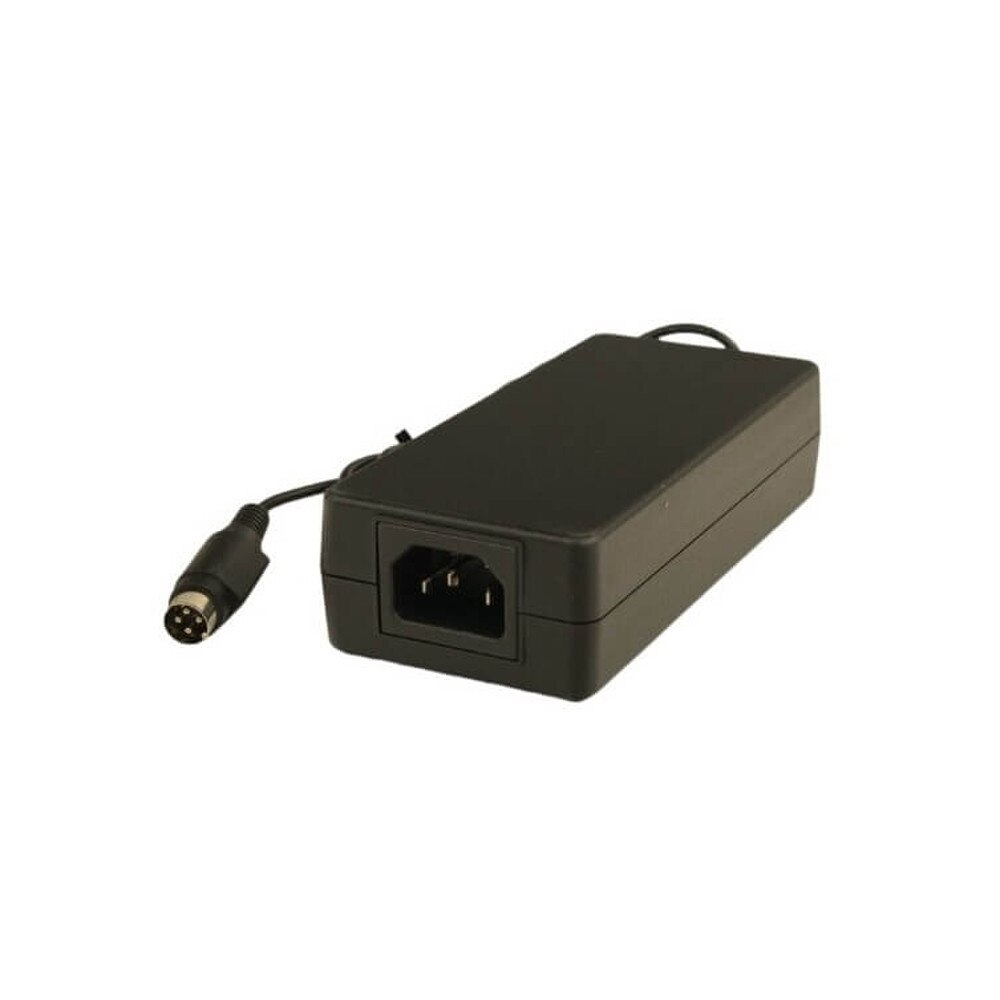

External power adapter
Voltage Required
AC 100-240 V (50/60 Hz)
Rack Mounting Kit
Included
MTBF
1,659,542 hours
Compliant Standards
UL 60950, CSA 22.2, FCC CFR47 Part 15 A, USGv6
Localization
Colombia, Canada, Chile, Mexico, Latin America, United States
Width
6.3 in
Depth
5 in
Height
1.2 in
Weight
19.75 oz
Service & Support
Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - web support - 1 year ¦ Technical support - phone consulting - 1 year
Min Operating Temperature
32 °F
Max Operating Temperature
122 °F
Humidity Range Operating
10 - 90% (non-condensing)
Min Storage Temperature
-13 °F
Max Storage Temperature
158 °F
Humidity Range Storage
10 - 90% (non-condensing)

User Guides

Cisco CBS250-8PP-D 8-Port Gigabit PoE+ Managed Switch Data Sheet

Frequently Asked Questions

Cisco CBS250-8PP-D 8-Port Gigabit PoE+ Managed Switch (NA)
Frequently Asked Questions (FAQ's)



What is the power output per PoE+ port?
  • Each PoE+ port may deliver up to 30W.
    • What is the total power budget for PoE on this switch?
  • The overall PoE power budget is 120 watts.
    • Does this switch support VLANs?
  • Yes, VLAN functionality is provided for network segmentation.
    • Is the Cisco CBS250-8PP-D managed or unmanaged?
  • This is a managed switch.
    • Can this switch be monitored remotely?
  • Yes, using the Cisco Business Dashboard and web-based interfaces.
    • What security features are available?
  • It covers port security, access control lists (ACLs), and more.
    • Does it support QoS (Quality of Service)?
  • Yes, QoS does prioritize vital traffic.
    • Is this switch suitable for small businesses?
  • Yes, it is specifically built for small and medium-sized organizations.
    • Can the switch be mounted?
  • Yes, it is compatible with both desktop and wall mounting.
    • Does it support Energy Efficient Ethernet (EEE)?
  • Yes, it is designed to be energy efficient.
    • What is the switching capacity of the CBS250-8PP-D?
  • The switch capacity is 16 Gbps.
    • How many devices can be powered simultaneously?
  • Up to eight PoE-compatible devices can be powered.
    • Does the switch support IPv6?
  • Yes, it has IPv6 support.
    • Does it support SNMP (Simple Network Management Protocol)?
  • Yes, SNMP is used for network monitoring.
    • Does it support link aggregation?
  • Yes, link aggregation is supported for greater bandwidth.
    • Is firmware upgradable?
  • Yes, firmware upgrades can be deployed using the administration interface.
    • What management interfaces are available?
  • The web-based interface and Cisco Business Dashboard are supported.
    • What operating temperatures are supported?
  • The switch operates in temperatures ranging from 32°F to 113°F (0°C to 45°C).
    • Can this switch be used in a network with multiple VLANs?
  • Yes, it can handle numerous VLAN configurations.
    • Does it include fanless operation?
  • Yes, it functions quietly thanks to its fanless design.
