Cisco CBS110-24T 24-Port Gigabit Ethernet Switch with 2 Gigabit SFP (NA) | Refresh

Cisco CBS110-24T 24-Port Gigabit Ethernet Switch with 2 Gigabit SFP (NA) | Refresh

SKU: CBS110-24T-NA-RF
(0)No Reviews yet

🗹 8x 1 Gigabit Ethernet PoE+ RJ-45
🗹 2x 1 Gigabit Ethernet Combo
🗹 67W PoE Budget
🗹 20 GbpsSwitching Capacity
🗹 14.88 MppsForwarding Rate
🗹 Fanless

Cisco Refresh offers fully remanufactured, Cisco Certified products with SmartNet eligibility (OEM Refurbished).


Clean Serial: YES

Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns
$79.99 $79.99
Available Quantity:
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

Overview for Cisco CBS110-24T 24-Port Gigabit Ethernet Switch with 2 Gigabit SFP (NA) | Refresh

The Cisco CBS110-24T 24-Port Gigabit Ethernet Switch with 2 Gigabit SFP is a high-performance unmanaged networking solution for small enterprises and residential offices. This versatile switch has 24 Gigabit Ethernet ports and two combo Gigabit SFP connectors, ensuring fast and dependable connectivity for your expanding network. The CBS110-24T is simple to install and does not require any configuration due to its plug-and-play nature. Its comprehensive features, including as QoS, loop detection, and energy efficiency, make it an excellent solution for enterprises wishing to improve network performance without increasing complexity.


Key Features of Cisco CBS110-24T 24-Port Gigabit Ethernet Switch with 2 Gigabit SFP


• 24 Gigabit Ethernet ports for high-speed connections

• 2 combo Gigabit SFP ports for fiber uplink options

• 48 Gbps switching capacity for efficient data transfer

• Energy Efficient Ethernet (IEEE 802.3az) for reduced power consumption

• Quality of Service (QoS) for traffic prioritization

• Loop detection to prevent network storms

• Cable diagnostics for easy troubleshooting

• 9216-byte jumbo frame support

• Auto MDI/MDI-X for simplified cable management

• Fanless design for quiet operation

• Compact form factor suitable for desktop, wall-mount, or rack-mount installation

• 8K MAC address table for improved network performance

• Head-of-line (HOL) blocking prevention

• Kensington security slot for physical security

• Limited lifetime warranty for peace of mind

Specifications

Specification for Cisco CBS110-24T 24-Port Gigabit Ethernet Switch with 2 Gigabit SFP (NA) | Refresh

Manufacturer Cisco
Manufacturer Part Number CBS110-24T-NA-RF
Product Name Cisco CBS110-24T 24-Port Gigabit Ethernet Switch with 2 Gigabit SFP
Product Type Networking Switch
Enclosure Type
Desktop, rack-mountable, wall-mountable
Subtype
Gigabit Ethernet
Ports
24 x 10/100/1000 + 2 x combo Gigabit SFP
Performance
Forwarding performance (64-byte packet size): 35.7 Mpps ¦ Switching capacity: 48 Gbps
Capacity
Buffer capacity (MB): 2
MAC Address Table Size
8K entries
Jumbo Frame Support
9216 bytes
Features
Flow control, auto-uplink (auto MDI/MDI-X), Quality of Service (QoS), Cable Diagnostics Function, fanless, Energy Efficient Ethernet, Head-of-line (HOL) blocking, Weighted Round Robin (WRR), loopback detection, security slot (Kensington security lock compatible)
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az
Processor
X ARM: 400 MHz
RAM
64 MB
Flash Memory
8 MB
Status Indicators
Power, link/activity
Interfaces
24 x 10/100/1000 Base-T RJ-45 ¦ 2 x 1000Base-T / 1000Base-X RJ-45/SFP
Power Device
Internal power supply
Voltage Required
AC 120/230 V (50/60 Hz)
Power Consumption Operational
16.34 Watt

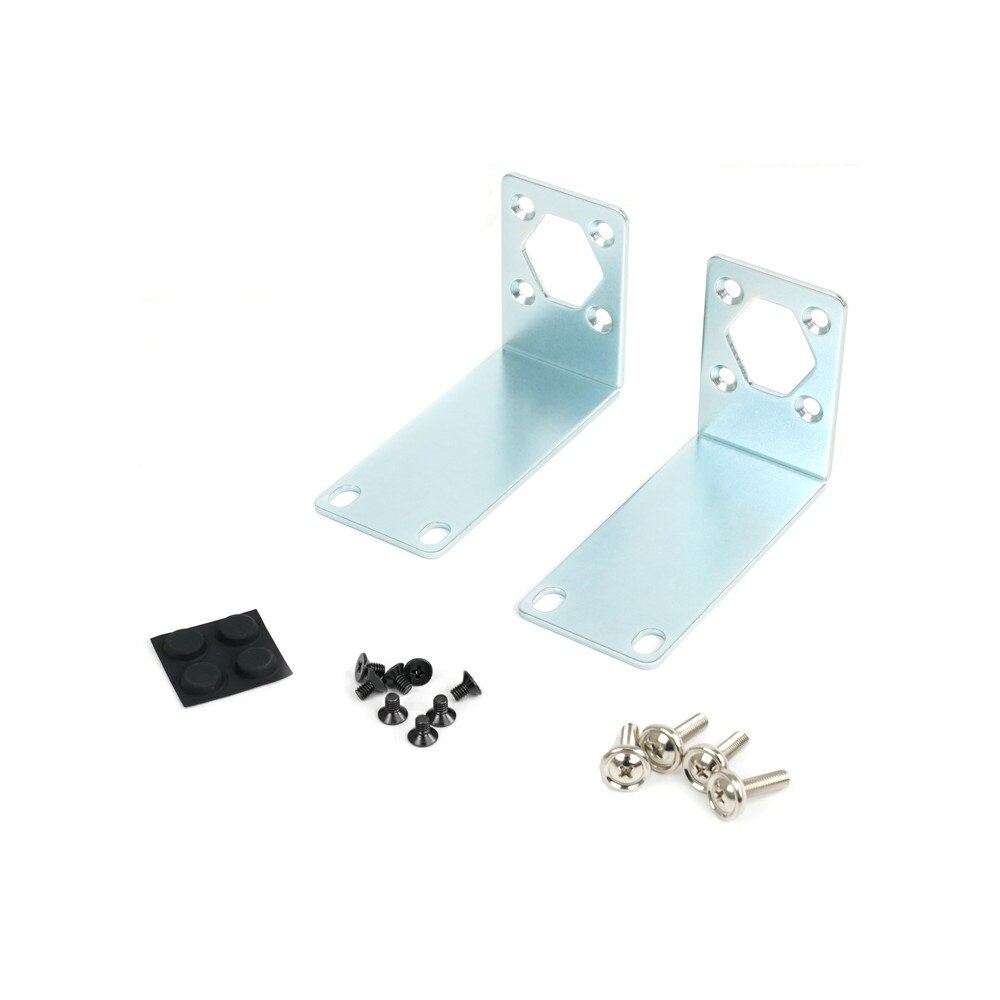

Included Accessories
Mounting kit
MTBF
524,296 hours
Compliant Standards
FCC Class B certified, UL 60950, CSA 22.2, FCC CFR47 Part 15 A
Width
11 in
Depth
6.7 in
Height
1.7 in
Weight
3.44 lbs
Service & Support
Limited warranty - lifetime ¦ Technical support - web support - 1 year ¦ Technical support - phone consulting - 1 year
Min Operating Temperature
32 °F
Max Operating Temperature
104 °F
Humidity Range Operating
10 - 90% (non-condensing)
Min Storage Temperature
-4 °F
Max Storage Temperature
158 °F
Humidity Range Storage
5 - 90% (non-condensing)

User Guides

Cisco CBS110-24T 24-Port Gigabit Ethernet Switch with 2 Gigabit SFP Data Sheet

Frequently Asked Questions

Cisco CBS110-24T 24-Port Gigabit Ethernet Switch with 2 Gigabit SFP (NA)
Frequently Asked Questions (FAQ's)



What type of switch is the Cisco CBS110-24T?
  • It is an unmanaged switch that enables plug-and-play connectivity without the requirement for configuration.
    • How many ports does the CBS110-24T have?
  • It has 24 gigabit Ethernet connections and two gigabit SFP uplink connectors.
    • Is the CBS110-24T suitable for small businesses?
  • Yes, it's great for small offices, workgroups, and expanding organizations that need consistent network connectivity.
    • Does the switch support Power over Ethernet (PoE)?
  • Unfortunately, this model does not support PoE.
    • What is the maximum data transfer rate of the CBS110-24T?
  • It offers up to 1 Gbps per port, allowing for high-speed network connections.
    • Can the CBS110-24T be mounted in a rack?
  • Yes, it is rack-mountable and may also be installed on a desktop or wall.
    • Is the switch energy efficient?
  • Yes, it supports Energy Efficient Ethernet (IEEE 802.3az), which reduces power usage.
    • Does the CBS110-24T require configuration?
  • No, this is a plug-and-play gadget that requires no configuration.
    • What is the switching capacity of the CBS110-24T?
  • It has a switch capacity of 48 Gbps.
    • Does the switch support Quality of Service (QoS)?
  • Yes, it incorporates QoS intelligence to improve delay-sensitive services.
    • Is the CBS110-24T fanless?
  • Yes, it functions silently and without fans, making it ideal for noise-sensitive areas.
    • What is the MAC address table size of the switch?
  • It can store up to 8,000 MAC address entries.
    • Does the switch support jumbo frames?
  • Yes, it can handle jumbo frames up to 9216 bytes.
    • What is the purpose of the 2 SFP ports on the CBS110-24T?
  • The SFP ports enable versatile uplink options for fiber or extra Ethernet connections, extending network reach.
    • Is there an audible alarm on the CBS110-24T?
  • No, the switch runs silently, with no alarms or sound signals.
    • Does the CBS110-24T support VLANs?
  • No, VLAN setup is not supported on an unmanaged switch.
    • How many devices can be connected to the CBS110-24T?
  • The Ethernet ports may connect up to 24 devices, with two SFP ports providing additional connections.
    • Is the switch compatible with IPv6?
  • Yes, it supports both IPv4 and IPv6 protocols.
    • Can the CBS110-24T be used in a home network?
  • Yes, it is suited for residential and small business networks with multiple wired connections.
    • Does the switch have loop detection features?
  • Yes, it contains loop detection to assist you avoid network loops.
