🗹 8x 1 Gigabit Ethernet PoE+ RJ-45
🗹 2x 1 Gigabit Ethernet Combo
🗹 67W PoE Budget
🗹 20 GbpsSwitching Capacity
🗹 14.88 MppsForwarding Rate
🗹 Fanless
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us
The Cisco CBS110-24T 24-Port Gigabit Ethernet Switch with 2 Gigabit SFP is a high-performance unmanaged networking solution for small enterprises and residential offices. This versatile switch has 24 Gigabit Ethernet ports and two combo Gigabit SFP connectors, ensuring fast and dependable connectivity for your expanding network. The CBS110-24T is simple to install and does not require any configuration due to its plug-and-play nature. Its comprehensive features, including as QoS, loop detection, and energy efficiency, make it an excellent solution for enterprises wishing to improve network performance without increasing complexity.
• 24 Gigabit Ethernet ports for high-speed connections
• 2 combo Gigabit SFP ports for fiber uplink options
• 48 Gbps switching capacity for efficient data transfer
• Energy Efficient Ethernet (IEEE 802.3az) for reduced power consumption
• Quality of Service (QoS) for traffic prioritization
• Loop detection to prevent network storms
• Cable diagnostics for easy troubleshooting
• 9216-byte jumbo frame support
• Auto MDI/MDI-X for simplified cable management
• Fanless design for quiet operation
• Compact form factor suitable for desktop, wall-mount, or rack-mount installation
• 8K MAC address table for improved network performance
• Head-of-line (HOL) blocking prevention
• Kensington security slot for physical security
• Limited lifetime warranty for peace of mind
| Manufacturer | Cisco |
| Manufacturer Part Number | CBS110-24T-NA |

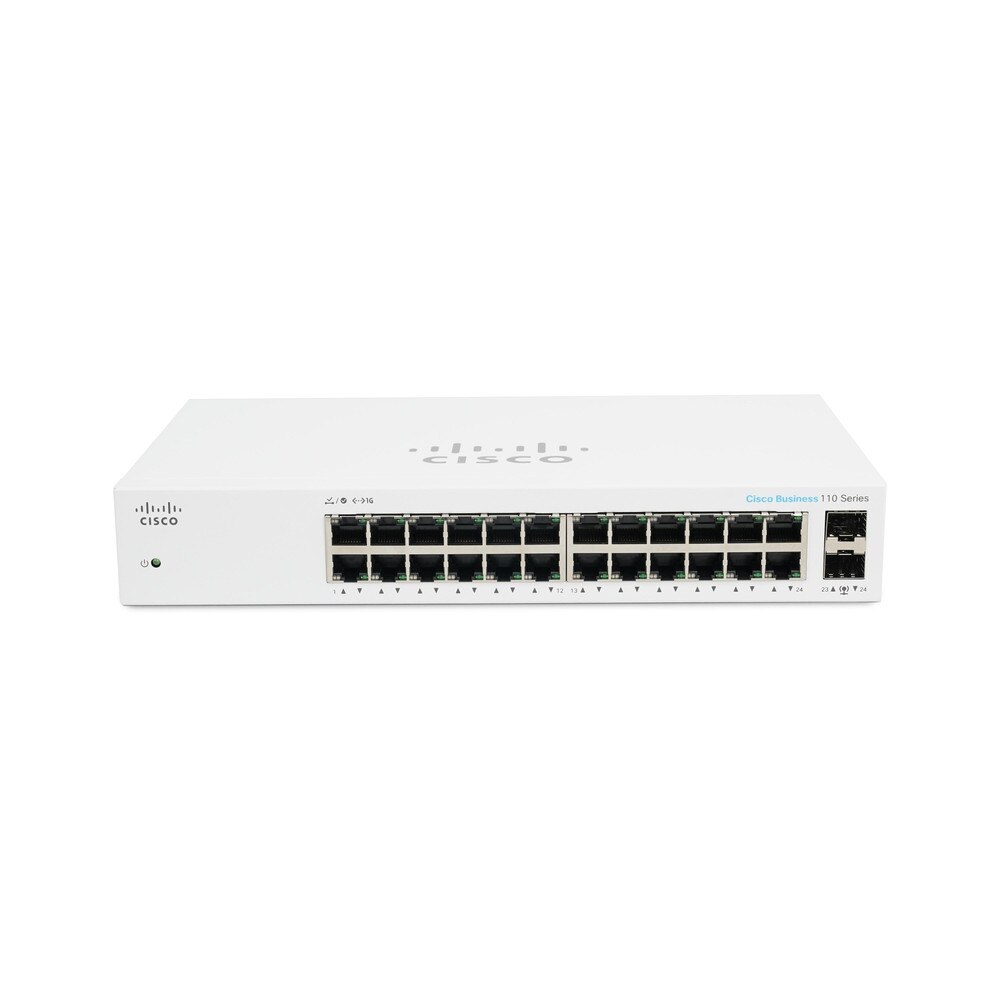

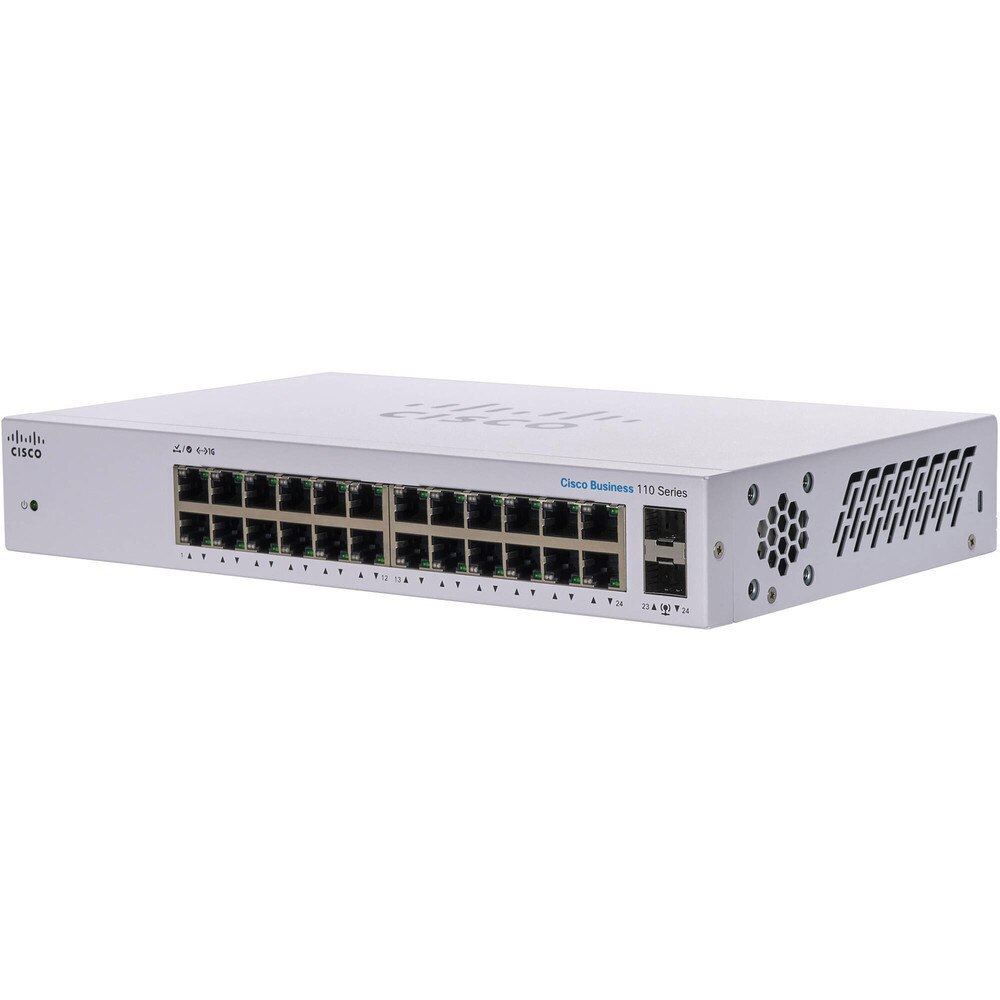

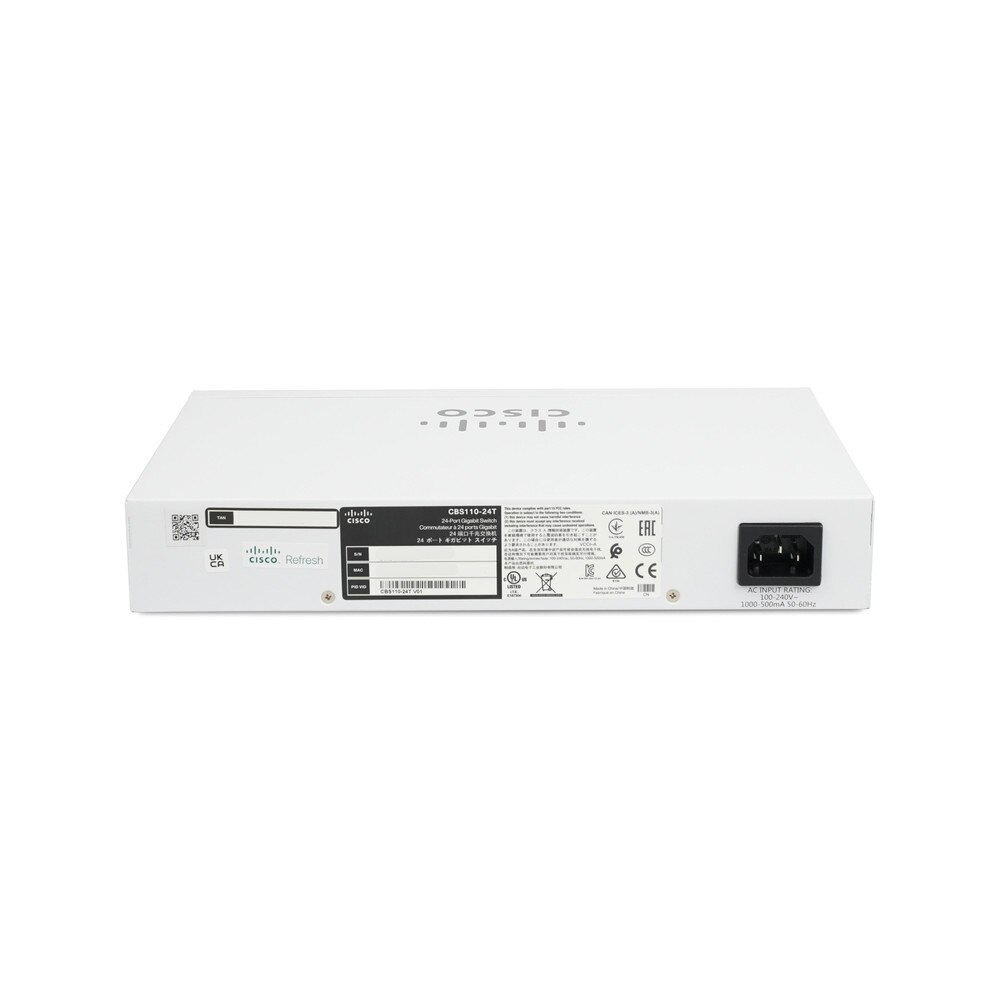

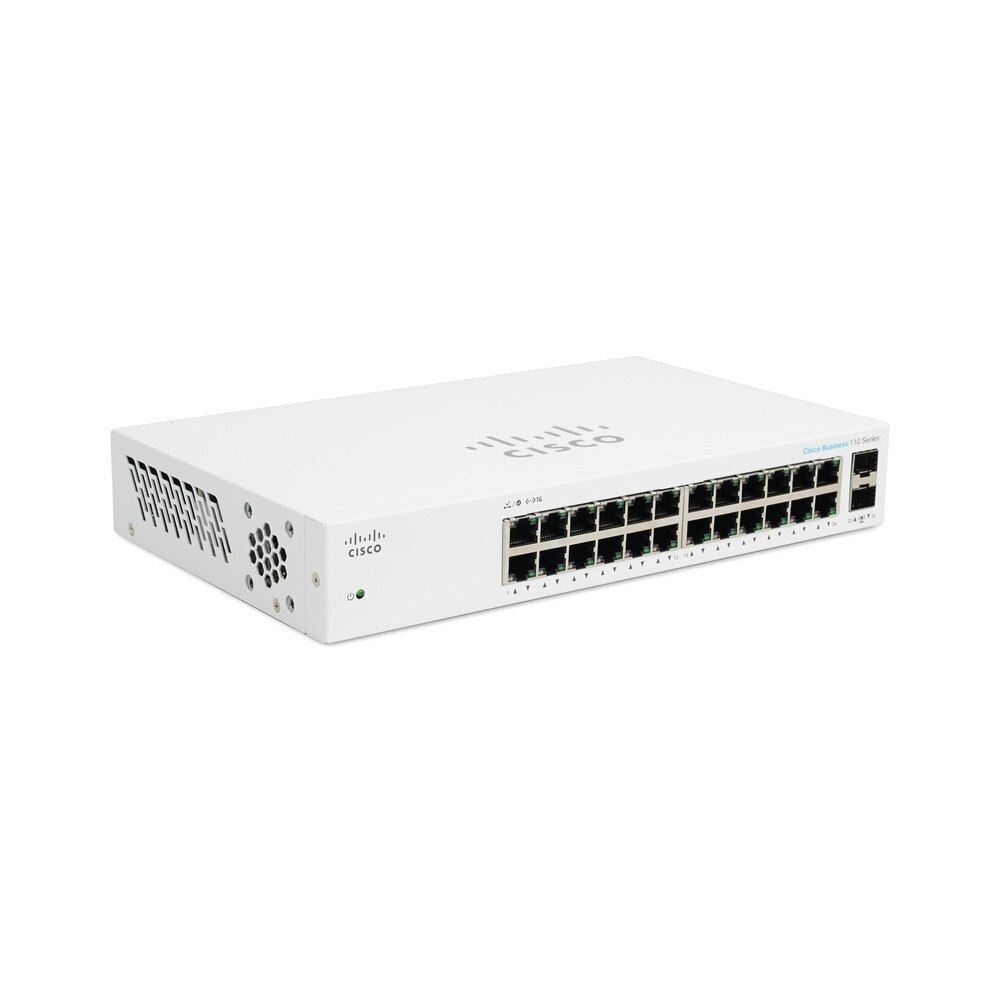

| Product Name | Cisco CBS110-24T 24-Port Gigabit Ethernet Switch with 2 Gigabit SFP |
| Product Type | Networking Switch |
Enclosure Type | Desktop, rack-mountable, wall-mountable |
Subtype | Gigabit Ethernet |
Ports | 24 x 10/100/1000 + 2 x combo Gigabit SFP |
Performance | Forwarding performance (64-byte packet size): 35.7 Mpps ¦ Switching capacity: 48 Gbps |
Capacity | Buffer capacity (MB): 2 |
MAC Address Table Size | 8K entries |
Jumbo Frame Support | 9216 bytes |
Features | Flow control, auto-uplink (auto MDI/MDI-X), Quality of Service (QoS), Cable Diagnostics Function, fanless, Energy Efficient Ethernet, Head-of-line (HOL) blocking, Weighted Round Robin (WRR), loopback detection, security slot (Kensington security lock compatible) |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az |
Processor | X ARM: 400 MHz |
RAM | 64 MB |
Flash Memory | 8 MB |
Status Indicators | Power, link/activity |
Interfaces | 24 x 10/100/1000 Base-T RJ-45 ¦ 2 x 1000Base-T / 1000Base-X RJ-45/SFP |
Power Device | Internal power supply |
Voltage Required | AC 120/230 V (50/60 Hz) |
Power Consumption Operational | 16.34 Watt |

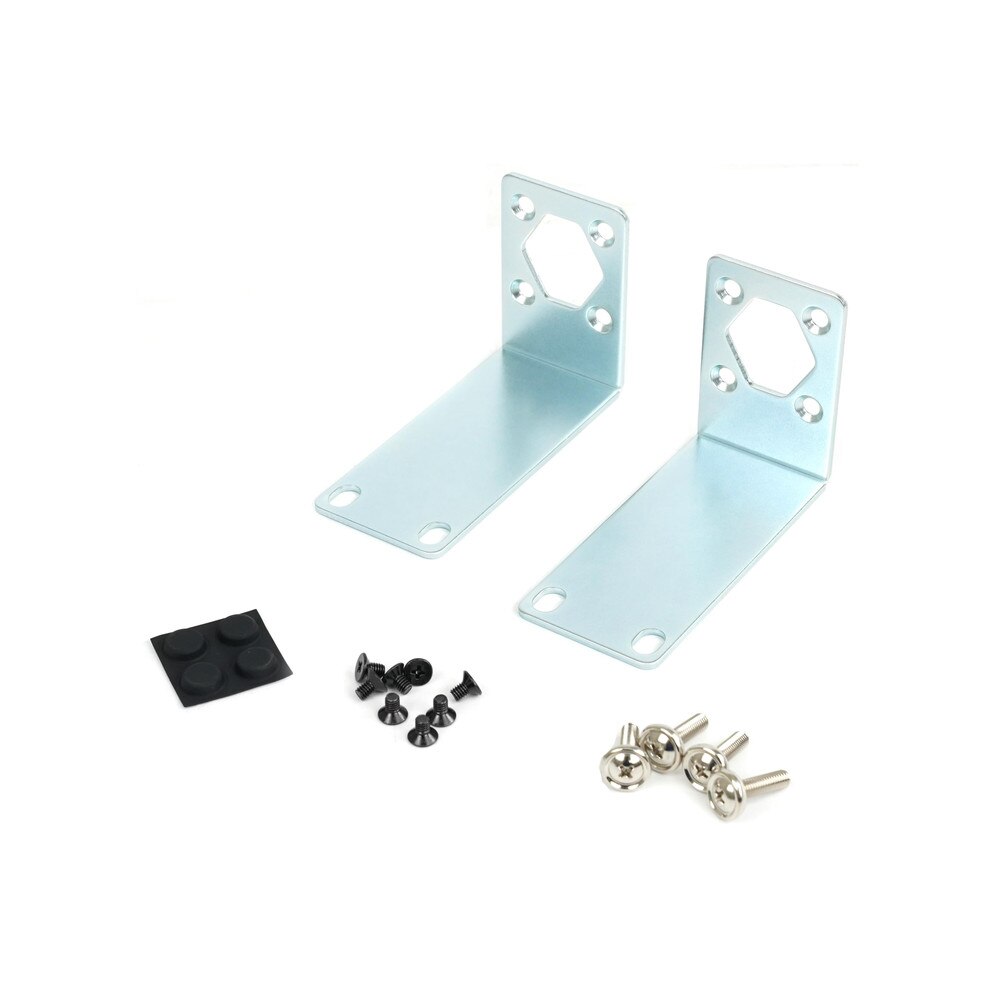

Included Accessories | Mounting kit |
MTBF | 524,296 hours |
Compliant Standards | FCC Class B certified, UL 60950, CSA 22.2, FCC CFR47 Part 15 A |
Width | 11 in |
Depth | 6.7 in |
Height | 1.7 in |
Weight | 3.44 lbs |
Service & Support | Limited warranty - lifetime ¦ Technical support - web support - 1 year ¦ Technical support - phone consulting - 1 year |
Min Operating Temperature | 32 °F |
Max Operating Temperature | 104 °F |
Humidity Range Operating | 10 - 90% (non-condensing) |
Min Storage Temperature | -4 °F |
Max Storage Temperature | 158 °F |
Humidity Range Storage | 5 - 90% (non-condensing) |
