  • Cisco C1111-4P Integrated Services Router with 4 Gigabit Ethernet Ports | Refresh

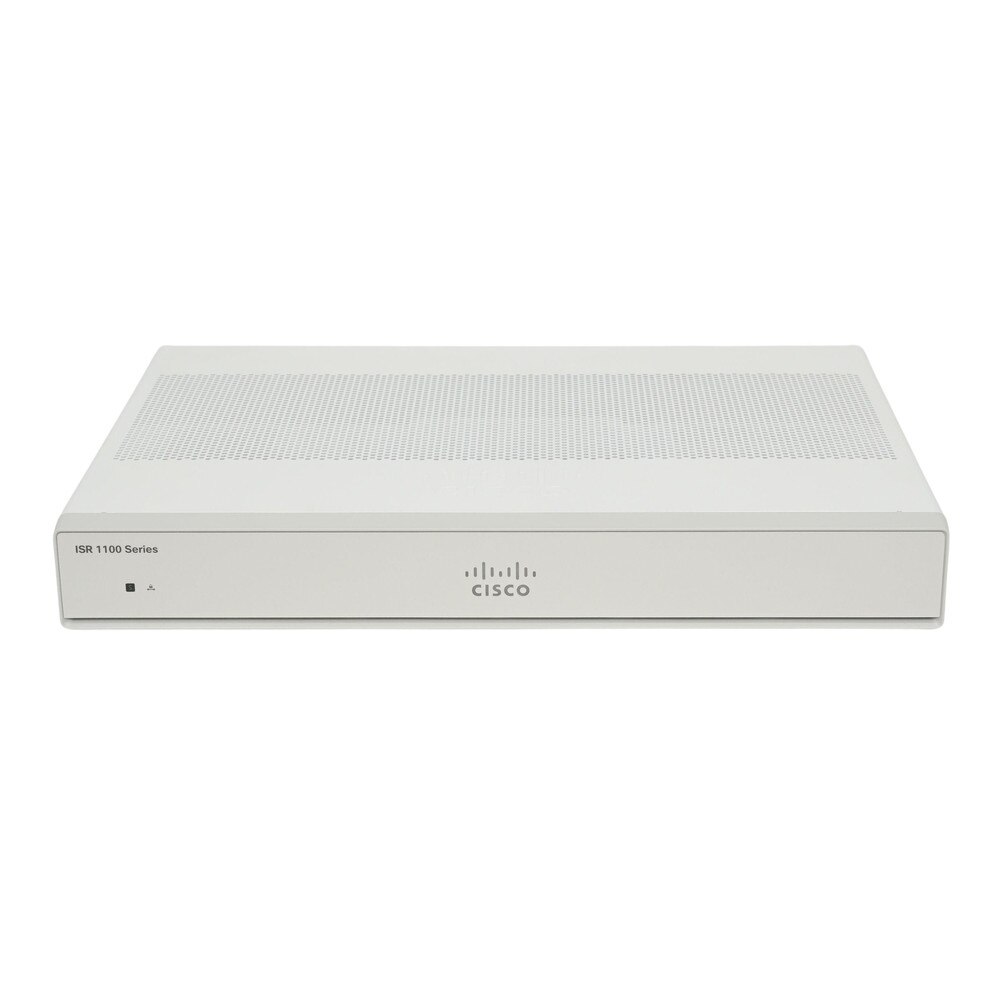

Cisco C1111-4P Integrated Services Router with 4 Gigabit Ethernet Ports | Refresh

Cisco C1111-4P Integrated Services Router with 4 Gigabit Ethernet Ports | Refresh

SKU: C1111-4P-RF
(0)No Reviews yet

Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns

$369.99 $369.99
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

Overview for Cisco C1111-4P Integrated Services Router with 4 Gigabit Ethernet Ports | Refresh

The Cisco C1111-4P Integrated Services Router with 4 Gigabit Ethernet Ports is a high-performance networking solution tailored for small businesses, branch offices, and enterprise environments. With its compact design, this router provides dependable connectivity, enhanced security features and easy management. It is driven by Cisco IOS XE Software and caters to contemporary networking requirements like SD-WAN, VPNs and cloud management, thus serving as a perfect option for companies aiming for scalability and efficiency. Equipped with four Gigabit Ethernet ports, the Cisco C1111-4P can be configured for LAN or WAN connections, offering flexibility in network design. It guarantees uninterrupted connection via failover and load balancing, thanks to its dual WAN support. Advanced security features such as firewall capabilities, VPN support and intrusion prevention are included with the router to protect your network. Due to its small dimensions and design that allows it to be mounted on a rack, it is appropriate for environments where space is limited. It also supports Power over Ethernet (PoE), which allows for direct power supply to connected devices such as IP phones and cameras.


Key Features of Cisco C1111-4P Integrated Services Router with 4 Gigabit Ethernet Ports


• Four Gigabit Ethernet Ports offers high-speed connectivity for both LAN and WAN configurations.

• Dual WAN Support enables load balancing and failover for uninterrupted internet access.

• Cisco IOS XE Software provides robust routing, security and network management features.

• Advanced Security Features includes firewall capabilities, VPN support (DMVPN, FlexVPN) and intrusion prevention.

• PoE Support with two PoE ports (one PoE+) deliver power to connected devices like IP phones or cameras.

• Compact Design with lightweight and rack-mountable for easy installation in tight spaces.

• USB 3.0 Port allows for external storage or configuration via USB devices.

• Cloud-Based Management supports Cisco Meraki for simplified remote configuration and monitoring.

• SD-WAN Ready optimizes WAN connections with software-defined networking capabilities.

• Energy Efficient with low power consumption reduces operating costs.


Benefits of Cisco C1111-4P Integrated Services Router with 4 Gigabit Ethernet Ports


🗹 Dual WAN support ensures continuous uptime with failover and load balancing.

🗹 Protects your network with advanced features like VPN encryption and firewall protection.

🗹 Configurable ports allow flexibility to adapt to growing business needs.

🗹 Cisco IOS XE Software provides an intuitive interface for easy configuration and monitoring.

🗹 Powers devices directly through the network cable, eliminating the need for separate power supplies.

🗹 Fits seamlessly into small or space-constrained environments without compromising performance.

🗹 SD-WAN readiness ensures compatibility with evolving networking demands.

🗹 Handles bandwidth-intensive tasks with encrypted throughput of up to 150 Mbps.

🗹 Reduces operational costs with low power consumption while maintaining high performance.

🗹 Backed by Cisco’s reputation for reliability and innovation in networking solutions.

Specifications

Specification for Cisco C1111-4P Integrated Services Router with 4 Gigabit Ethernet Ports | Refresh

ManufacturerCisco
Manufacturer Part NumberC1111-4P-RF
Product NameCisco C1111-4P Integrated Services Router with 4 Gigabit Ethernet Ports
Product TypeRouter
Enclosure Type
Desktop
Connectivity Technology
Wireless, wired
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet
Performance
Encryption throughput: 250 Mbps
Network / Transport Protocol
IPSec, PPPoE, DHCP, DNS, L2TPv3
Routing Protocol
OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, DVMRP, VRRP, PIM-SM, static IP routing, IGMPv3, GRE, PIM-SSM, policy-based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD), RSVP
Remote Management Protocol
SNMP, RMON, CLI, TR-069
Encryption Algorithm
DES, Triple DES, SHA, MD5, IKE, ECDSA, 128-bit AES, 256-bit AES, 1024-bit RSA, 2048-bit RSA, 256-bit SHA, 512-bit SHA, 748-bit RSA, 384-bit SHA
Authentication Method
RADIUS
Features
Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Access Control List (ACL) support, Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN), 2T2R MIMO technology, NetFlow, Maximum Ratio Combining (MRC), IPFIX, cyclic shift diversity (CSD), Location ID Separation Protocol (LISP), packet aggregation A-MPDU, packet aggregation A-MSDU, Management Information Base (MIB) II, Application Visibility and Control (AVC), Authentication, Authorization and Accounting (AAA), Dynamic Frequency Selection (DFS), Encapsulated Remote SPAN (ERSPAN), Embedded Event Manager (EEM)
Compliant Standards
IEEE 802.3af, IEEE 802.11i, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3at, IEEE 802.11r, CISPR 24, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, CB, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, FCC CFR47 Part 15, UL 60950-1 Second Edition, VCCI V-3, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS CISPR 22, CNS 13438, EN 301 489-7, EN 301 489-1, FCC CFR47 Part 22, FCC CFR47 Part 24, CAN/CSA C22.2 No. 60950-1 Second Edition, EN 300 386, EN 301 489-24, EN 301 908-1, EN 301 908-2, EN 301 511, EN 301 908-13
RAM
4 GB
Flash Memory
4 GB
Status Indicators
Status
Interfaces

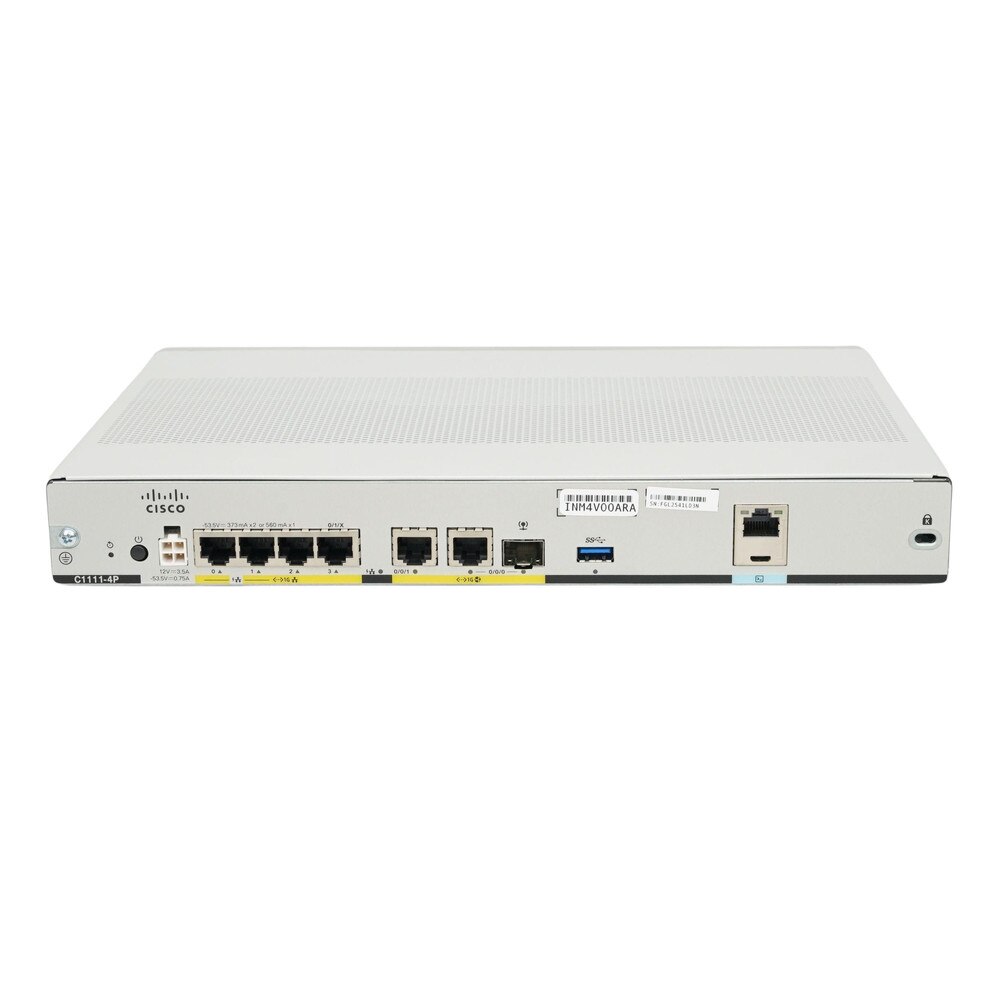

WAN: 1 x 1000Base-T/1000Base-X - RJ-45/SFP ¦ LAN: 2 x 1000Base-T - RJ-45 ¦ LAN: 1 x 1000Base-T (PoE+) - RJ-45 ¦ LAN: 1 x 1000Base-T (PoE) - RJ-45 ¦ USB 3.0: 1 x
Voltage Required
AC 120/230 V (50/60 Hz)
Width
12.7 in
Depth
9.1 in
Height
1.7 in
Weight
5.71 lbs
Min Operating Temperature
32 °F
Max Operating Temperature
149 °F
Humidity Range Operating
5 - 95% (non-condensing)

User Guides

Frequently Asked Questions

Cisco C1111-4P Integrated Services Router with 4 Gigabit Ethernet Ports
Frequently Asked Questions (FAQ's)



Does the Cisco C1111-4P support IPv6?
  • Yes, the Cisco C1111-4P fully supports IPv6, including routing, security, and QoS capabilities.
  • How many Ethernet ports does the Cisco C1111-4P have?
  • The router includes four Gigabit Ethernet LAN ports and two Gigabit Ethernet WAN ports.
  • Does the Cisco C1111-4P support dual WAN connections?
  • Yes, it supports dual WAN connections for redundancy and load balancing purposes.
  • What is the maximum throughput of the Cisco C1111-4P?
  • The Cisco C1111-4P has a maximum throughput of 350 Mbps, depending on the services and configurations.
  • Does the Cisco C1111-4P support SD-WAN?
  • Yes, the router supports Cisco SD-WAN, which optimizes and secures application performance across cloud environments.
  • What operating system does the Cisco C1111-4P use?
  • The Cisco C1111-4P operates on Cisco IOS XE, a highly secure and programmable operating system.
  • Can the Cisco C1111-4P be used as a VPN router?
  • Yes, the router supports a variety of VPN protocols, including IPsec, DMVPN, and FlexVPN, which enable secure remote access.
  • What kind of security features are included with the Cisco C1111-4P?
  • It comes with advanced security features like firewall, intrusion prevention, VPN, secure boot, and encryption.
  • Does the Cisco C1111-4P have PoE (Power over Ethernet) support?
  • Yes, the Cisco C1111-4P supports Power over Ethernet (PoE) on its LAN ports, enabling it to power compatible devices.
  • What is the form factor of the Cisco C1111-4P?
  • The router's compact, fanless desktop form factor makes it ideal for small office settings.
  • How do I configure the Cisco C1111-4P?
  • Configuration can be carried out using the web-based GUI, Cisco DNA Center, CLI (Command Line Interface), or Cisco SD-WAN.
  • What is the power consumption of the Cisco C1111-4P?
  • The power consumption varies, but it usually ranges between 30 and 40 watts, depending on the load and connected PoE devices.
  • Is the Cisco C1111-4P router cloud-managed?
  • The ZD621D does not support RFID printing. Other Zebra models that support RFID should be considered.
  • Can the Cisco C1111-4P be rack-mounted?
  • The Cisco C1111-4P is a desktop model that can be rack mounted with an optional rack-mount kit.
  • Can the Cisco C1111-4P be used for VoIP services?
  • Yes, it supports VoIP services, and with the right licenses and configuration, it can handle voice traffic efficiently.
  • What is the maximum number of VLANs supported by the Cisco C1111-4P?
  • The Cisco C1111-4P can manage up to 50 VLANs.
  • Is the Cisco C1111-4P compatible with older Cisco routers?
  • Yes, it is compatible with older Cisco routers and can be integrated into current Cisco networks.
  • Does the Cisco C1111-4P support 3G/4G LTE connectivity?
  • Yes, the router can support 3G/4G LTE connectivity for backup or primary WAN when an LTE module is installed.
  • How do I perform a factory reset on the Cisco C1111-4P?
  • A factory reset can be done via the CLI with the write erase command followed by a reload, or through the web-based GUI.
  • What kind of monitoring and diagnostics tools are available for the Cisco C1111-4P?
  • The router is compatible with SNMP, Syslog, NetFlow, and other Cisco monitoring tools for real-time diagnostics and monitoring.
