  • Bogen C100 100 Watt Public Address System Amplifier Classic Series Mixer Amplifier | Like New
Bogen C100 100 Watt Public Address System Amplifier Classic Series Mixer Amplifier | Like New

Bogen C100 100 Watt Public Address System Amplifier Classic Series Mixer Amplifier | Like New

SKU: C100-LN
(0)No Reviews yet
Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns
$298.99 $298.99
Available Quantity:
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

Overview of Bogen C100 100 Watt Public Address System Amplifier Classic Series Mixer Amplifier | Like New



The Bogen C100 100 Watt Public Address System Amplifier Classic Series Mixer Amplifier is a public address mixer amplifier that can mix microphones, telephones, and auxiliary sources. Output screw connections are supplied for 4-ohm (direct) and 8-ohm (C35 & C60 models only), 16-ohm, 25V, and 70V (transformer-coupled) speaker systems. When an accessory transformer (Model WMT1A) is used, output jacks allow you to connect to a tape recorder or another booster amplifier, or feed a 600-ohm telephone line.


Key Features of Bogen C100 100 Watt Public Address System Amplifier Classic Series Mixer Amplifier


4 inputs: 1 MIC (Lo-Z), 1 AUX (Hi-Z), 1 TEL, plus 1 selectable MIC or AUX
Each input controlled by an independent volume control
Treble and bass controls
AUX muting by external contact closure for push to-talk mic’s
Tel input for telephone paging applications
TEL input voice-activated (VOX) mute over AUX input
Variable threshold for TEL input voice-activated AUXmute
Audio output for tape recorder or booster amplifier
Outputs for 4-ohm (direct), 8-ohm, and 16-ohm, 25V and 70V speaker systems (transformer coupled)
Output jack to connect a tape recorder or booster amplifier
Output jack to connect a general-purpose 600-ohm matching transformer (model WMT1A sold separately)
Thermal protection and electronic shutdown
Rack mountable with accessory mounting kit (model RPK50 sold separately)
UL and CSA listed

Specifications

Specification for Bogen C100 100 Watt Public Address System Amplifier Classic Series Mixer Amplifier | Like New



ManufacturerBogen
Manufacturer Part NumberC100
Product NameBogen C100 100 Watt Public Address System Amplifier Classic Series Mixer Amplifier
Product TypeAmplifier
Power Output (RMS)100W
Frequency Response & Distortion
Transformer70 Hz to 16 kHz (± 2 dB) @ 1% max.
4-Ohm Direct Output20 Hz to 20 kHz (± 1 dB) @ 0.5% max.
Hum and Noise
MIC Input55 dB below rated output
AUX Input70 dB below rated output
TEL Input70 dB below rated output
Tone Control Action
Bass+/- 11 dB @ 100 Hz
Treble+/- 11 dB @ 10 kHz
Input Sensitivity
MIC Lo-Z Balanced600 μV
AUX85 mV
TEL75 mV
Outputs8 ohms (C35 & C60 models only), 16 ohms, 25V, and 70V transformer- isolated balanced or unbalanced; 4 ohms direct unbalanced

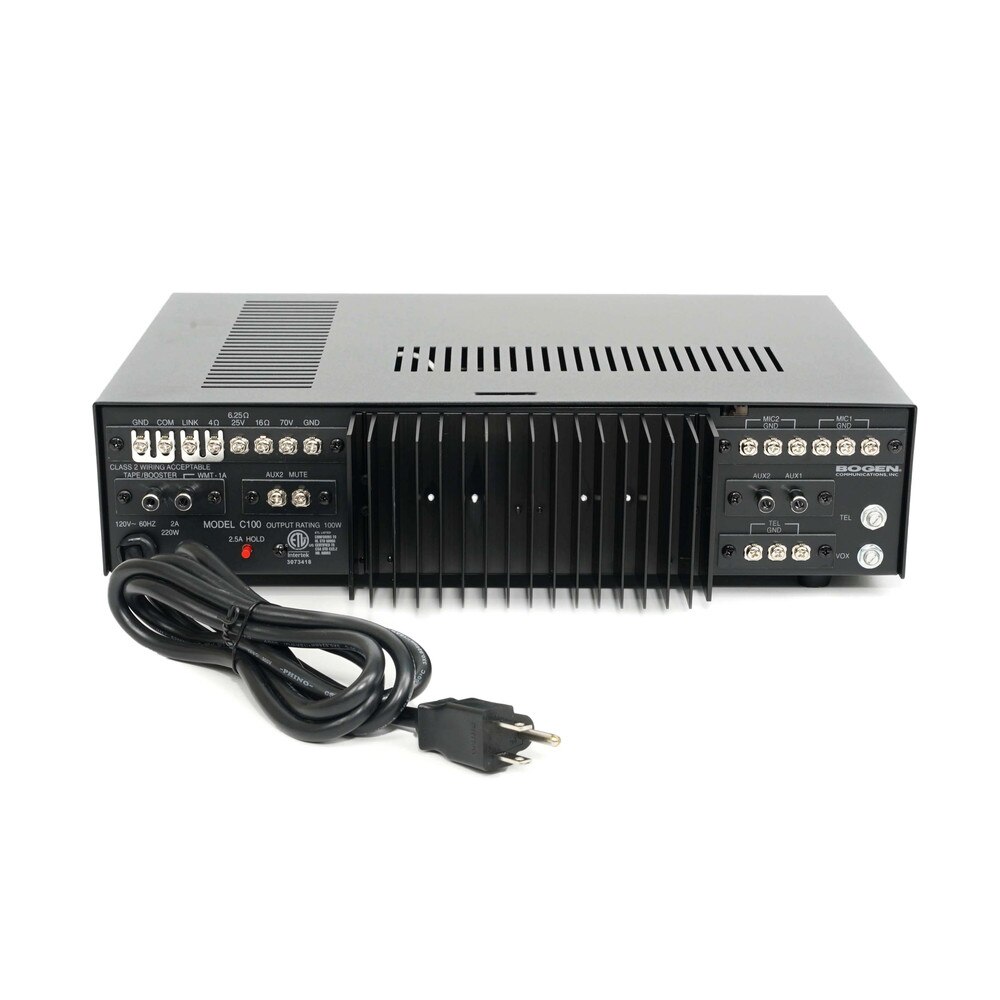

Output ConnectionsSpeaker screw terminal strip, TAPE/BOOSTER RCA jack; WMT1A RCA jack
Input Connections(2) MIC Lo-Z screw terminals; (2) AUX Hi-Z RCA jacks, TEL screw terminals
ControlsMIC1, MIC2/AUX1 (switch selected), AUX 2, BASS, TREBLE, TEL, VOX
Thermal Emissions (Full Power)399.6 BTU/hr.
Power Requirements120V AC, 60 Hz
AC Line Draw220W
Dimensions141/2" W x 33/4" H x 11" D (all models)
Product Weight19 lb.
ApprovalsListed to UL Standard 60065 for U.S. and Canada

User Guides

Bogen C100 100 Watt Public Address System Amplifier Classic Series Mixer Amplifier Data Sheet
Bogen C100 100 Watt Public Address System Amplifier Classic Series Mixer Amplifier User Guide

Frequently Asked Questions

Bogen C100 Classic Series 100W Public Address Amplifier
Frequently Asked Questions (FAQ's)



What is the Bogen C100 Classic Series Amplifier used for?
  • The Bogen C100 is a 100-watt public address amplifier designed for delivering clear, high-quality sound in commercial and institutional settings such as schools, offices, churches, and retail spaces.
    • How much power output does the Bogen C100 provide?
  • The Bogen C100 delivers 100 watts of continuous power, suitable for medium to large PA systems requiring consistent, reliable audio output.
    • Can the Bogen C100 be used with multiple microphone inputs?
  • Yes, the amplifier features multiple balanced microphone inputs, allowing you to connect more than one microphone simultaneously.
    • Does the Bogen C100 include tone control options?
  • Yes, the unit comes equipped with bass and treble tone controls, enabling precise sound adjustment for optimal clarity and comfort.
    • Is the Bogen C100 compatible with 25V and 70V speaker systems?
  • Yes, the C100 supports both 25V and 70V distributed speaker systems, making it versatile for a variety of PA installations.
    • Can music sources be connected to the Bogen C100?
  • Absolutely. It includes auxiliary inputs that support audio sources such as CD players, tuners, or digital streaming devices.
    • Is the Bogen C100 rack-mountable?
  • Yes, the amplifier can be rack-mounted using optional rack ears, making it convenient for integration into professional audio setups.
    • How many inputs does the Bogen C100 support?
  • The amplifier features 4 inputs, including microphone and auxiliary input options, providing flexibility for different audio sources.
    • Does the Bogen C100 have priority muting features?
  • Yes, it offers priority muting capabilities, which allow one input (typically a paging microphone) to override other sources when active.
    • What kind of speaker connections does the C100 support?
  • The amplifier includes screw terminal connections for 4-ohm, 8-ohm, 25V, and 70V speaker systems, offering a wide range of installation flexibility.
    • Is the amplifier suitable for background music and paging?
  • Yes, the Bogen C100 is ideal for applications that require both background music and voice paging capabilities.
    • Can this amplifier be used in emergency communication systems?
  • Yes, thanks to its priority muting and multiple input options, it is well-suited for emergency announcements in public areas.
    • What are the dimensions of the Bogen C100 amplifier?
  • The unit measures approximately 13.5" W x 3.5" H x 10.5" D, making it compact enough for shelf or rack installation.
    • What is the signal-to-noise ratio of the Bogen C100?
  • The amplifier has a high signal-to-noise ratio, ensuring clear audio output with minimal background noise.
    • Is the amplifier fan-cooled or passively cooled?
  • The Bogen C100 uses a convection (passive) cooling system, ensuring quiet operation without a fan.
    • Can this amplifier be used in both 110V and 220V environments?
  • It is designed for standard North American power (120V, 60Hz); a step-down transformer would be needed for use in other voltage regions.
    • Is the Bogen C100 easy to install?
  • Yes, the amplifier is designed for straightforward installation with labeled connections and a user-friendly interface.
    • What protection features are included in the Bogen C100?
  • The amplifier includes thermal and short-circuit protection to help ensure safe, long-term operation under various load conditions.
    • Can the Bogen C100 drive both low-impedance and high-impedance speakers?
  • Yes, it supports both low-impedance (4/8 ohms) and high-impedance (25V/70V) outputs, suitable for various speaker configurations.
    • Is the Bogen C100 suitable for conference rooms and small halls?
  • Yes, its power output and flexible input options make it a great choice for conference rooms, meeting halls, and small auditoriums.
