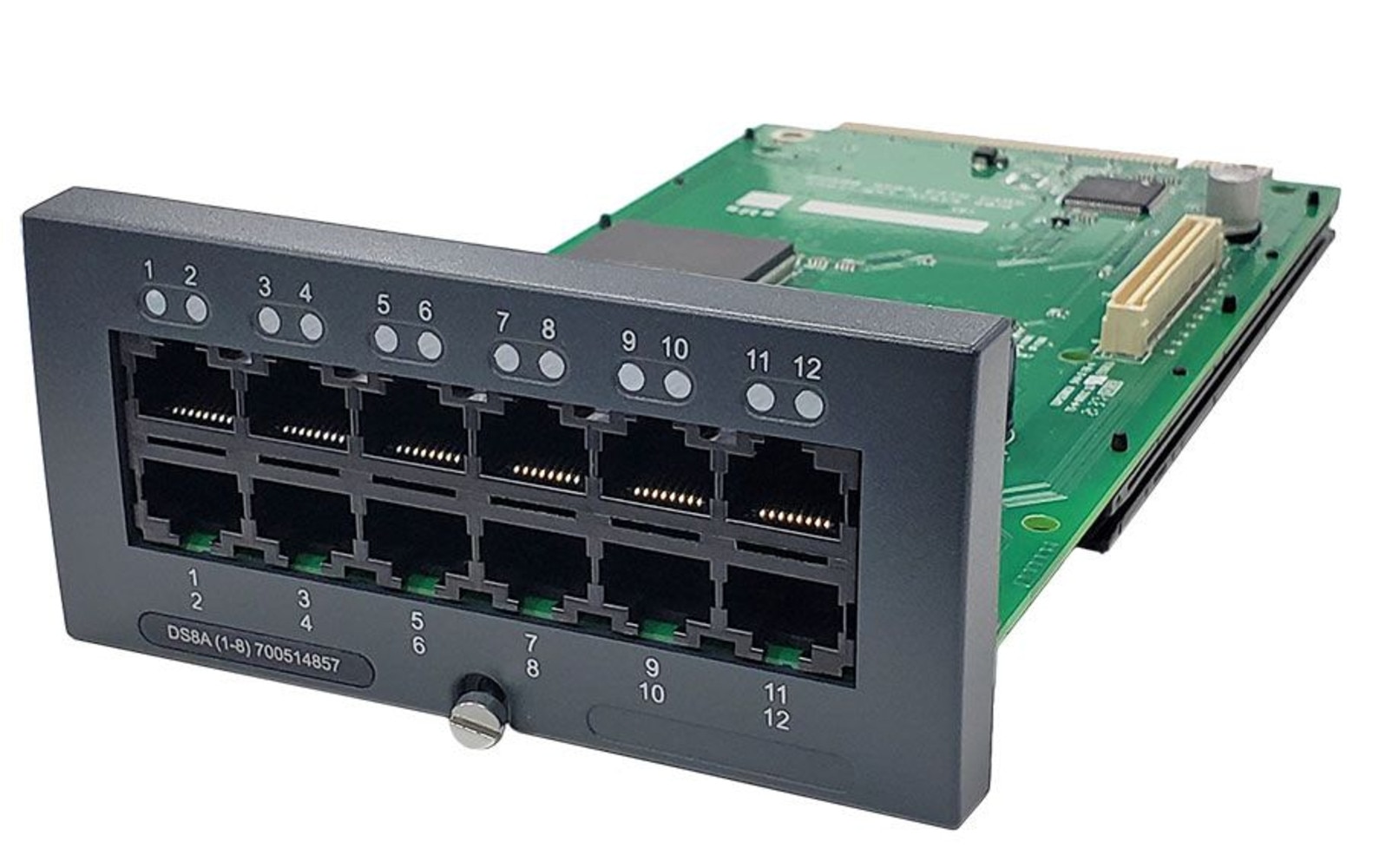

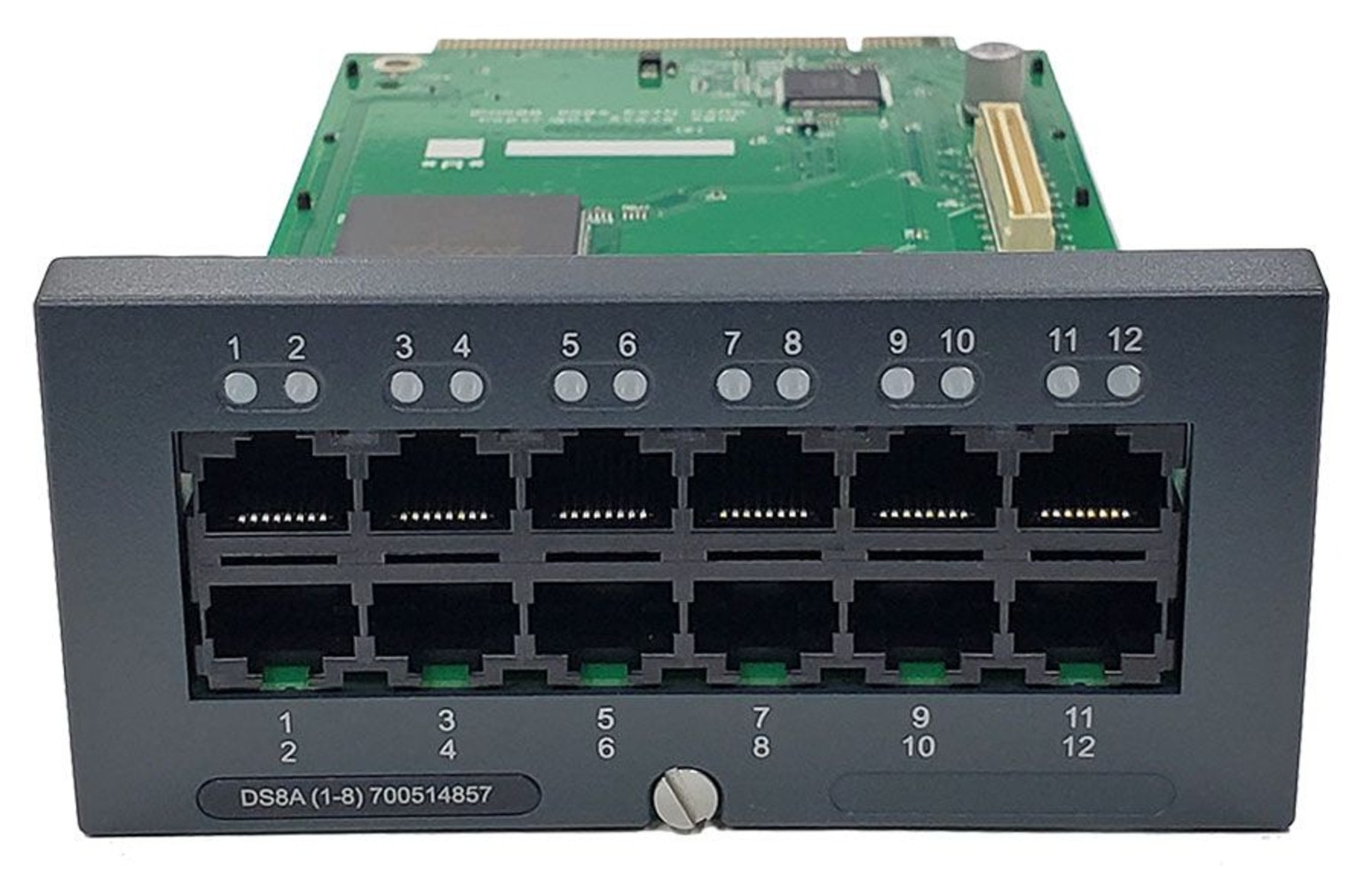

Avaya IP500 Digital Station Base Card (700514857) | New
SKU: 700514857-N
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us
Same Day Shipping - Arrives in 3-5 Business Days 30-day Returns Overview
Overview of Avaya IP500 Digital Station Base Card (700514857) | New
The IP500 Digital Station 8A Base Card is a key expansion card for the Avaya IP500 V2 and IP500 V2A communication systems. It allows you to add up to 32 digital station ports (4 cards x 8 ports each) to your IP500 system to connect Avaya digital phones. The optional trunk interface card enables you to also add analog, PRI, or other trunk connections to the system using the additional 4 ports on the base card. This provides a flexible and scalable way to expand the capabilities of your Avaya IP500 communication platform.
Avaya IP500 Digital Station Base Card (700514857) Features:
- Provides 12 RJ45 ports, with the first 8 ports being digital station (DS) ports for connecting Avaya digital phones (1400, 2400, and 9500 series)
- Can be fitted with an optional IP500 trunk interface card that uses the additional 4 ports for trunk connections
- Supports a maximum of 4 DS8A cards per IP500 V2 or IP500 V2A control unit
- Includes LEDs to indicate phone detection and activity on the DS ports Offers power failure transfer capabilities when used with an IP500 Analog Trunk daughter card
Specifications
Specifications for Avaya IP500 Digital Station Base Card (700514857) | New
| Manufacturer | Avaya |
| Manufacturer Part Number | 700514857 |
| Product Name | Avaya IP500 Digital Station Base Card |
| Product Type | Digital Station Base Card |
| RJ45 ports | 12 |
| DS ports | 8 ports |
| Maximum | 4 per IP500 control unit |
| Software required | Release 11.1 or higher |
| Compatibility | IP500 V2 and IP500 V2A Control Units 1400, 2400, and 9500 series digital telephones |
| Optional IP500 trunk interface cards | IP500 Analog Trunk 4, IP500 Universal PRI 1, IP500 Universal PRI 2 |
User Guides
Frequently Asked Questions
Avaya IP500 Digital Station Base Card (700514857)
Frequently Asked Questions (FAQ's)
What is the Avaya IP500 Digital Station Base Card 700514857? The Avaya IP500 Digital Station Base Card 700514857 is a hardware component designed for the Avaya IP Office system, providing digital station ports for digital telephones.
How many digital station ports does the IP500 Digital Station Base Card provide? The IP500 Digital Station Base Card provides 8 digital station ports.
Can the IP500 Digital Station Base Card support Avaya 1400 and 9500 series digital phones? Yes, the IP500 Digital Station Base Card supports Avaya 1400 and 9500 series digital phones.
Is the IP500 Digital Station Base Card hot-swappable? No, the IP500 Digital Station Base Card is not hot-swappable and requires the system to be powered down before installation or removal.
Does the IP500 Digital Station Base Card require an additional daughter card for functionality? No, the IP500 Digital Station Base Card does not require an additional daughter card to function.
Can the IP500 Digital Station Base Card be used in all IP Office control units? Yes, the IP500 Digital Station Base Card can be used in all IP Office control units that support digital station cards.
How is the IP500 Digital Station Base Card installed in the IP Office system? The IP500 Digital Station Base Card is installed by sliding it into an available slot in the IP500 control unit and securing it with screws.
What is the maximum number of IP500 Digital Station Base Cards that can be installed in an IP500 V2 control unit? Up to four IP500 Digital Station Base Cards can be installed in an IP500 V2 control unit.
Is the IP500 Digital Station Base Card compatible with IP Office Release 11.0? Yes, the IP500 Digital Station Base Card is compatible with IP Office Release 11.0 and later.
What is the function of the LEDs on the IP500 Digital Station Base Card? The LEDs on the IP500 Digital Station Base Card indicate the status of each digital station port, showing activity and connectivity.
Can the IP500 Digital Station Base Card be used in an IP500 control unit running in Essential Edition? Yes, the IP500 Digital Station Base Card can be used in an IP500 control unit running in Essential Edition.
What is the power consumption of the IP500 Digital Station Base Card? The IP500 Digital Station Base Card has a power consumption of approximately 4 watts.
Are there any specific firmware requirements for the IP500 Digital Station Base Card? The IP500 Digital Station Base Card requires the IP Office system to be running firmware that supports digital station cards, typically found in releases 5.0 and above.
Can the IP500 Digital Station Base Card be used with analog phones? No, the IP500 Digital Station Base Card is designed specifically for digital phones and cannot be used with analog phones.
Does the IP500 Digital Station Base Card support voicemail? The IP500 Digital Station Base Card itself does not provide voicemail functionality; voicemail services are handled by the IP Office system.
Can the IP500 Digital Station Base Card be used in a hybrid PBX setup? Yes, the IP500 Digital Station Base Card can be used in a hybrid PBX setup, combining digital and IP extensions within the same system.
Does the IP500 Digital Station Base Card require any special configuration after installation? Basic configuration may be required after installation to assign extensions and configure features via the IP Office Manager software.
What is the operating temperature range for the IP500 Digital Station Base Card? The operating temperature range for the IP500 Digital Station Base Card is typically between 0°C to 40°C (32°F to 104°F).
Where can I find the latest software updates for the IP500 Digital Station Base Card? The latest software updates for the IP500 Digital Station Base Card can be found on the official Avaya support website or through authorized Avaya partners.
