Avaya 700480585 9608 IP Phone | Like New

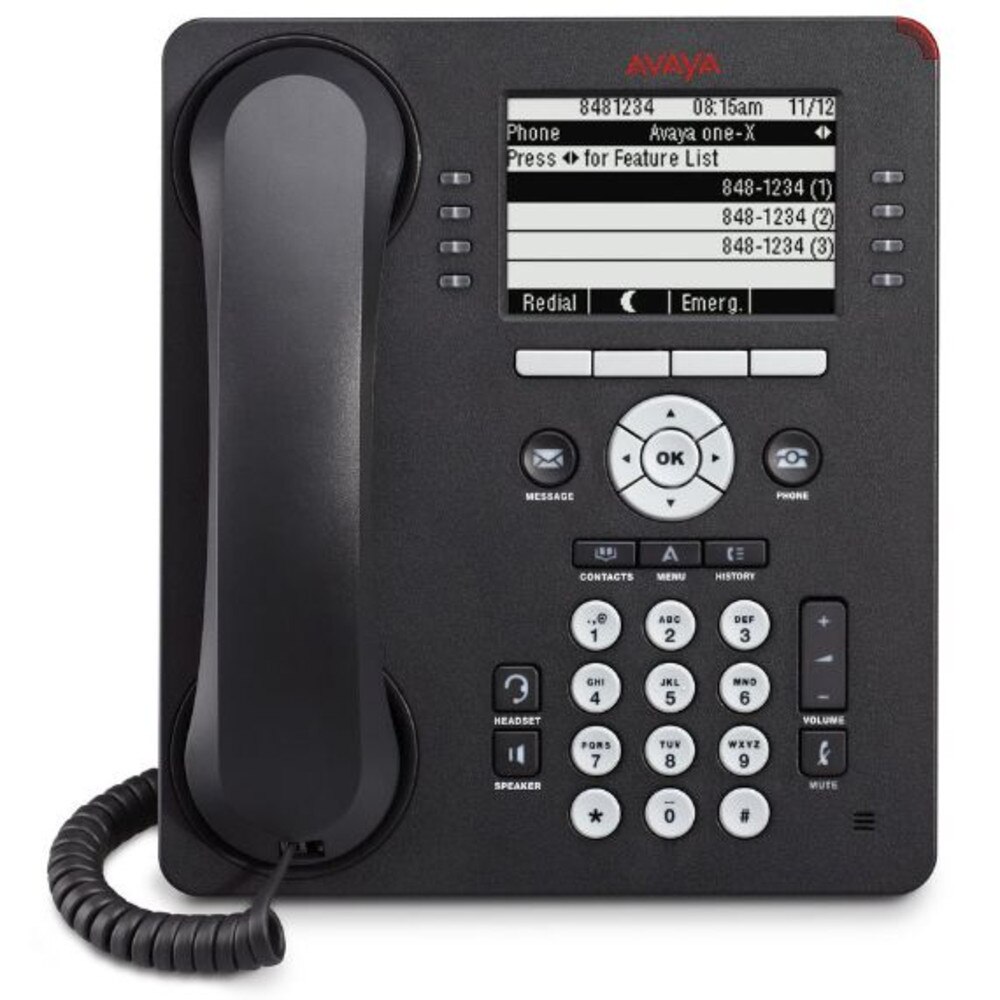

Avaya IP Phone 9608

Overview

The Avaya 9608 IP deskphone is an 8-line Telephone ideally suited for Everyday users who consider the phone to be one of many useful communication tools and who rely on common functions like directory and speed dial to enhance productivity and communications.

This competitively priced, high-performing phone features a monochrome display, 4 softkeys, common user interface with Avaya one-X® solutions, high definition audio quality, integrated Ethernet interface, support for Bluetooth and DECT headsets and up to three 12 or 24 Button Expansion Modules.

Part of the 9600 Series IP Deskphones, the 9608 leverages your enterprise IP Network to deliver sophisticated voice communications from headquarters, remote locations or home offices. Integrated with Avaya Aura and IP Office, this phone’s evolutionary approach optimizes communications through a flexible architecture that leverages existing investments and accommodates changing business needs.

Features

• Delivers high definition audio that can increase productivity by reducing fatigue and provides easier-to-understand multi-party calls through the wideband audio codec in the handset and headset
• Multiparty calls require DSP (Media Gateway)
• Simplifies call control on the display using softkeys for everyday functions such as transfer, conference and forwarding and to access everyday processes including third-party applications such as company-wide corporate directories
• Provides visual queues that can speed task management through 8 red and green LEDs
• Improves flexibility through support of a secondary Ethernet port for a PC as well as Bluetooth® and DECT Headsets (with adapter)
• Enables more efficient, high-speed call management through support of up to three 12 or 24 Button Expansion Modules
• Offers consistency through a common Avaya one-X® interface (including mobile endpoints)
• Accommodates changing business needs with Session Initiated Protocol (SIP) based infrastructure on Avaya Aura
• Supports reduced energy consumption and costs through Power-over-Ethernet Class 1 design with “sleep mode”

Avaya 9608 IP Phone Specifics

• Monochrome display – 3.2 inches x 2.2 inches (8.2 cm x 5.5 cm)
• 8 buttons with dual LEDs (red, green)
• 4 softkeys
• Hard buttons for phone, messages, contacts, history, home, navigation cluster, headset, speaker, volume, mute
• Red LEDs for speaker, mute, headset, message, history
• 24 administrative buttons
• Wideband audio in handset and headset
• Full duplex speakerphone
• Ergonomic hearing aid compatible handset supports TTD acoustic coupler
• Bluetooth® and DECT headset support (with adapter)
• 2 message waiting indicators
• IC call alerting with 360° visibility
• Rich, classic and alternate ringtones
• Wall-mount and dual-position stand
• Dual Ethernet (10/100) line interface
• Power over Ethernet Class (IEEE 802.3af) registers as class 1 device
• SIP and H.323 protocol support
• Standards-based codec support: G.711, G.726, G.729A/B, G.722 (G.726 is not available in SIP)
• Supports the following languages: Arabic, Brazilian Portuguese, Simplified Chinese, Dutch, English, Canadian French, Parisian French, German, Hebrew, Italian, Japanese (Kanji, Hiragana and Katakana), Korean, Latin American Spanish, Castilian Spanish, and Russian

• Avaya Aura® Communication Manager 3.1.4+ and greater (H.323)
• Avaya Aura® Communication Manager 6.0 with Avaya Aura® Session Manager 6.0 or Avaya Midsize Business Template 5.2.1 (SIP)
• IP Office 6.1 Maintenance Release or greater (H.323)
• Local or centralized electrical power through a 802.3af switch, or local power supply
• HTTP file server
