Overview of ASUS TUF Gaming X670E-PLUS WiFi Motherboard (90MB1BK0-M0AAY0) | New

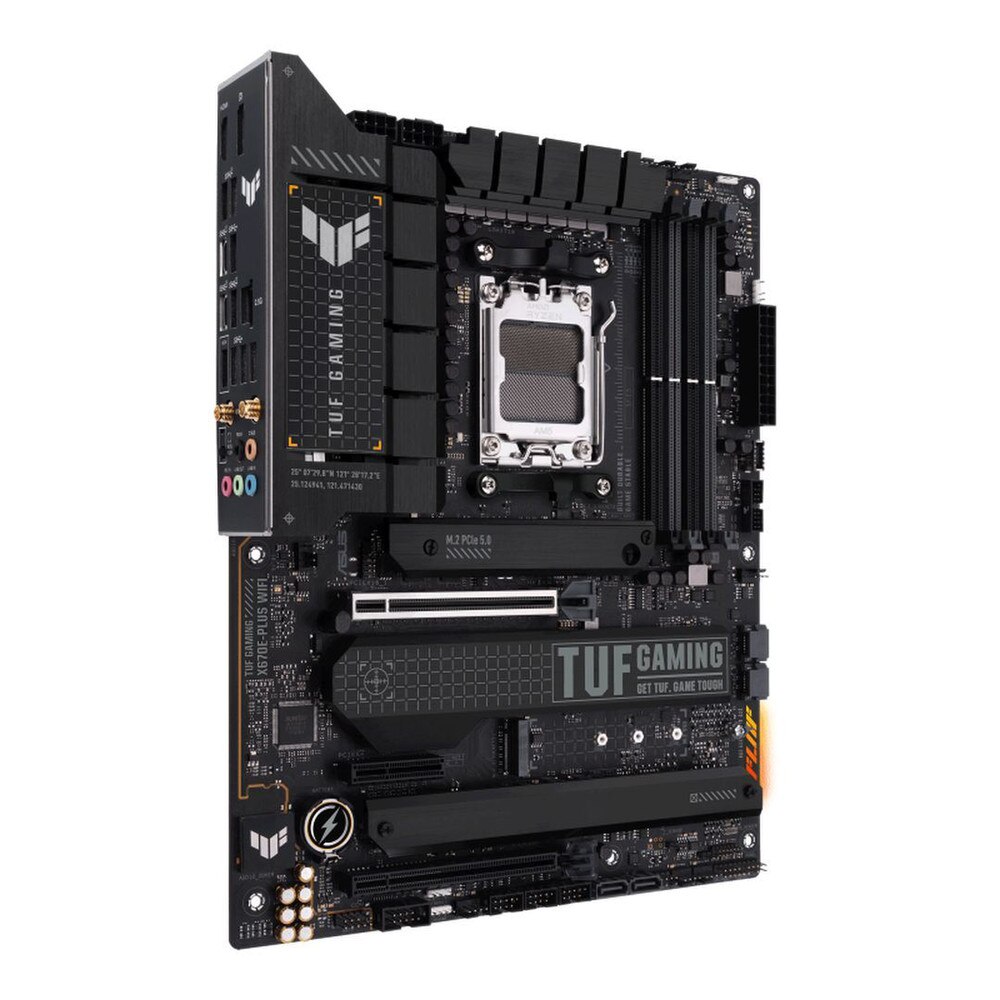

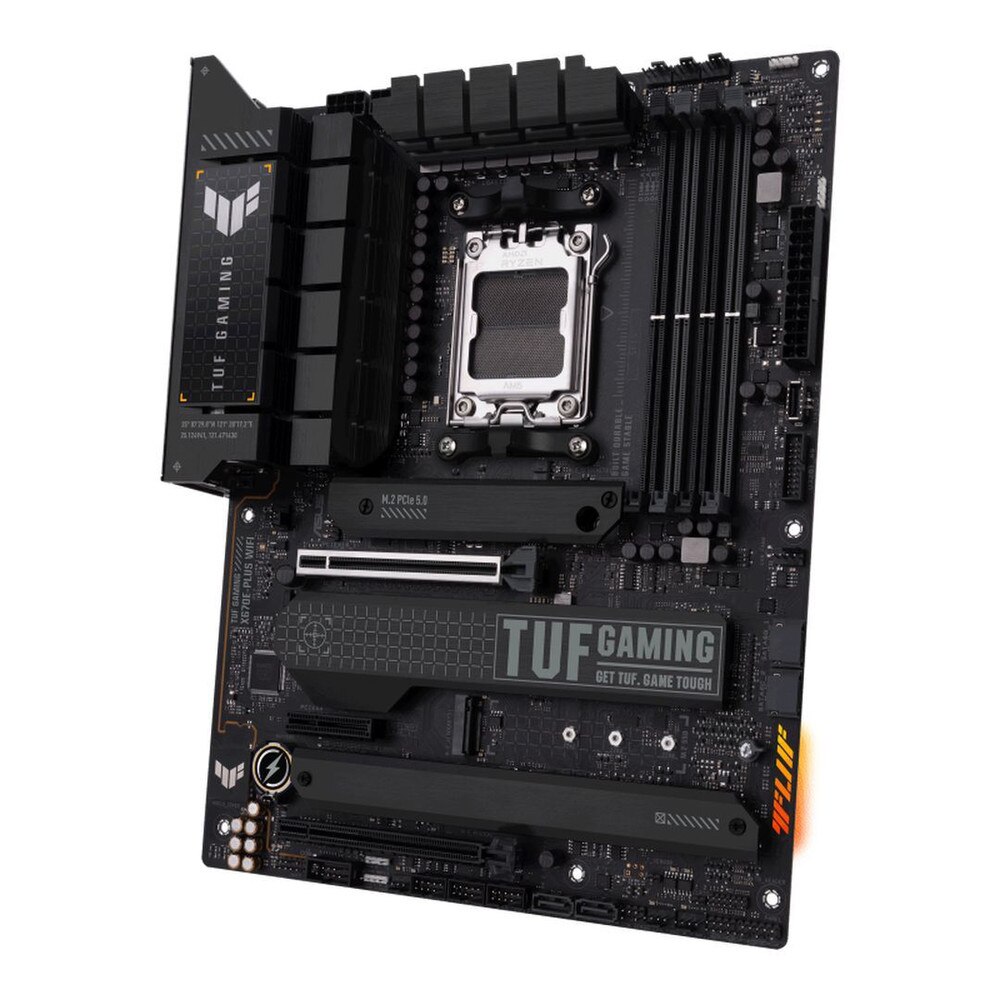

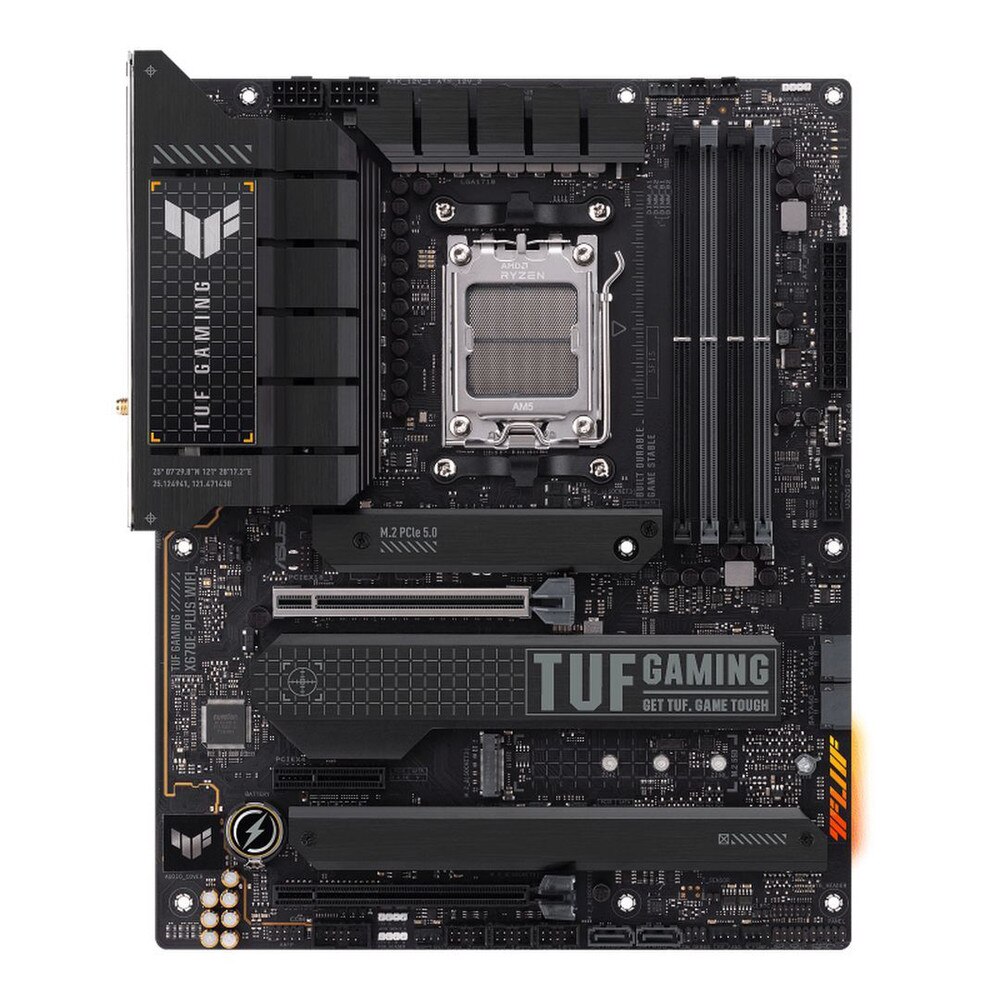

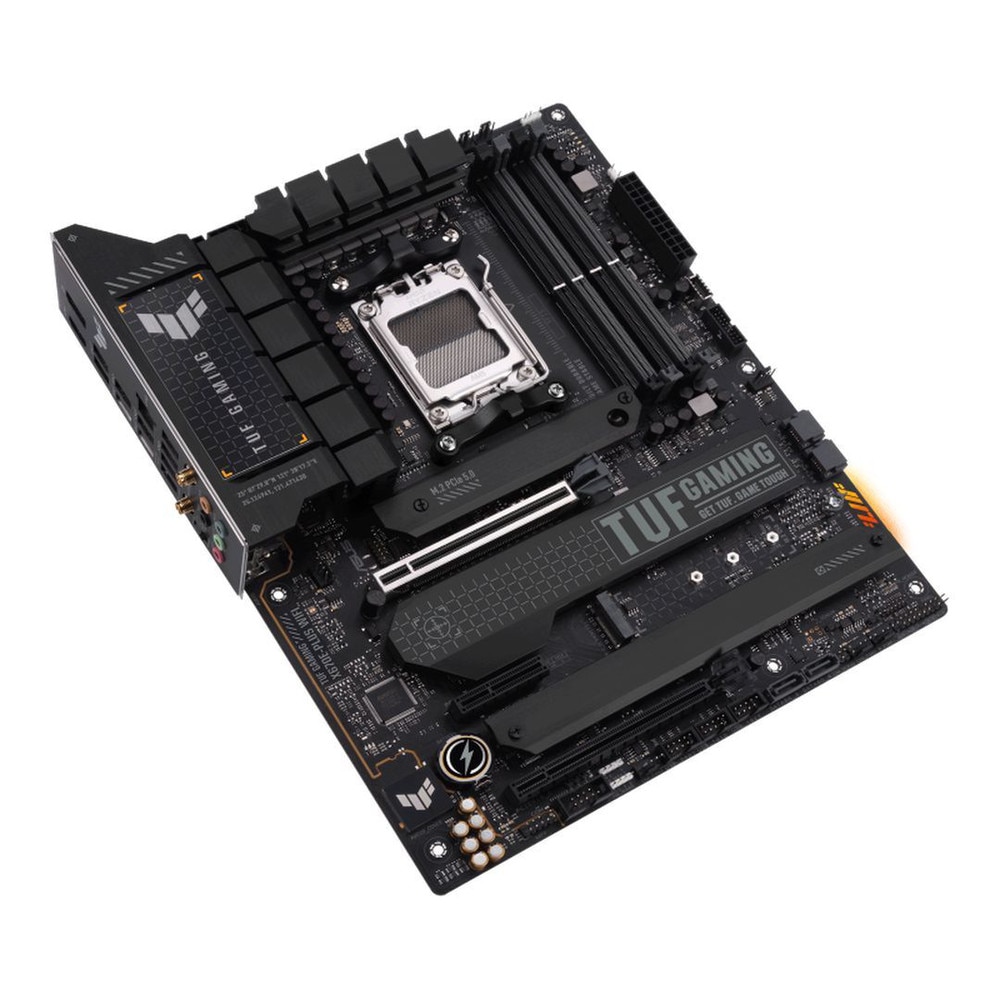

The ASUS TUF Gaming X670E-PLUS WiFi motherboard is a robust and feature-rich ATX motherboard designed for gamers and enthusiasts. Built around the AMD X670 chipset and AM5 socket, it supports the latest AMD Ryzen 7000, 8000, and 9000 series processors, making it ideal for high-performance gaming and productivity tasks.

ASUS TUF Gaming X670E-PLUS WiFi Motherboard (90MB1BK0-M0AAY0) Features:

  • Chipset & CPU Support: AMD X670 chipset with AM5 socket supports Ryzen 7000, 8000, and 9000 series processors.
  • Memory: Supports up to 128GB of DDR5 memory with speeds up to DDR5-6400 (OC).
  • PCIe Slots: Includes one PCIe 5.0 x16 slot for GPUs, ensuring compatibility with next-gen graphics cards.
  • Four M.2 slots (including one PCIe 5.0 x4) for NVMe SSDs, enabling fast storage options.
  • Wi-Fi 6E: Offers faster wireless connectivity with MU-MIMO support.
  • Ethernet: Equipped with Realtek 2.5 Gb Ethernet for lag-free gaming.
  • Realtek ALC S1220A HD Audio codec provides high-quality sound with positional cues for FPS gaming.
  • Engineered with military-grade components for durability.
  • Passive heatsinks and heatsink covers on NVMe slots enhance cooling performance.
  • Multiple USB ports, including USB-C (USB 3.2 Gen 2x2), USB-A (USB 3.1/3.2 Gen 2), and USB-A (USB 3.0/3.1/3.2 Gen 1).
  • HDMI and DisplayPort outputs for integrated graphics when using processors with onboard graphics capabilities.
  • RGB lighting that syncs with other ASUS Aura-compatible devices.
  • Two-way AI noise cancellation enhances microphone audio quality during calls or gaming sessions.
  • BIOS Flashback button allows easy firmware updates without installing a CPU or memory

Best Uses for ASUS TUF Gaming X670E-PLUS WiFi Motherboard (90MB1BK0-M0AAY0):

  • Gaming: The motherboard is optimized for immersive gaming with ultrafast networking (Wi-Fi 6E and 2.5 Gb Ethernet), pristine audio, and support for high-speed DDR5 memory and PCIe 5.0 graphics cards.
  • Content Creation: Its support for PCIe 5.0 storage and high-speed memory makes it suitable for demanding workloads like video editing, rendering, and multitasking.
  • System Builders: With its durable military-grade components and comprehensive cooling system, it is ideal for building reliable systems that can handle extended use
Users appreciate its overclocking capabilities, ease of installation, and reliable performance. However, some have noted that the Wi-Fi chipset could be better optimized for higher speeds compared to competitors like Intel AX210 cards

The ASUS TUF Gaming X670E-PLUS WiFi motherboard is a versatile choice for gamers, content creators, and system builders seeking durability, high performance, and modern features like DDR5 memory support and PCIe 5.0 compatibility. It balances reliability with cutting-edge technology to deliver a solid foundation for AM5 builds

Specifications

Specifications for ASUS TUF Gaming X670E-PLUS WiFi Motherboard (90MB1BK0-M0AAY0) | New


ManufacturerASUS
Manufacturer Part Number90MB1BK0-M0AAY0
Product NameASUS TUF Gaming X670E-PLUS WiFi Motherboard (90MB1BK0-M0AAY0)
Product TypeMotherboard
CPU CompatibilityAMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
ChipsetAMD X670
Memory4 x DIMM, Max. 192GB, DDR5 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory*
Dual Channel Memory ArchitectureYes
Graphics1 x DisplayPort, 1 x HDMI® port
Storage Totalsupports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
Ethernet1 x Realtek 2.5Gb Ethernet, TUF LANGuard
Wireless & BluetoothWi-Fi 6E, 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax), Supports 2.4/5/6GHz frequency band*, Bluetooth v5.2
Rear USB (Total 10 ports)1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®), 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®), 5 x USB 3.2 Gen 1 ports (5 x Type-A)
Front USB (Total 9 ports)1 x USB 3.2 Gen 2 connector (supports USB Type-C®), 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports, 3 x USB 2.0 headers support additional 6 USB 2.0 ports
AudioRealtek S1220A 7.1 Surround Sound High Definition Audio CODEC*
Audio FeaturesAudio shielding, Premium audio capacitors, Dedicated audio PCB layers, Audio cover, Unique de-pop circuit

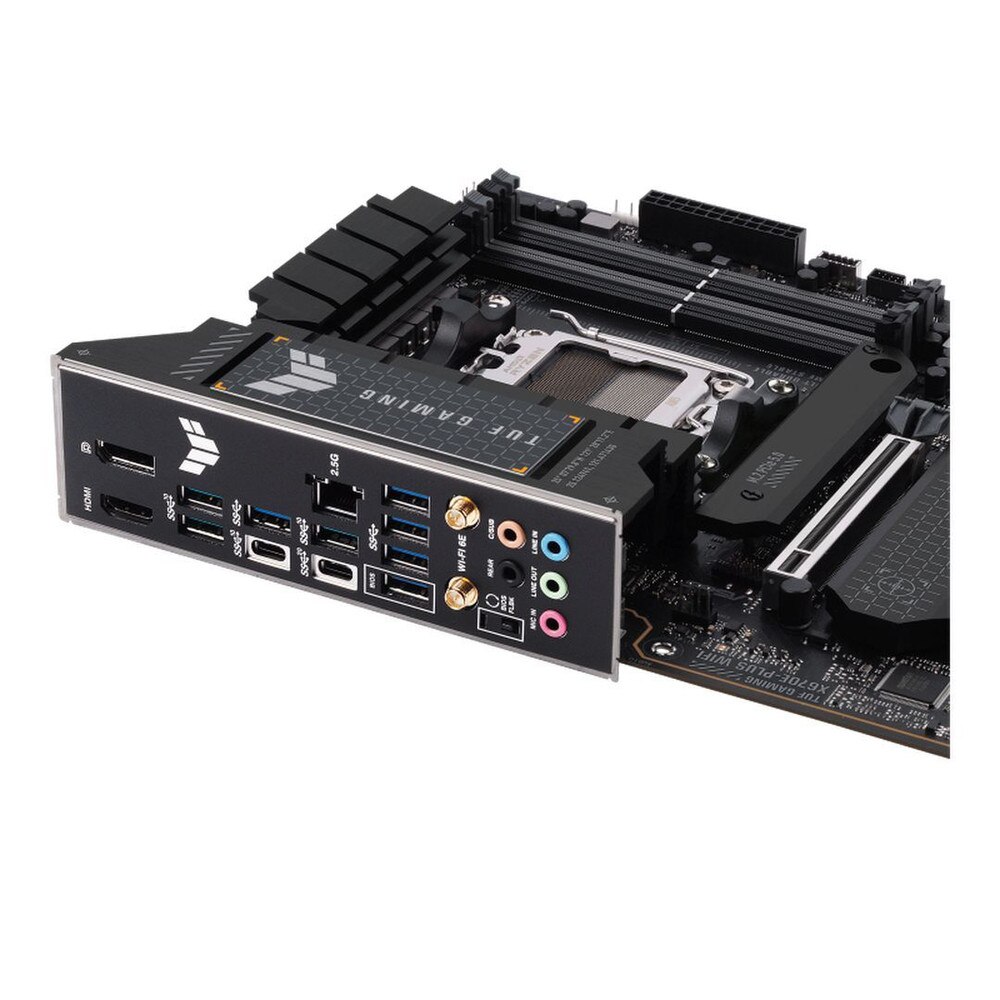

Back Panel I/O Ports1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®), 4 x USB 3.2 Gen 2 ports (3 x Type-A, 1 x USB Type-C®), 5 x USB 3.2 Gen 1 ports (5 x Type-A), 1 x DisplayPort, 1 x HDMI® port, 1 x Wi-Fi Module, 1 x Realtek 2.5Gb Ethernet port, 5 x Audio jacks, 1 x BIOS FlashBack™ button,
Fan and Cooling related1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 4 x 4-pin Chassis Fan headers, 1 x W_PUMP+ header,
Power related1 x 24-pin Main Power connector, 2 x 8-pin +12V Power connectors
Storage4 x M.2 slots (Key M), 4 x SATA 6Gb/s ports
USB1 x USB 3.2 Gen 2 connector (supports USB Type-C®), 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports, 3 x USB 2.0 headers support additional 6 USB 2.0 ports
Miscellaneous3 x Addressable Gen 2 headers, 1 x AURA RGB header, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (AAFP), 1 x 20-3 pin System Panel header with Chassis intrude function, 1 x Thermal Sensor header, 1 x Thunderbolt™ header
TUF PROTECTIONDIGI+ VRM (- Digital power design with DrMOS), ESD Guards, LANGuard, Overvoltage Protection, Safeslot Core+, Stainless-Steel Back I/O
ASUS Q-DesignM.2 Q-Latch, Q-DIMM, Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]), Q-Slot
ASUS Thermal SolutionM.2 heatsink, VRM heatsink design
ASUS EZ DIYBIOS FlashBack™ button, BIOS FlashBack™ LED, Clear CMOS header, ProCool, Pre-mounted I/O shield, SafeSlot, SafeDIMM
AURA SyncAURA RGB header, Addressable Gen 2 headers
BIOS256 Mb Flash ROM, UEFI AMI BIOS
ManageabilityWOL by PME, PXE
Operating SystemWindows® 11 64-bit, Windows® 10 64-bit
ATX Form Factor12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Assembled Product Dimensions13.30 x 12.00 x 2.68 Inches
Package Weight3.92 lb.
Box Dimensions13.3 x 11 x 2.8"

User Guides

Frequently Asked Questions

ASUS TUF Gaming X670E-PLUS WiFi Motherboard (90MB1BK0-M0AAY0)
Frequently Asked Questions (FAQ's)



What processor is compatible with the ASUS TUF Gaming X670E-PLUS WiFi motherboard?
  • The ASUS TUF Gaming X670E-PLUS WiFi supports AMD Ryzen 7000 Series processors using the AM5 socket, offering next-gen performance and future-ready capabilities.
  • Does the ASUS TUF X670E-PLUS support DDR5 RAM?
  • Yes, this motherboard supports DDR5 memory up to 6400 MHz (OC), allowing for faster data transfer and improved gaming performance.
  • How many M.2 slots are available on the ASUS TUF Gaming X670E-PLUS WiFi?
  • It features four M.2 slots, including PCIe 5.0 support for ultra-fast storage devices and reduced game loading times.
  • Is the ASUS TUF X670E-PLUS WiFi suitable for gaming builds?
  • Absolutely. It’s designed for gamers with features like PCIe 5.0, DDR5 support, robust power delivery, and enhanced cooling for peak gaming performance.
  • What graphics card interface does the ASUS TUF Gaming X670E-PLUS offer?
  • It includes one PCIe 5.0 x16 slot, ideal for high-end GPUs, ensuring maximum bandwidth and graphical performance.
  • Does the ASUS TUF X670E-PLUS motherboard include built-in WiFi?
  • Yes, it features integrated WiFi 6E, delivering faster wireless speeds, lower latency, and improved reliability for online gaming and streaming.
  • How many USB ports are available on the ASUS TUF Gaming X670E-PLUS?
  • It offers a rich I/O panel with multiple USB options including USB 3.2 Gen 2x2 Type-C, USB 3.2 Gen 2, and USB 2.0 ports for versatile connectivity.
  • Can I use this motherboard for overclocking?
  • Yes, the ASUS TUF Gaming X670E-PLUS includes robust VRMs and power stages, making it well-suited for stable overclocking of Ryzen processors.
  • What kind of cooling options does this motherboard support?
  • It supports comprehensive cooling with multiple fan headers, AIO pump headers, and dedicated heatsinks for VRMs and M.2 slots.
  • Is this motherboard compatible with PCIe Gen 5 SSDs?
  • Yes, it supports PCIe Gen 5 SSDs through one of its M.2 slots, offering extremely fast data transfer speeds for demanding applications.
  • Does the ASUS TUF X670E-PLUS WiFi support Bluetooth?
  • Yes, it includes Bluetooth 5.2, allowing seamless wireless connections for peripherals like controllers, headsets, and more.
  • How many RAM slots are on the ASUS TUF Gaming X670E-PLUS?
  • There are four DIMM slots supporting up to 128GB of DDR5 RAM in dual-channel configuration.
  • Is the ASUS TUF Gaming X670E-PLUS good for content creation?
  • Yes, with high-speed storage support, DDR5 memory, and powerful processor compatibility, it’s ideal for video editing, 3D rendering, and multitasking.
  • What is the power phase design of the ASUS TUF X670E-PLUS WiFi?
  • It uses a 14+2 DrMOS power stage design, offering stable power delivery to the CPU for gaming and high-load scenarios.
  • Does it support BIOS flashback?
  • Yes, the board features BIOS FlashBack™, enabling firmware updates without a CPU or memory installed.
  • What audio solution is integrated on this motherboard?
  • It includes Realtek S1200A audio codec for immersive and high-quality sound, especially beneficial for gaming and streaming.
  • Can I sync RGB lighting with this motherboard?
  • Yes, it supports ASUS Aura Sync, allowing synchronization of compatible RGB components and peripherals for a unified lighting setup.
  • Is this motherboard ATX or microATX?
  • The ASUS TUF Gaming X670E-PLUS WiFi is a full-size ATX motherboard, providing ample space for expansion cards and additional cooling.
  • What operating systems are supported by the ASUS TUF X670E-PLUS?
  • It is fully compatible with Windows 11 and Windows 10 64-bit, ensuring access to the latest features and security updates.
  • Does the ASUS TUF Gaming X670E-PLUS support RAID configurations?
  • Yes, it supports RAID 0, 1, and 10 configurations for both SATA and M.2 NVMe drives, offering performance and redundancy options.
