AKG Project Studio P220 Large Diaphragm Cardioid Condenser Microphone (3101H00420) | New
SKU: 3101H00420-N
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us
Same Day Shipping - Arrives in 3-5 Business Days 30-day Returns Overview
Overview of AKG Project Studio P220 Large Diaphragm Cardioid Condenser Microphone (3101H00420) | New

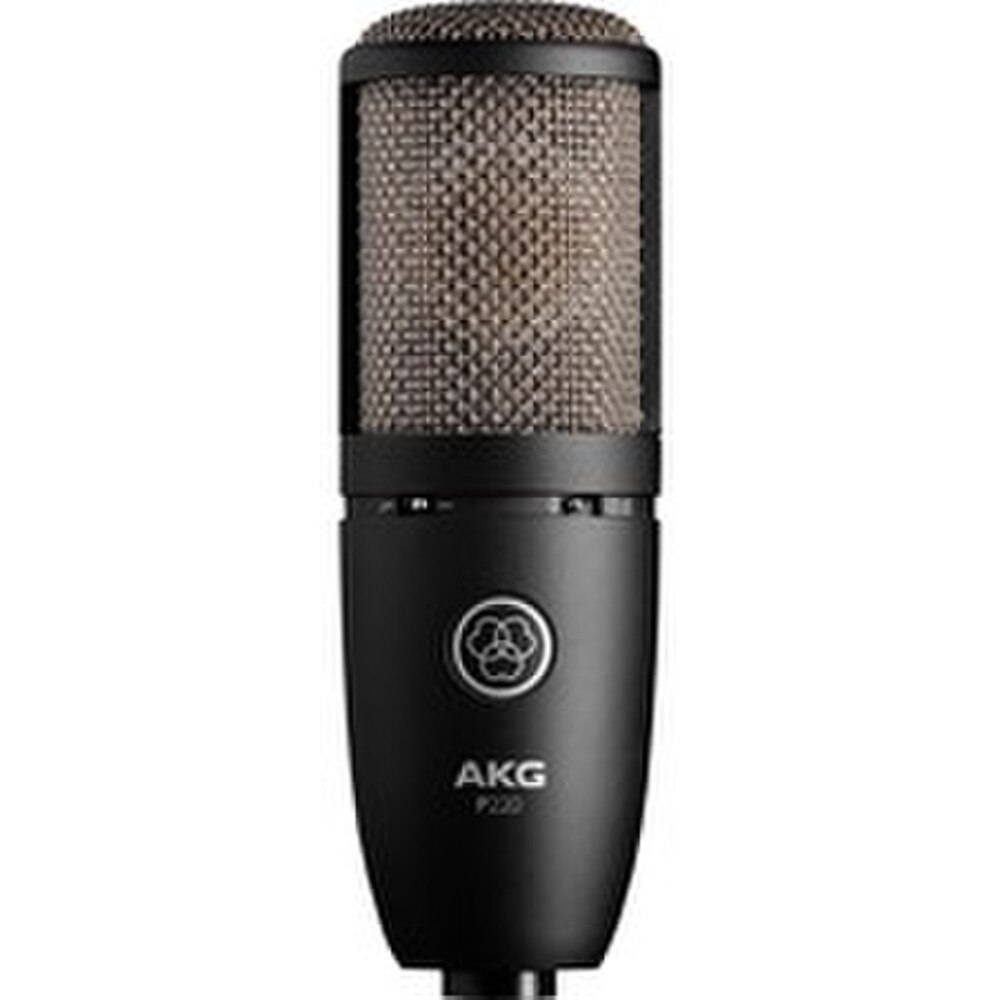

The AKG Project Studio P220 is a large-diaphragm cardioid condenser microphone designed for a variety of recording applications, including vocals and instruments. It features a robust build quality and offers a warm sound profile, making it suitable for both studio and live performance settings.
AKG Project Studio P220 Large Diaphragm Cardioid Condenser Microphone (3101H00420) Features:
- Type: Large diaphragm true condenser microphone
- Polar Pattern: Cardioid, which helps to isolate the sound source while minimizing background noise
- Frequency Response: 20 Hz to 20 kHz, allowing for a wide range of audio capture
- Sensitivity: Approximately -34 dB, providing good pickup of quiet sounds
- Maximum SPL: 135 dB (with pad), making it capable of handling loud sound sources without distortion
- Equivalent Noise Level: 16 dBA, indicating a relatively low noise floor
- Impedance: 200 ohms
- Power Requirement: Requires +48V phantom power
Best Uses for AKG Project Studio P220 Large Diaphragm Cardioid Condenser Microphone (3101H00420):
- Studio Recordings: Great for lead vocals, acoustic instruments, and brass.
- Live Performances: Its rugged design makes it suitable for on-stage use.
- Streaming and Voice-over Work: Provides crisp audio quality for online content creation
Specifications
Specifications for AKG Project Studio P220 Large Diaphragm Cardioid Condenser Microphone (3101H00420)
| Manufacturer | AKG |
| Manufacturer Part Number | 3101H00420 |
| Product Name | Project Studio P220 Large Diaphragm Cardioid Condenser Microphone |
| Product Type | Condenser Microphone |
| Power Source | Phantom Power (Same as P120) |
| Signal-to-Noise Ratio | 78 dB |
| Frequency Range | 20 hz - 20 khz |
| Frequency Response | 20000 Hz |
| Audible Noise | 16 dB |
| Number of Channels | 1 |
| Polar Pattern | Unidirectional |
| Audio Sensitivity | 33.9 dB |
| Impedance | 200 Ohm |
| Connectivity Technology | Wired |
| Connector Type | XLR |
| Special Features | Noise Reduction |
| Compatible Devices | Audio Interface |
| Included Components | Microphone, Aluminum Carrying Case, Shock Mount |
| Recommended Uses For Product | Streaming, Singing |
User Guides
Frequently Asked Questions
AKG Project Studio P220 Large Diaphragm Cardioid Condenser Microphone (3101H00420)
Frequently Asked Questions (FAQ's)
What type of microphone is the AKG P220? The AKG P220 is a large diaphragm cardioid condenser microphone ideal for studio and live performance applications.
What applications is the AKG P220 suitable for? The AKG P220 is suitable for recording vocals, acoustic instruments, and as an overhead mic for drums and percussion.
Does the AKG P220 require phantom power? Yes, the AKG P220 requires 48V phantom power to operate.
What is the frequency response range of the AKG P220? The AKG P220 has a frequency response range of 20Hz to 20kHz.
Is the AKG P220 a cardioid microphone? Yes, the AKG P220 features a cardioid polar pattern, which isolates sound from the front while minimizing background noise.
What is the maximum sound pressure level (SPL) of the AKG P220? The AKG P220 can handle up to 155dB SPL, making it suitable for loud sound sources like drums and amplifiers.
Does the AKG P220 have a high-pass filter? Yes, the AKG P220 is equipped with a switchable high-pass filter at 300Hz to reduce low-frequency rumble.
Is the AKG P220 good for recording vocals? Yes, the AKG P220 is well-regarded for vocal recording due to its clarity and warmth.
What size diaphragm does the AKG P220 have? The AKG P220 features a large 1-inch diaphragm, providing enhanced sensitivity and sound quality.
How does the AKG P220 compare to the AKG C214? The AKG P220 is more affordable than the C214, with both microphones offering high-quality sound but the C214 having a broader dynamic range.
Can the AKG P220 be used for podcasting? Yes, the AKG P220 is an excellent choice for podcasting due to its clear sound and noise isolation.
What kind of connection does the AKG P220 use? The AKG P220 uses a standard XLR connection for professional audio equipment.
Does the AKG P220 come with a shock mount? Yes, the AKG P220 comes with a custom-designed shock mount to reduce vibrations and handling noise.
Is the AKG P220 suitable for live performances? Yes, the AKG P220 is versatile enough for live performance situations, especially for vocals and instruments.
Can the AKG P220 handle high-volume sound sources? Yes, with its high SPL handling, the AKG P220 can capture loud sound sources like electric guitars and drum kits without distortion.
What is the self-noise level of the AKG P220? The self-noise level of the AKG P220 is approximately 16dB(A), which is low and suitable for studio recordings.
Does the AKG P220 have a pad switch? Yes, the AKG P220 has a -20dB pad switch to handle high sound pressure levels without distortion.
