Overview of AKG WMS420 Professional Wireless Microphone System (3415H00010) | New

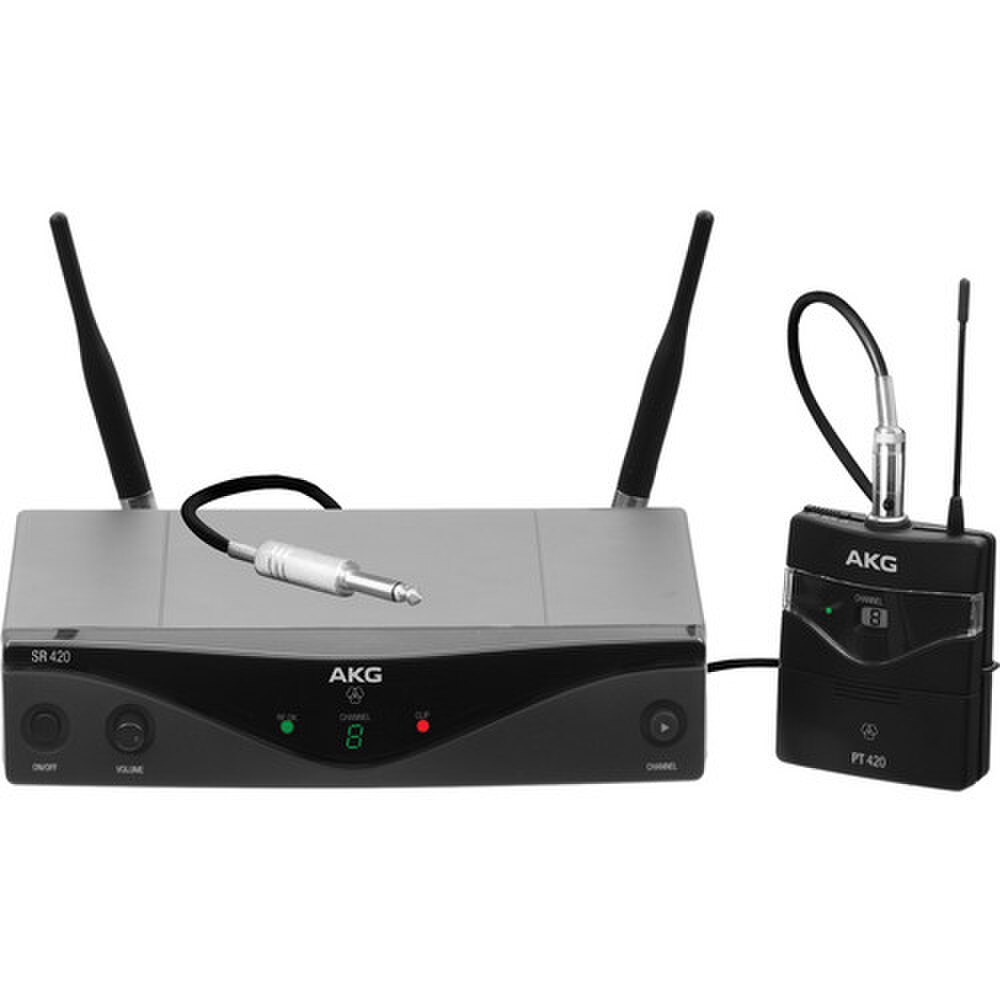

The AKG WMS420 Wireless Microphone System (3415H00010) is a professional multi-channel wireless microphone system suitable for live sound, presentations, and installations. The system includes the SR420 stationary receiver, HT420 handheld transmitter, and PT420 pocket transmitter. The HT420 handheld transmitter is available with the patented D5 dynamic microphone acoustic, which guarantees maximum rejection against feedback, reduced handling noise, and the famous AKG sound.
The system is ultra-high frequency and can be set up within seconds. The detachable receiver antennas allow the use of professional accessories, such as antenna splitters and remote mounted directional antennas for multi-channel systems. The WMS420 series includes three different bodypack sets: head-worn, presenter, and guitar. The head-worn set includes the high-performance C555L condenser microphone, the presenter set includes the professional C417L lavalier microphone, and the guitar set includes an instrument cable. With the AKG WMS420 system, up to eight channels can be run simultaneously.
The transmitters offer exceptional eight hours of operation time from a single AA size battery, which dramatically reduces the operating costs in day-to-day use. The system is compatible with all AKG micromics, and almost all applications can be covered.
Specifications
Specifications for AKG WMS420 Professional Wireless Microphone System (3415H00010) | New
| Brand | AKG |
| Wireless Technology | Analog UHF |
| Included Transmitters | 1x Bodypack with Cable |
| Diversity | Antenna Diversity |
| Max Operating Range | 98.4' / 30 m |
| Receiver Type | Tabletop |
| Number of RF Channel Frequencies | 8 |
| Included Transmitters | 1x Bodypack with Cable |
| Diversity | Antenna Diversity |
| RF Frequency Band | 530.025 to 559 MHz |
| Max Operating Range | 98.4' / 30 m |
| Max Transmitters per Band | 8 |
| Modulation | FM |
| SNR | 105 dBA |
| THD | 0.80% |
| Receiver Type | Tabletop |
| Mounting Options | Rackmount (with Optional Hardware) |
| Rackmount Size | 1 RU (1/2 Rack) |
| Antenna | 2x 1/4 Wave External, Detachable (Rear-Mount) |
| Number of Audio Channels | 1 |
| Frequency Response | 40 Hz to 20 kHz |
| Squelch | Adjustable, -100 to -70 dBm |
| Power Requirements | AC/DC Power Adapter |
| AC/DC Power Adapter | 12 VDC at 500 mA (Included) |
| Display & Indicators | LCD (Channel), LED (Peak), LED (Sync) |
| Dimensions | 7.9 x 1.8 x 5.9" |
| Weight | 13.2 oz / 373 g |
| Package Weight | 2.7 lb |
User Guides
Frequently Asked Questions
AKG WMS420 Professional Wireless Microphone System
Frequently Asked Questions (FAQ's)
What components are included in the AKG WMS420 system? The system includes a receiver, a handheld transmitter or bodypack transmitter (depending on the version), power adapter, and associated accessories like antennas.
What is the range of the AKG WMS420 wireless system?
The operational range is up to 30 meters (98 feet) in line-of-sight conditions.
What frequency bands does the WMS420 support?
The WMS420 supports UHF frequency bands, varying by region to comply with local regulations.
Is the WMS420 suitable for live performances? Yes, the WMS420 is designed for live performances, conferences, and presentations, offering high-quality audio and stable connectivity.
How many channels can the WMS420 operate simultaneously? Up to 8 channels can operate simultaneously, depending on the frequency band and environment.
Can I use multiple WMS420 systems in the same location? Yes, multiple systems can be used simultaneously, provided they are on different frequencies to avoid interference.
What is the battery life of the transmitter? The transmitters provide up to 8 hours of continuous use with a single AA battery.
Does the system include a rechargeable battery option? The WMS420 supports standard AA batteries but does not include rechargeable batteries.
What types of microphones are compatible with the WMS420 bodypack transmitter? It supports various AKG microphones, such as lavalier and headset microphones, with mini-XLR connectors.
How do I set up the WMS420 system? Connect the receiver to a sound system, power it on, set the transmitter and receiver to the same frequency, and you're ready to use it.
What is the audio quality of the WMS420? The system offers high-definition sound with a frequency response of 40 Hz to 20 kHz.
Does the WMS420 have interference protection? Yes, it features advanced UHF technology and manual frequency selection to minimize interference.
Can the WMS420 be rack-mounted? Yes, the receiver can be rack-mounted using optional rack-mount kits.
Is the AKG WMS420 compatible with mixing consoles? Yes, the receiver can connect to most mixing consoles using standard audio outputs.li>
Does the system support diversity technology? Yes, the WMS420 employs true diversity technology for stable and reliable wireless performance.
What outputs are available on the WMS420 receiver? The receiver features balanced XLR and unbalanced 1/4" TS outputs for flexible connectivity.
How do I replace the transmitter battery? Open the battery compartment on the transmitter, remove the old battery, and insert a new AA battery, ensuring proper polarity.
Can the WMS420 be used outdoors? Yes, the system is suitable for outdoor use but should be protected from extreme weather conditions.
Does the WMS420 come with a warranty? Yes, AKG typically provides a warranty for its products. Check with the retailer or AKG support for specific terms.cables.
How do I trouble Ensure the transmitter and receiver are set to the same frequency, check for interference from other devices, and replace the transmitter battery if needed.
