Overview of Feniex 4X Flasher (H-2220) | New

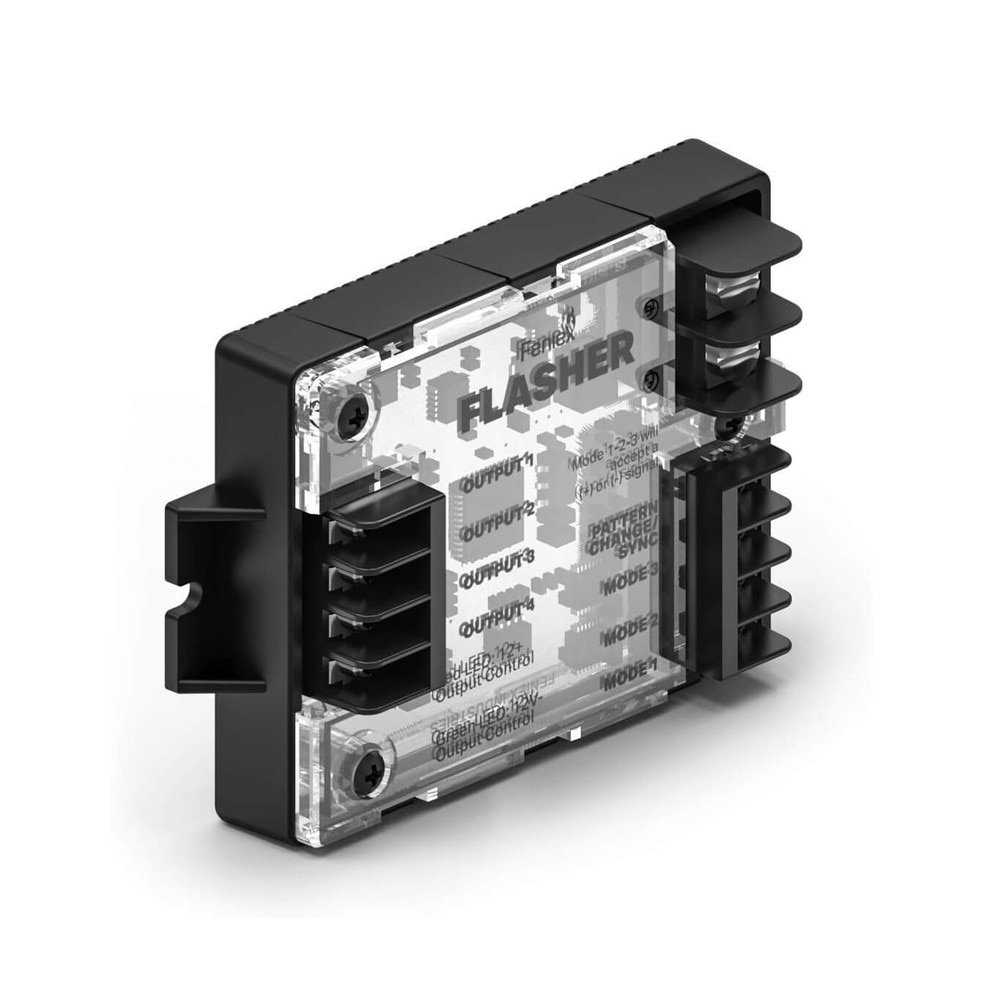

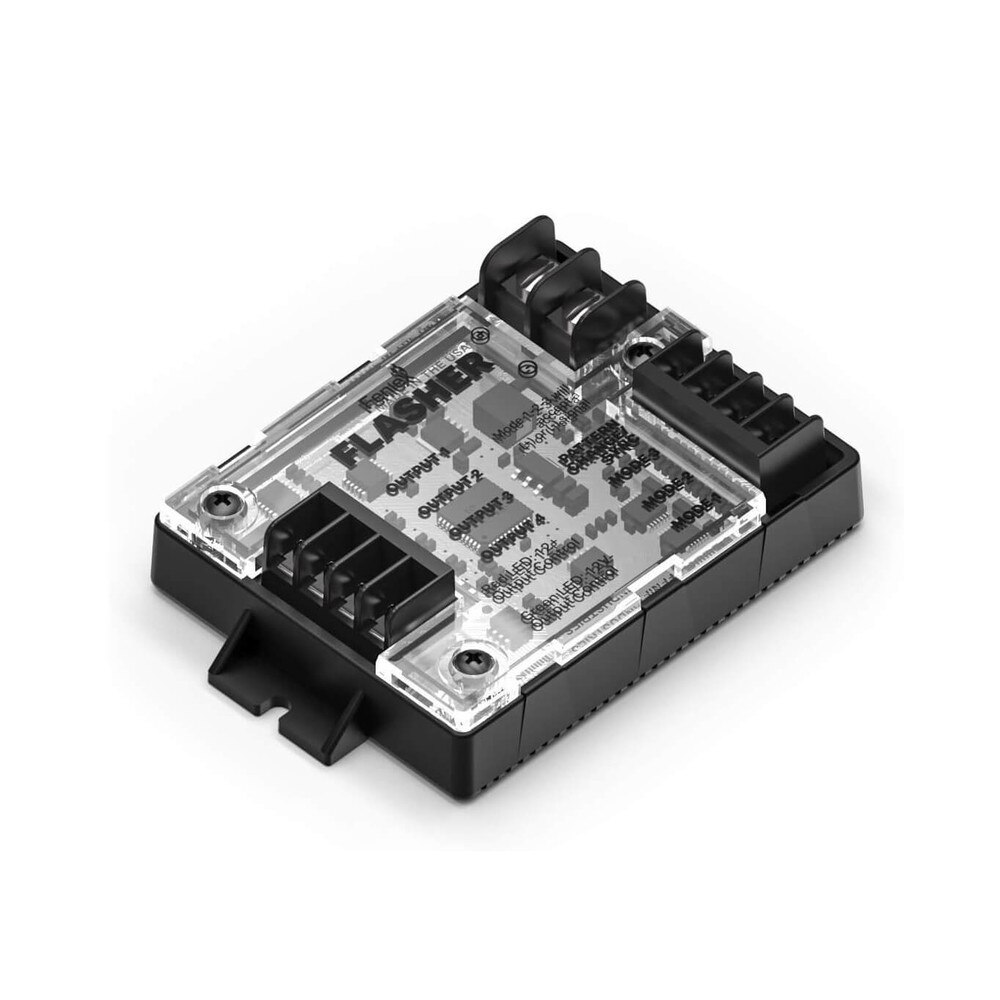

The Feniex 4X Flasher (H-2220) is a cutting-edge LED flasher specifically designed for emergency vehicles and specialized lighting applications. This compact yet powerful device provides first responders and safety professionals with unparalleled versatility and performance. The H-2220 is intended for interior installation and complements both halogen and LED lighting products. Its programmable outputs can be set to provide positive or negative power, allowing for a wide variety of light heads and configurations.
This American-made flasher has a tough weather-resistant enclosure with built-in short circuit and over-temperature protection. The LED flash pattern indicator enables simple programming and operation. With a two-year warranty and versatile functionality, the Feniex 4X Flasher H-2220 is an excellent choice for law enforcement, fire departments, and other emergency services that require dependable and adaptable lighting control.
Key Features of Feniex 4X Flasher
• Four outputs, each rated at 5 amps, with a total current output of 20 amps
• Three programmable modes for customizable operation
• 40 flash patterns (21 in some versions) for diverse lighting effects

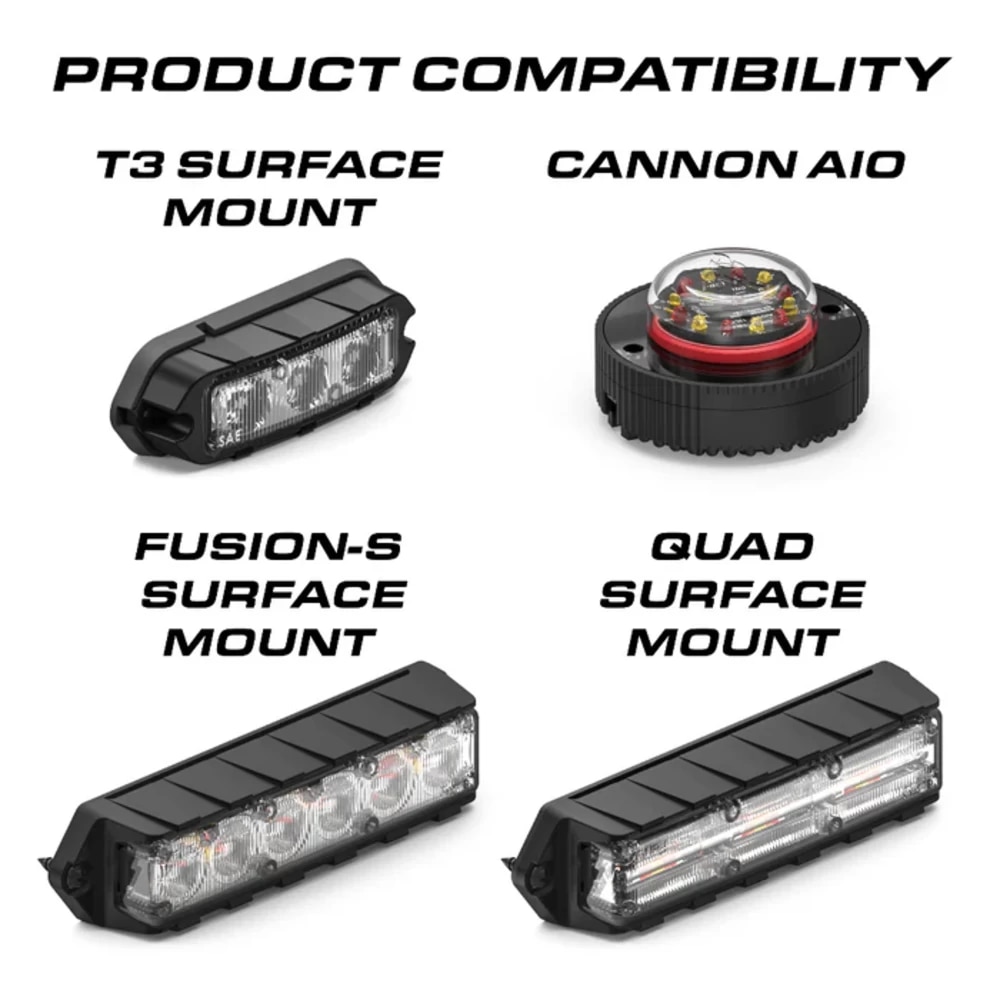

• Universal compatibility with both positive and ground switched LED modules
• Ability to sync with multiple flashers for coordinated lighting
• Solid-state design for improved durability
• SAE J1119 certified for reliability
• Compatible with both halogen and LED lighting products
• Programmable +/- output: Four channels can be set to output 12V+ voltage or 12V- voltage
• LED flash pattern indicator
• Rugged weather-resistant enclosure with short circuit and over-temperature protection
• Integrated steady-on brake pop feature
Specifications
Specifications for Feniex 4X Flasher (H-2220) | New
| Manufacturer | Feniex |
| Manufacturer Part Number | H-2220 |
| Product Name | Feniex 4X Flasher |
| Product Type | Flasher |
| Input Voltage | 10-18 VDC |
| Number of Outputs | 4 |
| Output Rating | 5 amps per output |
| Total Current Output | 20 amps |
| Programmable Modes | 3 |
| Flash Patterns | 40 (21 in some versions) |
| Compatibility | Universal (positive and ground switched LED modules) |
| Installation Location | Vehicle interior (not waterproof) |
| Programmable Output | 4 channels (12V+ or 12V-) |
| Special Features | Sync with multiple flashers, LED pattern indicator, Brake pop feature |
| Protection | Short circuit and over-temperature protection |

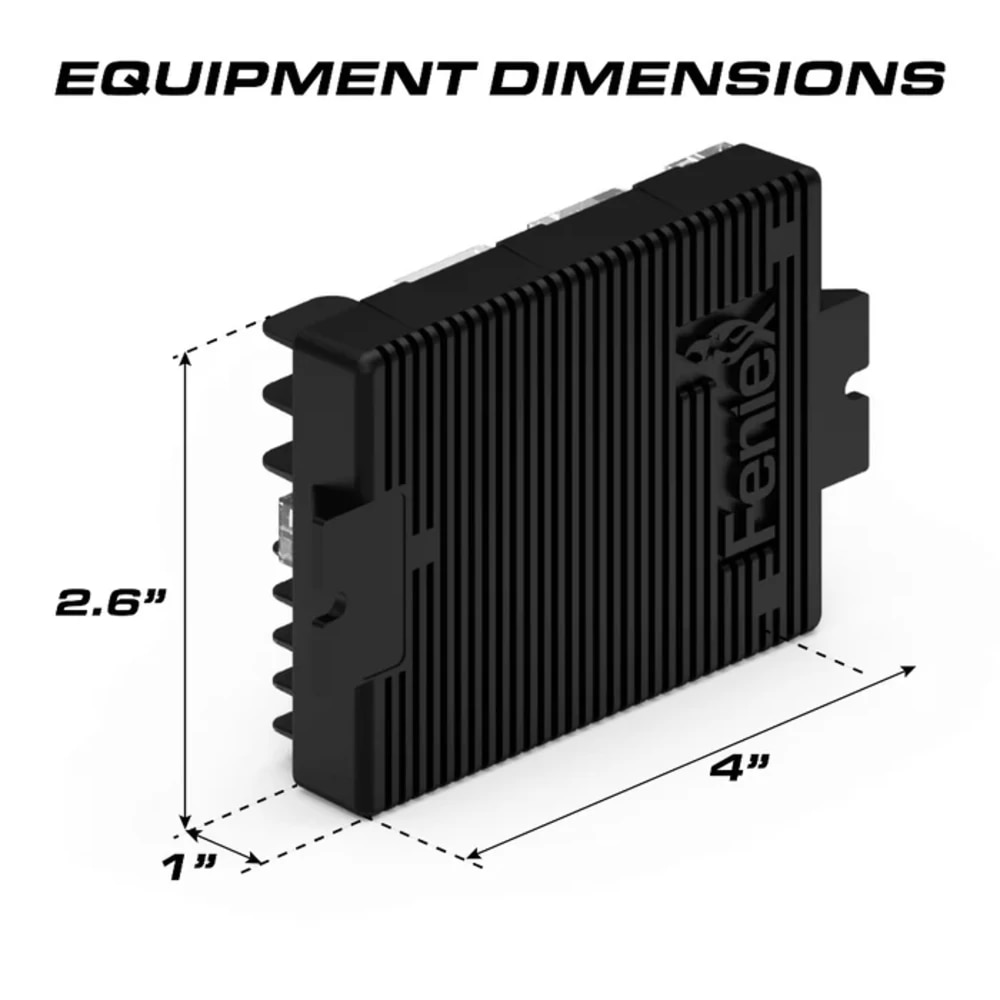

| Dimensions | 4" x 2.625" x 1" |
| Certifications | SAE J1119 |
| Construction | Solid-state design, Rugged weather-resistant enclosure |
| Origin | Made in USA |
User Guides
Frequently Asked Questions
Feniex 4X Flasher (H-2220)
Frequently Asked Questions (FAQ's)
What is the main function of the Feniex H-2220 4X Flasher? The primary function is to control and synchronize multiple lighting channels for emergency vehicles.
How many lighting channels does the H-2220 4X Flasher support? It can accommodate up to four independent lighting channels.
How many flash patterns are available with the H-2220 4X Flasher? There are 20 different flash pattern options.
Can the H-2220 4X Flasher synchronize with other flashers? Yes, it has a sync feature that enables multiple flashers to be synchronized.
Is the H-2220 4X Flasher weather-resistant? Yes, it is designed to withstand extreme weather conditions.
What is the power requirement for the H-2220 4X Flasher? It usually requires a 12V power source, which is common in most emergency vehicles.
How easy is it to install the H-2220 4X Flasher? It includes all of the necessary hardware and instructions for a quick and simple installation.
What vehicles is the H-2220 4X Flasher compatible with? It is compatible with the majority of emergency vehicles, including police, fire, EMS, utility, and construction vehicles.
Does the H-2220 4X Flasher have a compact design? Yes, it is designed to save space and be easy to install.
Is there a user manual available for the H-2220 4X Flasher? Yes, a detailed user manual is included with the product and available online.
Can I customize the flash patterns on the H-2220 4X Flasher? Yes, it supports customizable flash patterns to meet a variety of operational requirements.
What materials are used in the construction of the H-2220 4X Flasher? It is made of high-quality, long-lasting materials.
What is the warranty period for the H-2220 4X Flasher? The warranty information is available in the product documentation, which is typically provided by Feniex.
How does the sync feature work on the H-2220 4X Flasher? The sync feature enables multiple units to flash in a coordinated pattern, increasing visibility.
Is professional installation recommended for the H-2220 4X Flasher? While it is designed for simple installation, professional installation is recommended for best results.
What is the expected lifespan of the H-2220 4X Flasher? It is intended to last many years with proper maintenance and regular use.
Can the H-2220 4X Flasher be used with LED lights? Yes, it is compatible with LED lighting.
Does the H-2220 4X Flasher have a built-in fuse? Yes, it typically has built-in protection features such as a fuse.
Where can I purchase the Feniex H-2220 4X Flasher? It can be purchased from authorized Feniex dealers and online retailers.
How does the H-2220 4X Flasher enhance vehicle safety? Customizable and synchronized lighting increases the visibility of emergency vehicles, improving safety for responders and the general public.
