Zebra GX420d Direct Thermal Desktop Printer (GX42-202410-000, GX42-202420-000) | New

Zebra GX420d Direct Thermal Desktop Printer (GX42-202410-000, GX42-202420-000) | New

SKU: GX42-202410-000-N
(0)No Reviews yet

Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns

$469.99 $469.99
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

Overview of Zebra Symbol LS2208 Handheld Barcode Scanner (LS2208-SR20007R-UR, LS2208-SR20007R) | New

The Zebra GX420d Direct Thermal Desktop Printer (GX42-202410-000) is a cutting-edge, compact label printing solution designed for commercial, retail, healthcare and logistics applications requiring reliable, superior barcode and label creation. This desktop printer uses direct thermal technology, which eliminates the need for ink or ribbons, lowering maintenance and operating expenses. With a maximum print speed of 6 inches per second and reliable performance with sharp, monochromatic prints up to 203 dpi, it ensures effective throughput in hectic settings.

You have flexible connectivity at your fingertips since the GX420d easily connects into a range of processes and legacy systems using conventional USB, Serial, and 10/100 Ethernet interfaces. It is excellent at printing shipping labels, asset tags, receipts and wristbands and supports a wide range of barcode symbologies, including 1D and 2D barcodes like QR Code and Data Matrix. Within current Zebra printer fleets, EPL2 and ZPL II printer languages offer wide compatibility and simple implementation. The GX420d is a wise, scalable investment for expanding companies because of its sturdy, small design, which guarantees durability for desktop use while taking up little workspace.


Key Features of Zebra GX420d Direct Thermal Desktop Printer


Direct Thermal Printing that no ink or ribbon required, reducing ongoing supply costs and maintenance.

203 dpi Print Resolution produces crisp, clear barcodes, labels and text for reliable scanning and readability.

Fast Print Speed with up to 6 inches per second maximizes productivity and streamlines labeling tasks.

Multiple Connectivity Options equipped with USB, Serial and 10/100 Ethernet interfaces for flexible integration.

Supports EPL2 and ZPL II ensures easy programming, compatibility and seamless transition from other Zebra printers.

Wide Barcode Compatibility that prints 1D/2D symbologies including Code 128, Code 39, UPC, EAN, Data Matrix, QR Code, PDF-417, MaxiCode and more.

Generous Print Width that handles media up to 4.09 inches wide for versatile label formats.

Desktop-Friendly Compact Design that fits easily into tight workspaces while withstanding the demands of daily operation.

Plug-and-Play Setup that includes the essential cables and power cord for fast, hassle-free installation.

Ideal for Multiple Industries that is perfect for point-of-sale, healthcare patient tracking, shipping/receiving, inventory management and asset labeling.


Benefits of Zebra GX420d Direct Thermal Desktop Printer


🗹 Direct thermal technology eliminates the need for costly ribbons or ink, saving money and cutting downtime.

🗹 Fast print speeds and user-friendly setup accelerate workflows and minimize bottlenecks at the front desk, shipping dock or inventory room.

🗹 Multiple connectivity options allow smooth deployment within existing IT environments, whether you use modern or legacy systems.

🗹 High-resolution output and broad barcode support make it easy to print shipping, compliance and asset labels with precision.

🗹 Compatible with Zebra EPL2 and ZPL II languages, ensuring the printer can grow with your organization’s changing needs.

🗹 Handle anything from retail receipts and patient wristbands to shipping labels and inventory tags, all on the same reliable device.

🗹 Designed to fit on any desktop without sacrificing build quality, making it ideal for space-constrained workstations.

Specifications

Specifications for Zebra Symbol LS2208 Handheld Barcode Scanner (LS2208-SR20007R-UR, LS2208-SR20007R) | New

ManufacturerZebra
Manufacturer Part NumberGX42-202410-000, GX42-202420-000
Product NameZebra GX420d Direct Thermal Desktop Printer
Product TypeLabel Printer
LocalizationUnited States
Print SpeedUp to 359.1 inch/min - B/W - 203 dpi
Connectivity TechnologyWired
InterfaceUSB, LAN, serial
Max Resolution (B&W)203 dpi
Language SimulationZPL, ZPL II, EPL2
Fonts Included16 x bitmapped ¦ 1 x scalable
BarcodesCode 93, Industrial 2 of 5, Code 39, UCC/EAN-128, Code 49, GS1 DataBar, QR code, MaxiCode, Aztec code, LOGMARS, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 11, Code 2 of 5, UPC, Interleaved 2 of 5, Postnet, PDF417, MSI-Plessey, Data Matrix, Japanese Post, Plessey, MacroPDF417, EAN-14, Code 128B, Code 128C, German Post, MSI-3, Code 128A
RAM Installed (Max)8 MB
Technology / Form FactorSDRAM
Flash Memory4 MB (installed) / 68 MB (max)
Media TypeLabels, continuous forms, fanfold paper, tag stock
Max Media SizeRoll (4.25 in)
Min Media Size (Custom)0.75 in x 0.38 in
Max Media Size (Custom)4.25 in x 39 in
Media SizesRoll (0.75 in - 4.25 in)
Max Printing Width4.09 in
Max Printing Length39 in
Media Thickness Range0.003 in - 0.0079 in
Roll Maximum Outer Diameter5 in
Roll Core Diameter1 in, 0.5 in, 1.46 in
Media Feeders1 x manual - 1 roll - Roll (4.25 in)
NetworkingPrint server - internal
Network Controller NameZebraNet 10/100 Print Server
Data Link ProtocolEthernet, Fast Ethernet
Connections1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x USB - 4 pin USB Type B ¦ 1 x LAN - RJ-45
Included AccessoriesCleaning pen
Cables Included1 x USB cable
Compatible with Windows 7"Compatible with Windows 7" software and devices carry Microsoft’s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7.
Compliant StandardsTUV, VCCI, C-Tick, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class B, CCC, FCC Part 15
Power DevicePower adapter - external
Frequency Required50/60 Hz
Power Factor CorrectionYes
Software IncludedDrivers & Utilities, ZebraDesigner
Service & SupportLimited warranty - 1 year
Min Operating Temperature41 °F
Max Operating Temperature105.8 °F
Humidity Range Operating10 - 90% (non-condensing)
Width7.6 in
Depth10 in
Height7.5 in
Weight4.63 lbs
Weight (Shipping)9.04 lbs

User Guides

Frequently Asked Questions

Zebra GX420d Direct Thermal Desktop Printer (GX42-202410-000, GX42-202420-000)
Frequently Asked Questions (FAQ's)



What type of printing technology does the GX420d use?
  • It uses direct thermal printing, which requires only thermal paper—no ribbons or ink.
  • What’s the print resolution of the Zebra GX420d?
  • The printer offers 203 dpi resolution for sharp and legible barcode and text printing.
  • What connectivity options are available with model GX42-202410-000?
  • This model supports both USB and serial connections for easy integration.
  • Can the GX420d print in color?
  • No, direct thermal printers print in black only by applying heat to the label surface.
  • What is the maximum print speed of this printer?
  • It prints up to 6 inches per second for fast and efficient output.
  • What types of media can I use?
  • The GX420d supports labels, tags, wristbands and receipt paper in various sizes.
  • Is it compatible with my current software?
  • Yes, it supports standard drivers and is compatible with Windows, Mac and Linux systems.
  • Is setup complicated?
  • Not at all. Zebra’s Print DNA tools simplify installation and offer step-by-step setup.
  • Does it come with software?
  • Zebra offers free software tools and driver support via their website, including Label Designer tools.
  • How do I load media into the printer?
  • The clamshell design makes it easy—just open the top, place the media roll and close it.
  • Can I manage the printer remotely?
  • Yes, using Zebra’s Print DNA suite, including management and diagnostic tools.
  • What applications is it best suited for?
  • Ideal for shipping labels, inventory tags, price stickers, ID wristbands and asset tracking.
  • Is the printer energy-efficient?
  • Yes, it’s designed to consume minimal power, especially compared to ink-based alternatives.
  • Does it support network connectivity?
  • Not by default, but Ethernet and wireless variants of the GX420 are available separately.
  • What’s included in the box?

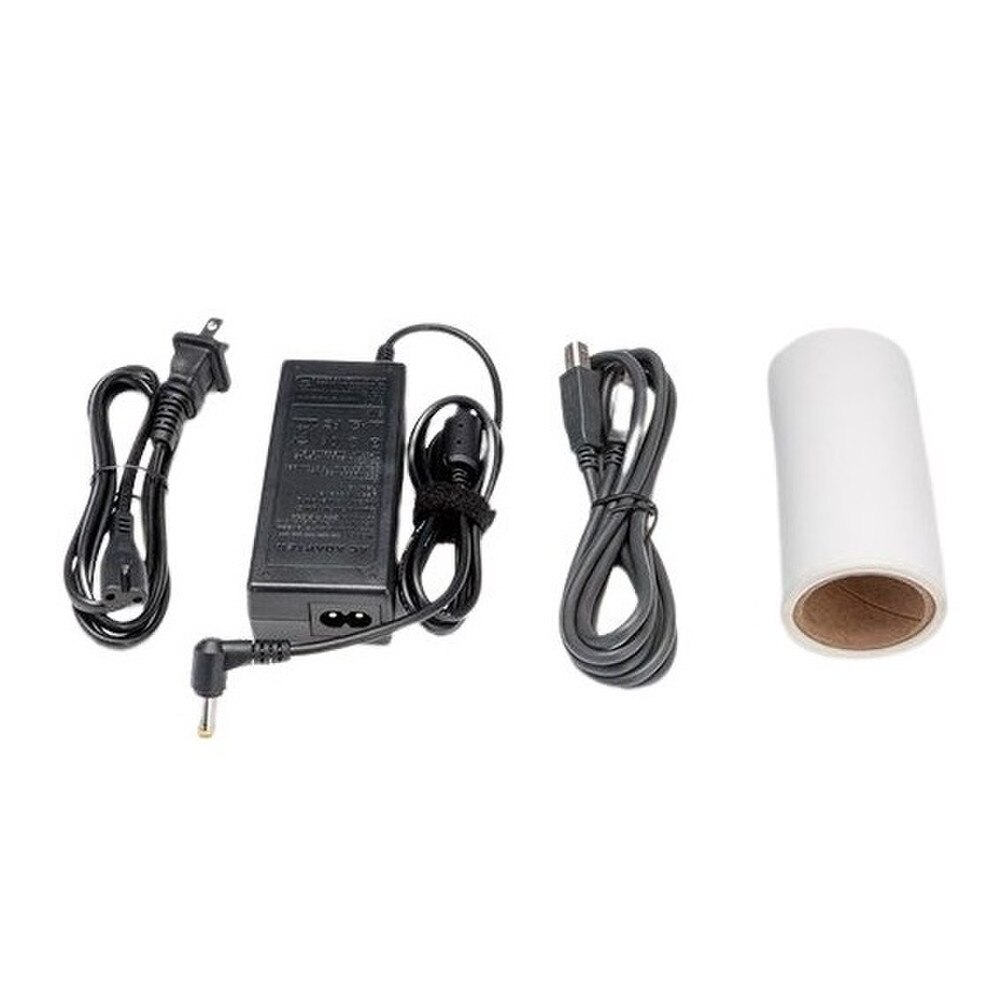

  • The printer, USB and serial cables, power supply and a quick start guide.
  • How long do direct thermal labels last?
  • Labels typically last up to 1 year depending on exposure to heat, light and abrasion.
  • Can I use it in a healthcare environment?
  • Absolutely. It’s widely used for lab samples, wristbands and other healthcare labeling.
  • Can I use fanfold or continuous labels?
  • Yes, it supports roll-fed, fanfold, die-cut, black mark and continuous media types.
  • How often should I clean the printer?
  • Clean the printhead and rollers every time you change media to ensure print quality.
  • Can the GX420d be wall-mounted or used vertically?
  • No, the GX420d is designed for desktop use only. It must be placed on a flat, stable surface to operate correctly and ensure optimal label feeding and printing accuracy.
