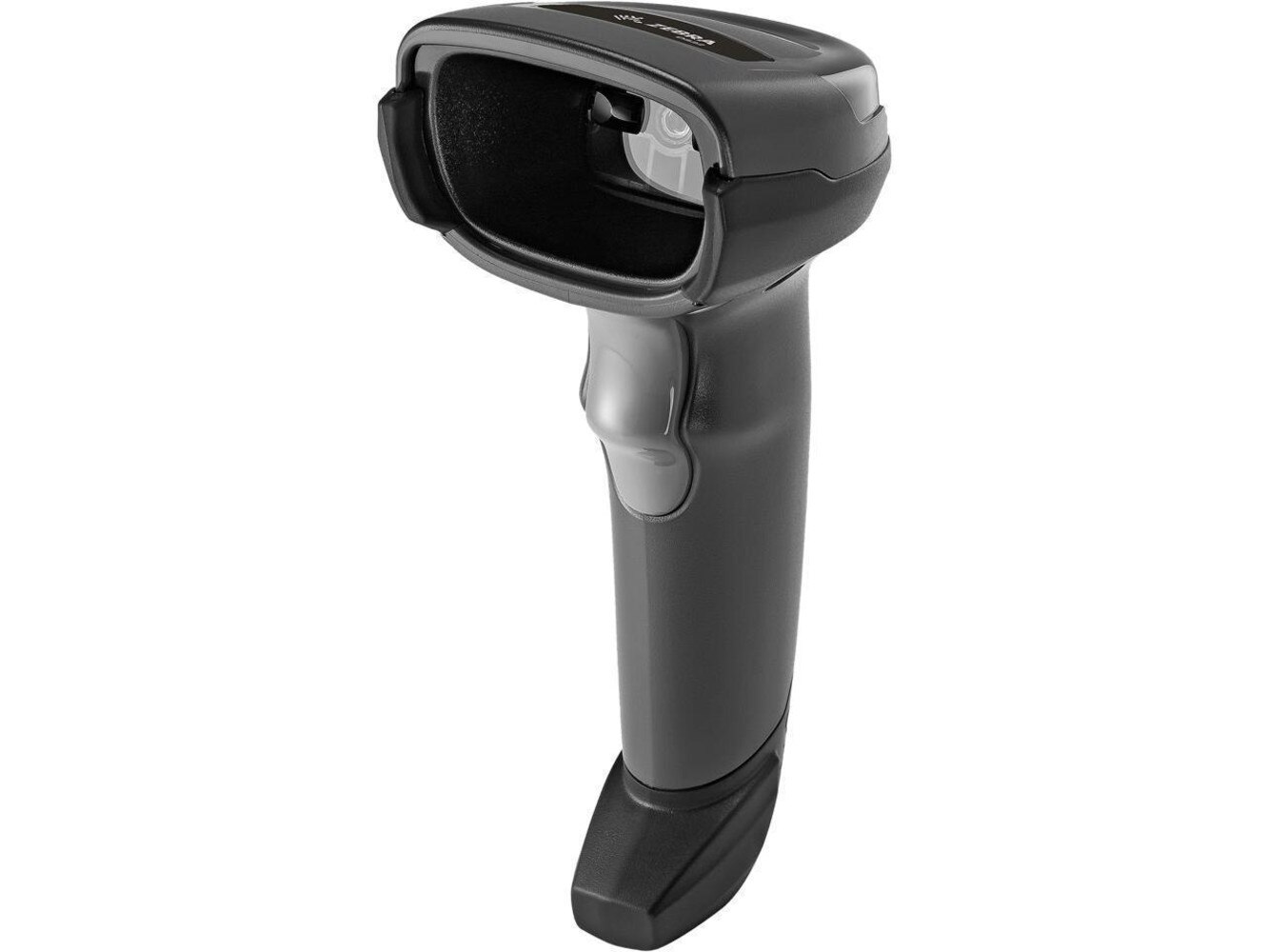

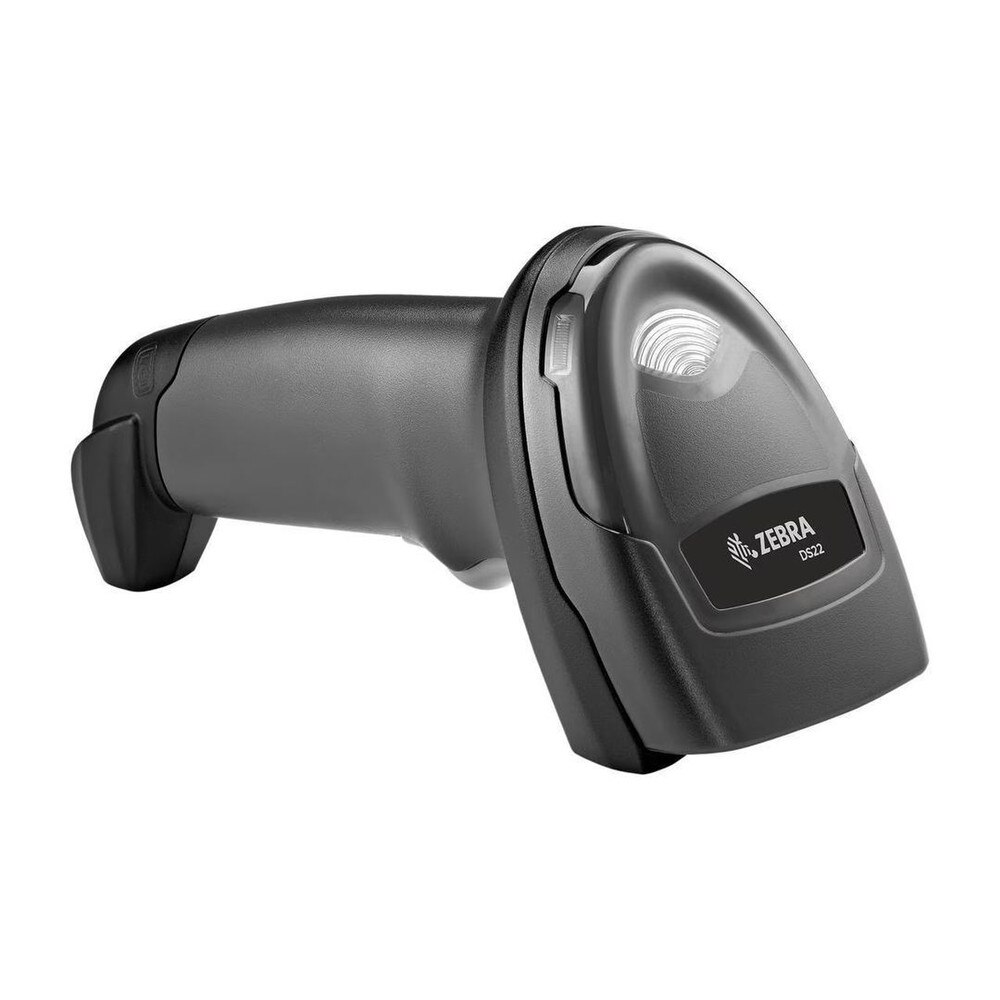

Zebra DS2208 Scanner Standard Range with cradle (DS2208-SR7U2100SGC) | Like New
Easy integration with a tablet-based POS
The DS2200 Series offers all the features you need to add high-quality scanning to your tablet-based POS. The Micro USB cable provides a low-cost charging alternative to a cradle. And with our simplified app development tools, you can easily configure and update the DS2200 Series right from the tablet.
Deploy anywhere in the world
With over 90 international keyboards, the DS2200 Series is easy to deploy all around the world.
Easily customize settings with 123Scan
This complementary software tool is so intuitive that even a first time user can easily set up a DS2200 Series imager. The wizard-driven interface makes it easy to embed all settings into a single programming barcode, enabling you to configure your devices with a single scan.
Backwards compatible with Zebra LS2208 series cables
If you use Zebra’s 1D LS2208 scanners today, you can use the same universal cables with the DS2200 Series, allowing you to leverage your existing accessory investment to minimize the cost of upgrading to a 1D/2D imager.
EASY TO DEPLOY
Pre-configured and ready to use, right out of the box
Since the default settings are optimized for the majority of scanning applications, you can use the DS2200 Series imager the moment you take it out of the box — no configuration required.
Auto-host detect cables
Just plug the DS2200 Series into your Point of Sale (POS) and the auto-host detect cables will automatically identify the interface and connect the imager, simplifying and reducing setup time.
Specifications
Zebra DS2208 Scanner Standard Range with cradle Specifications
| Dimensions | Corded DS2208: 6.5 in. H x 2.6 in. W x 3.9 in. D 16.5 cm H x 6.6 cm W x 9.9 cm D Cordless DS2278: 6.9 in. H x 2.6 in. W x 3.5 in. D 17.5 cm H x 6.6 cm W x 9.0 cm D Presentation Cradle: 2.8 in. H x 3.7 in. W x 4.8 in. D 7.2 cm H x 9.4 cm W x 12.2 cm D |
| Weight | Corded DS2208: 5.7 oz. / 161.6 g Cordless DS2278: 7.5 oz. / 214 g Presentation Cradle: 5.2 oz. / 151 g |
| Input Voltage Range | DS2208/DS2278 and Cradle: 4.5 to 5.5 VDC Host Powered; 4.5 to 5.5 VDC External Power Supply |
| Current | Corded DS2208 Operating Current at Nominal Voltage (5.0V): 250 mA (typical). (Note: Auto-Aim and Illumination on Acquiring Image) Corded DS2208 Standby Current (idle) at Nominal Voltage (5.0V): 150 mA (typical). (Note: Auto-Aim On) Presentation Cradle and Micro USB Cable: 500 mA (typical) Standard USB; 1100 mA (typical) BC 1.2 USB |
| Color | Nova White, Twilight Black |
| Supported Host Interfaces | USB, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485 |
| Keyboard Support | Supports more than 90 international keyboards |
| User Indicators | Direct Decode Indicator; good decode LEDs; Rear view LEDs; beeper (adjustable tone and volume) |
User Guides
Frequently Asked Questions
Zebra DS2208 Scanner Standard Range with cradle (DS2208-SR7U2100SGC)
Frequently Asked Questions (FAQ's)
What type of barcode scanner is the Zebra DS2208? It is a 2D handheld barcode scanner that can read 1D and 2D barcodes.
What kind of barcodes can the DS2208 read? It can read both written and electronic barcodes, such as QR codes, Data Matrix, and classic linear barcodes.
Is the DS2208 compatible with mobile devices? Yes, it can read barcodes that appear on mobile device screens.
Does the DS2208 require software installation? Basic use requires no additional software; it is compatible with the majority of platforms.
What interfaces does the DS2208 support? It supports USB, RS232, and keyboard wedge interfaces.
How do I set up the Zebra DS2208? Connect the scanner to your system using the included cable, and it will automatically configure itself.
Is the DS2208 compatible with all operating systems? Yes, it works with Windows, macOS, and Linux.
How do I pair the DS2208 with my POS system? It has plug-and-play capabilities; however, you may need to scan a setup barcode from the instructions to configure it for your particular POS system.

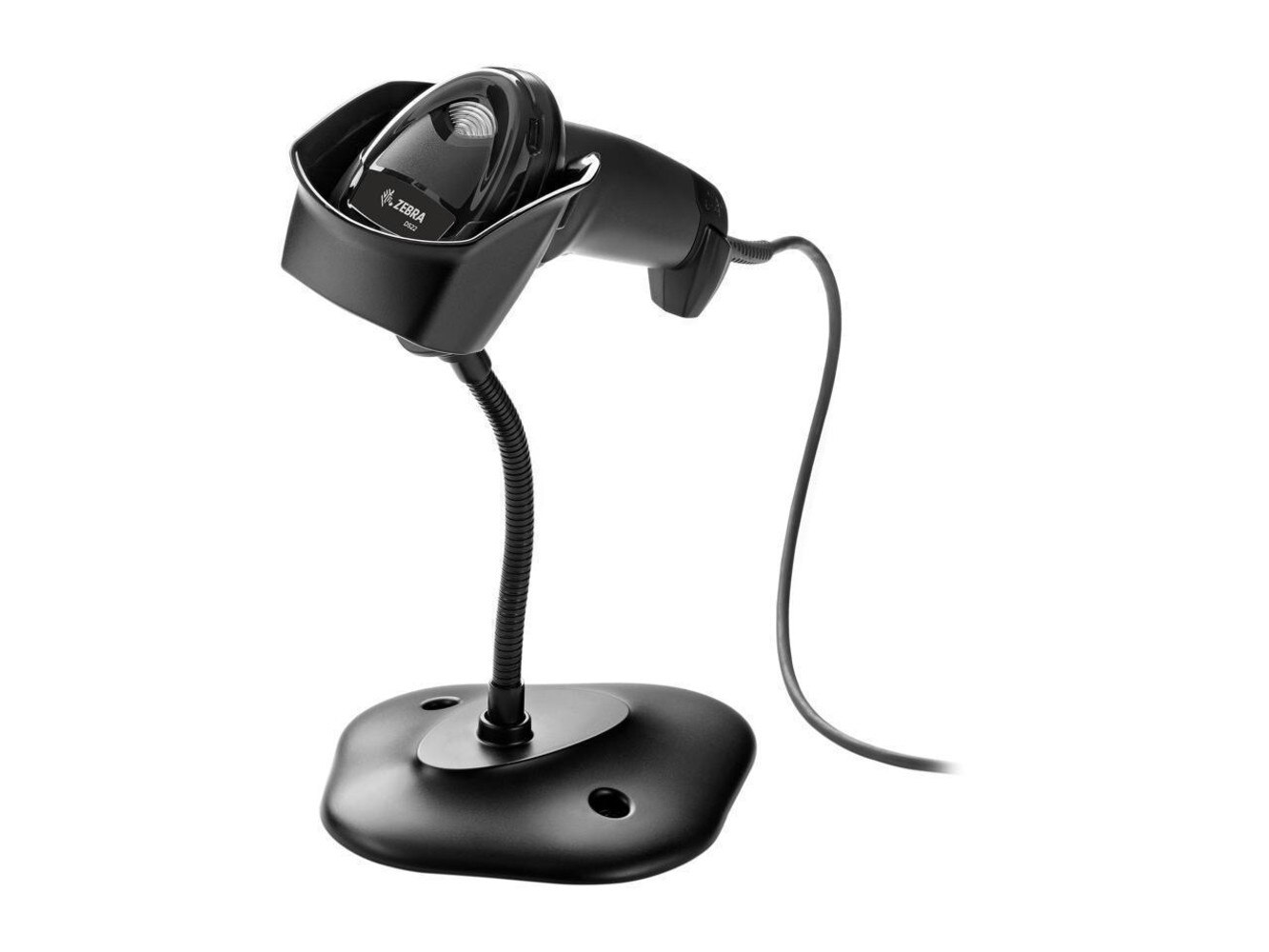

Can the DS2208 be mounted on a stand? Yes, it comes with an optional stand for hands-free scanning.
How do I switch between handheld and hands-free mode? When the scanner is placed on or removed from the stand, it automatically shifts between modes.
What is the scanning range of the Zebra DS2208? Depending on the barcode type and size, the DS2208 can scan from contact distances of up to 14 inches (35 cm).
Can the DS2208 read damaged or poor-quality barcodes? Yes, its advanced scanning technology can handle low-quality and damaged barcodes effectively.
What is the scanning speed of the DS2208? It scans at a speed of 76.2 cm/s (30 inches per second).
Does it support omni-directional scanning? Yes, the DS2208 can read barcodes at any angle without requiring precise alignment.
How does the DS2208 perform in low-light conditions? Its sophisticated image sensor allows it to function effectively in low- or no-light conditions.
Is the Zebra DS2208 durable? Yes, it can endure several drops of up to 5 feet (1.5 meters) onto concrete.
What is the operating temperature range of the DS2208? It operates between 32°F to 122°F (0°C to 50°C).
How do I clean the DS2208? To clean the outside and scanning window, use a soft, moist cloth and mild detergent or alcohol-based disinfectant.
What kind of power does the DS2208 require? Press the Navigator Key up or down during a call.
Is the phone easy to set up for first-time users? It is powered by the attached cable (USB or other), thus no external power source is required.
