Yealink T54W IP Phone (SIP-T54W) | Recertified
SKU: SIP-T54W
This Phone Supports Webex Calling
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us
Same Day Shipping - Arrives in 3-5 Business Days 30-day Returns Overview
Overview of Yealink T54W IP Phone (SIP-T54W) | Recertified

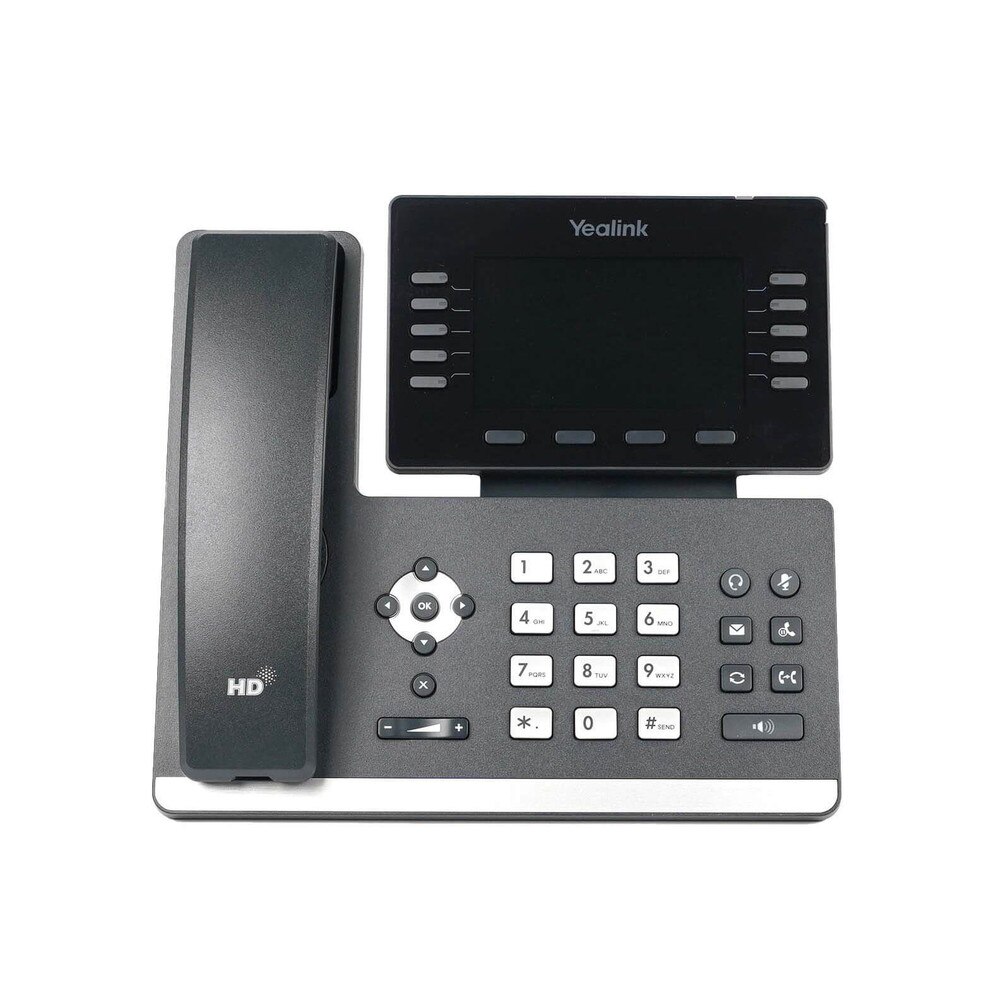

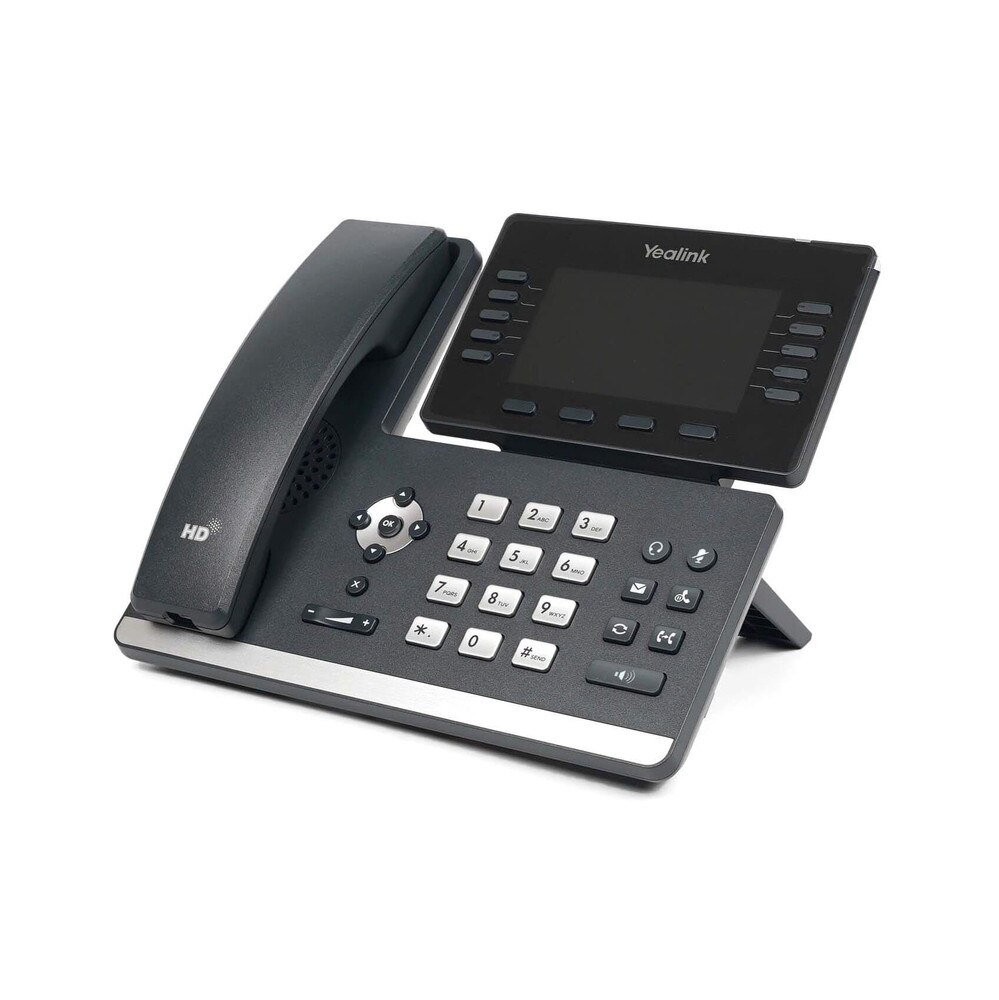

The Yealink T54W IP Phone (SIP-T54W) is a powerful 16-line Gigabit IP Phone intended for busy executives and professionals. It provides a wide range of features, exceptional audio quality, and advanced connectivity options, making it the ideal communication tool for modern workplaces. The T54W provides an excellent audio experience thanks to Yealink's Optima HD Voice technology and Acoustic Shield. Optima HD Voice delivers rich, natural sound via the hearing aid-compatible handset or full-duplex speakerphone, while Acoustic Shield significantly reduces background noise for crystal-clear communications.
The SIP-T54W's large 4.3-inch 480x272 color display, 10 line keys, 4 soft keys, and familiar call-handling buttons make navigation simple. It supports up to 16 SIP accounts and 27 programmable feature keys, including speed dial, Busy Lamp Field (BLF), and others, making it an ideal IP phone for busy office environments. The T54W provides a variety of connectivity options, including a USB port for plug-and-play USB headsets, wired/wireless headset support, and the ability to connect up to three Yealink EXP50 Expansion Modules. It also comes with Bluetooth 4.2 and dual-band 2.4G/5G Wi-Fi for wireless connectivity.
The Yealink SIP-T54W supports simple mass deployment and Zero Touch Provisioning via Yealink's Redirection and Provisioning Service (RPS) and Boot mechanism, making device management easier and more efficient for administrators. The Yealink T54W SIP phone is an essential office communication tool for today's business professionals, promoting smooth communication, collaboration, and productivity in any professional setting.
Key Features of Yealink T54W IP Phone
• Large 4.3-inch 480x272 color display with adjustable viewing angle
• 10 line keys supporting up to 16 SIP accounts
• 27 programmable feature keys (3-page view)
• Built-in Bluetooth 4.2 for wireless headset connectivity
• Dual-band 2.4G/5G Wi-Fi support
• USB 2.0 port for USB headsets, call recording, and connecting EXP50 expansion modules
• Exceptional audio quality with Optima HD Voice and Acoustic Shield technology
• 10-way local audio conferencing
• Dual Gigabit Ethernet ports with PoE support
• Supports up to 3 Yealink EXP50 expansion modules for additional programmable keys
• Efficient provisioning and mass deployment with Yealink's RPS and Boot mechanism
• Robust security features like TLS, AES encryption, and HTTPS certificate manager
• Paperless label design for an eco-friendly solution
• Corded-Cordless phone feature with DECT technology for up to 4 cordless handsets
• Content sharing and collaboration capabilities with Yealink VC Desktop
Specifications
Specifications for Yealink T54W IP Phone (SIP-T54W) | Recertified
| Manufacturer | Yealink |
| Manufacturer Part Number | SIP-T54W |
| Product Name | Yealink T54W IP Phone |
| Product Type | IP Phone |
Integrated Components | Bluetooth interface |
Body Color | Black |
Operating System | Linux |
Cordless Phone Standard | IEEE 802.11a/b/g/n/ac (Wi-Fi) / Bluetooth 4.2 |
Wireless Interface Provided | Wi-Fi / Bluetooth |
Call Services | Voice Mail, Caller ID, Call Waiting, Call Forwarding, Call Transfer, Call Hold |
Caller ID Type | Caller ID |
Dialer Location | Base |
Conference Call Capability | 3-way |
Speakerphone | Yes |
Messaging Services | SMS |
Programmable Buttons Qty | 10 |
Volume Control | Yes |
Indicators | Voice message waiting indicator |
Additional Functions | Call recording, redial, mute, call park, Optimal HD Voice, call pickup |
Main Features | Multiple VoIP protocol support, integrated Ethernet switch |
VoIP | Yes |
VoIP Protocols | SIP, SIP v2, SRTP |
Voice Codecs | G.722, G.723.1, G.726, iLBC, Opus, G.729A/B |
Quality of Service | IEEE 802.1Q (VLAN), IEEE 802.1p, Type of Service (ToS) |
IP Address Assignment | DHCP, static, PPPoE |
Security | IEEE 802.1X, TLS |
Power Over Ethernet (PoE) Support | Yes |
Network Protocols | TCP, TFTP, UDP, HTTP, DNS, HTTPS, SRTP, TR-069, SNTP |
Network Ports Qty | 2 x Ethernet 10Base-T/100Base-TX/1000Base-T |
Voice Features | Comfort noise generation (CNG), voice activity detection (VAD), HD Voice, acoustic echo cancellation (AEC), packet loss concealment (PLC), adaptive jitter buffer (AJB), automatic gain control (AGC) |
Network Features | Network Address Translation (NAT), Class 3 PoE, Lightweight Directory Access Protocol (LDAP) |
Phone Directory Capacity | 1000 names & numbers |
Type | LCD display - color |
Display Location | Base |
Diagonal Size | 4.3" |
Display Resolution | 480 x 272 pixels |
Backlit | Yes |
Connections | Headset jack / RJ-9 ¦ USB ¦ Handset jack / RJ-9 |
Hearing Aid Compatible | Yes |
Placing / Mounting | Table-top |
Cables Included | Network cable |

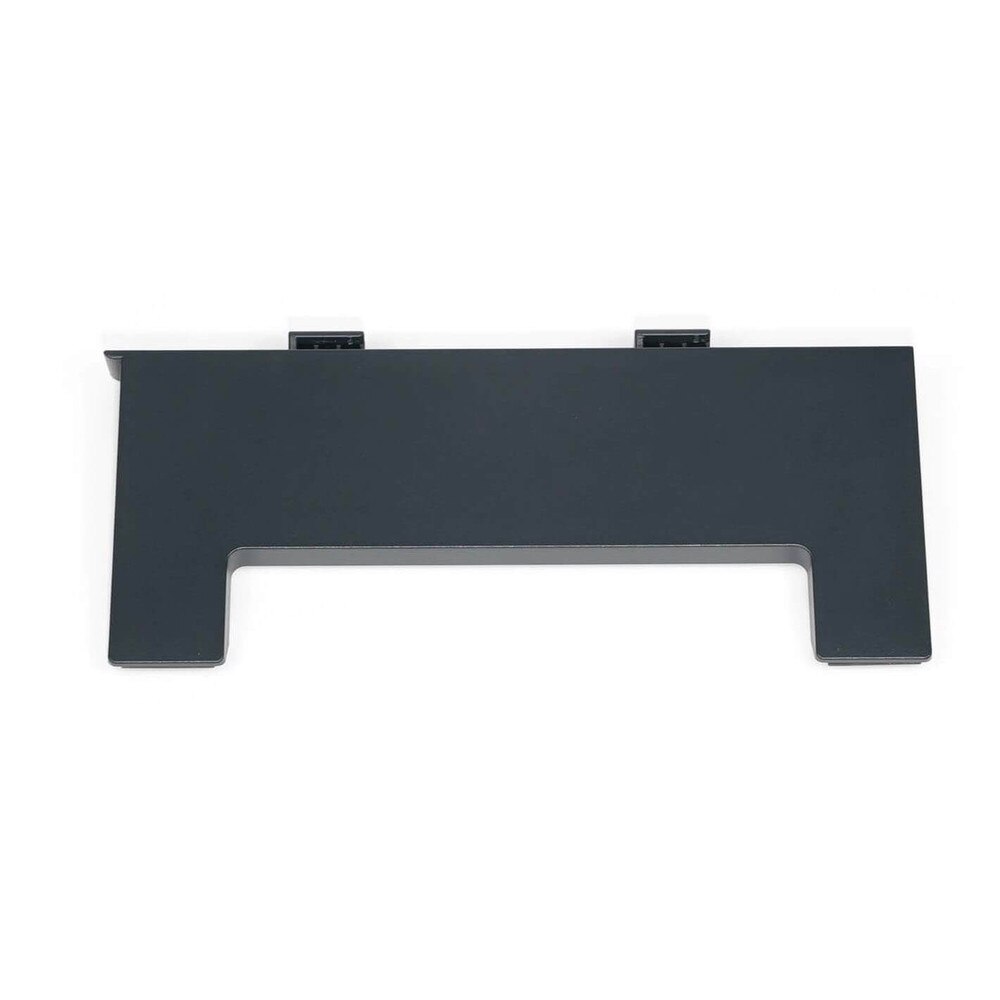

Included Accessories | Stand |
Width | 9.2 in |
Depth | 8.8 in |
Height | 7.3 in |
Weight | 2.7 lbs |
User Guides
Frequently Asked Questions
Yealink T54W IP Phone (SIP-T54W)
Frequently Asked Questions (FAQ's)
What are the main features of the Yealink T54W IP Phone? High-resolution 4.3-inch color display with HD audio, integrated Wi-Fi and Bluetooth, USB port, support for up to 16 SIP accounts, and adjustable screen tilt.
How do I set up the Yealink T54W? Connect the handset, network cable, and power supply (if you are not using PoE). Configure SIP account settings through the web interface or phone menu.
Does the Yealink T54W support Power over Ethernet (PoE)? Yes, the T54W supports PoE, which allows it to receive both power and network connectivity via a single Ethernet cable.
Can I use a headset with the Yealink T54W? Yes, the T54W supports wired and wireless headsets through the USB port, RJ9 headset jack, and Bluetooth.
How do I configure SIP accounts on the Yealink T54W? Navigate to the phone's web interface, then select the "Account" tab and enter your SIP account credentials and server information.
Does the Yealink T54W have Bluetooth and Wi-Fi capabilities? Yes, it includes dual-band Wi-Fi and Bluetooth 4.2 for wireless connectivity.
What is the maximum number of SIP accounts supported by the Yealink T54W? The T54W can manage up to 16 SIP accounts.
How do I perform a factory reset on the Yealink T54W? Press and hold the "OK" button for approximately 5 seconds before confirming the reset when prompted.
Can the Yealink T54W be wall-mounted? Yes, the phone can be wall mounted with an optional bracket.
How do I update the firmware on the Yealink T54W? Download the most recent firmware from the Yealink website, then log into the phone's web interface and upload the firmware file using the "Upgrade" section.
What audio codecs are supported by the Yealink T54W? The T54W supports various audio codecs, including G.722, G.711(A/μ), G.723, G.729AB, G.726, iLBC, and Opus.
How do I configure DSS keys on the Yealink T54W? Go to the phone's web interface, select the "DSSKey" tab, and customize the keys as needed.
Does the Yealink T54W support call recording? Yes, you can record calls using a USB flash drive connected to the phone's USB port.
How do I enable call forwarding on the Yealink T54W? On the phone or web interface, go to the "Features" menu, then "Forward & DND," to set up call forwarding.
What is the warranty period for the Yealink T54W? The warranty period varies by region and reseller, but it usually comes with a 1-year warranty.
Can the Yealink T54W be used with a VPN? Yes, the phone does support OpenVPN for secure remote connectivity.
How do I change the ringtone on the Yealink T54W? On the phone, go to "Settings" > "Basic" > "Sound" > "Ring Tones" and choose the desired ringtone.
Is the Yealink T54W compatible with Microsoft Teams? The T54W is primarily intended for SIP-based communication, but it can be integrated with Microsoft Teams using certain configurations and third-party solutions.
What type of network connection does the Yealink T54W require? The phone requires an Ethernet connection and can handle both DHCP and static IP addresses.
How do I access the web interface of the Yealink T54W? In a web browser, type the phone's IP address, log in with the default credentials (usually admin/admin), and navigate to the configuration settings.
