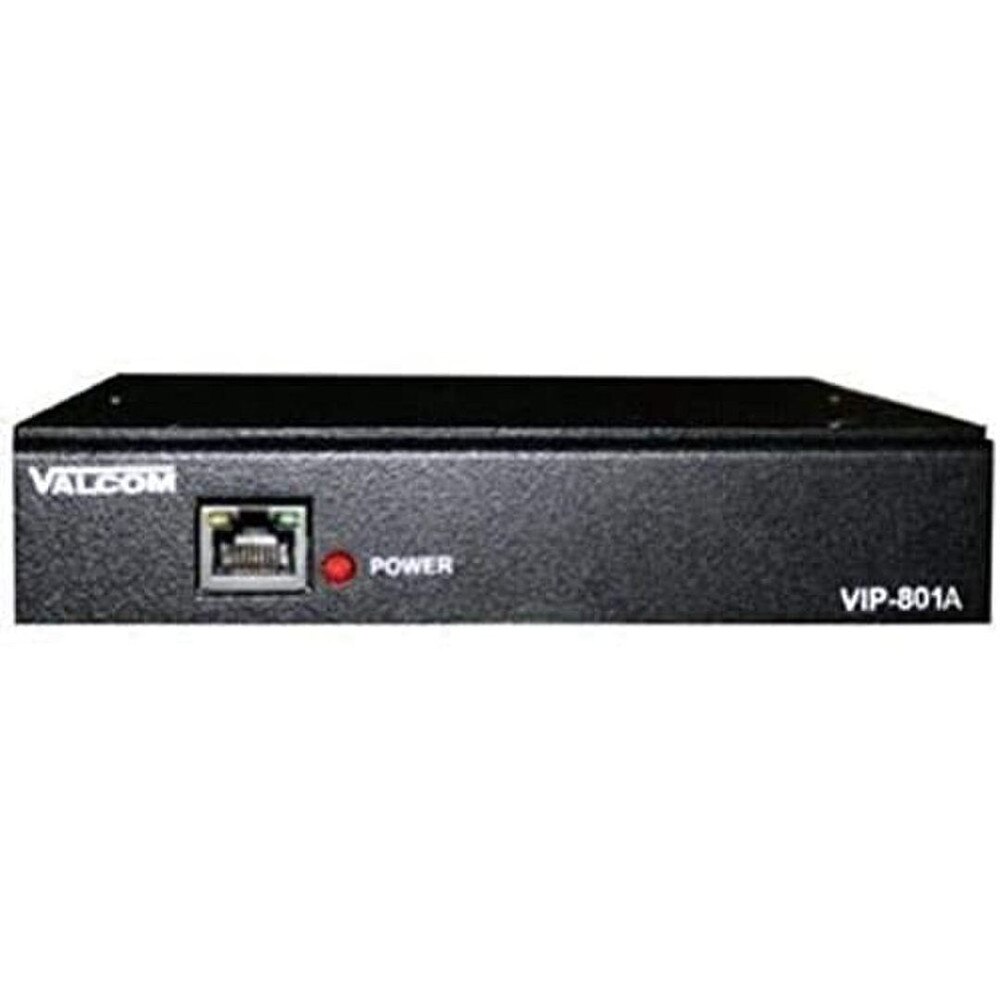

Valcom VIP-801A Enhanced Network Audio Port (VIP-801A) | New

The Valcom VIP-801A Enhanced Network Audio Port is a versatile IP-based gateway that enables the extension of one-way paging zones over an IP network.It acts as a bridge, allowing traditional audio systems to integrate with modern IP networks, extending paging capabilities to any location with network connectivity.

Key Features and Functionalities:

• IP-Based Paging Gateway:The core function of the VIP-801A is to facilitate voice access to a single zone of one-way paging over an IP-based LAN/WAN.This means you can broadcast announcements or messages through connected speakers from virtually anywhere on your network.
• SIP Compatibility:It can be programmed as a SIP (Session Initiation Protocol) device.This allows it to register with virtually any Voice over IP (VoIP) telephone system, enabling users to dial an extension on their VoIP phone to initiate a page through the VIP-801A.
• Audio Outputs:
  • Page Output: Provides a signal compatible with Valcom's one-way self-amplified speakers.A single VIP-801A can provide audio for up to 40 Valcom one-way amplified speaker assemblies.
  • Auxiliary Output: Offers a signal output compatible with most standard amplifiers (25V or 70V systems) where a transformer-coupled output is desired, for broader system integration.
• Audio Inputs:
  • Audio Input:Standard 600 Ohms input, allowing connection from traditional audio sources.
  • Auxiliary Audio Input (RCA Jack): For connecting local audio sources, such as background music. This input typically mutes automatically when a page is active.
• Programmable Relays and Contact Closures:
  • Two Form C Relays: These are programmable and rated at 1A @ 24 Vdc.They can be used to control external devices during a page (e.g., muting background music systems, triggering lights, or unlocking doors).
  • One Contact Closure Input: Can be used to trigger paging or other actions from an external device (e.g., a panic button).
• Power over Ethernet (PoE) 802.3af Compatible: This is a significant advantage, allowing the unit to receive both power and data over a single Ethernet cable, simplifying installation and reducing wiring complexity. An optional 24VDC barrel jack for external power is also available.
• Network Connectivity: Features an RJ-45 jack for 10/100 Mbps Ethernet connection.Supports both manual and Dynamic Host Configuration Protocol (DHCP) IP address assignment.
• No Server Required: For basic operation, the VIP-801A does not necessarily require a dedicated server, offering a simpler deployment.
• Easy Configuration: Typically configured via a web-based interface or Valcom's dedicated VIP software, making setup straightforward for IT professionals in Fairfield, New Jersey, or elsewhere.
• Front Panel Activity LED: Provides visual indication of network and paging activity.
• Durable and Compact:Designed for wall or table mounting, with dimensions of approximately 1.38in H x 6.13in W x 5.25in D and a weight of 1.25 lbs.
• Applications: Ideal for extending paging zones in various environments, including:
  • Multiple floors in a single building.
  • Multi-building campus environments (e.g., schools, corporate parks).
  • Inter-state paging between geographically dispersed branches.
  • Integration with VoIP phone systems for unified communication.
  • Background music distribution that can be interrupted by pages.
  • Connecting legacy audio equipment to IP networks.
