Overview

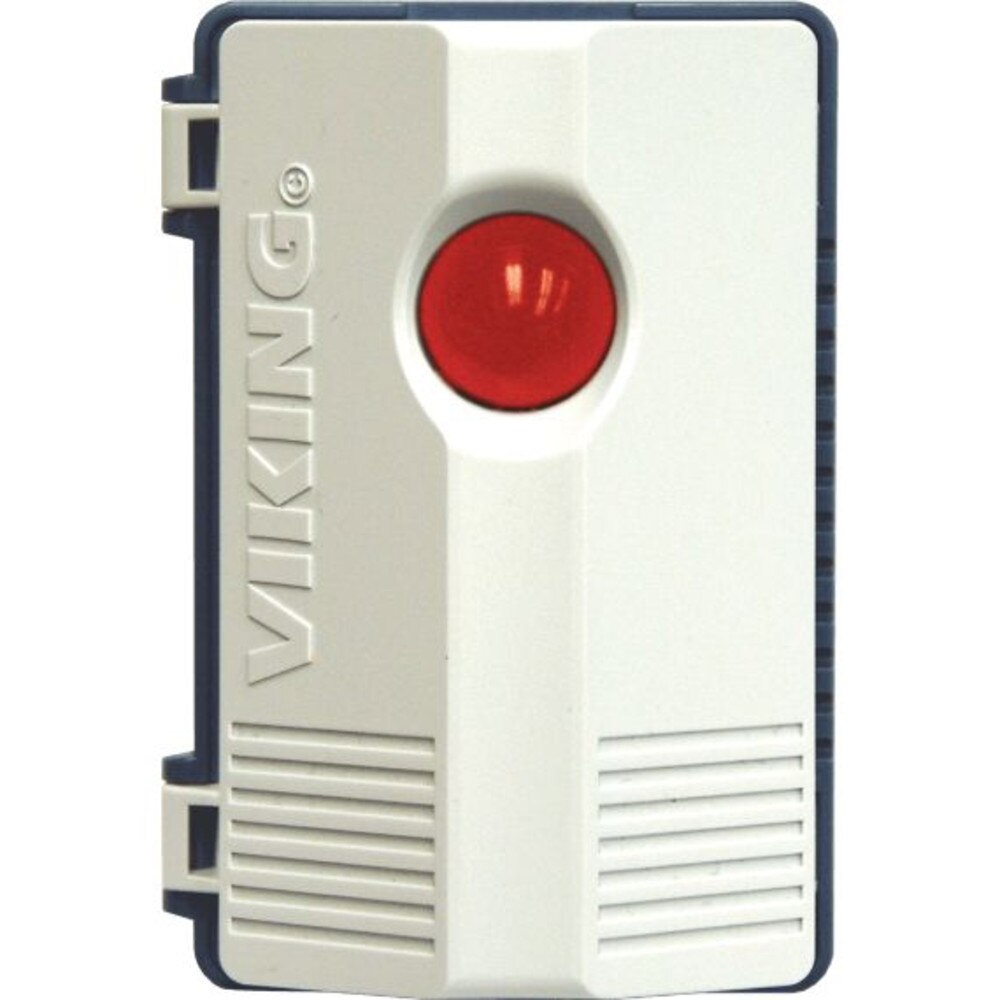

Universal Visual Indicator
When used with an analog phone line, the VR-1B will provide “ring” indication, “on the phone” indication and “message waiting” indication for both “stutter dial tone” and standard message waiting voltage. In this application the VR-1B connects directly to tip and ring. When used with electronic or digital phones, the VR-1B won’t have you guessing which phone is ringing in busy offices. The flashing LED can be seen up to 100 feet away. The VR-1B connects directly to the electronic phone’s speaker. When used with a headset, you can end those nagging interruptions that occur when associates’ don’t realize you are on the phone because you are using a headset. The VR-1B will flash on and off indicating to everyone that you are on the phone and you are not to be disturbed. The VR-1B installs in the handset/headset jack using an included “T” adapter.
Features
- Indicates “ringing”, “on-the-phone” or “message waiting”
- LED visible up to 100 ft (30m)
- Power supply included
- Attractive new compact package
- Connects with a modular cord
- Special “T” adapter provided for handset applications
- Easy to install
- Six different modes of operation for enabling and disabling certain features (DIP switch selectable)
- Wall mount housing: (2) #6x3/4 panhead screws included
Specifications
Power: 120VAC / 12VDC 500mA, UL listed adapter provided
Dimensions: 3.0” x 4.4” x 1.4” (76mm x 112mm x 36mm)
Shipping Weight: 1.5 lbs (0.68 kg)
Environmental: 32°F to 90°F (0°C to 32°C) with 5% to 95% non-condensing humidity Light: 0.75” (19mm) red
LED Visiblity: 100 ft (30m) typical
Message Waiting Voltage: 90V - 125V
Connections: (1) RJ11 jack,(4) cage clamp screw terminals
