Ubiquiti U6-LR Unifi 6 Long Range Access Point
Overview
The Ubiquiti U6-LR Unifi 6 Long Range Access Point is one of the best WiFi 6 access points that the manufacturer has developed so far and, alongside the U6-Lite, the U6-Pro and the newer U6-Enterprise, Ubiquiti manages to cover the entire market spectrum, allowing for an easy transition for any SMB (or SME) that may want to make the switch to the newer WiFi standard.
Features
- 1.3 GHz dual-core processor (now upgraded to support full-duplex 1 Gbps TCP/IP performance)
- Four-stream high-efficiency Wi-Fi 6 technology
- 5 GHz band 4x4 MU-MIMO and OFDMA with radio rate of 2.4 Gbps
- 2.4 GHz band 4x4 MIMO with radio rate of 600 Mbps
- Powered with 802.3at PoE
Specifications
Ubiquiti U6-LR Unifi 6 Long Range Access Point Specifications
Specifications
Wireless
| Wireless Frequency Bands | 2.4 GHz, 5 GHz Dual-Band |
| Number of Antennas | 1 |
| MU-MIMO Support | 4 x 4 |
| WLAN Mode | Wi-Fi 6 (802.11ax) |
| Antenna Gain | 4 to 5.5 dBi |
| Transmit Power | 26 dBm |
| Antenna Placement | Internal |
| Bluetooth | 5.0 |
| Throughput | 3000 Mb/s Total 5 GHz: 2400 Mb/s 2.4 GHz: 600 Mb/s |
Interface
| Ports | 1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+ |
| USB Sharing Support | No |
Security
| Guest Network Support | Yes |
| Wireless Security | WPA, WPA-PSK, WPA-Enterprise, WPA2, WPA3 |
Management
| Operation Modes | Access Point |
| Supported Clients | 300 |
| Max SSIDs Supported | 16 |
Hardware
| RAM | 512 MB |
| CPU | 1.35 GHz Cortex A53 Dual-Core |
| Supported IEEE Standards | 802.11a, 802.11ac, 802.11ax, 802.11b, 802.11g, 802.11n |
Electrical
| DC Input Power | 44 57 VDC |
| Power Consumption | 16.5 W |
Environmental
| Operating Temperature | -22 to 140°F / -30 to 60°C |
| Operating Humidity | 5 to 95% |
General
| IP Rating | IP54 |
| Mount Options | Wall, Ceiling |
| Dimensions | 8.7 x 8.7 x 1.9" / 220 x 220 x 48 mm |
| Weight | 1.8 lb / 800 g |
Frequently Asked Questions
Ubiquiti U6-LR-US Unifi 6 Long Range Access Point U6-LR
What is the Ubiquiti U6-LR-US? The Ubiquiti U6-LR-US is a high-performance, long-range Wi-Fi 6 access point suitable for both home and business use.
What Wi-Fi standards does it support? It supports 802.11a/b/g/n/ac/ax, offering backward compatibility and the latest Wi-Fi 6 technology.
What is the maximum throughput of the U6-LR-US? It provides up to 3.0 Gbps combined throughput (2.4 GHz: 600 Mbps, 5 GHz: 2400 Mbps).
What is the coverage range of the U6-LR-US? It has a range of up to 300 meters, depending on the environment and interference.
Does it support MU-MIMO and OFDMA? Yes, the U6-LR-US supports both MU-MIMO and OFDMA to improve efficiency and performance.
Is the U6-LR-US suitable for outdoor use? It is intended for indoor usage, however it can function in semi-outdoor conditions if properly shielded from the weather.
How is it powered? The U6-LR-US supports Power over Ethernet (PoE+), which requires either an 802.3at PoE injector or a PoE-capable switch.
Can it be integrated with other Ubiquiti devices? Yes, it effortlessly connects with other Ubiquiti UniFi devices, providing a single network administration experience.
What management software does it use? It utilizes the UniFi Network Application, which is accessible for desktop, cloud, and mobile devices.

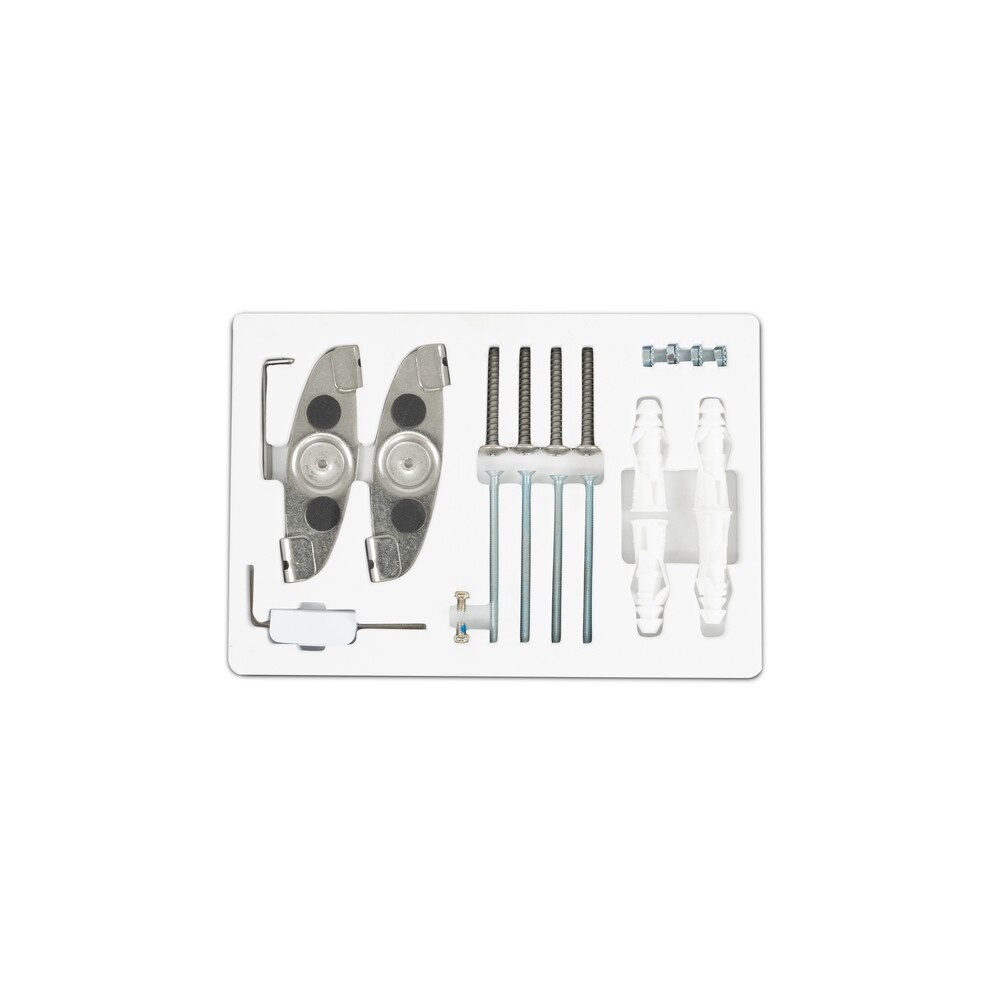

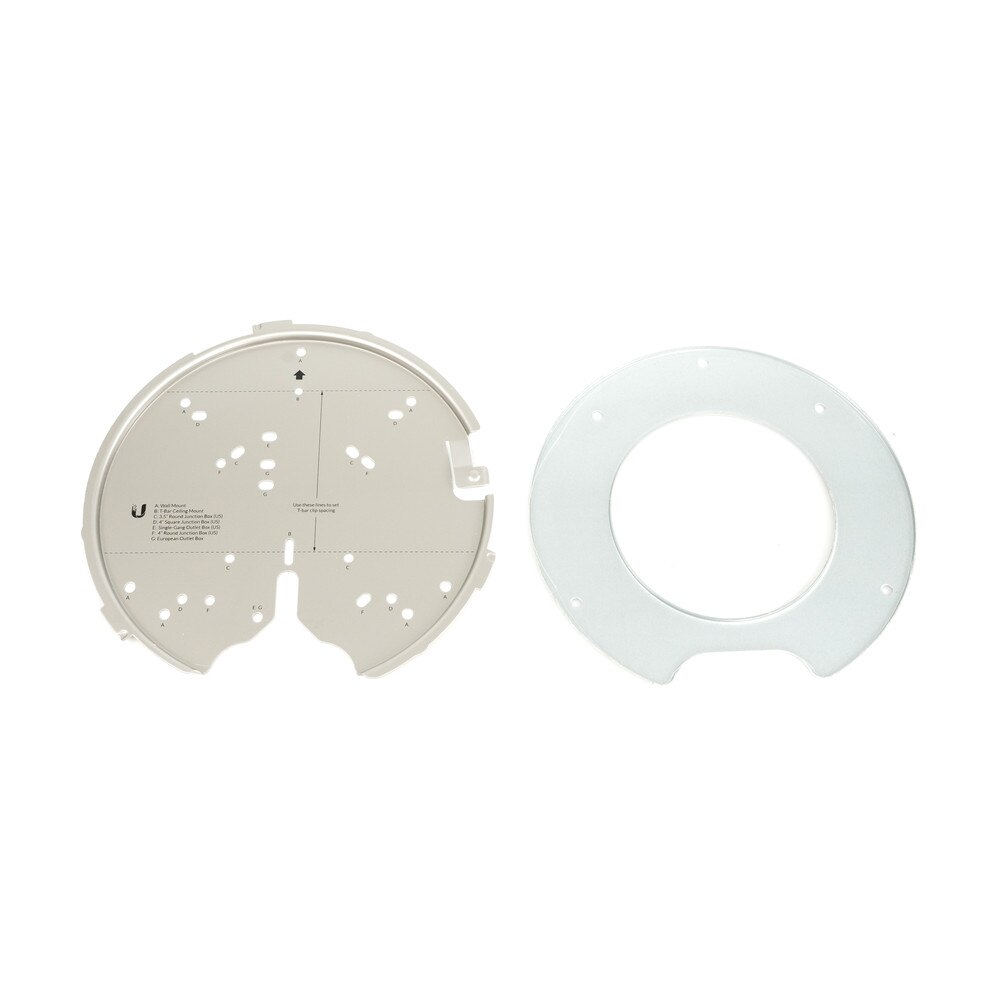

What are the mounting options? It can be installed on the ceiling or the wall, and mounting hardware is supplied in the package.
Does the U6-LR-US support VLANs? Yes, it supports VLANs for advanced network segmentation.
How many clients can it support simultaneously? It can support more than 300 concurrent clients, depending on the network settings and application usage.
Does it support guest networks? Yes, you can set up segregated guest networks with unique bandwidth controls.
Is it compatible with third-party routers? Yes, it works with any regular router, although it functions best when used in the UniFi network.
What security features are included? It has WPA3 encryption, VLAN tagging, and sophisticated network isolation for added protection.
What is the operating temperature range? The U6-LR-US operates between -10°C and 70°C (14°F to 158°F).
Does it support seamless roaming? Yes, it supports smooth roaming when combined with other UniFi access points on the same network.
Can it be used for high-density environments? Yes, it is intended to function well in high-density environments like offices, schools, and public arenas.
How is the U6-LR-US managed? Through the UniFi Network Controller software, version 6.0.34 or higher
Does it support Wi-Fi 6 on both 2.4 GHz and 5 GHz bands? No, only 5 GHz supports full Wi-Fi 6 features; 2.4 GHz uses older technology (Wi-Fi 4)
