Ubiquiti Networks EdgeSwitch 48-Port with PoE 500W (ES-48-500W) | Like New
SKU: ES-48-500W-LN
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us
Same Day Shipping - Arrives in 3-5 Business Days 30-day Returns Overview

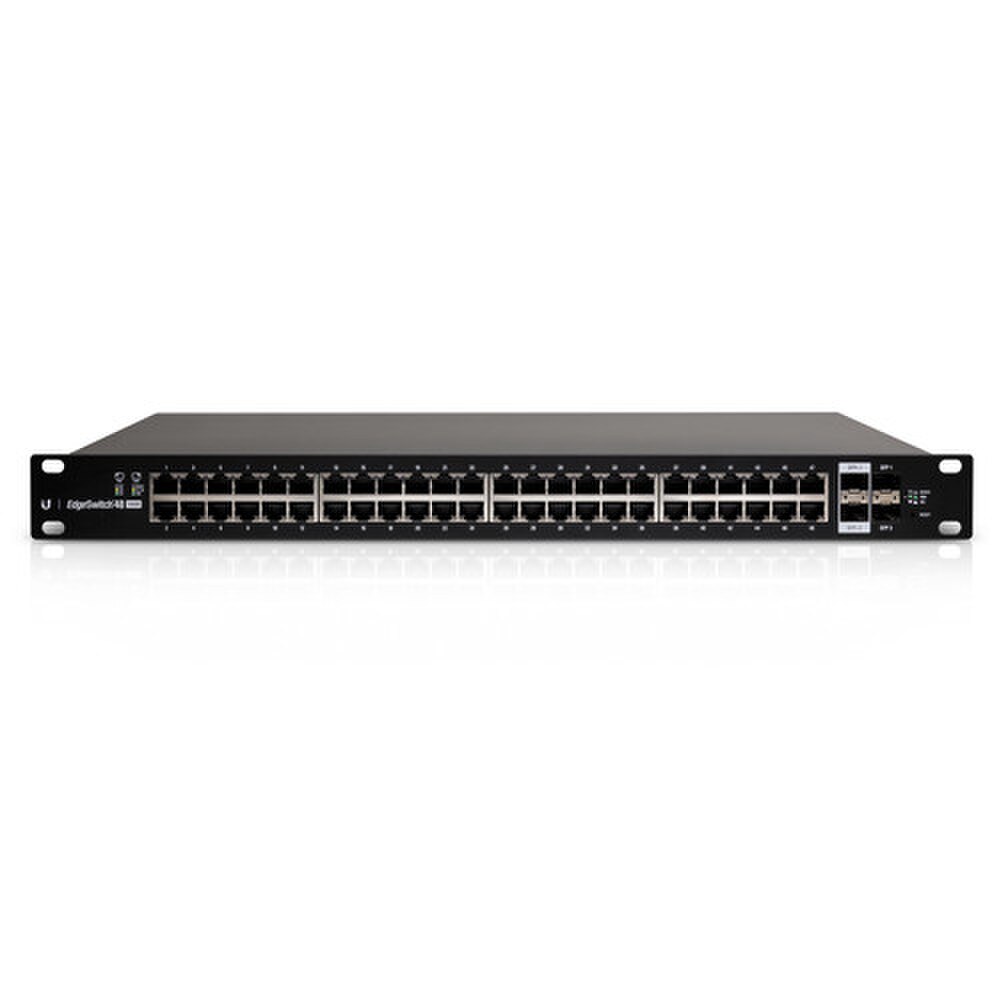

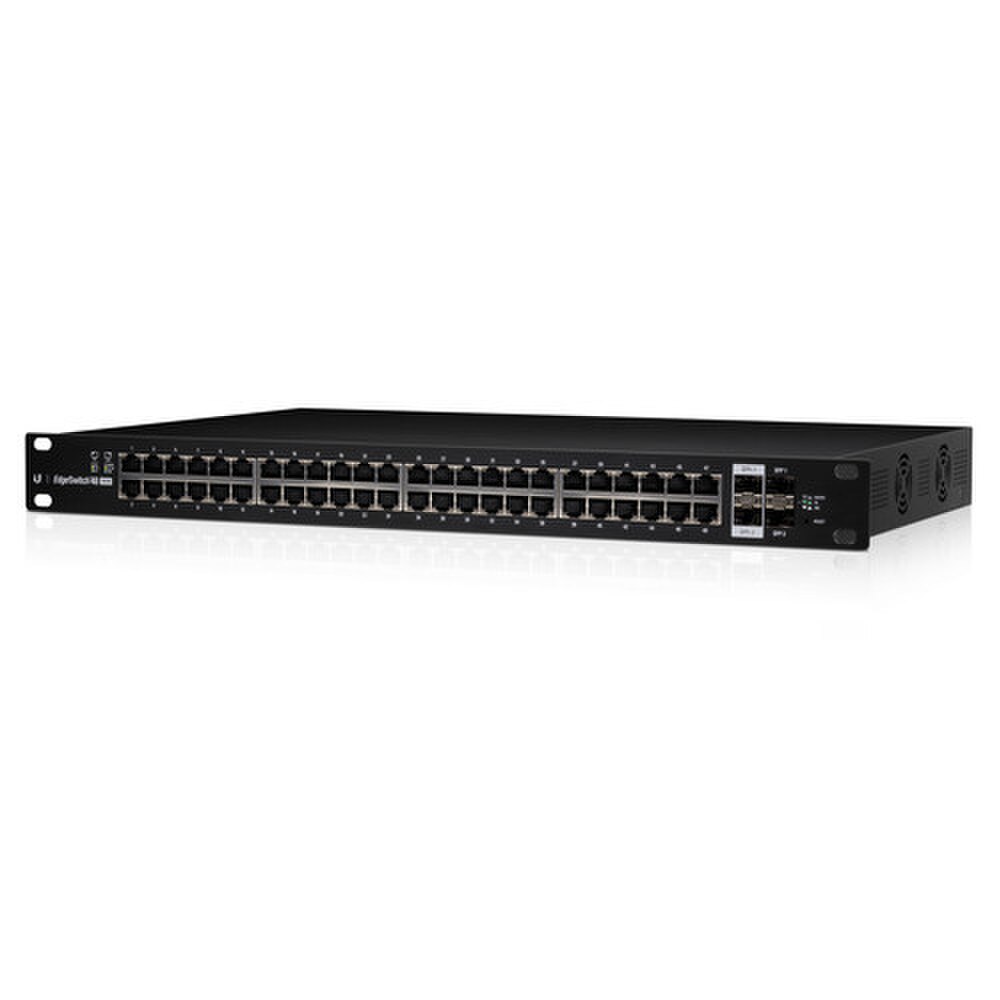

Overview of Ubiquiti Networks EdgeSwitch 48-Port with PoE 500W (ES-48-500W) | Like New
The Ubiquiti Networks EdgeSwitch 48-Port with PoE 500W (ES-48-500W) is intended to serve as the network's backbone. This high capacity Gigabit switch has 48 10/100/1000 Mb/s Ethernet ports, two 1/10 Gb/s SFP+ Ethernet ports, and two 1 Gb/s SFP Ethernet ports. Each port has a separate LED indicator that shows the PoE status as well as the port's speed, connectivity, and activity. This Layer 2 switch has a total non-blocking throughput of 70 Gb/s, a switching capacity of 140 Gb/s, and a forwarding rate of 104.16 Mp/s, allowing for a quick, uninterrupted flow of data out to end users.
Along with improved networking capabilities, the EdgeSwitch ES-48-500W includes optical fiber backhaul through two SFP+ connections. To provide a smooth, steady flow of data, these ports support uplinks of up to 10 Gb/s. With auto-sensing IEEE 802.af/at 24 V passive PoE capability, you may easily power your PoE compliant devices directly from the EdgeSwitch. The EdgeSwitch's functions may all be simply managed using the provided advanced user interface. Administrators can configure and monitor their network using an easy-to-use graphical user interface, or they can use the command-line interfaces provided by telnet and SSH.
Key Features of Ubiquiti Networks EdgeSwitch 48-Port with PoE 500W
Advanced Switching Technologies
Ubiquiti Networks EdgeSwitch, part of the EdgeMAX product range, allows you to build and grow your network. The EdgeSwitch is a PoE+ Gigabit switch that provides robust performance and intelligent switching for expanding networks. The EdgeSwitch delivers a comprehensive set of advanced Layer-2 switching functions and protocols, as well as Layer-3 routing capability.
Switching Performance
The EdgeSwitch has a forwarding capacity of up to 70 Gb/s, allowing it to process traffic on all ports at line speed without packet loss.
PoE+ Flexibility
To simplify your infrastructure, the EdgeSwitch models provide 48 PoE Gigabit Ethernet ports with auto-sensing IEEE 802.3af/at or programmable 24V Passive PoE. By default, the EdgeSwitch identifies 802.3af/at devices and provides PoE to them. Manually enable 24V passive PoE devices via the EdgeSwitch Configuration Interface.
Fiber Connectivity
The EdgeSwitch gives fiber connectivity alternatives for expanding networks. The 48-port variant has two SFP and two SFP+ ports for high-capacity uplinks of up to 10 Gb/s.
Comprehensive User Interface
The EdgeSwitch Configuration Interface is a graphical user interface that administrators can use to configure and monitor switch features. For advanced users, telnet and SSH provide an industry-standard command-line interface (CLI).
Powerful Functionality
The EdgeSwitch uses an enhanced operating system that provides basic switching features, PoE configuration per port, and a variety of advanced features including:
• MSTP/RSTP/STP
• VLAN, Private VLAN, Voice VLAN
• Link Aggregation
• DHCP Snooping, IGMP Snooping
• TACACS+, RADIUS, 802.1X, MAC Filtering, ACL
• DiffServ, CoS • Static Routing, Policy-Based Routing
Specifications
Specifications for Ubiquiti Networks EdgeSwitch 48-Port with PoE 500W (ES-48-500W) | Like New
| Manufacturer | Ubiquiti |
| Manufacturer Part Number | ES-48-500W |
| Product Name | Ubiquiti Networks EdgeSwitch 48-Port with PoE 500W |
| Product Type | Networking Switch |
Enclosure Type | Rack-mountable 1U |
Subtype | 10 Gigabit Ethernet |
Ports | 48 x 10/100/1000 (PoE+) + 2 x Gigabit SFP / 10 Gigabit SFP+ + 2 x SFP |
Power Over Ethernet (PoE) | PoE+ |
Performance | Non-blocking switching capacity: 70 Gbps |
Features | VLAN support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Jumbo Frames support, 24KV ESD Protector |
Compliant Standards | IEEE 802.3af, IEEE 802.3at |
Status Indicators | Port status, port transmission speed, PoE, link/activity |
Interfaces | 48 x 1000Base-T RJ-45 PoE+ ¦ 2 x SFP+ ¦ 2 x SFP |
Power Device | Internal power supply |
Voltage Required | AC 120/230 V (50 - 60 Hz) |
Power Consumption Operational | 500 Watt |
Compliant Standards | FCC |
Width | 18.9 in |
Depth | 13.7 in |
Height | 1.8 in |
Weight | 11.68 lbs |
Min Operating Temperature | 23 °F |
Max Operating Temperature | 104 °F |
Humidity Range Operating | 5 - 95% (non-condensing) |
User Guides
Frequently Asked Questions
Ubiquiti Networks EdgeSwitch 48-Port with PoE 500W
Frequently Asked Questions (FAQ's)
What is the Ubiquiti EdgeSwitch 48-Port with PoE 500W? It is a high-performance, managed switch with 48 Gigabit Ethernet ports, PoE support, and advanced Layer 2 and Layer 3 features.
How much PoE power does the switch provide? The switch provides a total PoE budget of 500W.
What PoE standards are supported? It supports PoE+ (802.3at) and PoE (802.3af) standards.
Does the switch support Layer 3 routing? Yes, it includes limited Layer 3 routing capabilities, such as static routing.
What is the switching capacity of the EdgeSwitch? It has a switching capacity of 140 Gbps.
How many SFP ports are included? The switch includes two SFP ports and two SFP+ ports for fiber connectivity.
Can the EdgeSwitch power non-PoE devices? Yes, it supports both PoE and non-PoE devices on its Ethernet ports.
What is the maximum PoE output per port? Each port can provide up to 30W of PoE power, depending on the connected device and power budget.
Does the EdgeSwitch support aggregation? Yes, it supports link aggregation for higher bandwidth and redundancy.
What types of cables are compatible with the switch? It supports Cat5e/6/6a cables for Ethernet connections and fiber cables for SFP modules.
How is the EdgeSwitch managed? It can be managed via its web-based GUI or command-line interface (CLI) using SSH or Telnet.
Does the switch integrate with the UniFi Controller? No, it is managed independently and does not integrate with the UniFi Controller.
Can VLANs be configured on the EdgeSwitch? Yes, it supports VLAN configuration, including tagged and untagged VLANs.
Does the switch support SNMP? Yes, it supports SNMP for network monitoring.
Is the EdgeSwitch compatible with Spanning Tree Protocol (STP)? Yes, it supports STP and Rapid Spanning Tree Protocol (RSTP).
What is the operating temperature range of the switch? The switch operates in a temperature range of -5°C to 40°C (23°F to 104°F).
Does the EdgeSwitch have fanless operation? No, it uses internal fans for cooling.
What is the MTBF (Mean Time Between Failures) of the EdgeSwitch? The MTBF is approximately 250,000 hours.
Does the EdgeSwitch support QoS? Yes, it includes advanced Quality of Service (QoS) features for traffic prioritization.
Can the switch handle high-bandwidth applications? Yes, its high switching capacity and PoE capabilities make it suitable for demanding applications like IP surveillance and VoIP.
