Ubiquiti airMAX Lite LAP-GPS Gigabit Access Point (LAP-GPS-US) | Like New

Ubiquiti airMAX Lite LAP-GPS Gigabit Access Point (LAP-GPS-US) | Like New

SKU: LAP-GPS-US-LN
(0)No Reviews yet

Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns

$59.99 $59.99
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

Overview of Ubiquiti airMAX Lite LAP-GPS Gigabit Access Point (LAP-GPS-US) | Like New

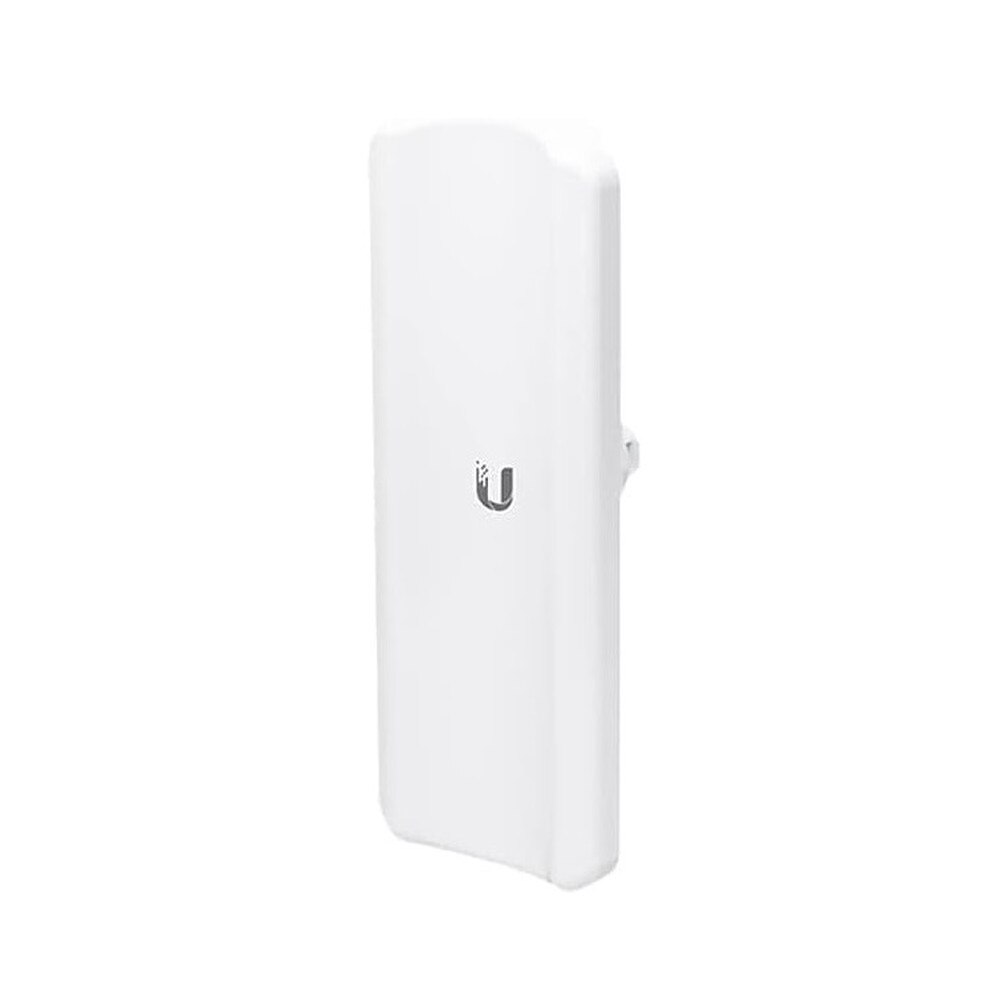

The Ubiquiti airMAX Lite LAP-GPS is a high-performance access point designed for wireless network deployments that require precise synchronization and enhanced performance. It operates in the 5 GHz frequency range and supports the 802.11ac wireless standard, delivering data throughput of up to 450 Mbps. This device is particularly beneficial for Point-to-Multi-Point (PtMP) applications, making it suitable for both urban and rural environments.

Ubiquiti airMAX Lite LAP-GPS Gigabit Access Point (LAP-GPS-US) Features:
  • GPS Synchronization: The LAP-GPS utilizes GPS technology to synchronize multiple access points, reducing interference and enhancing network efficiency. This feature is crucial in dense network environments where coordination among devices is necessary.
  • High Throughput: Capable of delivering real TCP/IP throughput of over 450 Mbps, it is designed for high-capacity environments, supporting multiple users simultaneously.
  • Integrated Antenna: The device features a 90-degree sector antenna with a gain of 17 dBi, allowing it to effectively cover a wide area and serve clients within its beamwidth.
  • Robust Design: Built to withstand harsh conditions, the LAP-GPS has an operating temperature range of -40 to 70°C and is rated for wind survivability up to 200 km/h.
  • User-Friendly Management: The device is powered by Ubiquiti's proprietary airOS software, which provides a user-friendly interface for configuration, management, and performance monitoring. It includes features such as automatic channel selection and detailed analytics.

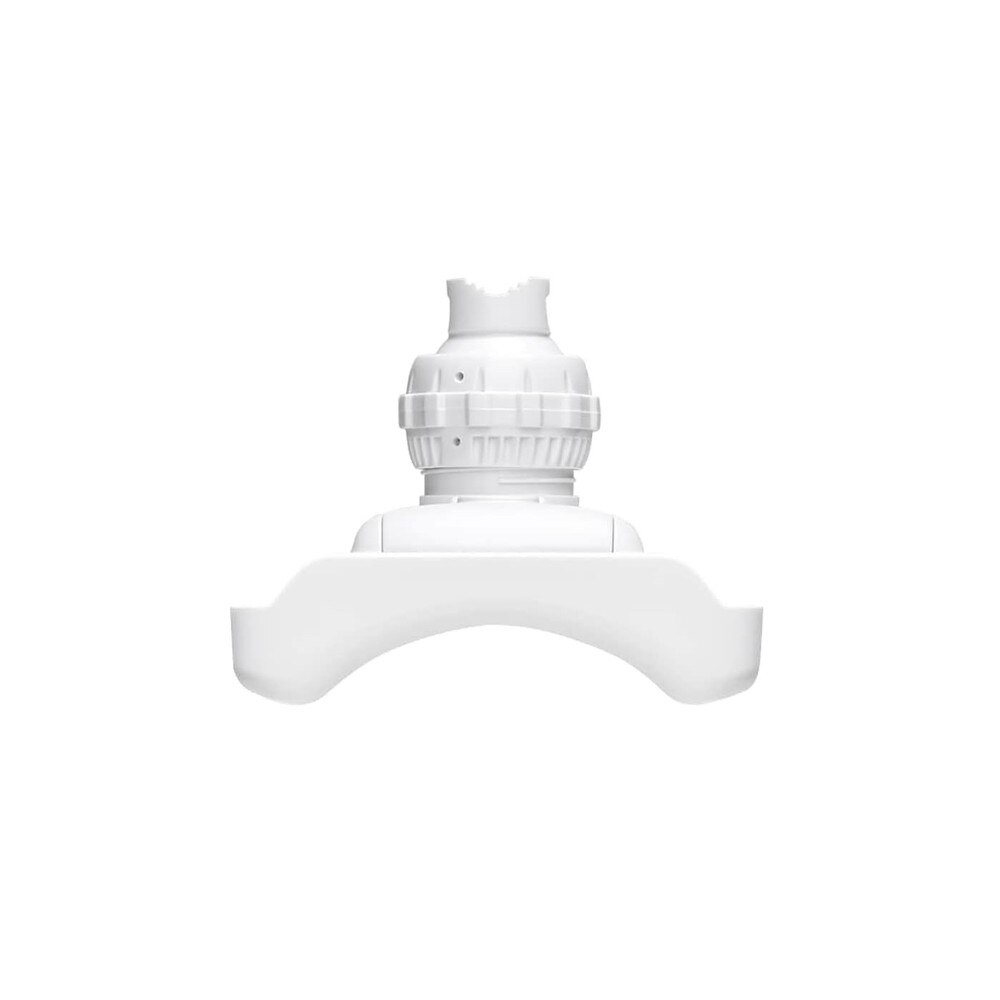

  • Quick Installation: Designed for easy deployment, the LAP-GPS can be installed with minimal tools, utilizing a simple ball-joint mount that allows flexible positioning.
Best Uses for Ubiquiti airMAX Lite LAP-GPS Gigabit Access Point (LAP-GPS-US):
  • Wireless Internet Service Providers (WISPs): Ideal for cost-effective deployments in PtMP networks where multiple clients need reliable internet access.
  • Urban Deployments: Suitable for urban environments where precise timing and coordination among devices are critical due to high user density.
  • Rural Connectivity Solutions: Effective in extending wireless coverage over long distances in rural areas, leveraging its robust antenna design and GPS synchronization.
  • Event Venues and Temporary Installations: Can be deployed quickly in temporary setups such as events or festivals where reliable internet access is needed across large areas.
The Ubiquiti airMAX Lite LAP-GPS is a versatile and powerful access point that combines advanced GPS synchronization with high-performance wireless capabilities. Its lightweight design, robust features, and ease of installation make it an excellent choice for various networking applications, particularly in environments requiring reliable connectivity across multiple devices. Whether used as part of a larger Ubiquiti ecosystem or as a standalone unit, the LAP-GPS enhances network performance while reducing interference, making it an invaluable tool for network professionals

Specifications

Specifications for Ubiquiti airMAX Lite LAP-GPS Gigabit Access Point (LAP-GPS-US) | Like New


ManufacturerUbiquiti
Manufacturer Part NumberLAP-GPS-US
Product NameUbiquiti airMAX Lite LAP-GPS Gigabit Access Point (LAP-GPS-US)
Product TypeAccess Point
Dimensions (mount not included)360.98mm x 124.57mm x 71.28mm (14.21" x 4.90" x 2.81")
Weight (no mount)752g (1.66lb)
Mounting KitPole Mounting Kit (Included)

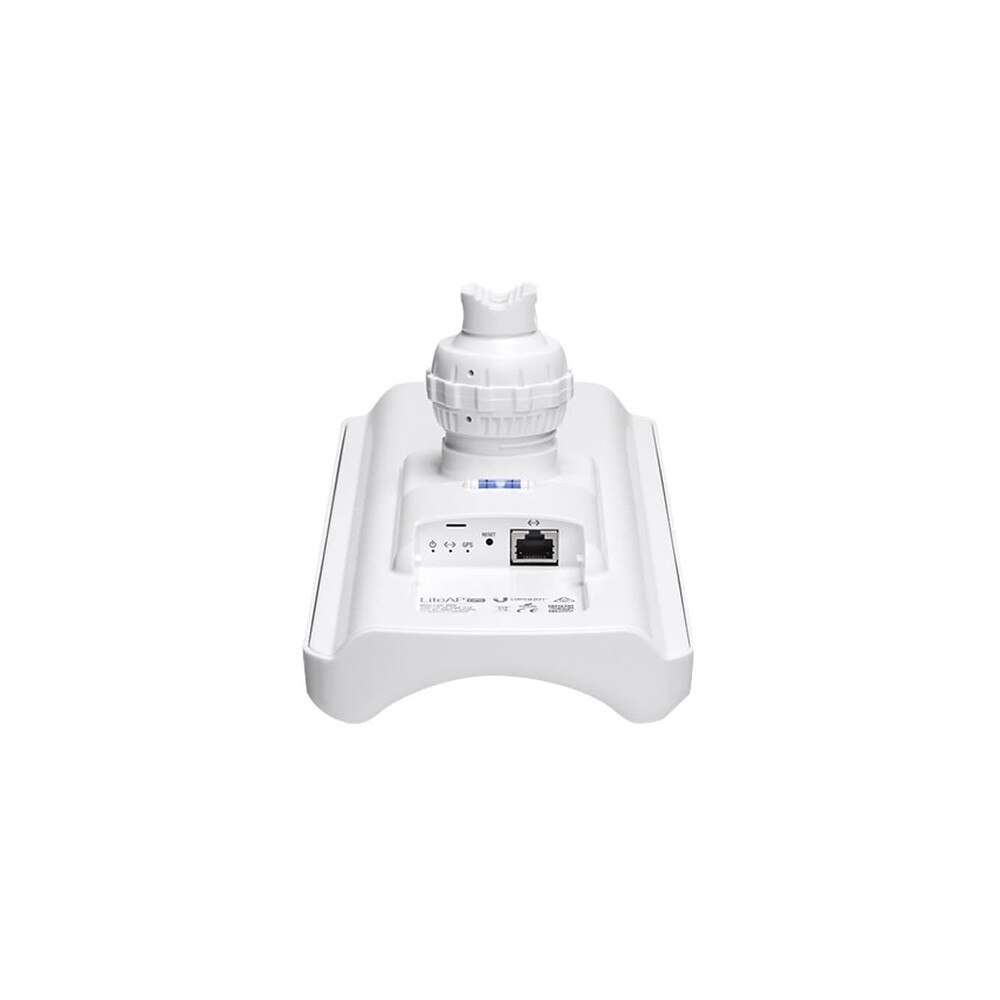

Networking Interface(1) 10/100/1000 Ethernet Port
MemoryDDR2 64MB
Max. Power Consumption7.1W
Max. TX Power25dBm
Antenna Gain17dBi
Power Supply24V, 0.3A PoE Adapter (Included)
Power MethodPassive PoE (Pairs 4, 5+; 7, 8 Return)
Processor SpecsAtheros MIPS 74Kc, 533MHz
Shock and VibrationETSI300-019-1.4
ETSI SpecificationEN 302 326 DN2
ESD/EMP Protection± 24kV Contact / Air
RoHS ComplianceYes
Operating Temperature-40°C to 70°C (-40°F to 158°F)
Operating Humidity5 to 95% Noncondensing
CertificationsFCC, IC, CE

User Guides

Frequently Asked Questions

Ubiquiti airMAX Lite LAP-GPS Gigabit Access Point (LAP-GPS-US)
Frequently Asked Questions (FAQ's)

What is the Ubiquiti airMAX Lite LAP-GPS used for?
  • The LAP-GPS is used as a high-performance wireless access point designed for point-to-multipoint (PtMP) deployments in outdoor environments.
  • What frequency bands does the LAP-GPS support?
  • It supports the 5 GHz frequency band for long-range wireless communication.
  • How fast is the data transfer rate of the LAP-GPS?
  • The LAP-GPS supports a maximum data rate of up to 450+ Mbps.
  • Is the Ubiquiti airMAX Lite LAP-GPS suitable for outdoor use?
  • Yes, it is designed for outdoor environments with weather-resistant housing.
  • What type of antenna is built into the LAP-GPS?
  • The LAP-GPS features a 90-degree sector antenna for targeted wireless coverage.
  • Does the LAP-GPS include GPS synchronization?
  • Yes, it features integrated GPS synchronization to enhance network performance and reduce interference.
  • How many LAN ports does the LAP-GPS have?
  • It comes with one Gigabit Ethernet port for high-speed data transmission.
  • What is the coverage range of the LAP-GPS?
  • The coverage range varies depending on deployment but typically supports long-range communication up to several kilometers.
  • What technology powers the LAP-GPS?
  • It uses Ubiquiti's airMAX AC technology for superior wireless performance.
  • Is the LAP-GPS compatible with other Ubiquiti products?
  • Yes, it integrates seamlessly with other airMAX products for scalable network deployments.
  • What mounting options are available for the LAP-GPS?
  • The LAP-GPS includes pole-mounting hardware for secure installation.
  • What is the maximum power consumption of the LAP-GPS?
  • It has a maximum power consumption of 8.5W.
  • How is the LAP-GPS powered?
  • The device supports passive PoE (Power over Ethernet) input for simplified deployment.
  • Can the LAP-GPS handle multiple client connections?
  • Yes, it is designed to support multiple client connections in a PtMP setup.
  • What operating temperature range does the LAP-GPS support?
  • It operates within a temperature range of -40°C to 70°C (-40°F to 158°F).
  • Does the LAP-GPS support VLAN tagging?
  • Yes, it supports VLAN tagging for network segmentation and management.
  • Is network management available through a web interface?
  • Yes, the device can be managed through Ubiquiti's intuitive web interface and mobile app.
  • What is the gain of the built-in antenna?
  • The LAP-GPS features a 17 dBi antenna for enhanced signal strength and coverage.
  • What security protocols does the LAP-GPS support?
  • It supports WPA2 encryption and other advanced security protocols.
  • Is the LAP-GPS easy to set up?
  • Yes, it features a straightforward installation process and comes with comprehensive setup guides.
