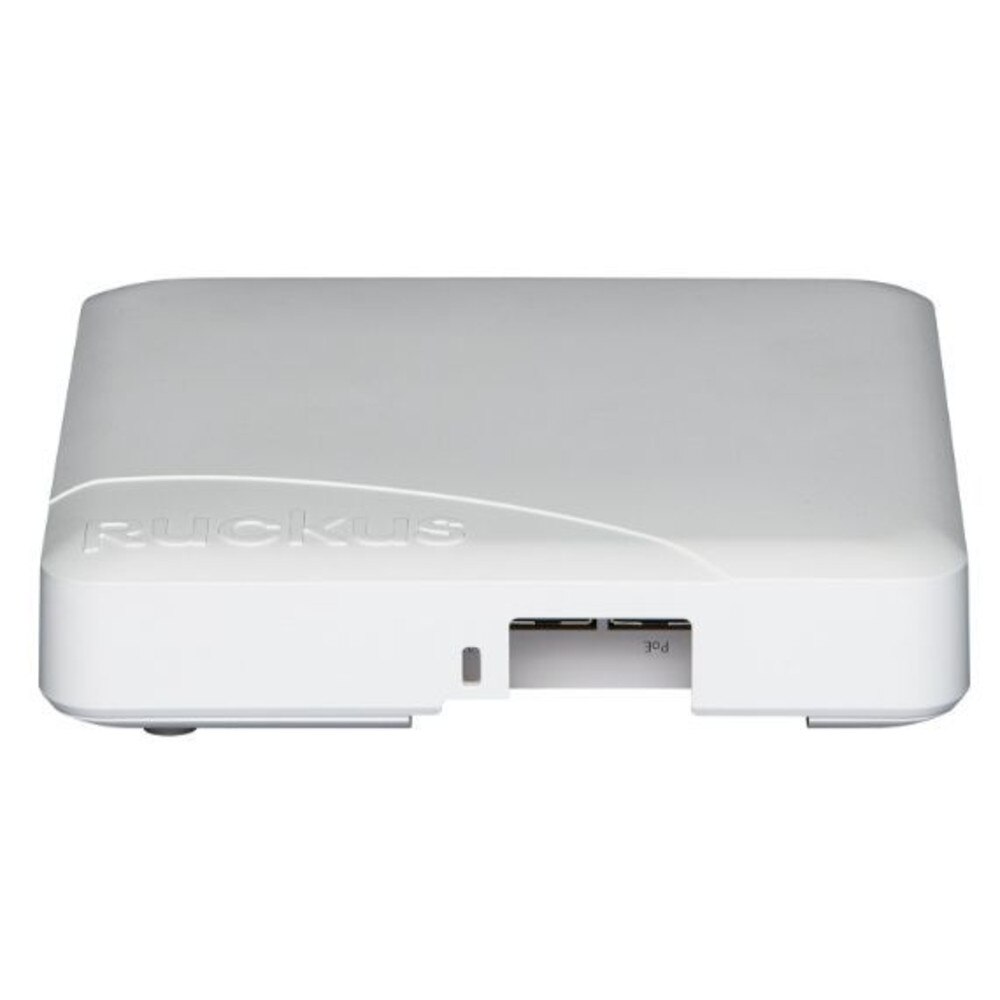

Overview of Ruckus Zoneflex R600 Unleashed Wireless Access Point (9U1-R600-US00) | New
The Ruckus ZoneFlex R600 provides high-performance and dependable 802.11ac wireless networking at an affordable price for medium-density venues such as K-12 or Higher Education. The ZoneFlex R600 combines unique adaptive antenna technology and automatic interference mitigation to give consistent, predictable performance over long ranges, with up to 6dB of BeamFlex gain on top of physical antenna gain and up to 15dB of interference mitigation. With dual-polarized antennas that adapt in real time to maximize performance for the mobile enterprise, the R600 is suitable for wireless networks supporting mobile devices. The ZoneFlex R600 improves performance even more by incorporating Ruckus' patented BeamFlex, a software-controlled, high gain adaptable antenna technology.
- Dual-band concurrent (2.4GHz/5GHz)
- Adaptive antenna technology and advanced RF management
- Up to an additional 6dB BeamFlex gain / 15dB interference mitigation / 3dBi physical antenna gain
- Automatic interference mitigation, optimized for high-density environments
- Integrated smart antenna technology
- Standard 802.3af Power over Ethernet (PoE)
- DHCP services
- IP multicast video streaming support
- Advanced QoS packet classification and automatic priority for latency-sensitive traffic
- Dynamic, per user rate-limiting for hotspot WLANs
- WPA-PSK (AES), 802.1X support for RADIUS and Active Directory
- BYOD, Zero-IT and Dynamic PSK
- Admission control/load balancing
- Band steering and airtime fairness support
- Rich and customizable guest access services
- Application recognition and control
- Bonjour gateway
- SecureHotspot
- Band balancing
- SmartMesh
- SPoT location services
Specifications
Specifications for Ruckus Zoneflex R600 Unleashed Wireless Access Point (9U1-R600-US00) | New
| Manufacturer | Ruckus Wireless |
| Model Number: | 9U1-R600-US00 |
| Brand: | Ruckus Wireless |
| Dimensions: | 15.8 mm × 15.8 mm × 4 mm |
| Temperature: | 0° to 40°C |
| Form Factor: | Indoor Access Point |
| Wireless Standard: | 802.11ac/abgn |
| Frequency: | Dual-band |
| MIMO: | 3×3 |
| Host Interface: | Ethernet |
| Interface Connector: | RJ45 |
User Guides
Frequently Asked Questions
Ruckus Zoneflex R600 Unleashed Wireless Access Point (9U1-R600-US00)
Frequently Asked Questions (FAQ's)
What is the Ruckus ZoneFlex R600? The Ruckus ZoneFlex R600 is a dual-band 802.11ac access point that delivers high-performance Wi-Fi in medium-density environments.
What are the main features of the Ruckus R600? Key characteristics include dual-band operation, BeamFlex+ adaptive antenna technology, 2x2:2 spatial streams, and improved QoS for video and voice traffic.
What is BeamFlex+ technology? BeamFlex+ is Ruckus' proprietary adaptive antenna technology that improves Wi-Fi performance and coverage by dynamically altering antenna layouts.
How many devices can the R600 support simultaneously? The R600 may accommodate up to 500 concurrent client connections, depending on network settings and environment.
What are the supported Wi-Fi standards? The R600 supports 802.11a/b/g/n/ac Wi-Fi standards.
What frequency bands does the R600 operate on? It operates on both 2.4 GHz and 5 GHz frequency bands.
Is the R600 suitable for outdoor use? No, the R600 is designed for indoor use only.
What is the maximum data transfer rate of the R600? The highest throughput on the 5 GHz band is 867 Mbps, while the 2.4 GHz frequency has a maximum of 300 Mbps.
Does the R600 support PoE (Power over Ethernet)? Yes, the R600 supports 802.3af PoE, which allows for flexible implementation without the need for separate power adapters.
What is the coverage area of the R600? The coverage area varies depending on the surroundings, but it is normally 1,000 to 2,500 square feet under normal conditions.
Can the R600 be managed through a controller? Yes, it can be handled with a Ruckus ZoneDirector or SmartZone controller. It also allows for independent operation.
Does the R600 support VLANs? Yes, the R600 provides VLAN tagging and administration for network segmentation.
What security features are available? Security features include WPA2, 802.1X authentication, MAC filtering, and rogue AP identification.
Can the R600 be used in mesh networks? Yes, the R600 supports mesh networking capabilities
What type of antennas does the R600 use? It has high-gain, adaptable antennas with BeamFlex+ technology.
What mounting options are available for the R600? The R600 can be ceiling or wall-mounted using the included mounting brackets.
What is the power consumption of the R600? The R600 consumes a maximum of 12.5 watts.
Does the R600 support guest networking? Yes, the R600 supports guest access with customizable captive portals.
How do I update the firmware on the R600? Firmware upgrades can be deployed via Ruckus ZoneDirector, SmartZone, or the device's web interface.
How easy is it to configure and manage the R600? Configuration and management are straightforward, with a web-based wizard for IT-free setup.
