Ricoh SP-1130N Color Duplex Document Scanner (PA03811-B025) | New
SKU: PA03811-B025-N
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us
Same Day Shipping - Arrives in 3-5 Business Days 30-day Returns Overview
Overview of Ricoh SP-1130N Color Duplex Document Scanner (PA03811-B025) | New

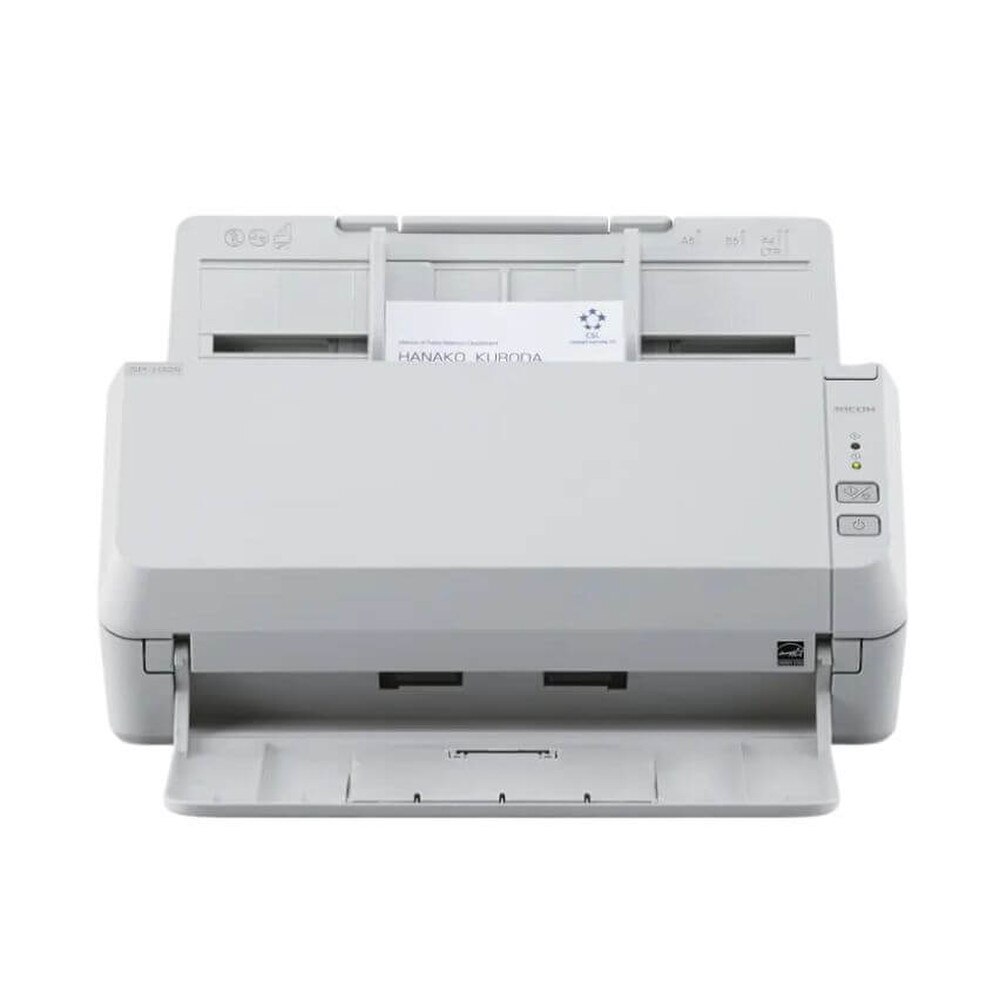

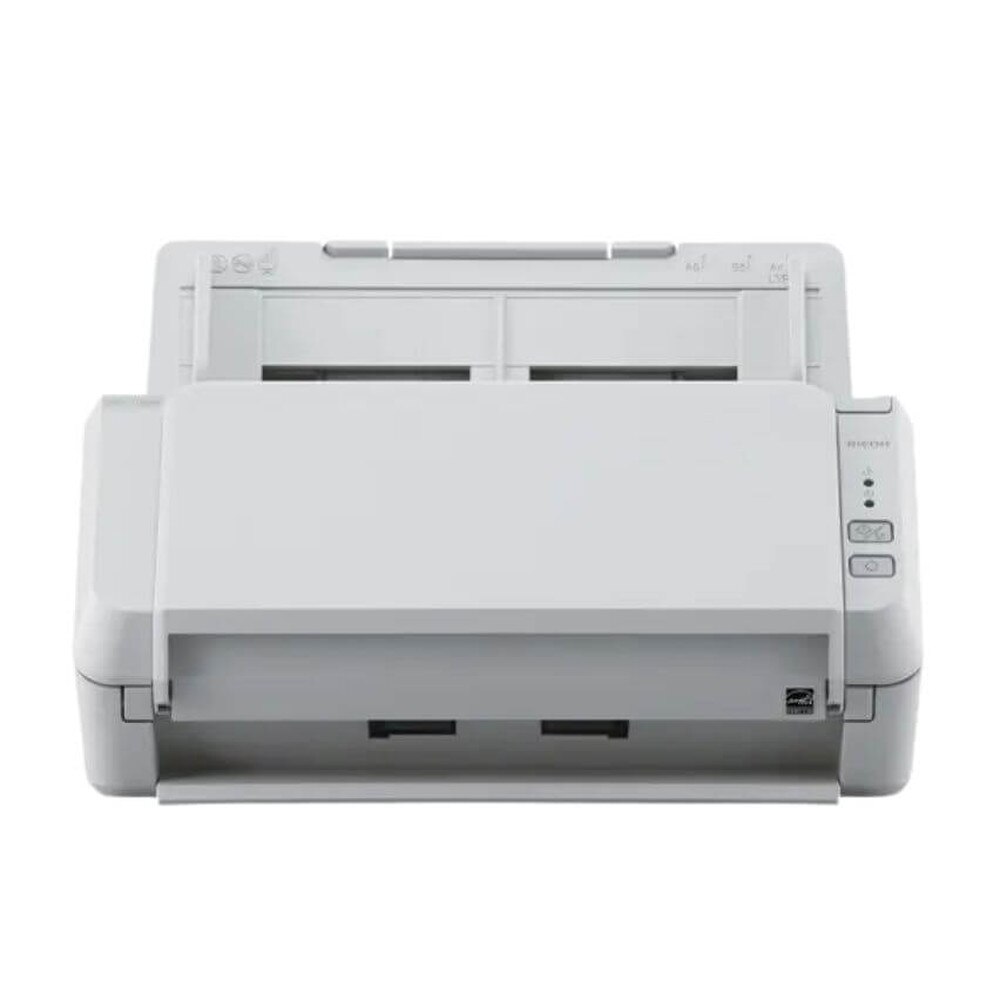

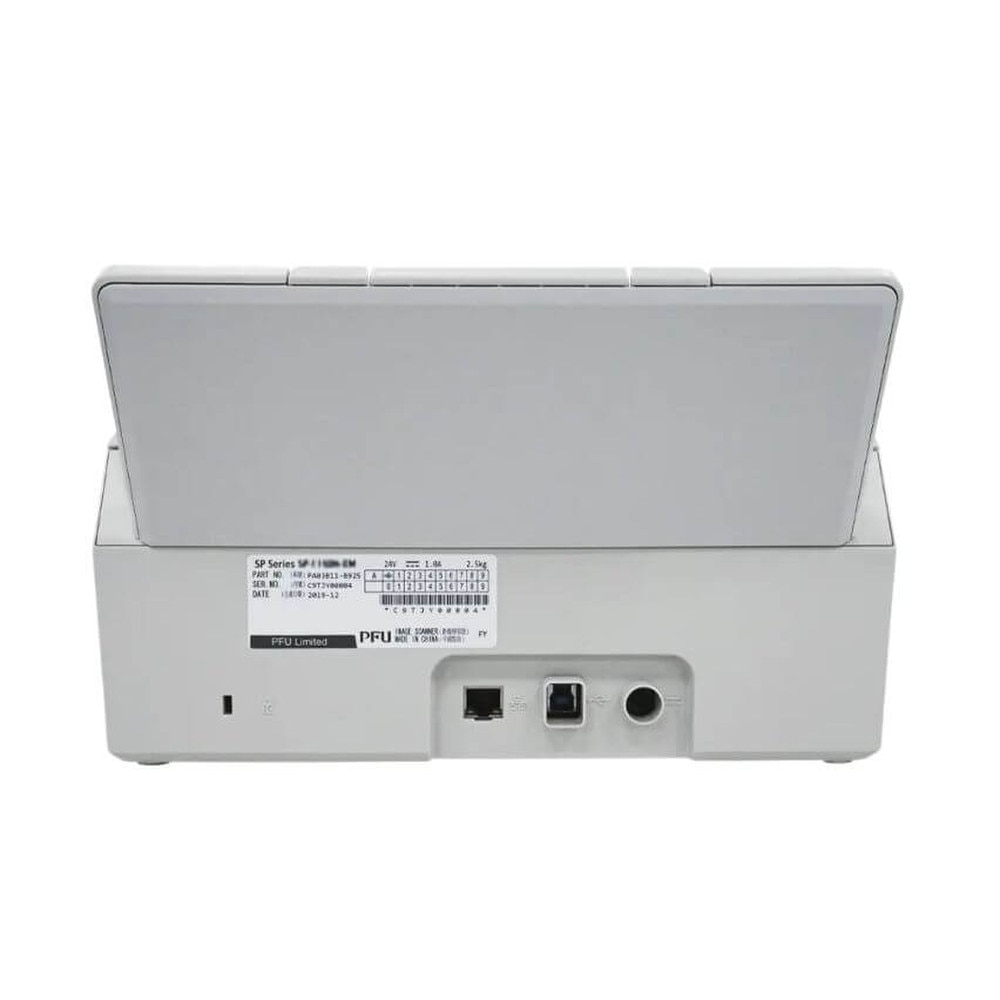

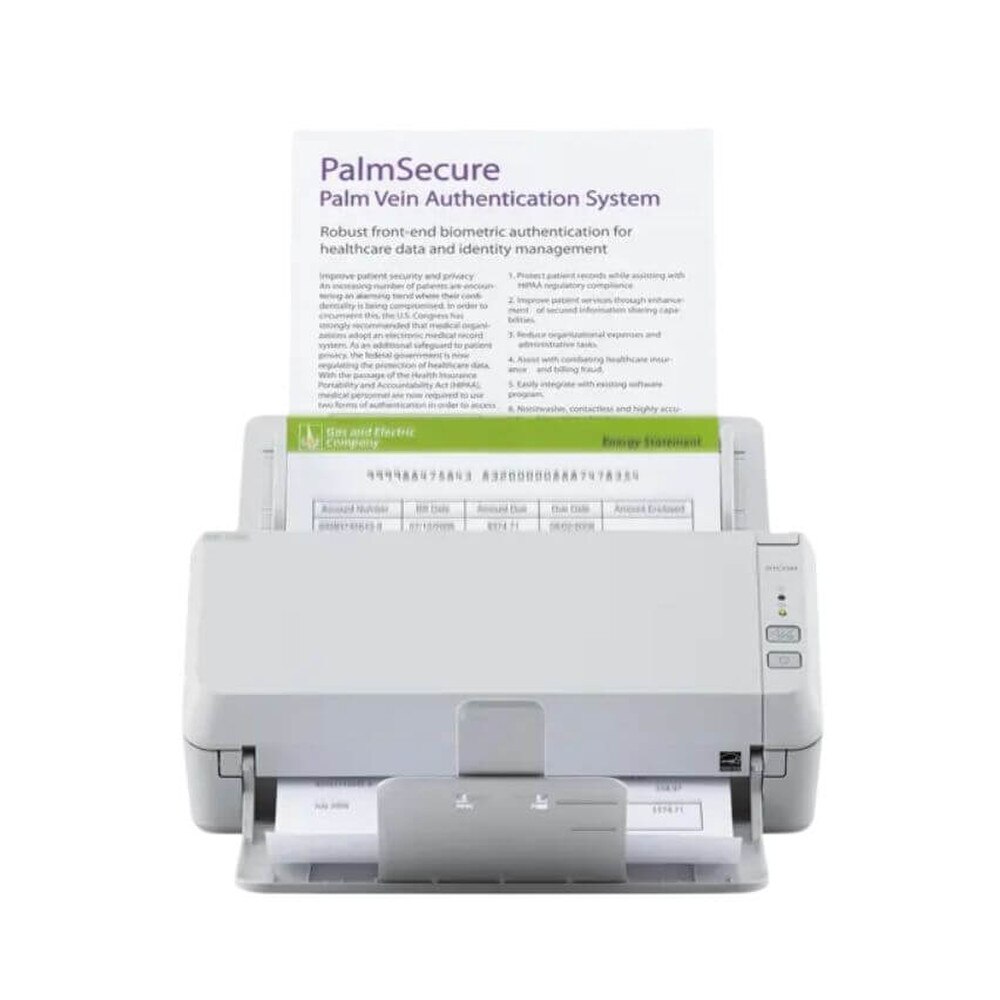

The Ricoh SP-1130N Color Duplex Document Scanner (PA03811-B025) is a compact powerhouse designed for workgroups, front offices and small enterprises looking for seamless, fast and accurate scanning. The SP-1130N allows teams to scan forms, invoices, ID cards and mixed media quickly by producing clear color or black-and-white images at up to 30 pages per minute (60 images per minute duplex). Its ultrasonic multi-feed detection and sophisticated brake roller assure error-free, seamless operation, while its 50-sheet automatic document feeder (ADF) easily manages batch workloads. With one-touch scanning and easy-to-use controls, the SP-1130N is a smooth addition to desktops and business networks, supporting both USB 3.2 and wired networks (Gigabit LAN). This scanner simplifies document management and maintains the smooth operation of your workplace with its ENERGY STAR certified energy efficiency, flexible media handling capabilities (including lengthy sheets up to 14" and embossed cards) and maximum daily volume of 4,500 scans.
Key Features of Ricoh SP-1130N Color Duplex Document Scanner
• Fast Color Duplex Scanning that scans up to 30ppm (simplex) and 60ipm (duplex), handling both color and black & white documents.
• 50-Sheet Automatic Document Feeder with efficient batch scanning of documents, receipts, cards and forms.
• Reliable Paper Handling with brake roller and ultrasonic multi-feed sensor prevent jams and double feeds for uninterrupted scanning.
• Advanced Image Processing with automatic color detection, image enhancement, blank-page skip and support for various output formats.
• Network & USB Connectivity with wired Gigabit LAN and USB 3.2 Gen 1x1 for flexible deployment in networked or desktop environments.
• Wide Media Compatibility that scans long documents up to 14", embossed plastic cards and various paper sizes/thicknesses.
• Simple Operation with one-touch scanning and intuitive two-button controls for efficient workflows.
• Energy Efficient with ENERGY STAR certified, low power use (2W sleep mode), helping reduce costs and support green initiatives.
• TWAIN & ISIS Driver Support with seamless integration with Windows, macOS and Linux scanning applications.
Benefits of Ricoh SP-1130N Color Duplex Document Scanner
🗹 Accelerate Digitization with high-speed duplex scanning and batch feeder save time and reduce administrative bottlenecks.
🗹 Reduce Errors & Downtime with brake roller plus ultrasonic multi-feed detection mean fewer jams, re-scans and lost pages.
🗹 Streamline Office Workflows with one-touch operation and network connectivity let anyone scan and share documents quickly.
🗹 Improve Data Accuracy with advanced image enhancement ensures sharp, accurate scans ready for OCR and archival.
🗹 Support Workgroup Productivity that handle up to 4,500 scans per day and diverse media sizes with reliable performance.
🗹 Eco-Friendly Operation with low power consumption and ENERGY STAR certification support sustainability and reduced energy bills.
🗹 Flexible for Any Document Type that is perfect for forms, cards, invoices, receipts and longer documents found in modern office environments.
🗹 Easy Integration with TWAIN/ISIS drivers, multiple OS support and robust connectivity make deployment and management stress-free.
Specifications
Specifications for Ricoh SP-1130N Color Duplex Document Scanner (PA03811-B025) | New
| Manufacturer | Ricoh |
| Manufacturer Part Number | PA03811-B025 |
| Product Name | Ricoh SP-1130N Compact Network Scanner |
| Product Type | Scanner |
| Scanner Type | ADF (Automatic Document Feeder) |
| Simplex / Duplex | Duplex |
| Scanning Speed (Color/Grayscale/Monochrome) | Simplex: 30 ppm (200/300 dpi) |
| Duplex: 60 ipm (200/300 dpi) | |
| Image Sensor | Single line CMOS-CIS x 2 (front x 1, back x 1) |
| Light Source | RGB LED x 2 (front x 1, back x 1) |
| Optical Resolution | 600 dpi |
| Output Resolution (Color / Grayscale / Monochrome) | 50 to 600 dpi (adjustable by 1 dpi increments), 1200 dpi (driver) |
| Output Format | Color: 24-bit, Grayscale: 8-bit, Monochrome: 1-bit |
| Background Colors | White |
| Dimensions (W x D x H) | 298 x 135 x 133 mm (11.7 x 5.3 x 5.2 in.) |
| Weight | 2.5 kg (5.5 lb) |
| Supported Operating System | Windows® 11, Windows® 10, Windows Server® 2022, Windows Server® 2019, Windows Server® 2016, Windows Server® 2012 R2, Windows Server® 2012, macOS*16, Linux (Ubuntu) |
| Image Processing Functions | Multi image output, Automatic color detection, Automatic page size detection, Blank page detection, Dynamic threshold (iDTC), Advanced DTC, SDTC, Error diffusion, Dither, De-Screen, Emphasis, Dropout color (None/Red/Green/Blue/White/Saturation/Custom), sRGB output, Split image, De-Skew, Edge filler, Vertical streaks reduction, Digital endorser, Background pattern removal, Character thickness, Character augmentation, Character extraction |
| Document Size | Max: 216 x 355.6 mm (8.5 x 14 in.) |
| Min: 52 x 74 mm (2.0 x 2.9 in.) | |
| Long Page Scanning: 3,048 mm (120 in.) | |
| Paper Weight (Thickness) | Paper: 50 to 209 g/m2 (13.4 to 56 lb) |
| Plastic Card: 0.76 mm (0.0299 in.) or less | |
| ADF Capacity | 50 sheets (A4 80 g/m2 or Letter 20 lb) |
| Expected Daily Volume | 4,500 sheets |
| Multifeed Detection | Overlap detection (Ultrasonic sensor) |
| USB | USB 3.2 Gen 1x1 / USB 2.0 / USB 1.1 |
| Ethernet | 10BASE-T,100BASE-TX,1000BASE-T |
| Power Requirement | AC 100 to 240 V ±10 % |
| Operating Mode | 18 W or less |
| Sleep Mode | 2 W or less |
| Auto Standby (Off) Mode | 0.3 W or less |
| Temperature | 5 to 35 °C (41 to 95 °F) |
| Relative Humidity | 20 to 80% (non-condensing) |
| Environmental Compliance | ENERGY STAR®, RoHS |
User Guides
Frequently Asked Questions
Ricoh SP-1130N Color Duplex Document Scanner (PA03811-B025)
Frequently Asked Questions (FAQ's)
What are the maximum scan speeds?
What connectivity options are available?
How many documents fit in the ADF?
What size documents does it support?
How does it prevent paper jams and multi-feeds?
What is the optical resolution?
What image enhancement features are included?
What software comes with the scanner?
What are its dimensions and weight?
How energy efficient is it?
Which operating systems are supported?
Is multi-user scanning supported via network?
What is the scanner’s daily duty cycle?
Can it handle long or continuous document scanning?
Does it support image drivers like TWAIN/ISIS?
Can it output searchable PDFs?
How many languages does OCR support?
Does it include fleet management tools?
What types of media can it scan?
Is setup and scanning easy for novices?
