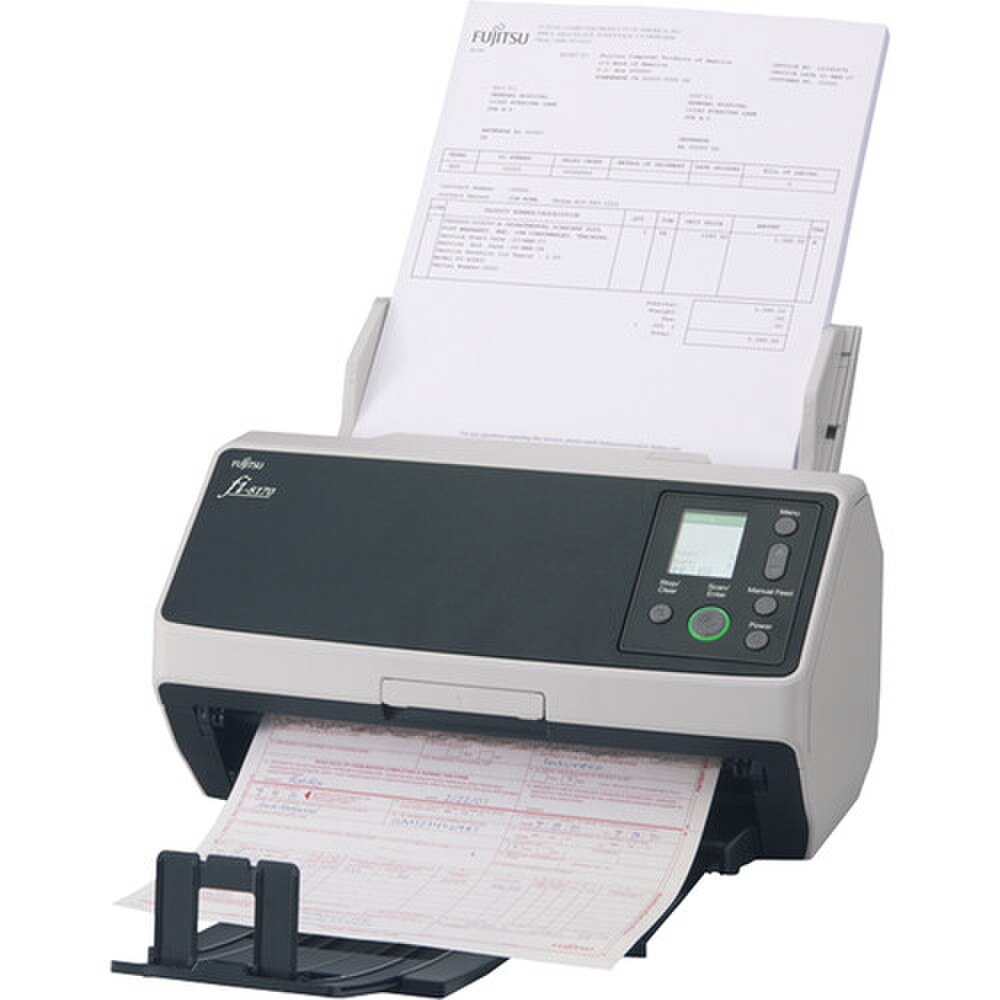

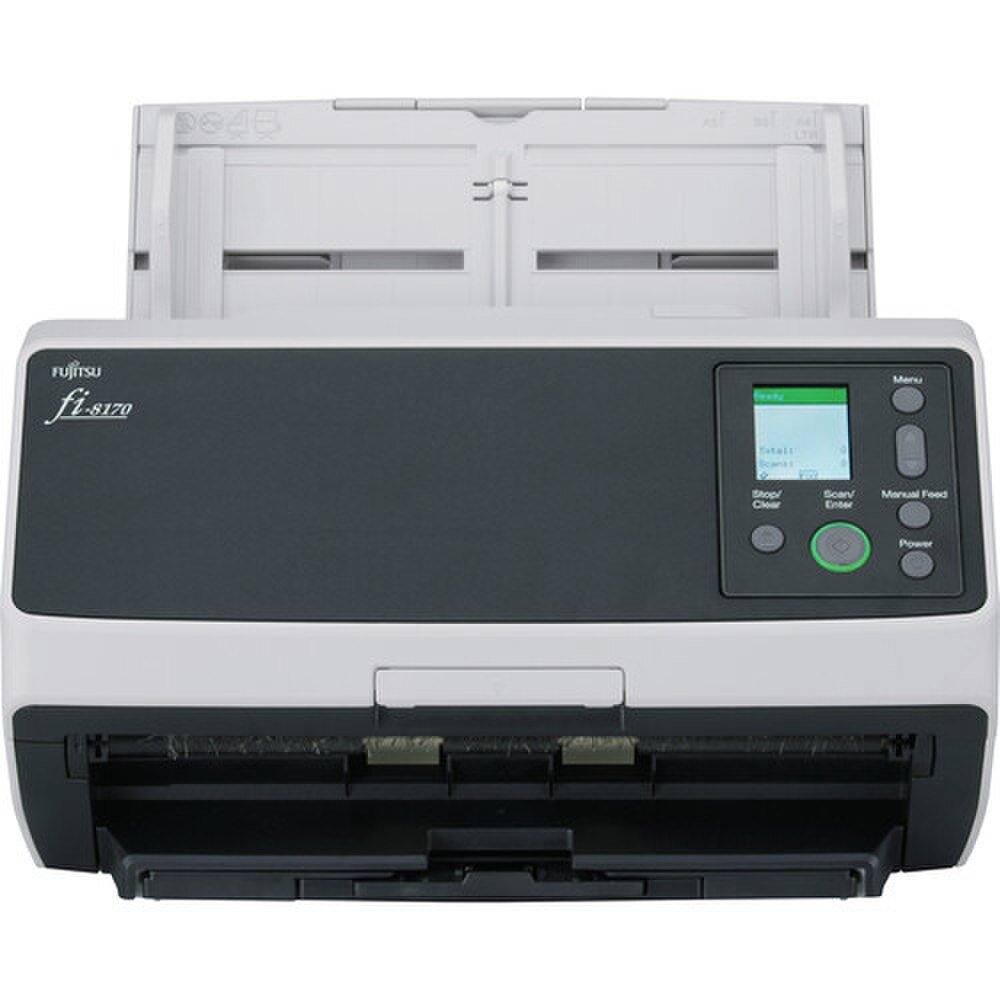

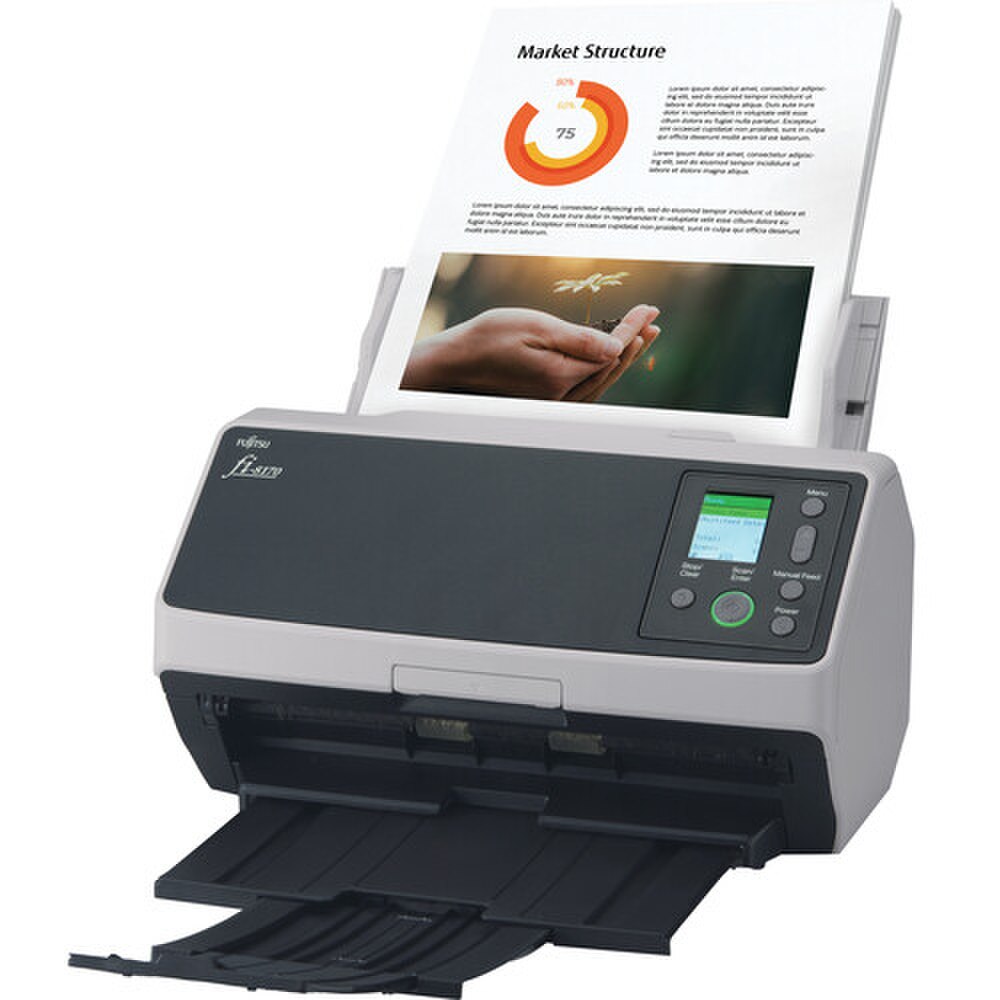

Ricoh R-FI8170 Color Duplex Document Scanner (PA03810-B075) | New
SKU: PA03810-B075-N
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us
Same Day Shipping - Arrives in 3-5 Business Days 30-day Returns Overview
Overview of Ricoh R-FI8170 Color Duplex Document Scanner (PA03810-B075) | New
The Ricoh R-FI8170 is a high-performance color duplex document scanner designed for efficient and reliable scanning in various environments. It is particularly suitable for businesses that require quick and high-volume document processing.
Ricoh R-FI8170 Color Duplex Document Scanner (PA03810-B075) Features:
- Scanning Speed: The fi-8170 achieves impressive speeds of 70 pages per minute (ppm) in simplex mode and 140 images per minute (ipm) in duplex mode, both at resolutions of 200/300 dpi. This makes it ideal for environments where time efficiency is critical .
- Automatic Document Feeder (ADF): It features a 100-sheet ADF, allowing for continuous scanning of large volumes of documents without the need for manual intervention. The ADF supports a variety of document types, including passports and booklets .
- Image Quality: With an optical resolution of 600 dpi, the scanner utilizes advanced image processing technologies like Clear Image Capture to produce high-quality images while minimizing power consumption .
- Paper Handling and Protection: The scanner incorporates intelligent paper protection features, including Automatic Separation Control and multi-feed detection, which help prevent jams and ensure all documents are scanned accurately .
- Connectivity Options: The fi-8170 supports both USB 3.2 and Ethernet connections, making it versatile for different network setups. It is compatible with various scanning software solutions through integrated TWAIN and ISIS drivers .
- User-Friendly Interface: A color LCD panel simplifies operation, allowing users to easily navigate settings and monitor the scanning process .
Specifications
Specifications for Ricoh R-FI8170 Color Duplex Document Scanner (PA03810-B075) | New
| Manufacturer | Ricoh |
| Manufacturer Part Number | PA03810-B075 |
| Product Name | Ricoh R-FI8170 Color Duplex Document Scanner (PA03810-B075) |
| Product Type | Document Scanner |
| Scanner Type | Portable Scanner with Automatic Document Feeder (ADF) / Manual Feed |
| Scanner Color Depth | 24-Bit (Internal) |
| Mobile App Compatible | No |
| Power Source | AC Adapter (Included) |
| Scan Modes | Color, Grayscale, Monochrome |
| Scanner Color Depth | 24-Bit (Internal) |
| Grayscale Depth | 8-Bit (Internal) |
| Light Source | LED |
| Image Sensor | 2x Contact Image Sensor (CIS) |
| Duplex Scanning | Yes |
| Single Pass Duplex | No |
| Automatic Image Corrections | No |
| File Formats | JPEG, TIFF |
| ADF | 100x Sheet |
| Multi-Feed Detection | Yes |
| Media Weight | 20 to 465 gsm / 5.3 to 124 lb |
| Daily Life Expectancy | 10,000 Sheets |
| Special Media Support | Business Card, Credit Card, ID Card, Index Card |
| Scanner | USB-A 3.0 / 3.1/3.2 Gen 1, RJ45 |
| Scanner Drivers | TWAIN, WIA, ISIS, ICA, SANE |
| OS Compatibility | Windows / macOS / Ubuntu / Linux |
| Mobile App Compatible | No |
User Guides
Frequently Asked Questions
Ricoh R-FI8170 Color Duplex Document Scanner (PA03810-B075)
Frequently Asked Questions (FAQ's)
What are the key features of the Ricoh R-FI8170 scanner? The Ricoh R-FI8170 features high-speed duplex scanning, a compact design, advanced image processing, and compatibility with multiple file formats and cloud services.
How fast does the Ricoh R-FI8170 scanner operate? The scanner offers a speed of up to 70 pages per minute (ppm) or 140 images per minute (ipm) in duplex mode.
Is the Ricoh R-FI8170 scanner suitable for high-volume scanning? Yes, it has a daily duty cycle of up to 9,000 pages, making it ideal for high-volume scanning needs.
What type of documents can the Ricoh R-FI8170 scan? It supports a wide range of documents, including ID cards, thick papers, and long documents up to 220 inches.
Does the Ricoh R-FI8170 support double-sided scanning? Yes, the scanner offers automatic duplex scanning for efficient processing.
What file formats are supported by the Ricoh R-FI8170 scanner? The scanner supports popular formats such as PDF, searchable PDF, JPEG, TIFF, and more.
Can the Ricoh R-FI8170 scanner connect to cloud services? Yes, it integrates with cloud services like Google Drive, Dropbox, and OneDrive.
What is the resolution of the Ricoh R-FI8170 scanner? It provides an optical resolution of up to 600 dpi for high-quality scans.
Is the Ricoh R-FI8170 scanner compatible with Mac and Windows? Yes, it works seamlessly with both Mac and Windows operating systems.
What is the capacity of the Ricoh R-FI8170's automatic document feeder (ADF)? The ADF has a capacity of up to 100 sheets.
Does the Ricoh R-FI8170 support OCR (Optical Character Recognition)? Yes, it includes OCR functionality to create searchable and editable text documents.
Can the Ricoh R-FI8170 handle mixed document sizes in a single batch? Yes, it is designed to process mixed document sizes and types in a single batch.
What kind of connectivity options does the Ricoh R-FI8170 offer? It includes USB 3.2 and optional network connectivity for flexible use.
How compact is the Ricoh R-FI8170 scanner? It features a space-saving design, ideal for desktop use in small offices or home environments.
Does the Ricoh R-FI8170 support color scanning? Yes, it supports both color and monochrome scanning with equal efficiency.
What software comes with the Ricoh R-FI8170 scanner? The scanner includes software for document management, scanning, and image processing.
Can the Ricoh R-FI8170 remove blank pages automatically? Yes, it includes advanced features like blank page removal to streamline scanning workflows.
How does the Ricoh R-FI8170 handle skewed documents? It features automatic skew correction for precise and accurate scanning.
Is the Ricoh R-FI8170 scanner energy-efficient? Yes, it complies with ENERGY STAR standards, ensuring energy efficiency during operation.
What industries benefit most from the Ricoh R-FI8170 scanner? This scanner is ideal for industries like finance, healthcare, legal, and education, where document digitization is critical.
