Overview

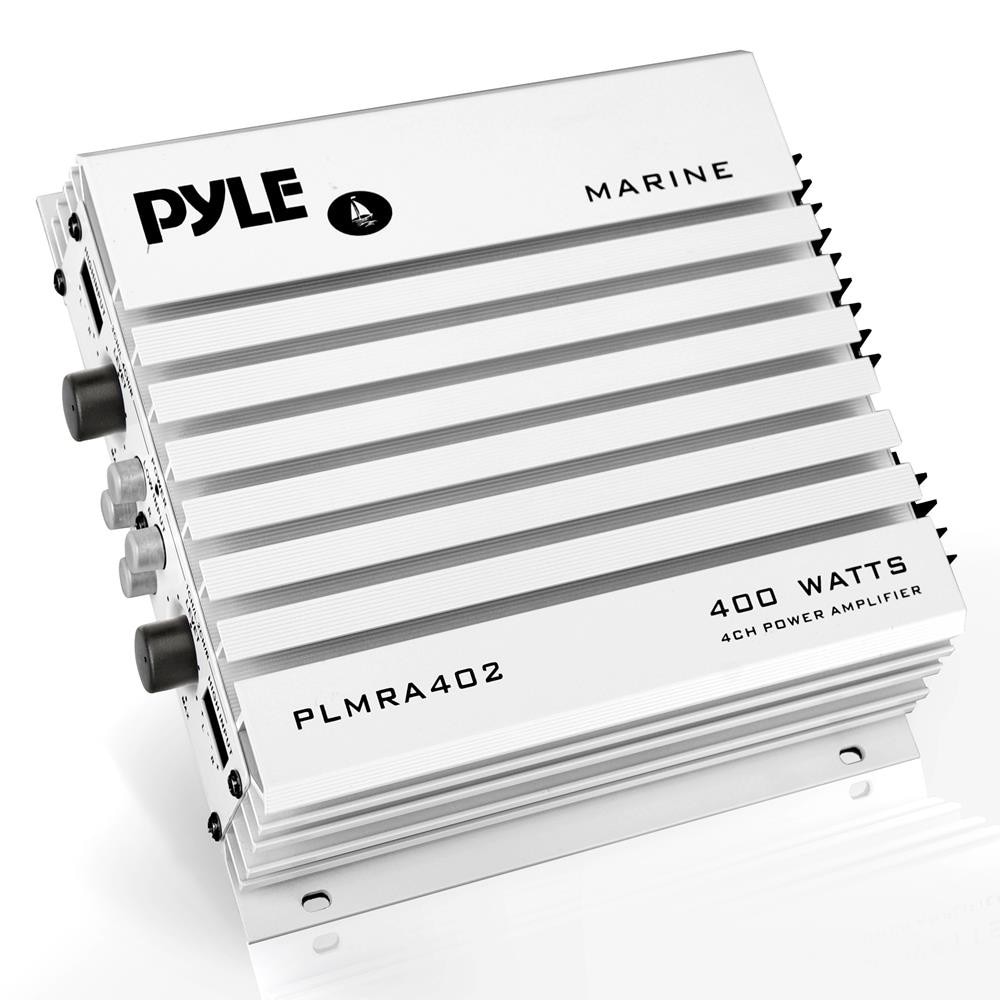

Overview Pyle Marine Amplifier 4 Channel Elite Series (PLMRA402) | New

Experience exceptional audio quality with the Pyle Marine Amplifier 4 Channel Elite Series (PLMRA402). Designed specifically for marine environments, this powerful amplifier ensures your music sounds crisp and clear, whether you’re sailing, fishing, or just enjoying a day on the water.

Key Features:

  • 4 Channel Amplifier: Delivering a robust 400 watts of peak power, this amplifier allows you to connect up to four speakers, providing rich and immersive sound throughout your vessel.
  • Marine Grade Construction: Built to withstand the harsh conditions of marine environments, the PLMRA402 features a rugged and corrosion-resistant coating, ensuring long-lasting durability.
  • Variable Gain Control: Customize your sound with variable high and low pass filters, giving you full control over the audio experience.
  • Bridgeable Channels: Flexibility to bridge channels for increased power output to specific speakers, ideal for setting up subwoofers.
  • Compact Design: Sleek and compact, the amplifier can be easily installed in various locations on your boat without taking up much space.
  • Thermal Overload Protection: Ensures safe operation by preventing overheating, giving you peace of mind during extended use.

Specifications

Specification Pyle Marine Amplifier 4 Channel Elite Series (PLMRA402) | New

ManufacturerPyle
Manufacturer Part NumberPLMRA402
Product NamePyle Marine Amplifier 4 Channel Elite Series
Product TypeAmplifier
Features:4-Channel Amp System
Dual MOSFET Power Supply
Marine Grade Construction
Waterproof Marine Rating IP-01
Dual Adjustable Input GAIN Level Controls
Dual High Level Speaker Input Connectors
Dual RCA (L/R) Input Connector Jacks
Gold-Plated Speaker Output Terminal Connectors
Adjustable Input GAIN Level Control
Anti-Thump Delay Circuitry
Built-in Thermal, Overload & Speaker Short Protection
Heavy Duty Aluminum Alloy Heatsink
Power ON LED Indicator
Remote Turn ON/OFF
Technical Specs:Output Power: 100 Watt x 4 MAX
Amplifier Class: AB
Fuse Type: 20A
Input Gain Impedance Adjustment: 1 - 300mV
Frequency Response: 15 - 30kHz +/-3dB
Input Impedance: 10k Ohms (Low), 100 Ohm (High)
Input Sensitivity: 250mV (Low), 2.5V (High)
T.H.D.: <0.04%
Matching Speaker Impedance: 4-8 Ohms
Power Supply: DC 12V
Dimensions (L x W x H): 9.0'' x 7.9'' x 2.0'' -inches
Sold as: Unit
Weight: 4

Frequently Asked Questions

Pyle Marine Amplifier 4 Channel Elite Series (PLMRA402)

Frequently Asked Questions (FAQ's)



Is the Pyle PLMRA402 amplifier waterproof?
  • It is water resistant, but not completely waterproof. It is intended for marine applications, featuring covered circuit boards to avoid moisture damage.
    • What is the power output of the Pyle PLMRA402?
  • It provides 200 watts RMS and 400 watts peak output over two channels.
    • Can I bridge the channels on this amplifier?
  • No, the PLMRA402 is not bridgeable. It is a specialist two-channel maritime amplifier.
    • What is the impedance compatibility?
  • It works with both 2-ohm and 4-ohm speakers.
    • Does the amplifier have a built-in crossover?
  • Yes, it has a built-in variable high-pass and low-pass crossover for sound control.
    • Can I use this amplifier with a subwoofer?
  • Yes, although it is better suited to driving full-range speakers rather than dedicated subwoofers.
    • Is the Pyle PLMRA402 compatible with all marine audio systems?
  • It is compatible with most marine audio systems that use RCA inputs.
    • Does the amplifier have thermal or short circuit protection?
  • Yes, it has built-in protection circuitry that prevents overheating and short circuits.
    • Can I install this amplifier in my car or home audio system?
  • Yes, it may be used in a car or home audio system, although it is primarily intended for nautical applications.
    • What size power and ground wires should I use for installation?
  • For best results, use no less than 8-gauge power and ground wires.
    • Does this amplifier require an external fuse?
  • Yes, it is advised to add an inline fuse (40A) near the battery for protection.
    • Can this amplifier run off a boat’s battery?
  • Yes, it uses a 12V DC power source, which is normal for marine and automotive batteries.
    • How do I connect this amplifier to my head unit?
  • Connect the amplifier's RCA inputs to the preamp outputs on the head unit using RCA wires.
    • Does the PLMRA402 support Bluetooth connectivity?
  • No, it does not feature built-in Bluetooth; a separate Bluetooth adaptor is needed.
    • What are the dimensions of the amplifier?
  • It measures approximately 7.87” x 2” x 3.94”.
    • How do I mount the amplifier on my boat?
  • Use the accompanying mounting hardware and keep it in a well-ventilated, dry location.
    • Can I use this amplifier in saltwater environments?
  • Yes, although it is recommended that it be installed in a sheltered area and cleaned on a regular basis to prevent rusting.
    • Does the amplifier have bass boost functionality?
  • No, it does not include a dedicated bass boost feature.
    • What type of speakers can I connect to this amplifier?
  • It can power marine, vehicle, and full-range speakers with impedances of 2 or 4 ohms.
    • Does this amplifier have speaker-level inputs?
  • No, it only has RCA (low-level) inputs, thus you'll need a line output converter if your head unit doesn't have RCA outputs.
