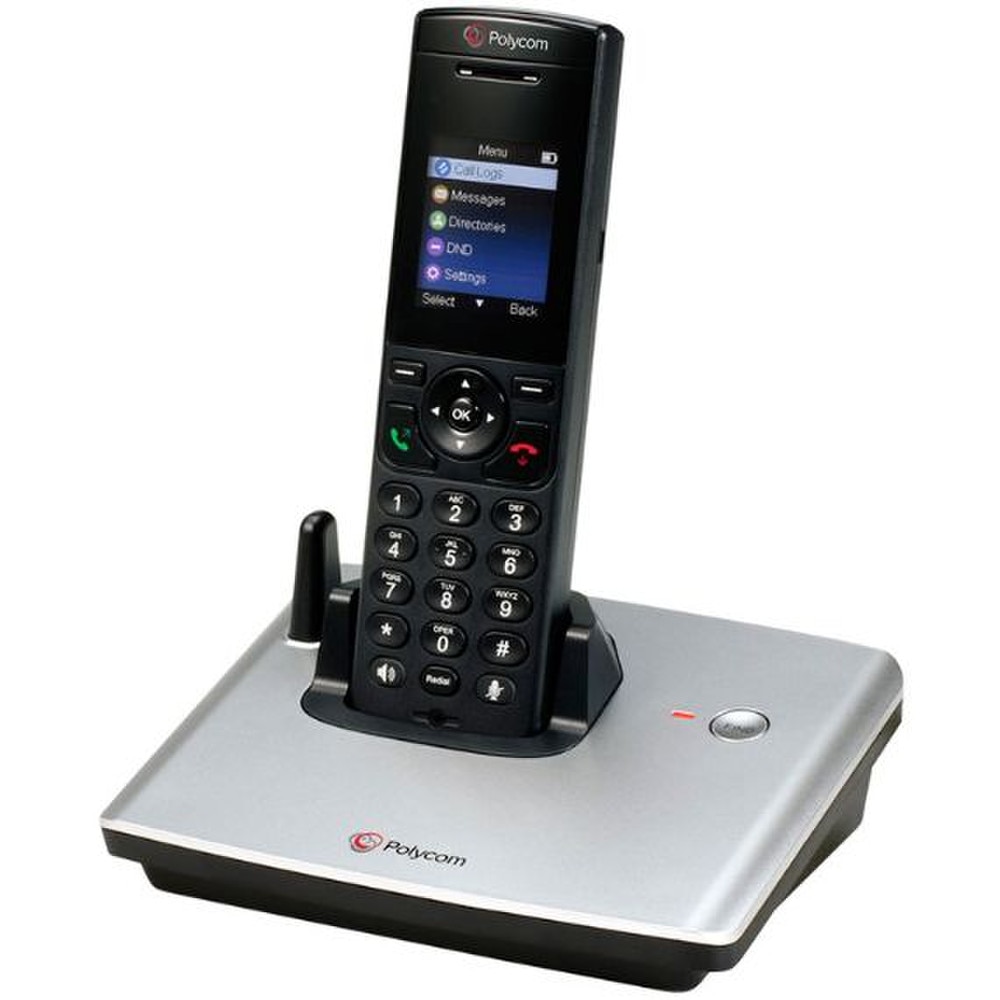

Polycom 2200-17823-001 VVX D60 Base Station with Wireless Handset, 1920-1930 MHz DECT Wireless | Like New

• Bundled with Polycom UC Software:
  • Corporate directory access using LDAP
• Visual conference management

IETF SIP (RFC 3261 and
companion RFCs)

• Two-port Ethernet switch
  - 10/100Base-TX across LAN and PC port
  - Conforms to IEEE802.3-2005 (Clause
  40) for physical media attachment
  - Conforms to IEEE802.3-2002 (Clause
  28) for link partner auto-negotiation
• Manual or dynamic host configuration protocol DHCP network setup
• Time and date synchronization using SNTP FTP/TFTP/HTTP/HTTPS server-based central provisioning for mass deployments
• Provisioning and call server redundancy supported
• QoS support – IEEE 802.1p/Q tagging (VLAN), Layer 3 TOS, and DHCP
• LLDP-MED for VLAN discovery
• Network address translation – support for static configuration and “Keep-Alive” SIP signaling
• RTCP and RTP support
• Event logging
• Syslog
• Status and statistics reporting
• IPv4
• TCP
• UDP
• DNS-SRV

Frequency

• 1920-1930 MHz
• 1880-1900 MHz
• 1880-1895 MHz
• 1896-1903 MHz
• 1910-1920 MHz
• 1921-1930 MHz
• 1786-1791 MHz

Range

• Indoor: 165ft (50m)
• Outdoor: 980ft (300m)

Size

• Base station size: 6.3 x 2.75 x 5.0 in
  (16 x 7 x 12.5 cm) (W x H x D)
• Handset size: 2 x 6.7 x 1 in
  (5 x 17 x 2.5 cm) (W x H x D)
• Handset charger size: 3.75 x 2.20 x 3.35 in (9.5 x 5.5 x 8.5 cm) (W x H x D)

Handset User Interface Features

• 2 in color TFT LCD display (resolution 178 x 220 pixel)
• Voicemail support2
• Unicode UTF-8 character support. Multilingual user interface including Chinese, Danish, Dutch, English (Canada/US/UK), French, German, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Slovenian, Spanish and Swedish

• Full-duplex conversations, acoustic echo cancellation and background noise suppression
• Frequency response – 150 Hz – 7 kHz for handset, optional headset and handsfree speakerphone modes
• Narrowband Codecs: G.711 (A-law and μ-law), G.729AB
• Wideband Codec: G.722
• Individual volume settings with visual feedback for each audio path
• Voice activity detection
• Comfort noise generation
• DTMF tone generation (RFC2833, in-band and SIP INFO)
• Low-delay audio packet transmission
• Adaptive jitter buffers
• Packet loss concealment

• Multiple Lines Support for Handsets (5 lines per HS)
• Up to 4 simultaneous calls
• Up to 5 handsets
• Shared call/bridged line appearance
• Maximum controlled by configuration
• Distinctive incoming call treatment/call waiting
• Call timer and call waiting
• Call transfer, hold, divert (forward), pickup
• Called, calling, connected party information
• Local 3-way audio conferencing
• 1-touch speed dial, redial
• Remote missed call notification
• Do not disturb function
• Intercom

• Dedicated 2.5 mm headset port
• External 2.5 mm to 3.5 mm headset adapter
• Compliant with ADA Section 508 Subpart B1194.23 (all)
• Hearing aid compatible handset for
  magnetic coupling to hearing aids

• External universal AC adapter (5V 6W DC)

• 1 Ni-MH 800 –mAh (2.4V) AAA battery (rechargeable)
• 10 hours talk time
• 100 hours standby time

• VVX D60 wireless handset
• VVX D60 wireless base station
• Network (LAN) cable
• Wireless handset belt clip
• Wireless handset 2.5 mm to 3.5 mm headset adapter
• Battery pack
• Quick start guide
• Power adapter (some SKUs are PoE only, so the power supply may be ordered separately)

• Handset
• Charger
• 2.5 mm to 3.5mm headset adapter
• Quick start guide
• Power adapter

• Bundled with Polycom UC Software:
  • Corporate directory access using LDAP
• Visual conference management

• CDP Support
• 802.1X authentication and EAPOL
• Media encryption via SRTP
• Transport layer security
• Encrypted configuration files
• Digest authentication
• Password login
• Support for URL syntax with password for boot server address
• HTTPS secure provisioning
• Support for signed software executables
