Panasonic KX-TVA50 Voice Processing System | Like New
SKU: KX-TVA50-LN
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us
Same Day Shipping - Arrives in 3-5 Business Days 30-day Returns Overview

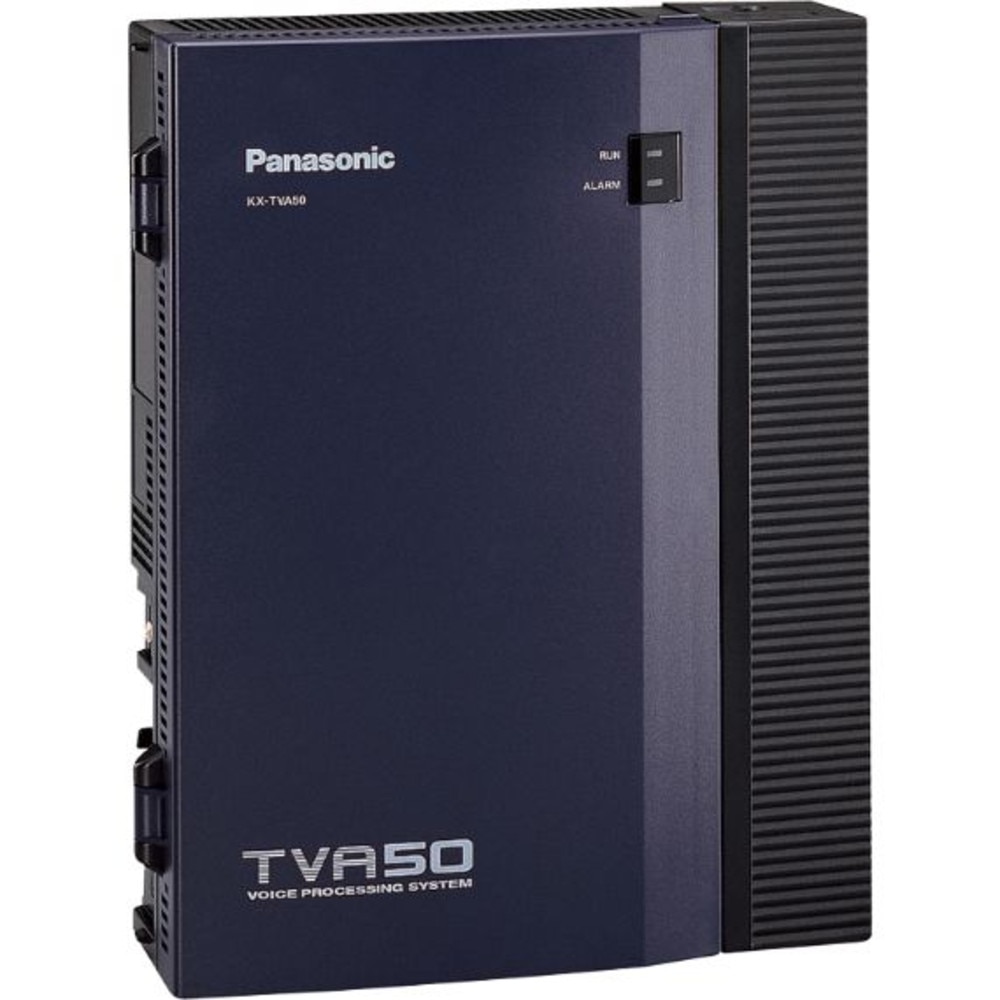

Overview of Panasonic KX-TVA50 Voice Processing System | Like New
The Panasonic KX-TVA50 Voice Processing System control unit is part of Panasonic's next generation of voice processing systems. This system comes with two ports to accommodate two simultaneous talks and four hours of recording time, but it can be expanded to six ports and eight hours. It provides 64 voice mail boxes, two of which are for administrative purposes.
The Panasonic KX-TVA50 Voice Processing System has solid-state memory, which means that no hard drive will fail in the future. The item includes a USB connector for connecting to a computer for programming. It can also be configured through a LAN, or the optional KX-TVA296 internal modem card can be used to connect to a remote PC for programming and diagnostics.
Key Features of Panasonic KX-TVA50 Voice Processing System
Voice Processing System
Automated Attendant Service
Answers Incoming Calls
Routes Caller to Desired Extension
Email Integration
Up To 4 Hours Recording Time
Expand to 8 Hours w/ KX-TVA524
Voicemail Service
Supports Up To 64 Individual Mailboxes
External Message Delivery
Send Pre-recorded Message Out at Specific Date / Time
Enhanced Message Notification
Email Integration
Listen to Voicemails on Your PC
2 Ports (2 Users Can Access System at Once)
Expand to 6 Ports w/ KX-TA624 or KX-TA824
Up To 4 Hours Recording Time
Covering Extension
Specifications
Specifications for Panasonic KX-TVA50 Voice Processing System | Like New
| Manufacturer | Panasonic |
| Manufacturer Part Number | KX-TVA50 |
| Product Name | Panasonic KX-TVA50 Voice Processing System |
| Product Type | Voice Processing Systems |
| Available Port Cards | 2-Port Hybrid Expansion Card (KX-TVA502) |
| 2-Port Digital Expansion Card (KX-TVA503) | |
| Number of Port Card Slots | 2 |
| Data Ports | USB (built-in) LAN (optional) Modem (optional) |
| Additional Hardware | Mode Switch |
| Telephone Line Connections | • APT/DPT Integration: 4-conductor cable |
| • Inband/No Integration: 2-conductor cable | |
| Message Recording Medium | Flash Memory |
| Recording Capacity | 4 h (expandable to 8 h)*1 |
| Main CPU | 32-bit microprocessor |
| Compression Rate | 32 Kbps |
| Internal Modem Type | V.90 |
| Dialing Method | DTMF |
| Flash Time | 100 ms/300 ms/600 ms/900 ms (programmable) |
| CPC Detection | None/6.5 ms/150 ms/300 ms/450 ms/ 600 ms (programmable) |
| Line Type | • Loop start minimum Loop Current: 20 mA |
| • Minimum Line Voltage: 7 V DC | |
| • Minimum Ringing Voltage: 40 V AC | |
| Extension Numbering | 2 to 5 digits (programmable) |
| Pause Length | 100 ms to 9900 ms (programmable) |
| Message Waiting Lamp | • APT/DPT Integration: Data Line of APT/DPT Interface |
| • Inband Integration: Programmable DTMF sequence | |
| Custom Services | Up to 100 |
| Number of Messages | Unlimited |
| Length of Personal Greeting Message | Up to 360 s (programmable) |
| Message Retention Time | 1 to 30 days, unlimited (programmable) |
| Maximum Message Length | 1 to 60 min, unlimited (programmable) |
| Maximum Combined Length of Messages per Mailbox | 1 to 120 min, unlimited (programmable) |
| No. of Mailboxes | 62 Subscriber + 2 Manager |
| Reports | Mailbox Information, Call Account, Port Usage, Memory Usage, Mailbox Usage, Fax Call, Call Handling Statistic, Custom Service, Message Status, Subscriber Setup, Security Information, Hourly Statistics, E-mail |
| Environmental Requirements | 5 ˚C to 40 ˚C |
| (41 ˚F to 104 ˚F) | |
| Power Source | 100 V AC to 240 V AC, 0.25 A, |
| 50 Hz/60 Hz | |
| DC Input | 9 V, 0.75 A (6.75 W) |
| Dimensions (W × H × D) | 249 mm (W) × 316 mm (H) |
| × 73 mm (D) | |
| (9-13/16 in × 12-7/16 in × 2-7/8 in) | |
| Weight (when all available option cards are installed) | No more than 1.7 kg (3.75 lb) |
User Guides
Frequently Asked Questions
Panasonic KX-TVA50 Voice Processing System
Frequently Asked Questions (FAQ's)
Panasonic KX-TVA50 Voice Processing System It is a voicemail and auto-attendant system designed for small to medium-sized businesses to enhance call management.
How many voicemail mailboxes does the KX-TVA50 support? It supports up to 64 mailboxes for individual users.
What is the default voicemail recording capacity? The system provides 4 hours of recording time, expandable with additional memory cards.
Can the KX-TVA50 integrate with Panasonic PBX systems? Yes, it is compatible with Panasonic KX-TA, KX-TD, and KX-TDA series PBX systems.
Does it have an automated attendant feature? Yes, the built-in auto-attendant directs calls to the appropriate extension or department.
Can users access their voicemail remotely? Yes, voicemail can be accessed remotely via a PIN-secured login.
Does the KX-TVA50 support email integration for voicemail notifications? Yes, it can send voicemail-to-email notifications.
How many ports does the system support? It starts with 2 ports and can be expanded up to 6 ports with additional cards.
Can the KX-TVA50 work with non-Panasonic phone systems? While designed for Panasonic systems, it may have limited compatibility with other PBX systems.
How can I program the system? The system is programmed using a PC with Panasonic KX-TVA Maintenance Console software.
What is the Message Waiting Indicator (MWI) feature? It notifies users of new voicemail messages via a light or tone on compatible phones.
Does it support multiple languages? Yes, it offers bilingual voice prompts for voicemail and automated attendant features.
Can I customize the auto-attendant greetings? Yes, businesses can create personalized greetings for different call scenarios.
Does the system support caller ID? Yes, it can capture and display caller ID information with compatible PBX systems.
Can calls be forwarded to external numbers? Yes, calls can be forwarded to mobile phones or other external lines.
Is there a backup option for stored messages and system settings? Yes, the system allows backup to a PC using the programming software.
Can it route fax calls automatically? Yes, the system includes a fax detection feature to route fax calls accordingly.
Does the KX-TVA50 have a “follow-me” call forwarding feature? Yes, users can set up call forwarding to different extensions or external numbers.
What expansion options are available for the KX-TVA50? Users can expand voicemail storage and add more ports with optional upgrade cards.
How do I update the system firmware? Firmware updates are applied using the Panasonic KX-TVA Maintenance Console software.
