Panasonic KX-TDA5174 8-Port Single Line Extension Card | Like New

Panasonic KX-TDA5174 8-Port Single Line Extension Card | Like New

SKU: KX-TDA5174-LN
(0)No Reviews yet
Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns
$218.99 $218.99
Available Quantity:
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

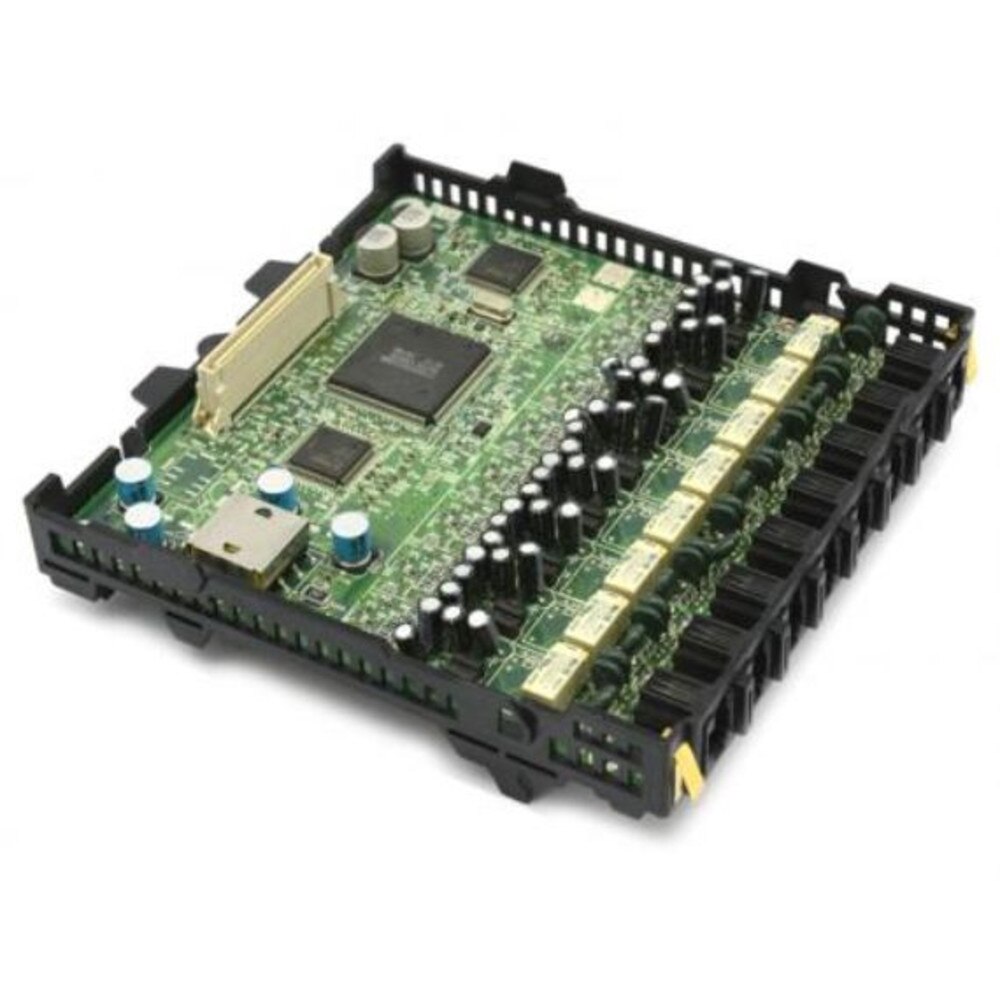

Panasonic KX TDA5174 8-Port Single Line Extension Card

Overview:

8-Port Single Line Card (SLC8) 4 ports per card. Supports single line telephones (SLT). Also equipped with 8 DTMF receivers. 2 cards max per system. Please refer to KX-TDA50 System Capacities Chart #5 prior to configuring a system

  • The Panasonic KX-TDA5174 is an 8-Port single-line extension card (SLC8)
  • The Panasonic KX TDA5174 card supports up to eight single-line phones.
  • Only one KXTDA5174 can be used per system.
  • Does not support 90-volt message waiting lights.

Specifications

Panasonic KX-TDA5174 8-Port Single Line Extension Card

  • Compatible with KX-TDA50G and KX-TDA50 Telephone Systems
  • 8 ports per card for Single Line Devices such as Single Line Phones, Fax Machines, Postal Meter, Credit Card Terminals
  • Compatible with KX-TDA5168 Caller ID Card so you will able to pass caller ID information to single line devices connected to this card
  • Card requires 1 free slot
  • Part Number: KX-TDA5174

Frequently Asked Questions

Panasonic KX-TDA5174 8-Port Single Line Extension Card
Frequently Asked Questions (FAQ's)



What is the Panasonic KX-TDA5174?
  • An 8-port Single Line Telephone (SLT) Extension Card, the KX-TDA5174 is made specifically for the Panasonic KX-TDA50 Hybrid IP-PBX system.
    • How many SLT devices can the KX-TDA5174 support?
  • Each card can accommodate up to eight single-line telephones (SLTs).
    • Can the KX-TDA5174 be used with any Panasonic PBX system?
  • No, It is made especially for the KX-TDA50 Hybrid IP-PBX system.
    • Is the KX-TDA5174 compatible with digital or proprietary phones
  • No, it is only meant to be used with analog single-line phones (SLTs).
    • Does the KX-TDA5174 support message waiting indicators on SLTs?
  • No, single-line telephones with 90-volt message waiting lamps are not supported.
    • How many KX-TDA5174 cards can be installed in a KX-TDA50 system?
  • Only one KX-TDA5174 card can be installed per system.
    • What type of wiring is required for the KX-TDA5174?
  • SLTs are connected to the card via standard telephone cable, which is usually two wires.
    • Can the KX-TDA5174 be used for connecting doorphones?
  • No, a separate card, like the KX-TDA5161, is needed for doorphone connections.
    • Is the KX-TDA5174 compatible with the KX-TDA100D system?
  • No, it is incompatible with the KX-TDA100D and was made for the KX-TDA50 system.
    • Does the KX-TDA5174 support Caller ID?
  • Yes, as long as the SLT devices connected support it, it does support Caller ID.
    • What is the maximum cable length for SLT connections?
  • For best results, a maximum cable length of 100 meters (328 feet) is advised.
    • Can the KX-TDA5174 be used for VoIP connections?
  • No, VoIP is not supported; it is made for analog SLT connections.
    • Does the KX-TDA5174 support fax machines?
  • Yes, as long as the fax machine is analogue line compatible, it can support fax machines linked via SLTs.
    • Can the KX-TDA5174 be used with cordless phones?
  • Yes, provided that it's an analog cordless phone that works with SLT connections.
    • Is the KX-TDA5174 hot-swappable?
  • No, in order to avoid harm, the card should only be put in or taken out when the computer is turned off.
    • Does the KX-TDA5174 require any special configuration?
  • To assign extensions and features, the KX-TDA50 system's maintenance console requires basic configuration.
    • Can the KX-TDA5174 be used for intercom purposes?
  • No, it does not support internal intercom capability; instead, it is made for external SLT connections.
    • Is the KX-TDA5174 compatible with all SLT brands?
  • The majority of common analog SLTs are compatible with it; nevertheless, compatibility with certain brands should be confirmed.
    • Does the KX-TDA5174 support voicemail integration?
  • It is possible to incorporate voicemail services, however the system needs to work with SLT connections.
    • What is the primary function of the KX-TDA5174?
  • The Panasonic KX-TDA50 Hybrid IP-PBX system can be connected to analog SLTs thanks to the KX-TDA5174, an 8-port Single Line Telephone (SLT) Extension Card.
