Panasonic KX-TDA5173 4-Port SLT Card (SLC4) | New
SKU: KX-TDA5173-N
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us
Same Day Shipping - Arrives in 3-5 Business Days 30-day Returns Overview

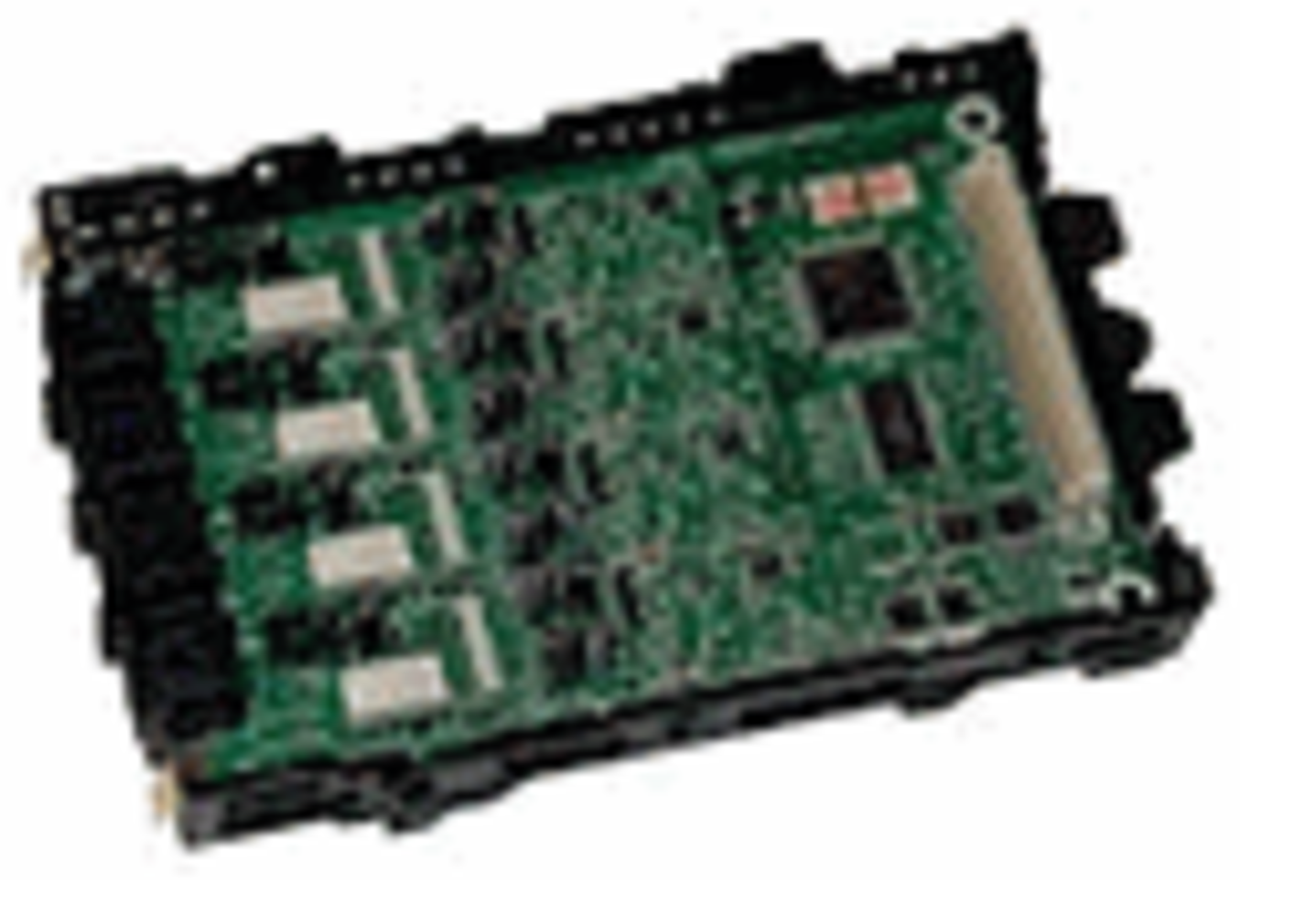

Panasonic KX TDA5173 4-Port Single Line Extension Card
Overview:
This card supports up to four single-line phones. You can use only one of these cards in a system. Does not support 90-volt message waiting lights
When integrated into the KX-TDA50 this card supports Single Line Telephones (SLT) Also equipped with 4 DTMF receivers. 1 card max per system. Will not support 90-vold message waiting on single line telephone sets.
- Hybrid IP 4-Port Single-Line Extension Card (SLC4)
- 4 Ports Per Card
- Can be Used with Only KX-TDA50 System
- One Card Per System
Specifications
Panasonic KX TDA5173 4-Port Single Line Extension Card
- Compatible with KX-TDA50G and KX-TDA50 Telephone Systems
- 4 ports per card for Single Line Devices such as Single Line Phones, Fax Machines, Postal Meter, Credit Card Terminals
- Compatible with KX-TDA5168 Caller ID Card so you will able to pass caller ID information to single line devices connected to this card
- Card requires 1 free slot
- Part Number: KX TDA5173
Frequently Asked Questions
Panasonic KX-TDA5173 4-Port SLT Card
Frequently Asked Questions (FAQ's)
What is the Panasonic KX-TDA5173? The KX-TDA5173 is a 4-port Single Line Telephone (SLT) interface card designed for Panasonic’s TDA/TDE/IP PBX systems, allowing connection of analog phones to the PBX.
How many ports does the KX-TDA5173 card support?
The KX-TDA5173 supports 4 SLT ports, allowing up to four analog telephones or devices to be connected.
What PBX systems is the KX-TDA5173 compatible with? It is compatible with Panasonic TDA, TDE, and IP PBX systems.
Is the KX-TDA5173 an analog or digital card? The KX-TDA5173 is an analog card that supports Single Line Telephones (SLTs).
Can the KX-TDA5173 be installed in all Panasonic PBX systems? It is designed for Panasonic TDA/TDE/IP PBX systems, so it may not be compatible with older or non-supported models.
How is the KX-TDA5173 card installed? The card is installed in the PBX system’s expansion slot, requiring proper handling and ensuring the system is powered off during installation.
Do I need to configure the card after installation? Yes, after installation, it needs to be configured using the PBX system’s programming software to assign the SLT ports correctly.
Can the KX-TDA5173 card be added to a running PBX system without shutting it down? Typically, it is recommended to power down the PBX system before adding new hardware components like the KX-TDA5173.
Can I install multiple KX-TDA5173 cards in one PBX system? Yes, you can install multiple KX-TDA5173 cards in a PBX system depending on the model’s expansion capabilities.
What type of cable do I need to connect phones to the KX-TDA5173? Standard analog telephone cables with RJ11 connectors are required to connect SLT devices to the ports.
How many SLT devices can be connected to each port? Each port supports one analog device, such as a single-line telephone.
Does the KX-TDA5173 support fax machines? Yes, SLT ports support fax machines, allowing you to connect them to the PBX.
Can the KX-TDA5173 card handle voicemail? The KX-TDA5173 card itself doesn’t handle voicemail but can be used in systems where voicemail is integrated via other cards or software.
Can I use cordless phones with the KX-TDA5173? Yes, any standard analog cordless phone can be used with the KX-TDA5173 card.
Is the KX-TDA5173 card compatible with Panasonic’s SIP phones? No, the KX-TDA5173 is only for analog SLT connections, not for SIP phones or digital phones.
What is the maximum number of devices that can be connected to a single PBX using the KX-TDA5173? The maximum number of devices depends on the total number of SLT ports supported by the PBX model, but typically, each KX-TDA5173 card supports up to four devices.
Does the KX-TDA5173 support Caller ID? Yes, it supports Caller ID functionality when connected to compatible SLT devices.
Can I use the KX-TDA5173 card in a system with both digital and analog devices? Yes, the KX-TDA5173 is specifically for analog devices, while digital devices would require other compatible cards, such as a digital extension card.
Is the KX-TDA5173 compatible with Panasonic KX-NT series IP phones? No, the KX-TDA5173 is an analog card, and IP phones like the KX-NT series require different network-based components.
What kind of support is available for the KX-TDA5173 card? Panasonic provides customer support through their website, user manuals, and technical assistance centers. It’s important to refer to the PBX system's manual for specific setup or troubleshooting.
