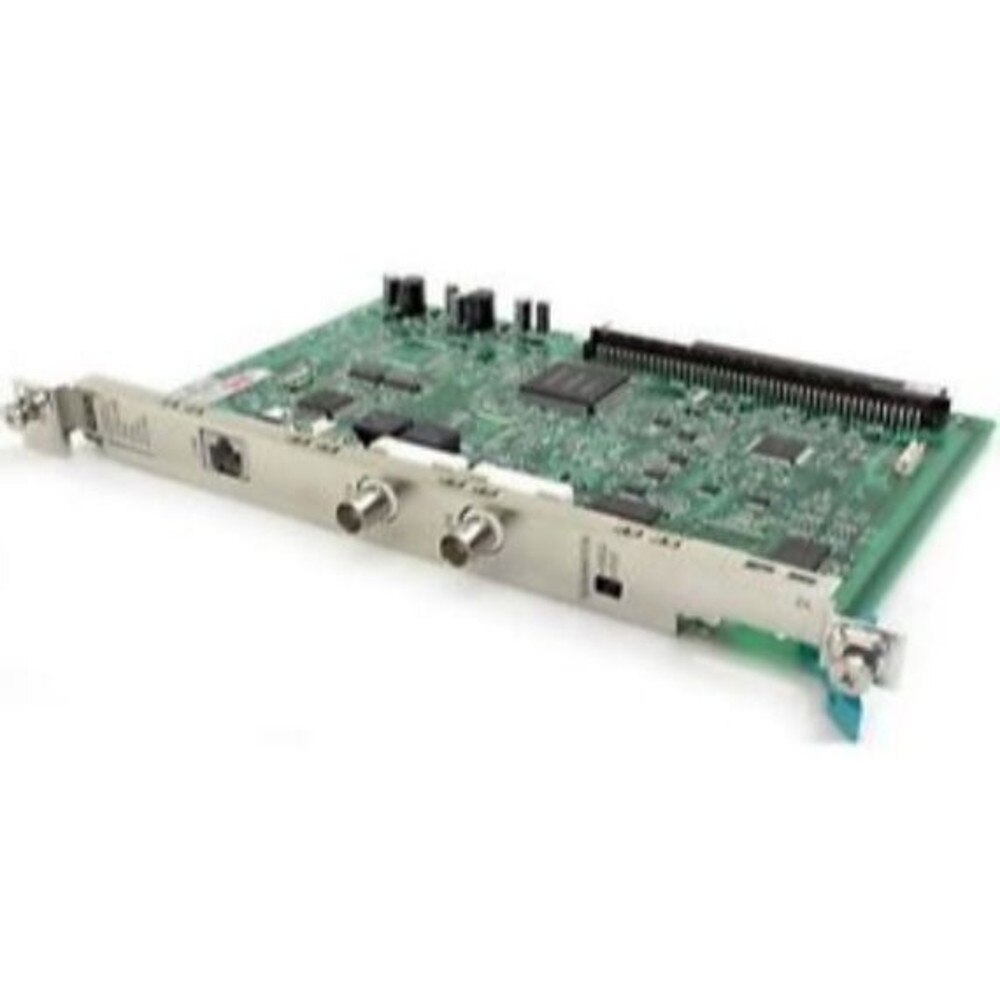

Panasonic KX-TDA0187 T1 Trunk Card | Like New

Panasonic KX-TDA0187 T1 Trunk Card | Like New

SKU: KX-TDA0187-LN
(0)No Reviews yet
Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns
$22.99 $22.99
Available Quantity:
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

Panasonic KX TDA0187 T1 Card

  • Compatible with Panasonic KX-TDA100, KX-TDA200, KX-TDA600, KX-TDE100, KX-TDE200, KX-TDE600 Phone Systems
  • This Panasonic T-1 Card supports 24 ports per card Channels assignable as LCO, GCO, DID, OPX, and TIE (EM)
  • External Channel Service Unit (CSU) required
  • Supports T-1 Circuits, speak to your service provider about circuit hand off
  • Card requires 1 free slot

Frequently Asked Questions

Panasonic KX-TDA0187 T1 Trunk Card
Frequently Asked Questions (FAQ's)



What is the Panasonic KX-TDA0187 T1 Trunk Card?
  • A Panasonic KX-TDA or KX-TDE PBX system can be connected to a T1 line using this 24-channel digital trunk card. ​
    • Which systems is the KX-TDA0187 compatible with?
  • Panasonic KX-TDA100/200/600 and KX-TDE100/200/600 systems are compatible with it.
    • How many channels does the KX-TDA0187 support?
  • It supports up to 24 channels.
    • Does the KX-TDA0187 support PRI (Primary Rate Interface)?
  • No, this particular card does not support PRI; it only supports T1. The KX-TDA0290 is commonly utilized for PRI.
    • Can the KX-TDA0187 be used for both voice and data?
  • It is not intended for data communication; it is exclusively for voice conversation.
    • What kind of connector does the T1 interface use?
  • It uses a standard RJ-48C connector for T1 connections.
    • Is echo cancellation supported on the KX-TDA0187?
  • No, the network or outside devices must manage echo cancellation.
    • Does this card support Caller ID?
  • System configuration and the network provider determine whether caller ID is supported.
    • Can multiple KX-TDA0187 cards be installed in one PBX?
  • Yes, depending on system capacity, multiple cards can be installed.
    • What is the maximum number of T1 channels supported per card?
  • 24 channels per card.
    • How do I install the KX-TDA0187 into the PBX?
  • It needs to be set up using the Maintenance Console and placed in an available slot within the PBX cabinet.
    • What programming is required after installation?
  • The PBX Maintenance Console is required for configuring call routing, channel assignment, and trunk settings.
    • What LED indicators are present on the card?
  • Statuses including faults, synchronization, and line activity are shown by LEDs.
    • Can the KX-TDA0187 be used with VoIP?
  • No, it is not made for VoIP; instead, it is made for T1 digital lines. For VoIP, need a VoIP gateway or specialized IP card.
    • What type of signaling is supported?
  • Depending on configuration, E&M, Loop Start, and Wink Start signaling are supported.
    • Can this card be hot-swapped?
  • No, before installing or removing the system, it must be turned off.
    • What is the difference between KX-TDA0187 and KX-TDA0290?
  • KX-TDA0290 supports PRI (ISDN Primary Rate Interface), but KX-TDA0187 is a T1 card (non-PRI).​
    • What is the typical use case for a T1 card in a PBX system?
  • In order to handle several external phone calls at once by connecting a corporate phone system to a T1 line.
    • Can the KX-TDA0187 card be used for inbound and outbound calls?
  • Yes, it is capable of routing calls through the T1 line both inbound and outward.
    • What is the difference between robbed-bit signaling and PRI signaling?
  • PRI provides more sophisticated capabilities like call control and caller ID, while robbed-bit is a less feature-rich, simpler signaling used with T1 lines.
