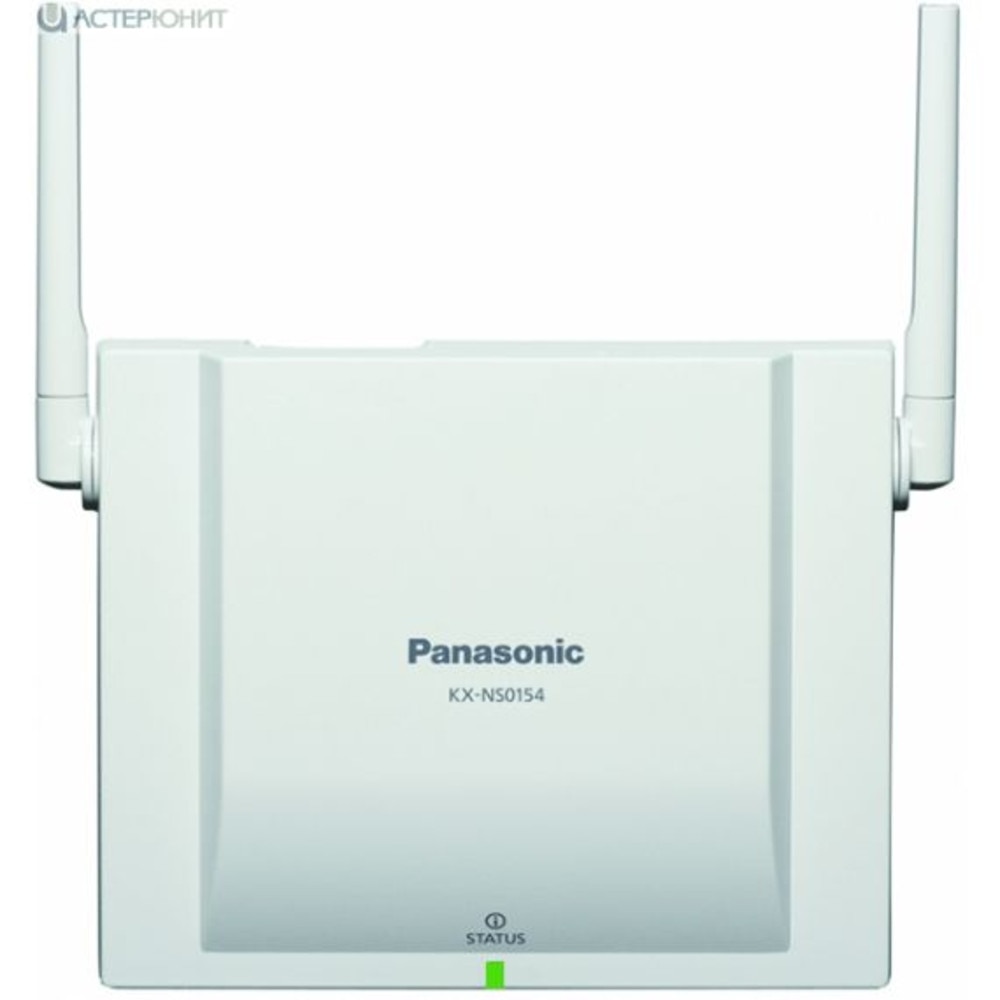

Panasonic KX-NS0154 DECT 4 Channel IP Cell Station Unit | New
SKU: KX-NS0154-N
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us
Same Day Shipping - Arrives in 3-5 Business Days 30-day Returns Overview
Overview of Panasonic KX-NS0154 DECT 4 Channel IP Cell Station Unit | New
IP-DECT base station KX-NS0154 supports a unique synchronization technology for local area networks (LAN-sync). This technology allows for the organization of sustainable radio reception over a large area to use an average of 2 times less than IP-DECT base stations compared with IP-DECT base stations of the previous generation KX-NCP0158, using radio channel synchronization technology.
Features
- Support 4 simultaneous conversations c expandable to 8, in the presence of an activation key
- Connects on IP (MGCP Protocol) at any distance from the IP-PBX
- The maximum number of base stations connected to the IP-PBX KX-NS500 is made – 32, to the IP-PBX KX-NS1000 – 64
- Range in open space up to 200m (indoors up to 50 meters)
- Compatible with IP-PBX Panasonic KX-NS500, KX-NS1000
- Support for Portable phones DECT KX-WT115, KX-TCA175, KX-TCA275, KX-TCA364, KX-TCA185, KX-TCA285, KX-TCA385
- Does not require additional licenses (activation keys) for integration with the PBX
- Connects to the PBX via IP-protocol (MGCP)
- Codec: G.711, G.726, G.729A
- PoE Power Source (Power over Ethernet)
- The AC adapter supplied is not included
Part Number: KX-NS0154
Specifications
Specifications for Panasonic KX-NS0154 DECT 4 Channel IP Cell Station Unit | New
| Manufacturer | Panasonic |
| Requires | KX-A239 adapter (not included), If not using PoE |
| Supports | LAN Synchronization for constructing wireless systems with lower costs using a small number of units |
| VoIP Audio Codecs | G.711, G.729A, G.726 |
| Works with | KX-NS700 and KX-NS1000 Systems |
| Designed for | KX-TCA and KX-WT and KX-TD Series only. |
| Color | White |
User Guides
Frequently Asked Questions
Panasonic KX-NS0154 DECT 4 Channel IP Cell Station Unit
Frequently Asked Questions (FAQ's)
What is the KX-NS0154? It is a 4-channel IP Cell Station for Panasonic IP-PBX systems with DECT wireless communication capabilities.
Which PBX systems is the KX-NS0154 compatible with? It works with KX-NS1000, KX-NS700, and KX-NS500 PBX systems that have certain software versions.
How many channels does the KX-NS0154 support? By default, it supports four channels, which can be expanded to eight using an activation key.
What is the coverage area of a single KX-NS0154 unit? The coverage area varies with the surroundings, but it normally runs from 100 to 200 meters outside and 30 to 50 meters inside.
How do I install the KX-NS0154? Mount it on a wall or ceiling, connect it to the network, and configure it via the PBX's web interface.
What is the power source for the KX-NS0154? It can be powered via PoE (Power over Ethernet) or an optional AC adapter.
How do I register the KX-NS0154 to the PBX? Register it using the PBX's web interface by inputting its MAC address and assigning an IP address.
Can I use multiple KX-NS0154 units to extend coverage? Yes, multiple units can be deployed to create a larger coverage area.
What types of handsets are compatible with the KX-NS0154? It is compatible with Panasonic DECT handsets, including the KX-TCA series.
How do I update the firmware on the KX-NS0154? Firmware updates can be performed through the PBX's web interface.
What is the maximum number of simultaneous calls per KX-NS0154? It can handle up to 4 simultaneous calls, or 8 with an activation key.
Does the KX-NS0154 support handover between cell stations? Yes, it provides seamless handover between cell stations, allowing for uninterrupted calls.
What security features does the KX-NS0154 offer? It supports DECT encryption for secure wireless communication.
Can the KX-NS0154 be used outdoors? While primarily designed for indoor use, it can be used outdoors with appropriate weatherproofing.
How do I troubleshoot connection issues with the KX-NS0154? Check network connectivity, verify PBX settings, and ensure proper registration to the PBX.
Can I use the KX-NS0154 with non-Panasonic PBX systems? No, it was created exclusively for usage with Panasonic IP-PBX systems.
How do I configure the IP settings on the KX-NS0154? IP settings are configured via the PBX's web interface or the DIP switches on the unit.
What is the maximum number of handsets that can be registered to a KX-NS0154? The capacity of the PBX system, rather than the particular cell station, determines the number of handsets available.
Does the KX-NS0154 support SIP trunking? SIP trunking is handled by the PBX to which the KX-NS0154 is connected, not by the device itself.
What is the maximum number of KX-NS0154 units that can be deployed in a single system? The maximum number is determined by the PBX model and system configuration, but many units can be used to provide extensive coverage.
