Panasonic KX-DT543-BX Digital Telephone with 3-Line Display Black | Like New

Panasonic KX-DT543-BX Digital Telephone with 3-Line Display Black | Like New

SKU: KX-DT543-BX-LN
(0)No Reviews yet

Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns

$92.99 $92.99
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

Panasonic BTS Panasonic KX-DT543-B

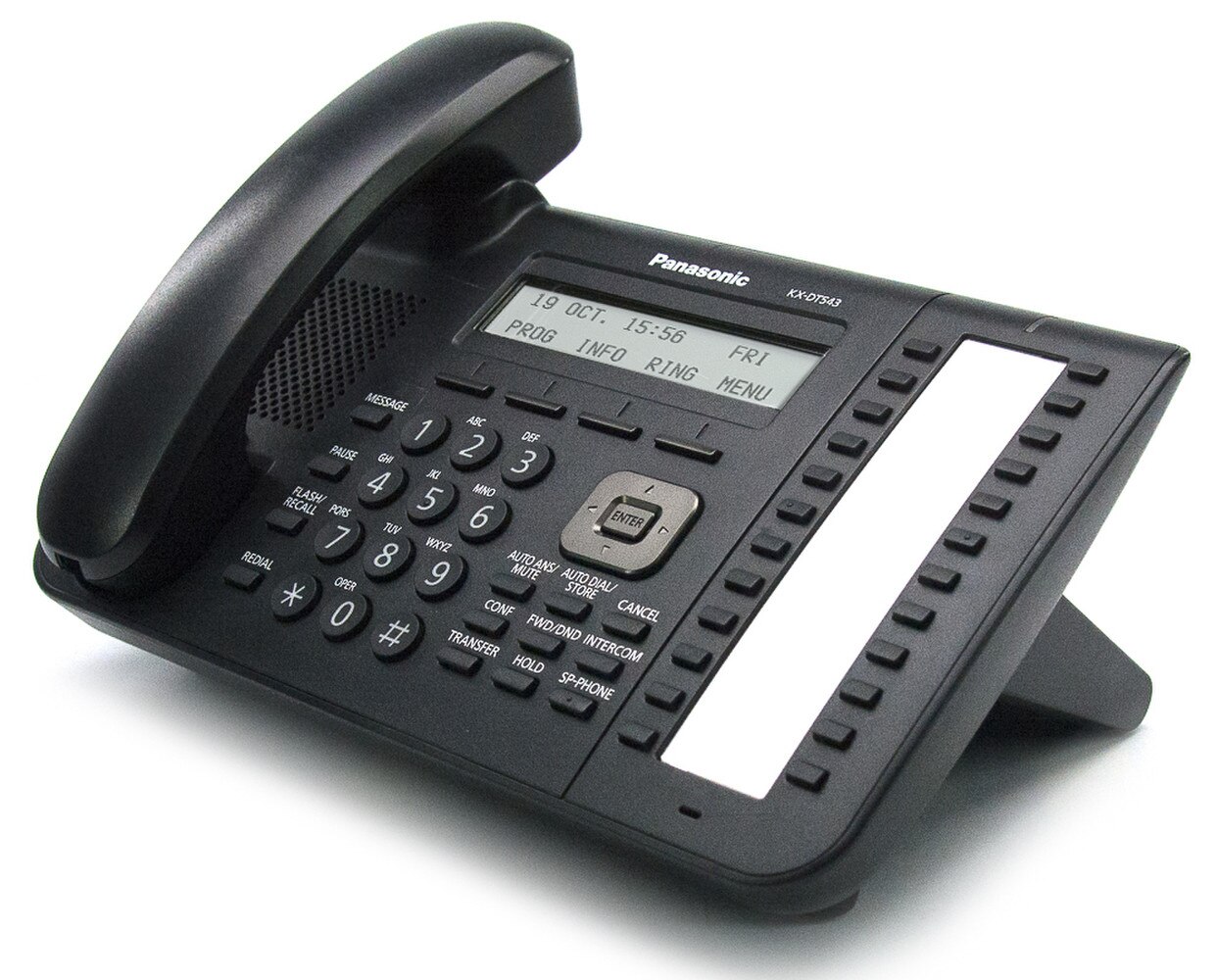

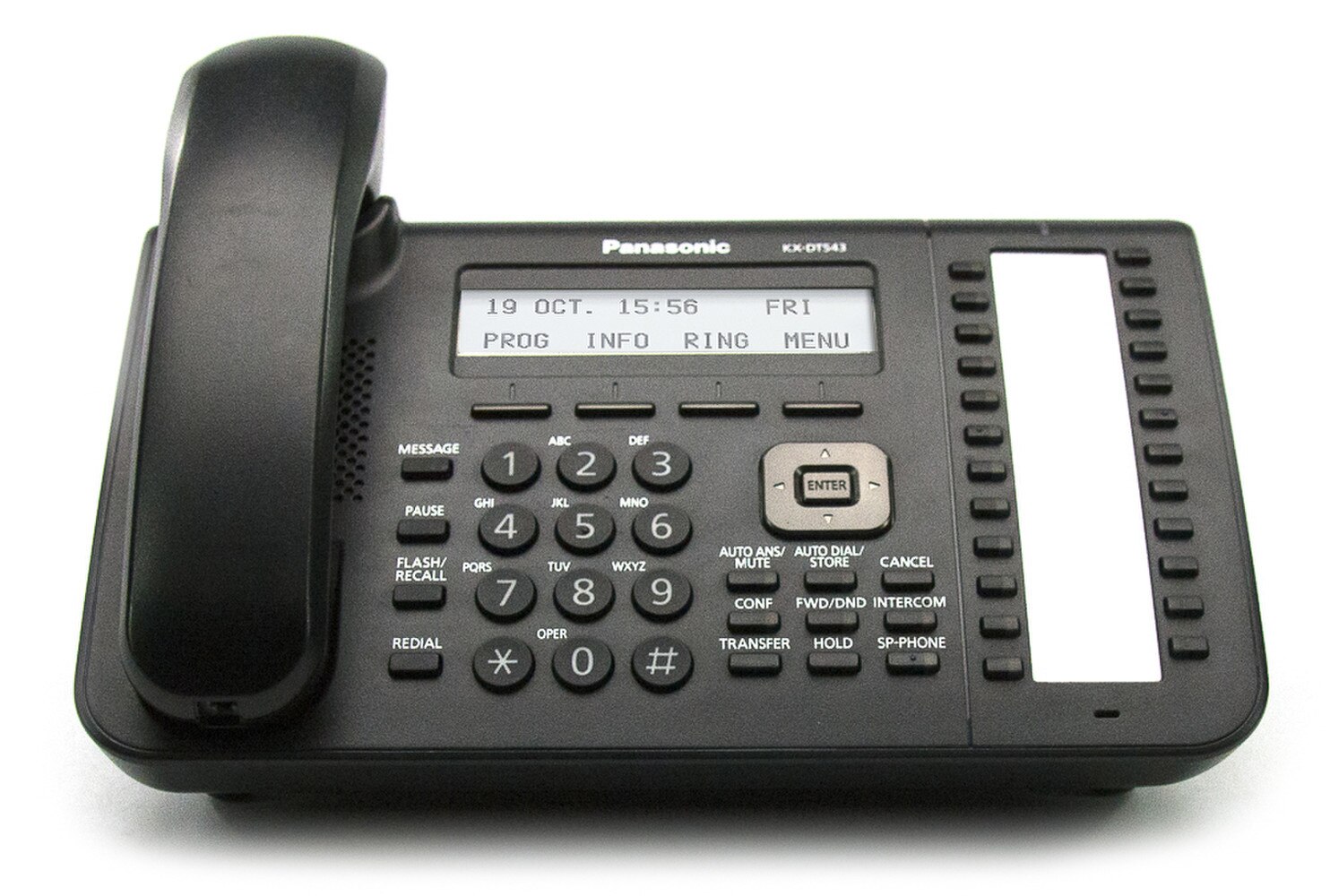

The Panasonic KX-DT543 is a corded digital telephone which is designed to work with Panasonic KX-DT590 48 key DSS console business telephone system. With its 3 line graphical LCD back-lit display the intuitive user interface offers fast access to phonebooks and features. Also, it has 6 levels of an adjustable handset, headset volume control.

This full duplex speakerphone ensures that the conversation flows in both the ways without clipping. It also features 24 convenient programmable line buttons, a built-in electronic hook switch, wideband compliant, auto redial and navigator key.

KX-DT543 Features:

  • Standard Digital Corded Phone

  • Hearing Aid Compatible

  • 3-Line Backlit LCD Display

  • Hands- Free Speakerphone

  • LED Status Indicator

  • Call Log

  • Up To 8-Way Conferencing

  • Call Forwarding

  • 6 Level Handset Volume Control

  • Wall Mountable/Mount Sold Separately

  • Intercom

  • Call Transfer

  • Auto Answer

  • 4 Context-Sensitive Softkeys

  • Auto Redial

  • Hold

  • Mute

  • Pause

  • Flash

  • Navigation Keys

  • Do Not Disturb

  • 2.5mm Headset Jack

  • Off-Hook Voice Announce

  • Auto Dial

  • 24 Programmable Line Buttons
  • Built-In Electronic Hook Switch
  • Full Duplex Speaker



Works With The Following Panasonic Systems:



KX-TDA 50KX-TDA 50GKX-TDA 100
KX-TDA 200KX-TDA 600KX-TDE 100
KX-TDE 200KX-TDE 600KX-NCP 500
KX-NCP 1000KX-NS 1000

Specifications

Panasonic KX-DT543 3-Line Digital Phone Specifications

LCD TypeGraphic
LCD Dots (W x H)242 x 55
LCD Line3
LCD Character24
LCD BacklightYes (On/Automatic/Off)

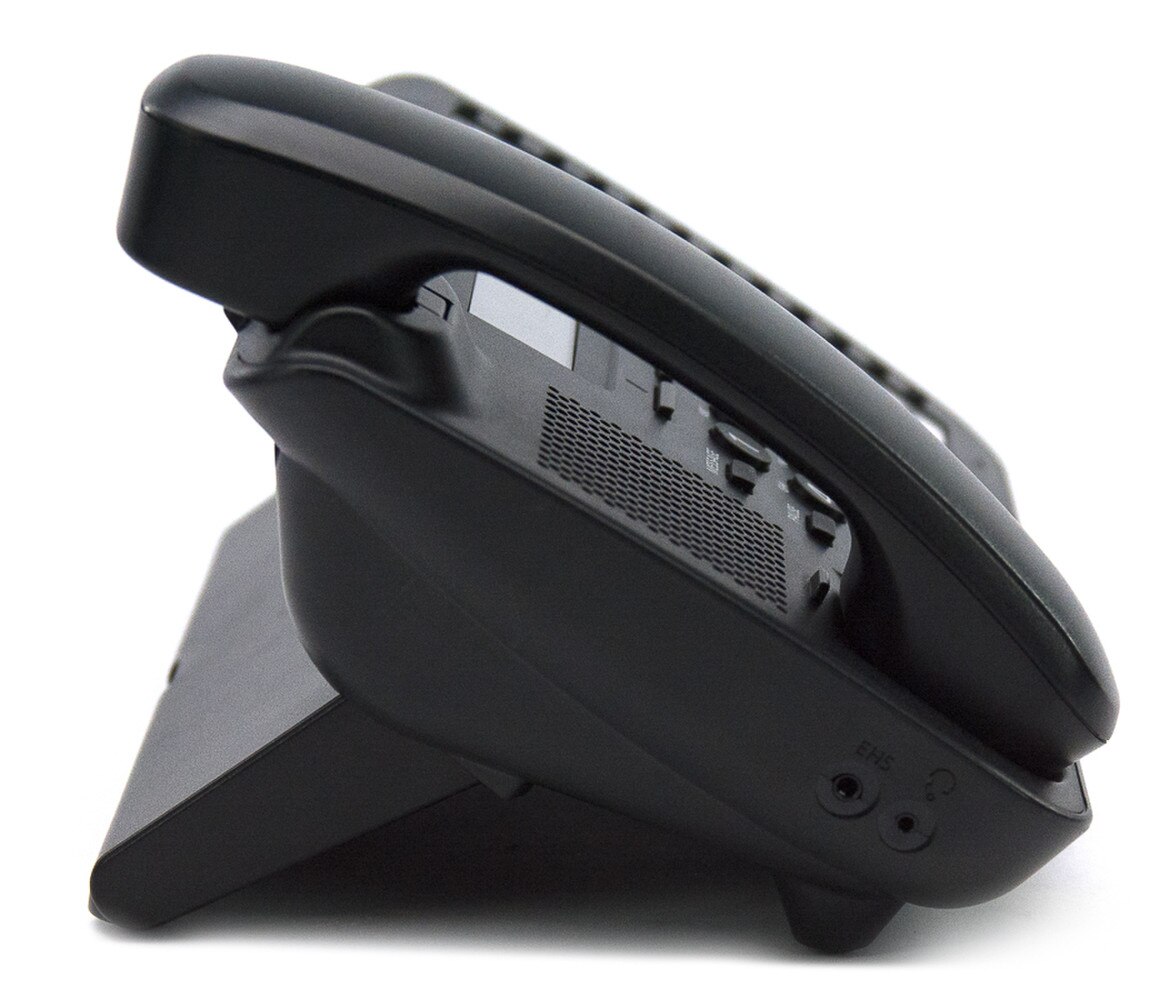

HeadsetYes (2.5 mm audio jack) Full Duplex
Electronics Hook Switch (EHS)Yes
SpeakerphoneYes (Full Duplex)

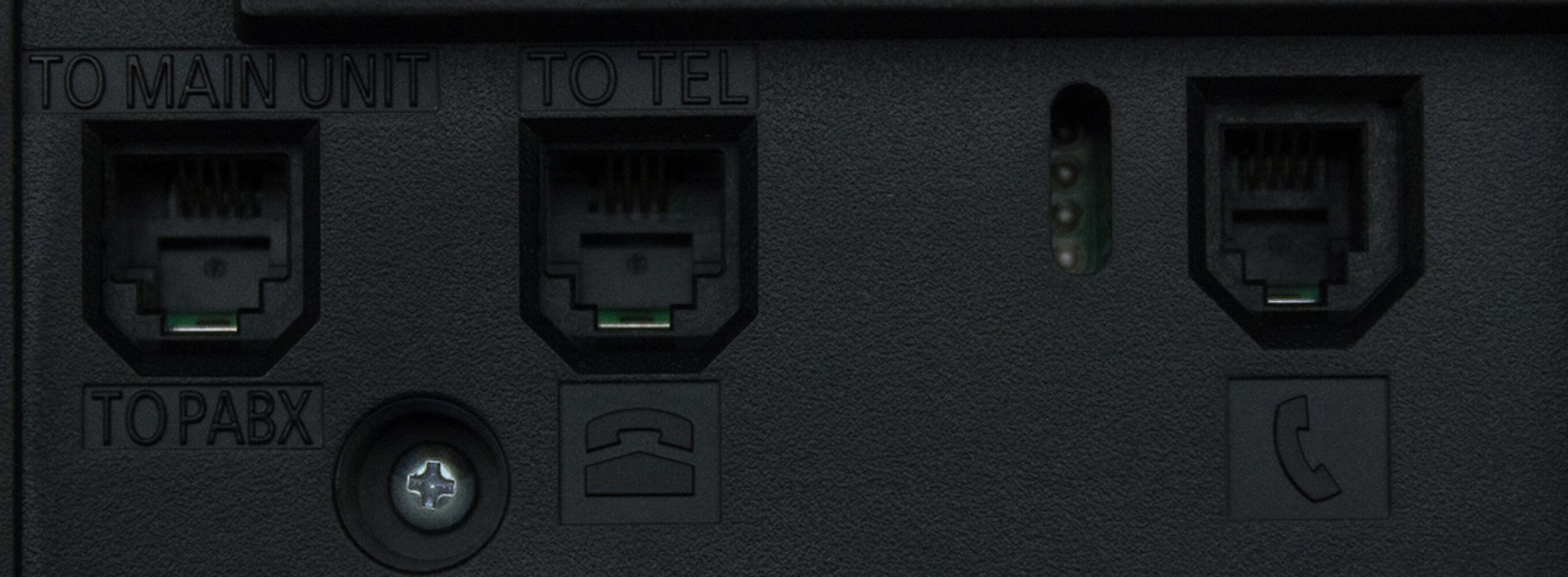

External Expansion1 XDP/DXDP port
Bluetooth (for Headset)No
DXDPYes
XDPYes
Data Transmission CapabilityPBX to DPT: Cable ƒÓ0.5 mm 500 m DPT to DPT: Cable ƒÓ0.5 mm 50 m
Wall Mount KitYes (Option)
Dimension (W x D x H mm)LOW: 267 x 187 x 155
FF Keys24
Soft Keys4
0-9, *, # KeysYes
Redial KeyYes
Flash/Recall KeyYes
Hold KeyYes
SP-Phone KeyYes
Auto Answer/Mute KeyYes
Auto Dial/Store KeyYes
Transfer KeyYes
Intercom KeyYes
Pause KeyYes
CONF KeyYes
FWD/DND KeyYes
Message KeyYes
Navigator KeyYes
4-Directions KeyNo
Cancel KeyYes
LED Message/Ringer LampYes (Green/Red)
LED FF KeysYes (Green/Red)
LED IntercomYes (Green)
LED SP-PhoneYes (Red)
LED Auto Answer/MuteYes (Red)
LED Auto Dial/StoreYes (Red)
LED CONFYes (Red)
LED FWD/DNDYes (Red)
Message/Ringing LampYes
OHCAYes
Bluetooth Headset AdapterNo
Auto RedialYes
Off-Hook MonitorYes
Handset/Headset Mic MuteYes
Speakerphone Mic MuteYes
Phone DirectoryYes
Feature AccessYes
Outgoing Call LogYes
Incoming Call LogYes
Audio CodecYes (G.711)
USB Unit I/FNo
System ProgrammingYes
Station ProgrammingYes*1
Electric Volume Headset6 levels
Electric Volume Handset6 levels
Electric Volume Speakerphone8 levels
Electric Volume Ringer4 + Off
LCD Contrast4 levels
Tones/Music Ring Tone10
Tones/Music on HoldNo (Tone)
Footnote*1 To operate by PROGRAM Key or PAUSE Key

User Guides

Frequently Asked Questions

Panasonic KX-DT543-BX Digital Telephone with 3-Line Display Black
Frequently Asked Questions (FAQ's)



What is the Panasonic KX-DT543-BX?
  • A digital proprietary phone with sophisticated voice and call handling functions that is intended for use with Panasonic PBX systems.
  • Is the KX-DT543-BX compatible with all Panasonic PBX systems?
  • No, only Panasonic digital PBX systems, including the KX-NS and KX-TDE series, are compatible with it.
  • Does the KX-DT543-BX support IP telephony?
  • No, it's not an IP phone; it's a digital phone. Models such as the KX-NT series are suitable for IP telephony.
  • How many programmable keys does the phone have?
  • It has 24 programmable feature keys with dual-color LEDs.
  • Can I use the phone without connecting it to a PBX system?
  • No, in order to work, it needs to be connected to a Panasonic PBX system that is compatible.
  • Does the KX-DT543-BX have a backlit display?
  • Yes, it features a 3-line backlit LCD display for better visibility.
  • Is the handset hearing aid compatible?
  • Yes, the handset is hearing aid compatible.
  • Can the phone be wall-mounted?
  • Yes, the phone supports wall mounting with an optional wall mount kit.
  • How do I adjust the volume on the KX-DT543-BX?
  • To change the ring, handset, or speaker volume when on the phone or when it is not in use, press the volume key.
  • Does it have speakerphone functionality?
  • Yes, it supports full-duplex speakerphone operation.
  • What type of display does the phone have?
  • It has a monochrome LCD with 3 lines of text and caller ID support.
  • Can I connect a headset to the KX-DT543-BX?
  • Yes, it includes a dedicated 2.5mm headset jack.
  • What is the difference between the KX-DT543 and KX-DT546?
  • The DT546 (with an optional DSS console) features 48 programmable keys, compared to the DT543's 24.
  • Does it support call forwarding?
  • Yes, call forwarding features are supported when set up through the PBX system.
  • Can I transfer calls using this phone?
  • Yes, call transfer using programmable or dedicated keys is supported.
  • Is voicemail supported?
  • Voicemail is available if configured through the PBX system.
  • What power source does the KX-DT543-BX use?
  • It is powered through the digital extension port of the PBX system (no separate power adapter required).
  • Does the KX-DT543-BX support Bluetooth?
  • No, it does not have built-in Bluetooth capability.
  • How can I reset the phone to factory settings?
  • Usually, the PBX system administrator must perform the reset; the handset does not include a factory reset button.
  • Can I update the firmware on the KX-DT543-BX?
  • Updates to the firmware are controlled by the linked PBX system rather than the phone itself.
