Panasonic KX-DT543-B 3-Line Display Digital Telephone (Black) | Like New
SKU: KX-DT543-B-LN
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us
Same Day Shipping - Arrives in 3-5 Business Days 30-day Returns Overview
Overview of Panasonic KX-DT543-B 3-Line Display Digital Telephone (Black) | Like New

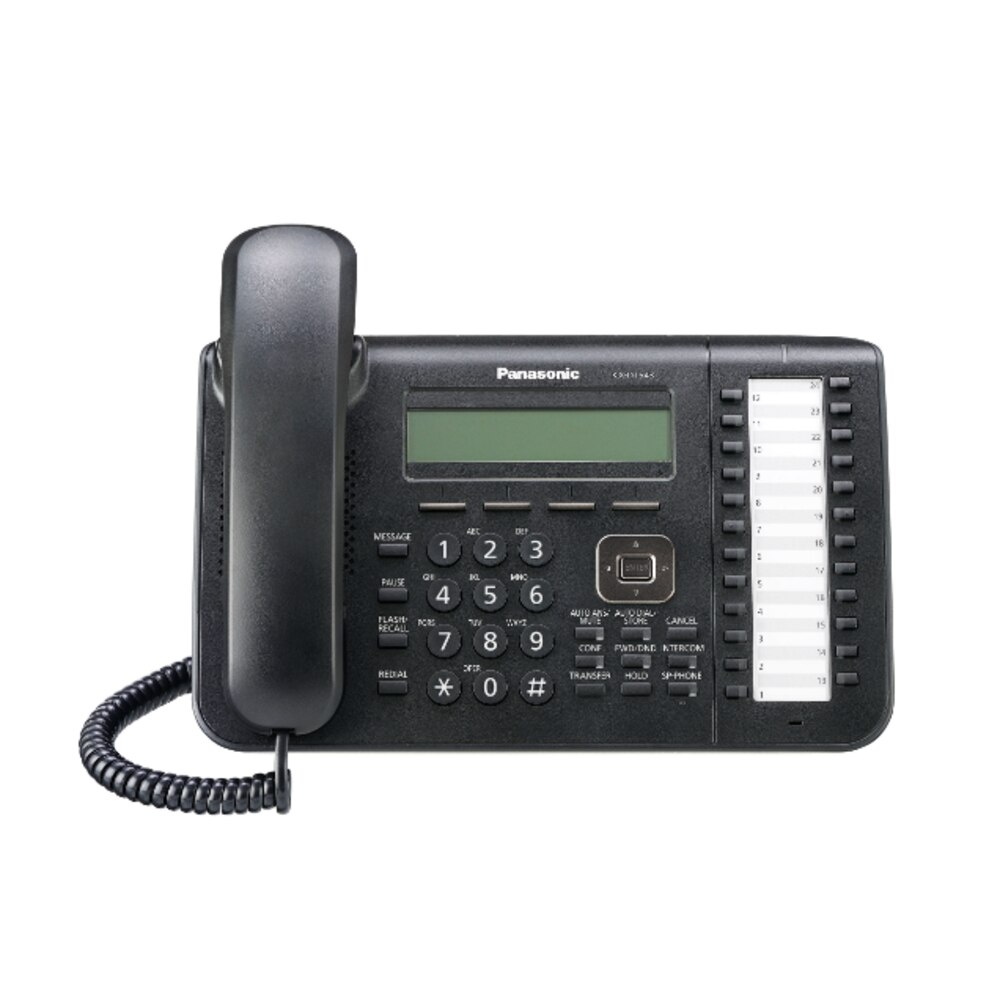

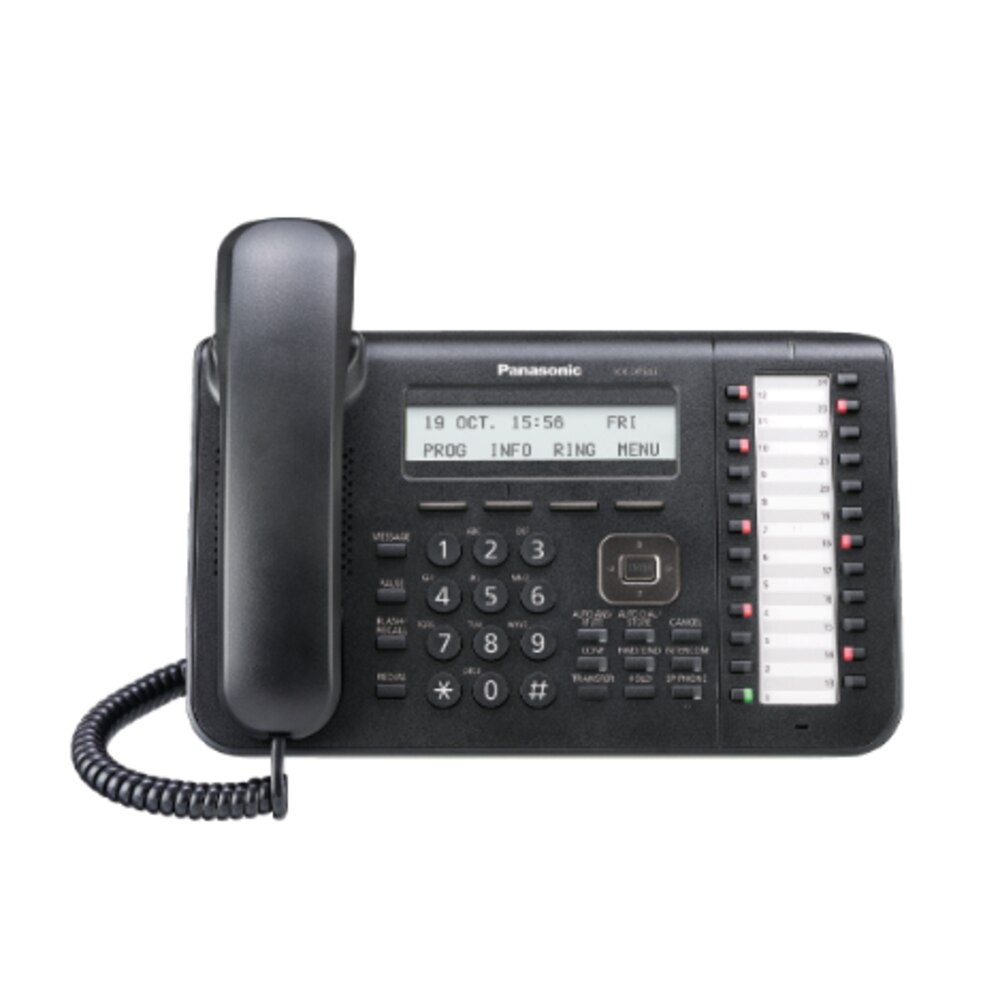

The Panasonic KX-DT543-B 3-Line Display Digital Telephone (Black) is a high-performance executive digital proprietary telephone designed for professional-level communication. It has a 3-line backlit display, 24 programmable keys, a full duplex speakerphone, and an EHS port for wireless headset connectivity. This sleek and modern phone provides excellent voice quality, simple navigation, and a slew of powerful features to boost productivity.
Key Features of Panasonic KX-DT543-B 3-Line Display Digital Telephone (Black)
• 3-line backlit LCD display
• 24 programmable function keys
• Full duplex speakerphone
• Electronic Hook Switch (EHS) for wireless headset support
• Available in black and white color options
• Easy navigation key
• Hearing aid compatible
• LED status indicator
• Call log functionality
• Speed dial capability
• Extra Device Port (XDP)
• Digital Extra Device Port (DXDP)
• Message Waiting LED
• Alphanumeric directory search
• Off-Hook Call Announcement
• 2.5mm wireless headset support jack
• Hold key for call management
• Intercom functionality for internal calls
• Compatibility with various Panasonic phone systems: KX-TDA, KX-TDE, KX-NCP, and KX-NS Series
Specifications
Specifications for Panasonic KX-DT543-B 3-Line Display Digital Telephone (Black) | Like New
| Manufacturer | Panasonic |
| Manufacturer Part Number | KX-DT543-B |
| Product Name | Panasonic KX-DT543-B Digital Telephone with 3-Line Display (Black) |
| Product Type | Digital Phone |
| LCD Type | Graphic |
| LCD Dots (W x H) | 242 x 55 |
| LCD Line | 3 |
| LCD Character | 24 |
| LCD Backlight | Yes (On/Automatic/Off) |
| Headset | Yes (2.5 mm audio jack) Full Duplex |
| Electronics Hook Switch (EHS) | Yes |
| Speakerphone | Yes (Full Duplex) |
| External expansion | 1 XDP/DXDP port |
| Bluetooth (for headset) | No |
| DXDP | Yes |
| XDP | Yes |
| Data Transmission Capability | PBX to DPT: Cable Ó0.5 mm 500 m DPT to DPT: Cable Ó0.5 mm 50 m |
| Wall mount kit | Yes (Option) |
| Dimension (W x D x H mm) | LOW: 267 x 187 x 155 |
| FF Keys | 24 |
| Soft Keys | 4 |
| 0-9, *, # Keys | Yes |
| REDIAL Key | Yes |
| FLASH/RECALL Key | Yes |
| HOLD Key | Yes |
| SP-PHONE Key | Yes |
| AUTO ANSWER/MUTE Key | Yes |
| AUTO DIAL/STORE Key | Yes |
| TRANSFER Key | Yes |
| INTERCOM Key | Yes |
| PAUSE Key | Yes |
| CONF Key | Yes |
| FWD/DND Key | Yes |
| MESSAGE Key | Yes |
| Navigator key | Yes |
| 4-Directions Key | No |
| CANCEL Key | Yes |
| LED Message/Ringer Lamp | Yes (Green/Red) |
| LED FF Keys | Yes (Green/Red) |
| LED INTERCOM | Yes (Green) |
| LED SP-PHONE | Yes (Red) |
| LED AUTO ANSWER/MUTE | Yes (Red) |
| LED AUTO DIAL/STORE | Yes (Red) |
| LED CONF | Yes (Red) |
| LED FWD/DND | Yes (Red) |
| MESSAGE/Ringing Lamp | Yes |
| OHCA | Yes |
| Bluetooth Headset adapter | No |
| Auto Redial | Yes |
| Off-Hook Monitor | Yes |
| Handset/Headset Mic Mute | Yes |
| Speakerphone Mic Mute | Yes |
| Phone Directory | Yes |
| Feature Access | Yes |
| Outgoing Call Log | Yes |
| Incoming Call Log | Yes |
| Audio Codec | Yes (G.711) |
| USB unit I/F | No |
| System Programming | Yes |
| Station Programming | Yes*1 |
| Electric Volume Headset | 6 levels |
| Electric Volume Handset | 6 levels |
| Electric Volume Speakerphone | 8 levels |
| Electric Volume Ringer | 4 + Off |
| LCD Contrast | 4 levels |
| Tones/Music Ring tone | 10 |
| Tones/Music on Hold | No (Tone) |
| Footnote | *1 To operate by PROGRAM Key or PAUSE Key |
User Guides
Panasonic KX-DT543-B 3-Line Display Digital Telephone Brochure
Panasonic KX-DT543-B 3-Line Display Digital Telephone Products Limited Warranty
Panasonic KX-DT543-B 3-Line Display Digital Telephone Quick Reference Guide
Panasonic KX-DT543-B 3-Line Display Digital Telephone Specification Sheet
Panasonic KX-DT543-B 3-Line Display Digital Telephone System Checklist
Frequently Asked Questions
Panasonic KX-DT543-B 3-Line Display Digital Telephone (Black)
Frequently Asked Questions (FAQ's)
What features does the Panasonic KX-DT543-B offer? The Panasonic KX-DT543-B offers a 3-line LCD display, 24 programmable keys, hands-free speakerphone, headset support, and a sleek ergonomic design.
Is the Panasonic KX-DT543-B compatible with VoIP systems? No, the Panasonic KX-DT543-B is a digital phone designed for use with Panasonic PBX systems, not VoIP.
How many programmable buttons are available on the Panasonic KX-DT543-B? The Panasonic KX-DT543-B has 24 programmable function keys that can be customized for quick access to features like speed dial or extensions.
Can the Panasonic KX-DT543-B be used as a hands-free phone? Yes, the phone has a hands-free speakerphone feature, allowing for hands-free conversations.
Does the Panasonic KX-DT543-B support headset connectivity? Yes, it supports headset connectivity through the integrated headset port, making it ideal for office environments.
What type of display does the Panasonic KX-DT543-B have? The Panasonic KX-DT543-B is equipped with a 3-line backlit LCD display, providing easy access to caller information and menu navigation.
Is the Panasonic KX-DT543-B compatible with the Panasonic KX-NS700 system? Yes, the Panasonic KX-DT543-B is fully compatible with the Panasonic KX-NS700 Hybrid PBX system.
How do I set up speed dial on the Panasonic KX-DT543-B? You can assign speed dial numbers to the 24 programmable buttons through the phone's menu settings for easy one-touch dialing.
Does the Panasonic KX-DT543-B have a built-in voicemail function? The phone itself doesn’t have voicemail, but it can access voicemail features when connected to a compatible Panasonic PBX system with voicemail capabilities.
What is the power source for the Panasonic KX-DT543-B? The Panasonic KX-DT543-B is powered via the phone system’s connection (digital extension port), so no separate power adapter is needed.
Can I adjust the display contrast on the Panasonic KX-DT543-B? Yes, the contrast of the 3-line LCD display can be adjusted to your preference via the phone's settings menu.
Is the Panasonic KX-DT543-B wall mountable? Yes, the phone is wall-mountable, making it a flexible option for various office setups.
How do I transfer a call on the Panasonic KX-DT543-B? To transfer a call, press the "Transfer" button, dial the extension number, and either hang up or wait for the recipient to answer.
What kind of phone system is required for the Panasonic KX-DT543-B? The Panasonic KX-DT543-B is designed to work with Panasonic digital PBX systems like the KX-NS, KX-NCP, and KX-TDA series.
Does the Panasonic KX-DT543-B support caller ID? Yes, the Panasonic KX-DT543-B supports caller ID when connected to a PBX system that provides this feature.
Can I mute a call on the Panasonic KX-DT543-B? Yes, the phone has a dedicated mute button that allows you to mute the microphone during a call.
How do I adjust the ringer volume on the Panasonic KX-DT543-B? You can adjust the ringer volume using the volume control buttons on the phone’s side panel.
Is the Panasonic KX-DT543-B compatible with Panasonic DECT wireless systems? No, the Panasonic KX-DT543-B is a wired digital desk phone and is not compatible with DECT wireless systems.
How do I check missed calls on the Panasonic KX-DT543-B? Missed calls can be viewed on the 3-line LCD display by navigating through the call log feature available on the phone.
Can the Panasonic KX-DT543-B be used in a multi-line environment? Yes, it is designed to work in multi-line environments, providing easy access to multiple phone lines via the programmable keys.
