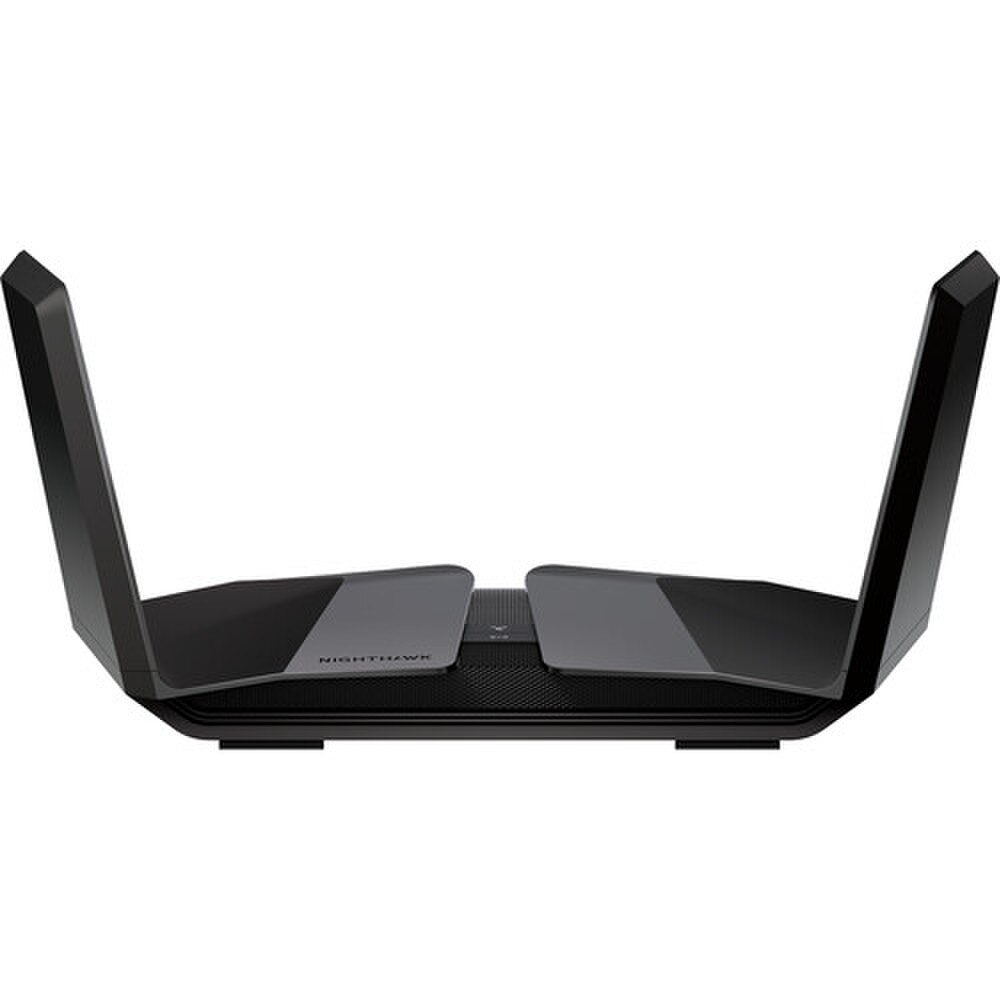

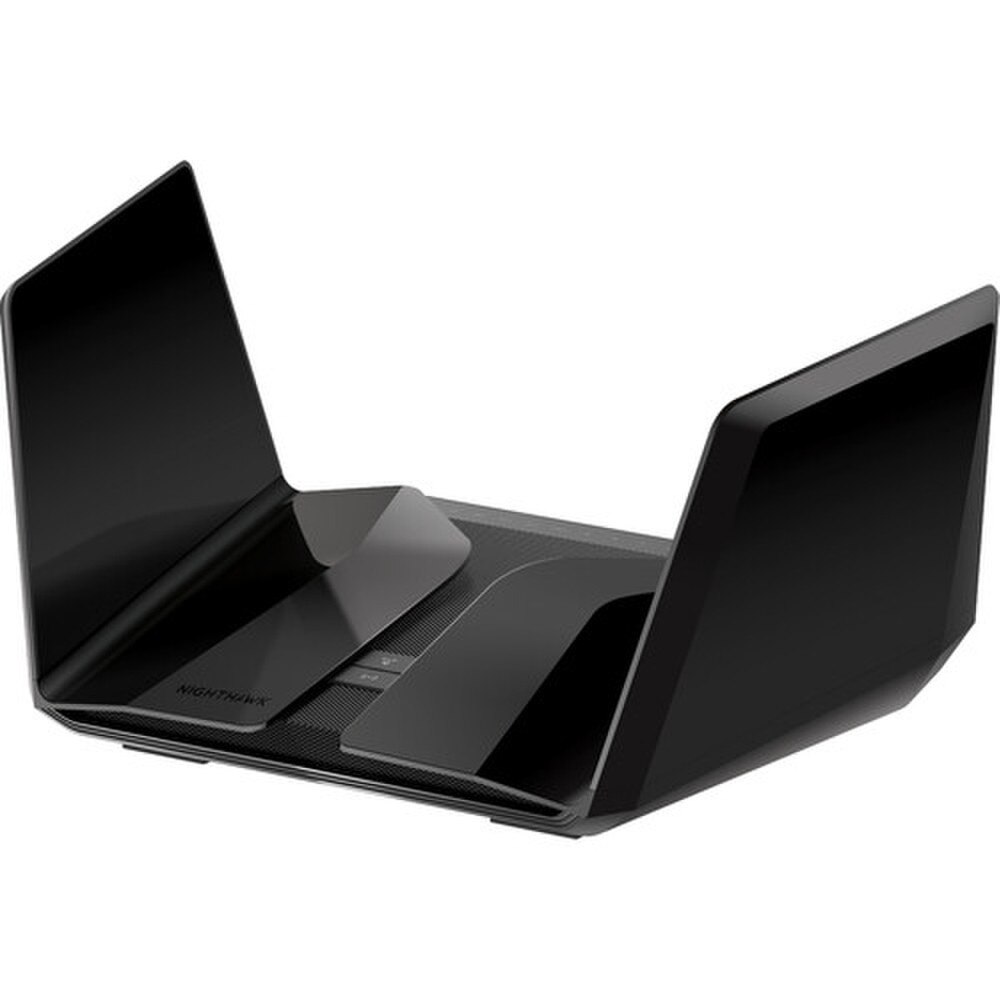

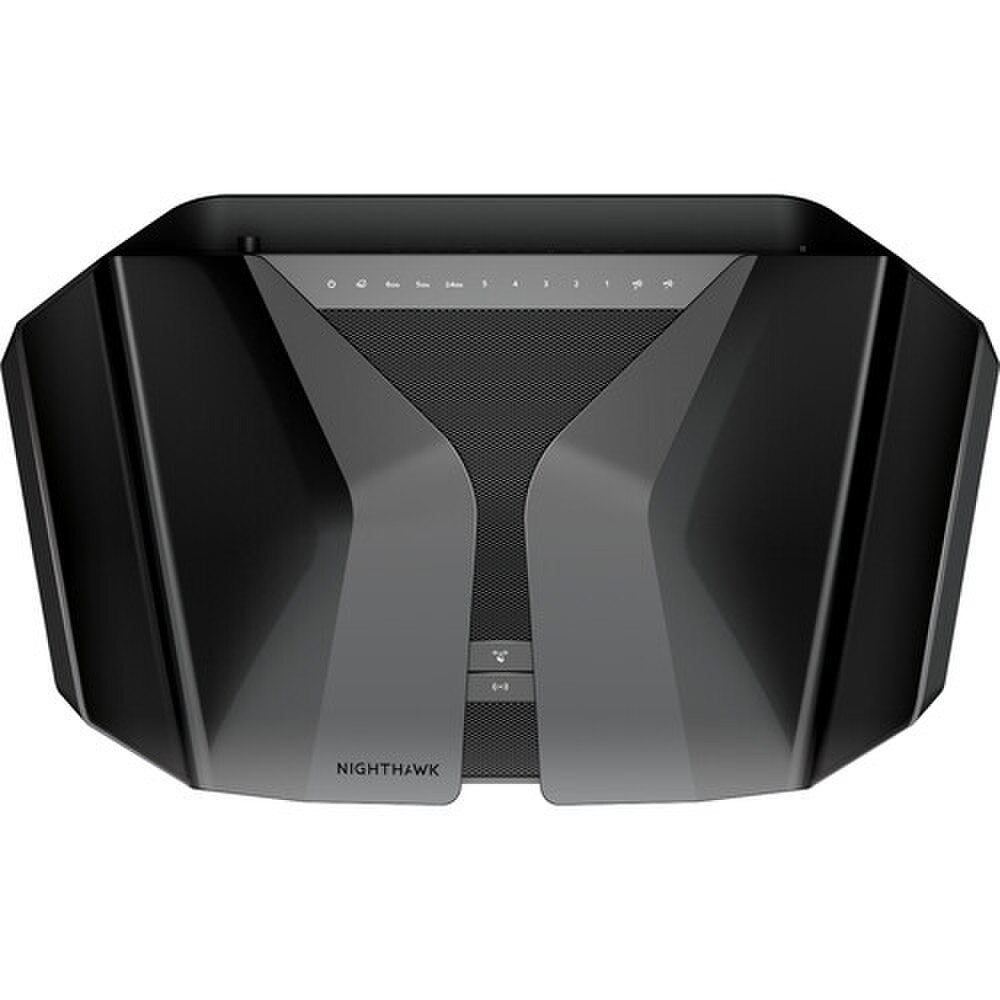

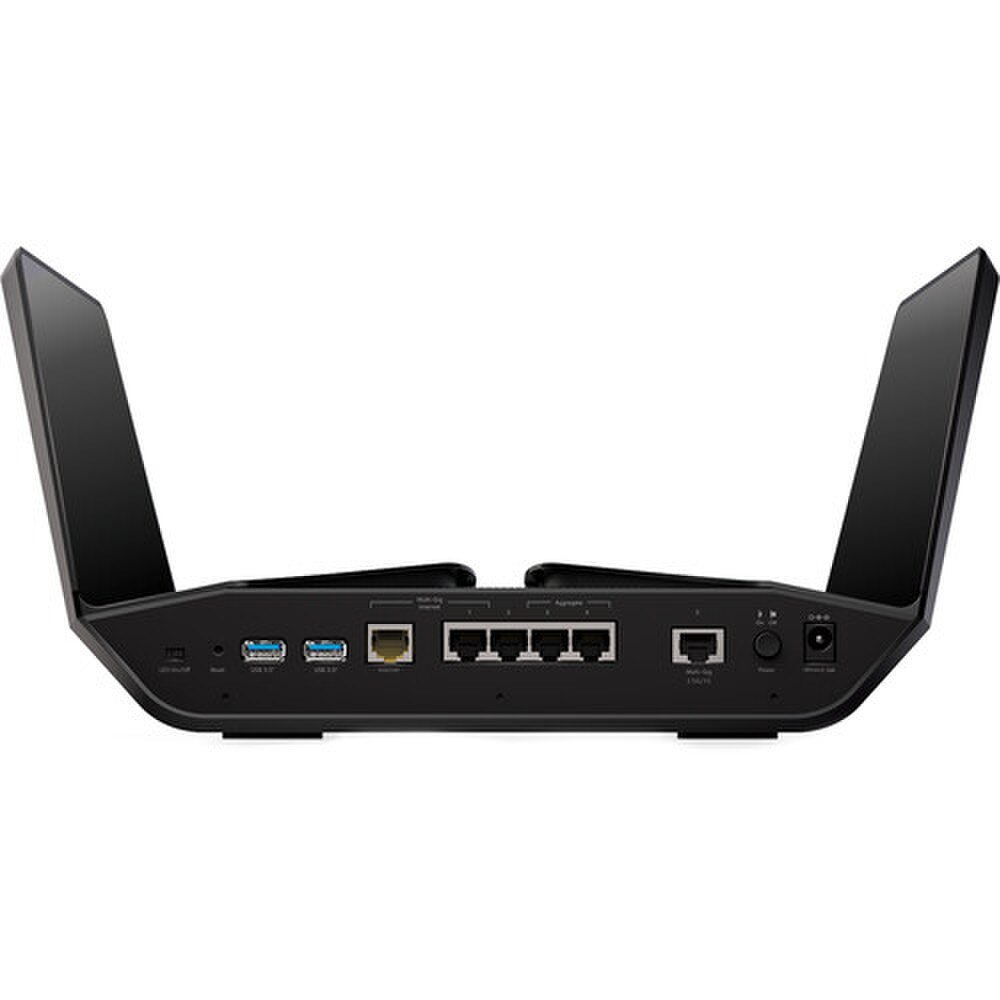

Netgear RAXE500 Nighthawk AXE11000 Wireless Tri-Band Gigabit Router (RAXE500-100NAS) | New
SKU: RAXE500-100NAS-N
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us
Same Day Shipping - Arrives in 3-5 Business Days 30-day Returns Overview
Overview of Netgear RAXE500 Nighthawk AXE11000 Wireless Tri-Band Gigabit Router (RAXE500-100NAS) | New
The Netgear RAXE500 Nighthawk AXE11000 Wireless Tri-Band Gigabit Router (RAXE500-100NAS) is an advanced tri-band Wi-Fi 6E router intended for high-performance home networking. This powerful router utilizes the most recent Wi-Fi 6E technology, providing lightning-fast speeds over three bands: 2.4GHz, 5GHz, and the new 6GHz spectrum. With a combined throughput of up to 10.8 Gbps, the RAXE500 is ideal for bandwidth-intensive tasks such as 4K/8K streaming, virtual reality gaming, and smart home automation. Its unusual wing-shaped design includes eight high-performance antennae, and a quad-core 1.8GHz processor assures seamless operation even during peak network loads.
Key Features of Netgear RAXE500 Nighthawk AXE11000 Wireless Tri-Band Gigabit Router
• Tri-band Wi-Fi 6E technology (AXE11000) for maximum speed and coverage
• 12-stream connectivity with speeds up to 10.8Gbps (1.2Gbps + 4.8Gbps + 4.8Gbps)
• Powerful 1.8GHz quad-core processor for seamless performance
• 8 high-performance antennas for enhanced signal strength
• Multi-Gig 2.5Gbps Ethernet port for faster wired connections
• 4 Gigabit Ethernet LAN ports for wired devices
• 2 USB 3.0 ports for network storage and file sharing
• Advanced security features including WPA3 encryption
• NETGEAR Armor cybersecurity protection
• Beamforming+ and MU-MIMO technologies for improved connectivity
• 1GB RAM and 512MB flash storage for responsive operation
• Compatible with Amazon Alexa and Google Assistant
• Easy setup and management through Nighthawk app
• Supports link aggregation for faster internet speeds
• Sleek and modern design with foldable antennas
Specifications
Specifications for Netgear RAXE500 Nighthawk AXE11000 Wireless Tri-Band Gigabit Router (RAXE500-100NAS) | New
| Manufacturer | Netgear |
| Manufacturer Part Number | RAXE500-100NAS |
| Product Name | Netgear RAXE500 Nighthawk AXE11000 Wireless Tri-Band Gigabit Router |
| Product Type | Router |
| Networking / Type | Wireless router |
| Networking / Wireless Protocol | 802.11a/b/g/n/ac/ax |
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year warranty |
| System Requirements / OS Required | Apple MacOS Linux Microsoft Windows 2000/XP/Vista/7/8/10 UNIX |
| Antenna | Internal |
| Antenna Qty | 8 |
| Depth | 21.1 cm |
| Height | 7.8 cm |
| Weight | 1.45 kg |
| Width | 29.8 cm |
| Interfaces | LAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45 LAN: 1 x 1G/2.5G Multi-Gig Ethernet - RJ-45 WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 USB 3.0: 2 x 9 pin USB Type A |
| Capacity | Streams: 12 |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, Wi-Fi CERTIFIED 6 |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, 802.11ax |
| Data Transfer Rate | 10.8 Gbps |
| Device Type | Wireless router - 4-port switch (integrated) |
| Enclosure Type | Desktop |
| Encryption Algorithm | 128-bit AES, WPA3 |
| Features | VPN support, firmware upgradable, Beamforming+, MU-MIMO technology, Tri-Band, Dynamic Frequency Selection (DFS), LED on/off button, guest access, Circle Smart Parental Controls, Orthogonal Frequency Division Multiple Access (OFDMA), NETGEAR Armor, 4K UHD video streaming |
| Flash Memory | 512 MB |
| Frequency Band | 2.4 GHz / 5 GHz / 6 GHz |
| Performance | Maximum data rate (2.4 GHz): 1.2 Gbps Maximum data rate (5 GHz): 4.8 Gbps Maximum data rate (6 GHz): 4.8 Gbps |
| Processor | 1.8 GHz |
| RAM | 1 GB DDR3 SDRAM |
| Wi-Fi Rating | AXE11000 |
| Intelligent Assistant | Google Assistant, Alexa |
| Line Coding Format | 256 QAM, 1024 QAM, OFDMA |
| Service & Support | Limited warranty - 1 year Limited warranty - technical support - 90 days |
| Power Device | External power adapter |
| OS Required | UNIX, Apple MacOS, Linux, Microsoft Windows 2000/XP/Vista/7/8/10 |
User Guides
Frequently Asked Questions
Netgear RAXE500 Nighthawk AXE11000 Wireless Tri-Band Gigabit Router (RAXE500-100NAS)
Frequently Asked Questions (FAQ's)
What is the maximum Wi-Fi speed of the RAXE500?
How many devices can the RAXE500 support simultaneously?
What is the coverage area of the RAXE500?
Does the RAXE500 support Wi-Fi 6E?
How many Ethernet ports does the RAXE500 have?
Does the RAXE500 have USB ports?
What security features does the RAXE500 offer?
Can I set up a guest network with the RAXE500?
Does the RAXE500 support VPN?
What is the processor speed of the RAXE500?
How much RAM and storage does the RAXE500 have?
Can I control the RAXE500 with voice commands?
Does the RAXE500 support MU-MIMO?
Can I manage the router remotely?
Does the RAXE500 support OFDMA?
Can I use the RAXE500 as a mesh system?
Does the RAXE500 support port aggregation?
Can I prioritize devices or applications on the RAXE500?
Does the RAXE500 have parental controls?
Can I set up a guest network on the RAXE500?
