Molex Connector System PCIe X8 Server Cable (74546-0840) | Like New
SKU: 74546-0840-LN
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us
Same Day Shipping - Arrives in 3-5 Business Days 30-day Returns Overview
The Molex Connector System PCIe X8 Server Cable is a high-speed external cable designed for server and data communication applications.
- Connector Type:It features PCIe x8 connectors on both ends (x8 to x8).
These are designed for high-bandwidth data transfer. - Application: Primarily used to connect servers, storage devices, and other peripherals that utilize the PCI Express interface for rapid data exchange.
- Data Rate:The cable is engineered to support high data transfer rates, often specified around 10 Gbps, aligning with PCIe Gen2 speeds.
- Length:The standard length for this specific part number is 0.5 meters (approximately 1.64 feet).
- Wire Gauge:It typically uses 28 AWG (American Wire Gauge) conductors.
- Ejectors: The connectors often include ejectors or latches for secure and easy cable removal, especially important in dense server environments.
- Impedance: Designed with controlled impedance to ensure signal integrity and minimize signal loss at high speeds.
- Construction: The cable is constructed with shielded materials to reduce electromagnetic interference (EMI) and radio frequency interference (RFI), ensuring reliable data transmission.
- Durability: Molex is a reputable connector manufacturer known for producing durable and reliable connectivity solutions suitable for demanding server environments.
- Compatibility: While designed to meet PCIe x8 specifications, it's crucial to ensure compatibility with the specific devices you intend to connect.
- Series: This cable belongs to Molex's iPass™ or similar high-speed I/O cable assembly series.
- Locking Mechanism:Some versions, as indicated in search results, may include screw-in locks (like those used in Juniper systems) for an even more secure connection in high-vibration environments.
Specifications
Specification:
- Cable MOLEX 74546-0840 PCIe x8-x8
- MOLEX 74546-0840 PCIe x8-x8 0.5 Meter 28AWG Ejectors 10GB External Cable
- Length: 0.5 Meters

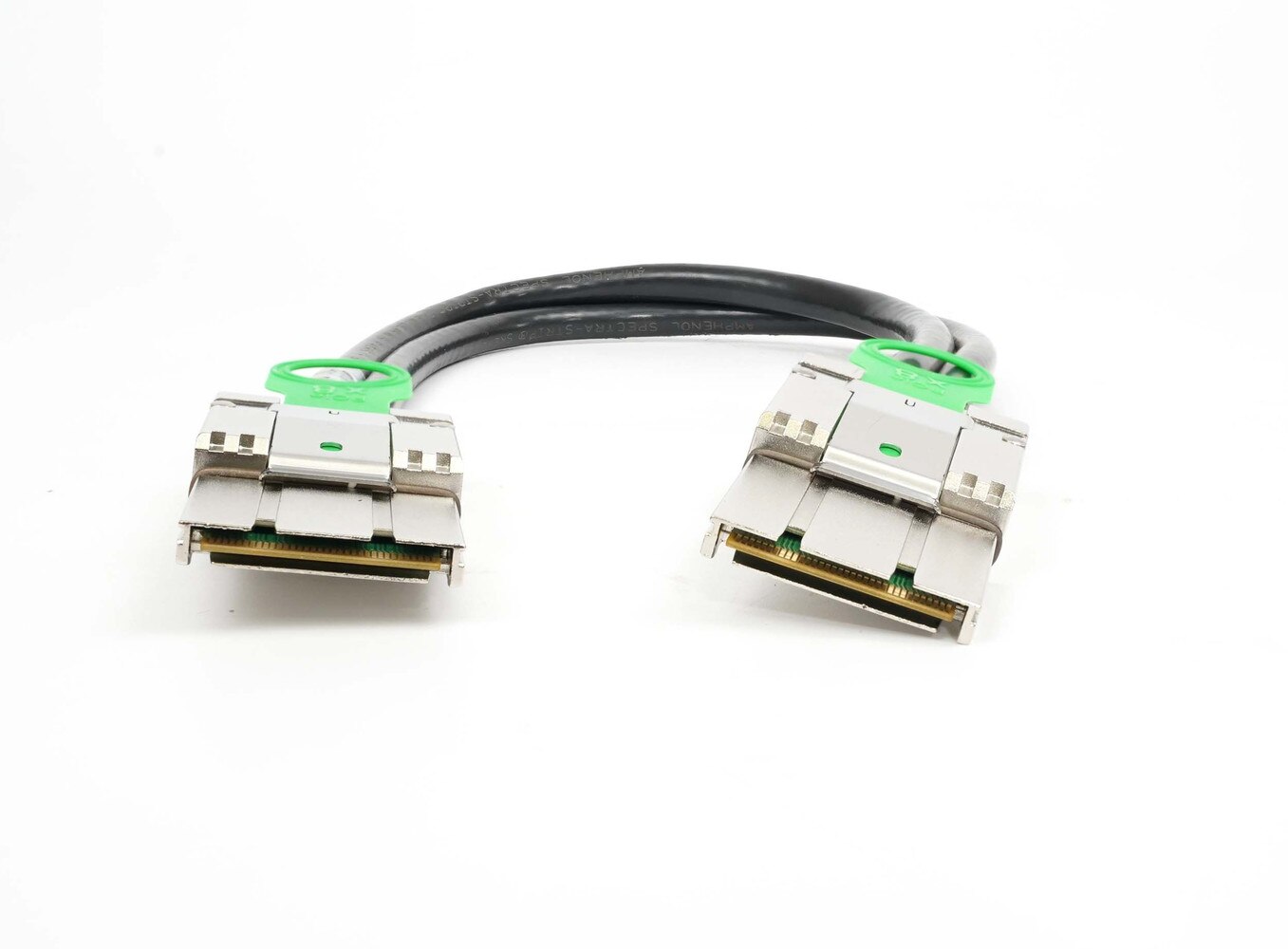

- Connectors as shown.
Frequently Asked Questions
Molex Connector System PCIe X8 Server Cable (74546-0840) Frequently Asked Questions (FAQ's)
What is the Molex 74546-0840 cable used for?
What connectors are on this cable?
What is the length of the 74546-0840 cable? The standard length is 0.5 meters (approximately 1.64 feet). It utilizes 28 AWG (American Wire Gauge) conductors. The cable supports up to 10Gbps data transfer rates. Yes, it's often used with Juniper systems, including switch stacking and server interconnects. While the cable itself can handle hot-swapping, ensure that the connected devices also support this feature. The Molex part number is 74546-0840 Yes, Molex offers various lengths in the 74546 series to suit different requirements. It's commonly used for high-speed data connections between servers, storage devices, and networking equipment. Yes, Molex cables typically comply with RoHS standards, but it's advisable to verify with the specific product documentation. It's primarily designed for external connections; using it internally may not be optimal due to its design and shielding. The cable features shielding to protect against electromagnetic interference, ensuring signal integrity. Molex cables often come with industry-standard certifications; refer to the product datasheet for specific details. Yes, PCIe standards are generally backward compatible, but performance will align with the lowest version in use. Typically, Molex cables operate within a standard temperature range suitable for most data center environments; consult the datasheet for exact figures. Molex may offer custom cable lengths upon request; contact their sales team for more information. The bend radius depends on the cable's construction; refer to the manufacturer's specifications for precise information. While the cable is robust, for high-vibration settings, ensure proper securing and consult Molex for suitability. It's available through various online retailers and distributors; ensure you purchase from authorized sellers to guarantee authenticity.
What is the wire gauge of this cable?
What is the maximum data transfer rate supported?
Is this cable compatible with Juniper equipment?
Does the cable support hot-swapping?
What is the part number for this cable?
Are there other lengths available for this cable?
What is the typical application for this cable?
Is this cable RoHS compliant?
Can this cable be used for internal connections?
What is the cable's shielding type?
Does the cable come with any certifications?
Is this cable backward compatible with lower PCIe versions?
What is the operating temperature range?
Are custom lengths available?
What is the bend radius of the cable?
Can this cable be used in high-vibration environments?
Where can I purchase the Molex 74546-0840 cable?
