MikroTik 48-Port Cloud Router Switch (CRS354-48P-4S+2Q+RM) | New

MikroTik 48-Port Cloud Router Switch (CRS354-48P-4S+2Q+RM) | New

SKU: CRS354-48P-4S+2Q+RM-N
(0)No Reviews yet

Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns

$863.99 $863.99
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

Overview of MikroTik 48-Port Cloud Router Switch (CRS354-48P-4S+2Q+RM) | New

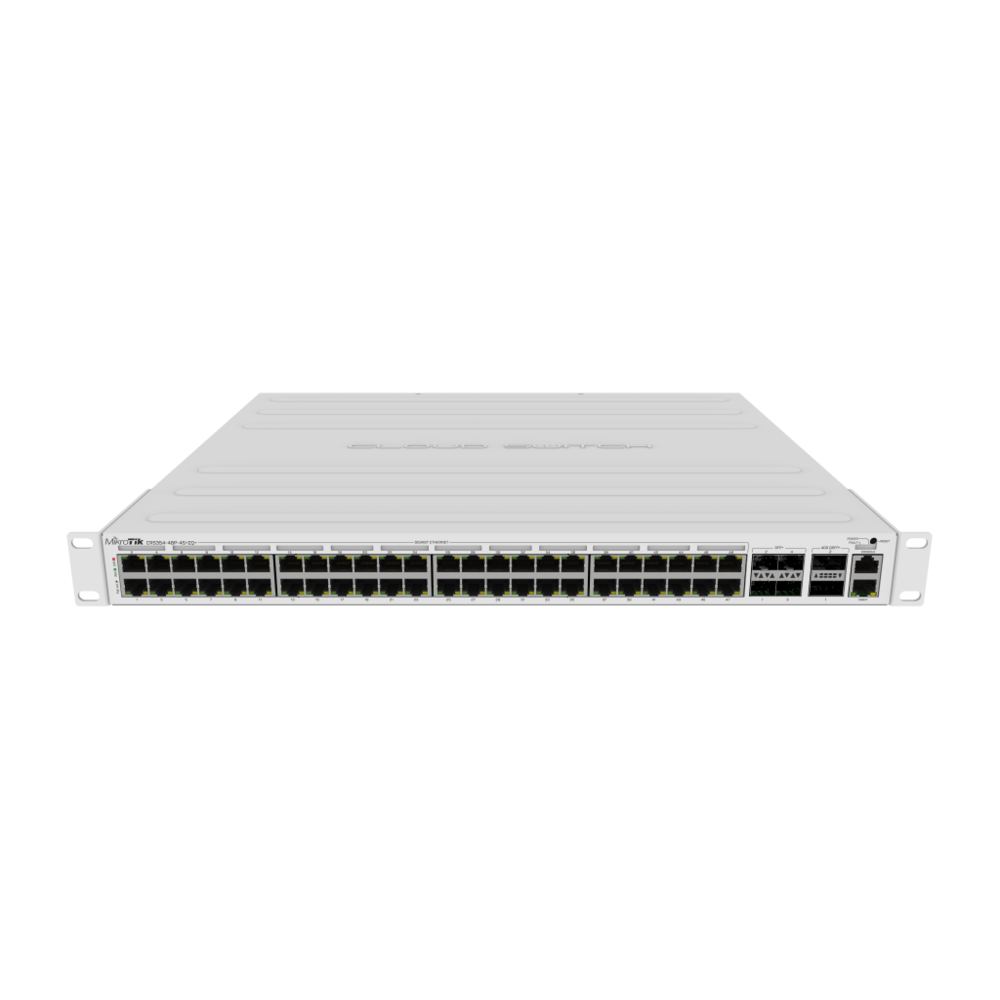

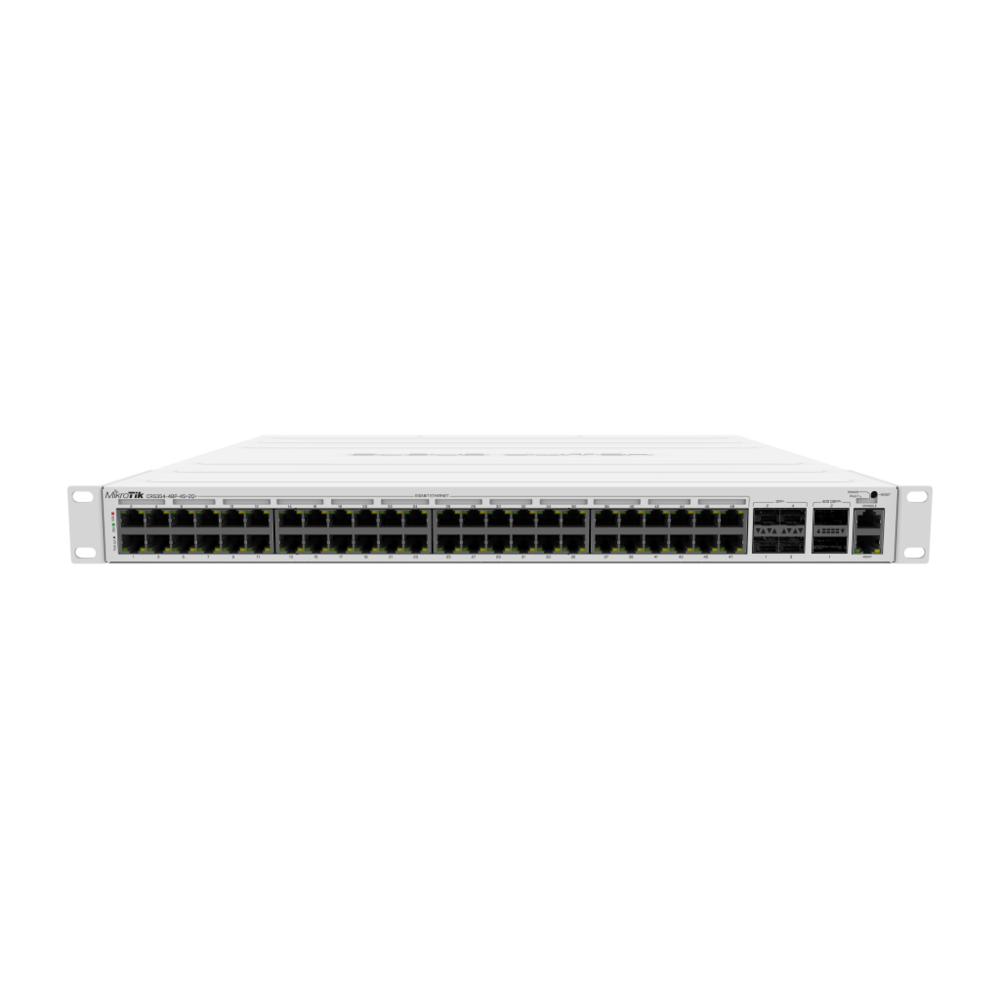

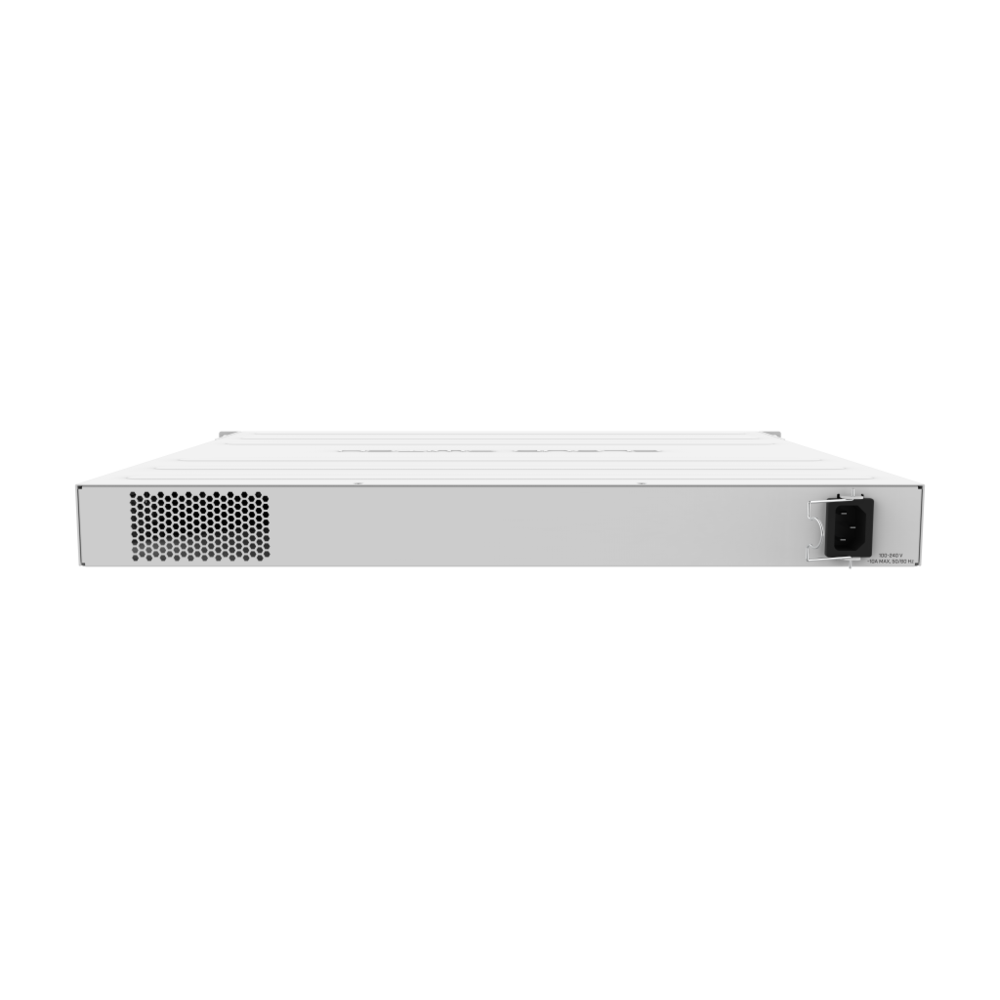

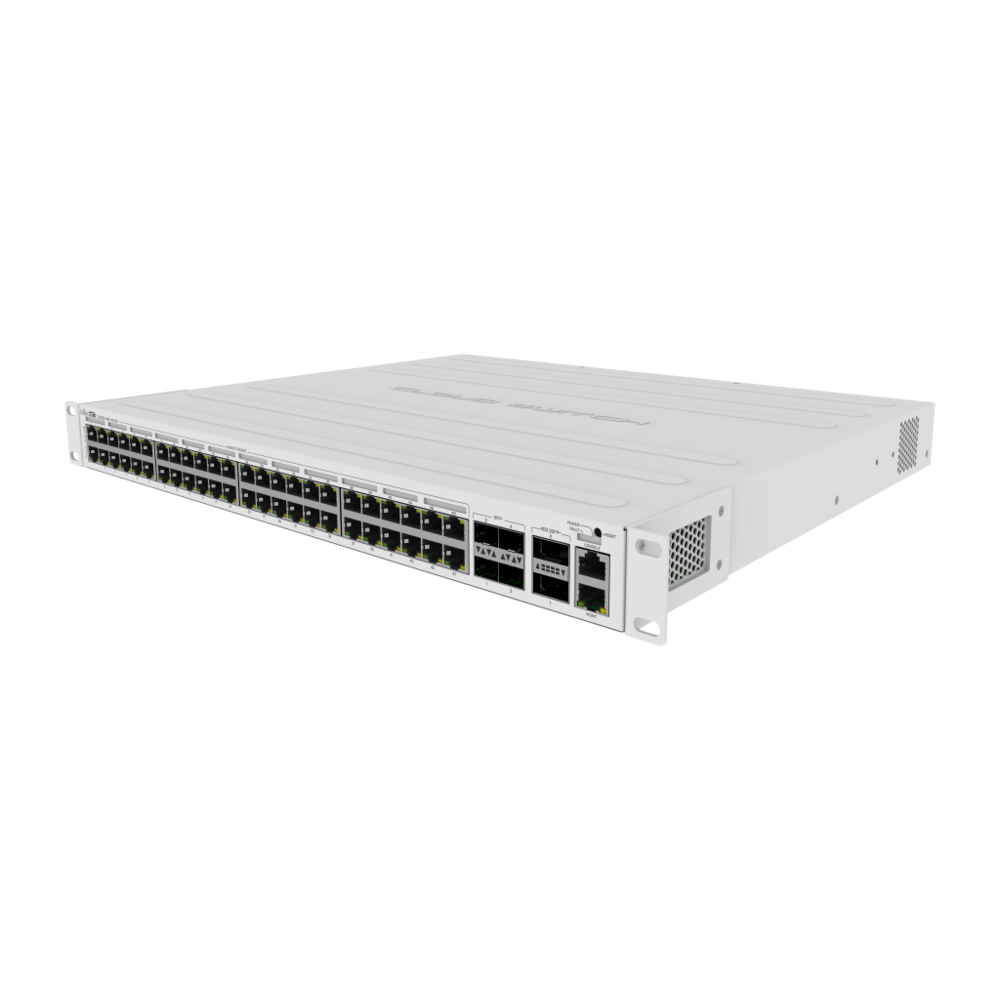

The MikroTik 48-Port Cloud Router Switch (CRS354-48P-4S+2Q+RM) is a powerful cloud router switch designed to meet the demands of modern networks. With its robust features and flexible management options, this switch is ideal for enterprises, data centers, and service providers looking to enhance their network infrastructure. The CRS354-48P-4S+2Q+RM boasts 48 Gigabit Ethernet ports and 4 x 10G SFP+ ports, providing ample connectivity for various devices. Additionally, it features 2 x 40G QSFP+ ports for ultra-fast fiber connections, making it perfect for linking with other high-speed devices. Each of the 48 Ethernet ports supports multiple power output options, including Passive PoE, low voltage PoE, and 802.3af/at (PoE+), with auto-sensing capabilities to power devices efficiently. With a total non-blocking throughput of 168 Gbps and a switching capacity of 336 Gbps, the CRS354-48P ensures smooth data transmission even under heavy loads. The forwarding rate reaches an impressive 235 Mpps, making it suitable for high-performance applications.

Designed with user-friendliness in mind, this switch features a rack-mountable design and includes a powerful 750W power supply, ensuring reliable operation across all connected devices. The device also comes with a special bracket for easy cable management, enhancing organization in server rooms or data centers. The MikroTik CRS354 series is built on a robust architecture that supports advanced networking features, making it adaptable to various environments. Whether you need to manage complex network setups or simply require a reliable switch for everyday use, the CRS354-48P-4S+2Q+RM is an excellent choice. The MikroTik CRS354-48P-4S+2Q+RM is an exceptional networking solution that combines performance, flexibility, and ease of use, making it an ideal choice for any organization looking to enhance their network capabilities.


Key Features of MikroTik 48-Port Cloud Router Switch


• 48 Gigabit ethernet ports supports various PoE standards for powering devices directly from the switch.

• 4 x 10G SFP+ ports provides high-speed uplink options for seamless connectivity.

• 2 x 40G QSFP+ ports for ultra-fast fiber connections or linking with other 40 Gbps devices.

• Non-blocking throughput of 168 Gbps and switching capacity of 336 Gbps.

• Includes a robust 750W power supply to handle multiple connected devices.

• Rack-mountable design fits easily into standard server racks, optimizing space usage.

• User-Friendly management designed with system administrators in mind for easy setup and configuration.

Specifications

Specifications for MikroTik 48-Port Cloud Router Switch (CRS354-48P-4S+2Q+RM) | New

ManufacturerMikrotik
Manufacturer Part NumberCRS354-48P-4S+2Q+RM
Product NameMikroTik 48-Port Cloud Router Switch
Product TypeSwitch
ArchitectureMIPSBE
CPUQCA9531
CPU core count1
CPU nominal frequency650 MHz
Switch chip model98DX3257
Dimensions443 x 382 x 44 mm
RouterOS license5
Operating SystemRouterOS v7 / SwitchOS
Size of RAM64 MB
Storage size16 MB
Storage typeFLASH
MTBFApproximately 200'000 hours at 25C
Tested ambient temperature-20°C to 60°C
Suggested price999
Number of AC inputs1
AC input range100-240
Max power consumption800 W
Max power consumption without attachments85 W
Cooling type4 fans
PoE-out portsEther1-Ether48
PoE out802.3af/at
Max out per port output (input 18-30 V)1000 mA
Max out per port output (input 30-57 V)570 mA
Total output current27A at 26V OR 13.2A at 53V
Total output power700W
10/100 Ethernet ports1
10/100/1000 Ethernet ports48
SFP+ ports4
Number of 40G QSFP+ ports2
Serial console portRJ45
CPU temperature monitorYes
Current MonitorYes
PCB temperature monitorYes
Voltage MonitorYes
CertificationCE, EAC, ROHS
IPIP20

User Guides

Frequently Asked Questions

MikroTik 48-Port Cloud Router Switch (CRS354-48P-4S+2Q+RM)
Frequently Asked Questions (FAQ's)



What is the maximum switching capacity of the CRS354-48P-4S+2Q+RM?
  • The switch has a maximum switching speed of 168 Gbps.
  • Does the switch support Power over Ethernet (PoE)?
  • Yes, the switch's 48 Gigabit Ethernet ports enable PoE.
  • What type of PoE is supported by the CRS354-48P-4S+2Q+RM?
  • It supports 802.3af/at PoE, with each port capable of handling up to 60W.
  • How many SFP+ ports are available on this switch?
  • The switch has 4 SFP+ ports capable of supporting 10 Gbps connections.
  • Does the CRS354-48P-4S+2Q+RM have any QSFP+ ports?
  • Yes, it has two QSFP+ ports that provide 40 Gbps high-speed uplinks or backbone connections.
  • What operating system does the CRS354-48P-4S+2Q+RM use?
  • It runs MikroTik RouterOS, with the option to use SwOS (SwitchOS) for easier switch control.
  • Can the switch be rack-mounted?
  • Yes, the CRS354-48P-4S+2Q+RM is designed to be rack-mounted in server rooms or data centers.
  • Does the switch support VLANs?
  • Yes, the switch supports VLANs, which provide network segmentation and security.
  • What is the total power budget for PoE?
  • The overall PoE power budget is 750W, which can be spread across 48 ports.
  • Is there a web interface for managing the CRS354-48P-4S+2Q+RM?
  • Yes, you can manage the switch using a web interface provided by RouterOS or SwOS.
  • How many devices can be connected to the switch simultaneously?
  • The Gigabit Ethernet ports may connect up to 48 devices, with extra connections available through the SFP+ and QSFP+ ports.
  • Does the switch have dual power supplies?
  • Yes, it includes two power supply for redundancy and greater reliability.
  • Can the switch handle Layer 3 routing?
  • Yes, the switch provides basic Layer 3 routing capabilities such as static routing and policy-based routing.
  • Can I use the switch in a home network, or is it only for enterprise use?
  • While it is primarily intended for enterprise and data center contexts, it can also be utilized in advanced residential networks, while it is better suited to large-scale operations.
  • Can I configure link aggregation on this switch?
  • Yes, the CRS354-48P-4S+2Q+RM offers link aggregation (bonding), which increases bandwidth and redundancy.
  • Does the switch support Jumbo Frames?
  • Yes, it can accommodate Jumbo Frames of up to 10,000 bytes.
  • What is the noise level of the switch during operation?
  • The noise level is quite low, however it varies according to the environment and load. It includes numerous fans to regulate heat, which might cause noise under high loads.
  • Does the switch support Spanning Tree Protocol (STP)?
  • Yes, the CRS354-48P-4S+2Q+RM supports both Spanning Tree Protocol (STP) and Rapid Spanning Tree Protocol (RSTP) for loop prevention.
  • How do I perform a factory reset on the CRS354-48P-4S+2Q+RM?
  • To do a factory reset, hold the reset button for at least 5 seconds while the device is turned on.
  • Can I monitor traffic on individual ports?
  • Yes, the switch offers traffic monitoring tools via the MikroTik RouterOS interface, such as bandwidth utilization and packet statistics by port.
