Honeywell Fusion 3780 Barcode Scanner (MK3780-61A38) | Like New
SKU: MK3780-61A38-LN
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us
Same Day Shipping - Arrives in 3-5 Business Days 30-day Returns Overview
Overview of Honeywell Fusion 3780 Barcode Scanner (MK3780-61A38) | Like New
The Honeywell Fusion 3780 Barcode Scanner (MK3780-61A38) includes a primary 20-line omnidirectional scan pattern that enables for aggressive scanning of barcodes in any orientation or a targeted single line for menu reading with the push of a button. This function of the Honeywell Fusion 3780 Barcode Scanner allows you to scan other barcodes while just picking the one you need. No other scanner provides this level of control. Hands-free operating on the stand decreases operator fatigue, and different sleep modes reduce power consumption. Users can disable an EAS tag and decode a barcode in a single scan with the optional EAS integration.

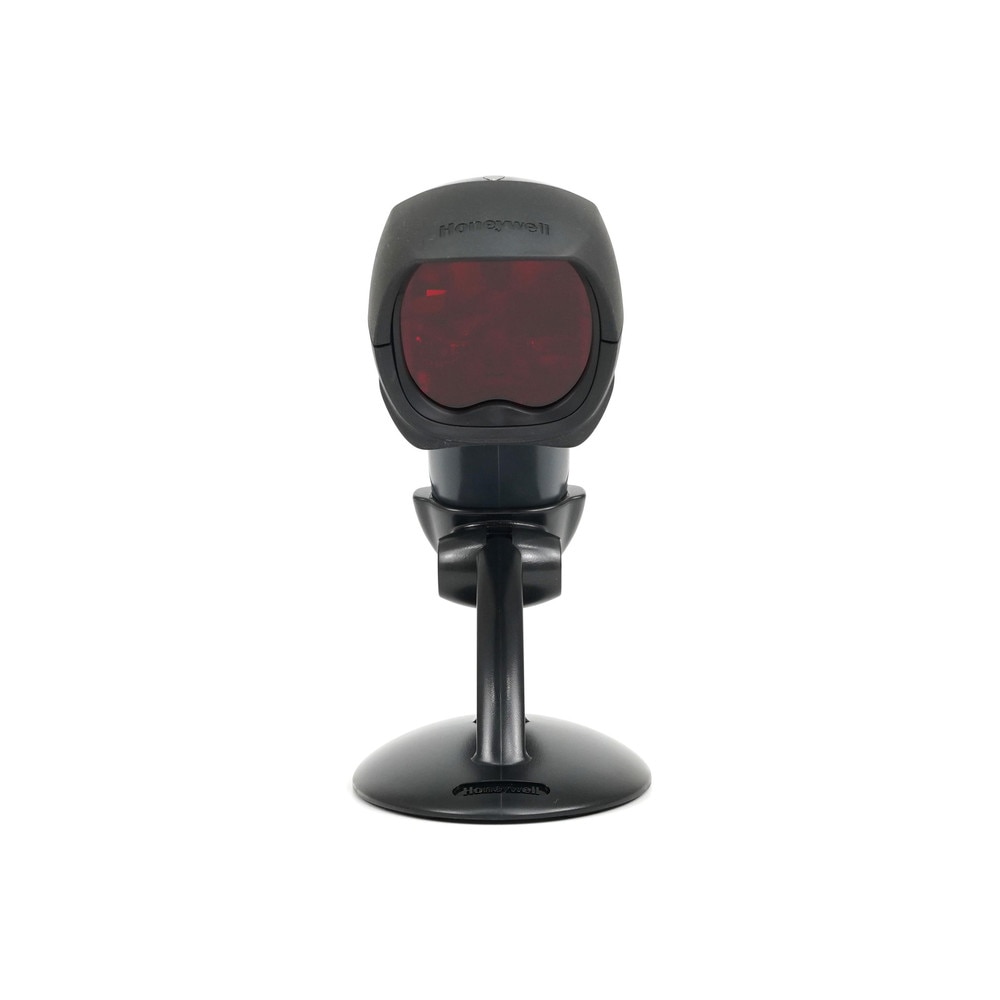

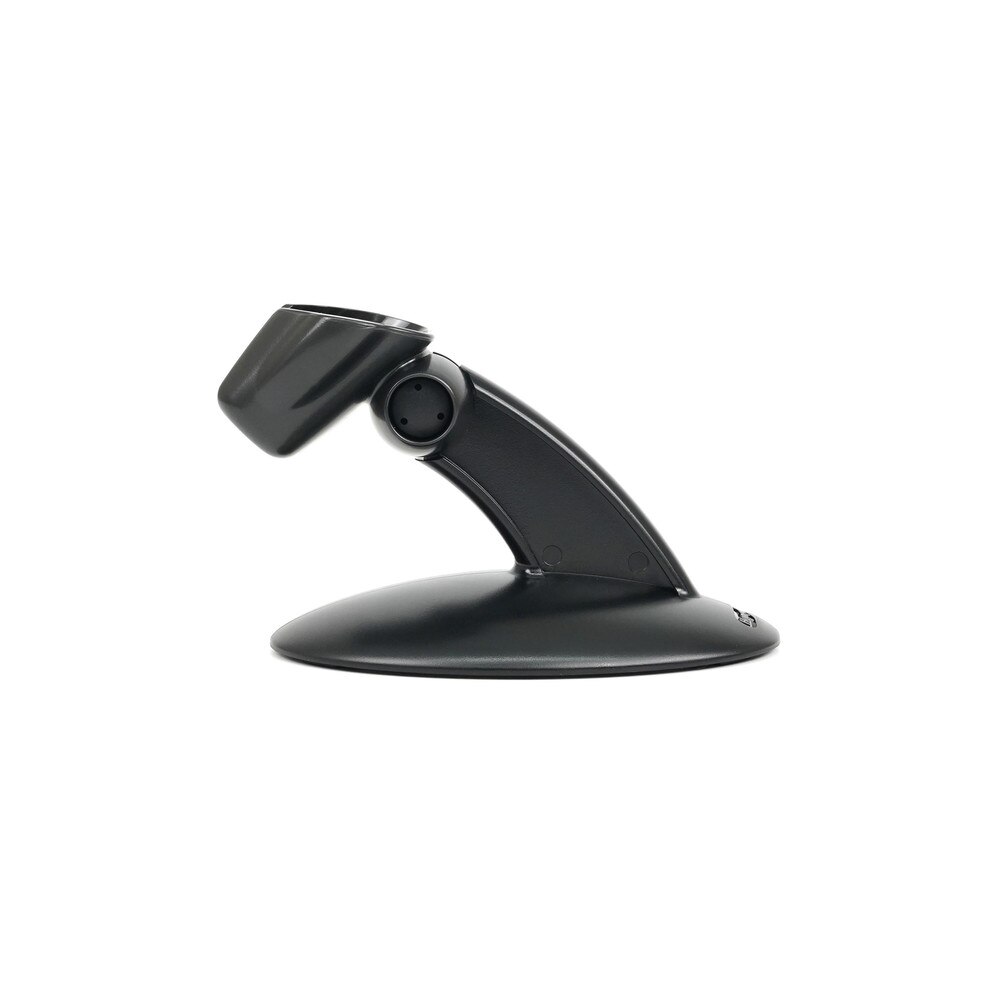

Metrologic Fusion is a lightweight, ergonomic hand-held scanner that combines omnidirectional and single-line laser bar code scanning. Fusion is suited for medium-volume merchants such as specialty stores, pharmacies, liquor stores, and convenience stores due to its superior scanning over traditional single-line scanners. An adjustable stand with three locking positions allows the user to place the scanner for maximum comfort and performance. The stand, which is supported by a weighted metal base, can also be hard-mounted to countertops or walls.
Key Features of Honeywell Fusion 3780 Barcode Scanner
Primary Omnidirectional Scan Pattern
Scanning aggressively in any orientation, boosting throughput
Secondary Single-Line Scan Pattern
Switch to a focused single-line for menu scanning applications with a single button press.
Automatic In-Stand Detection
Hands-free presentation scanning lowers operator fatigue.
Sleep Mode With IR Wake Up
Multiple sleep modes reduce power usage, prolonging battery life and cutting operating costs.
Optional Integration of RF EAS Antenna
Increases efficiency by deactivating RF EAS tags and decoding bar codes at the same time.
Specifications
Specification for Honeywell Fusion 3780 Barcode Scanner (MK3780-61A38) | Like New
| Manufacturer | Honeywell |
| Manufacturer Part Number | MK3780-61A38 |
| Product Name | Honeywell Fusion 3780 Barcode Scanner |
| Product Type | Barcode Scanner |
Interface Type | USB |
Scan Element Type | Visible laser diode |
Light Source Wave Length | 650 nm |
Scan Speed | 1333 line / sec |
Skew (Degrees) | 60 |
Pitch (Degrees) | 60 |
Print Contrast Signal (PCS) | 0.35 |
Decode Capability | GS1 DataBar |
TTL Decoding | Decoded |
Connectivity Technology | Wired |
OK Notification | Beeper, LED indicator |
Interfaces | 1 x USB |
Included Accessories | Stand |
Compliant Standards | RoHS |
Electric Current Required | 275 mA (operating), 200 mA (standby) |
Width | 2.6 in |
Depth | 2.9 in |
Height | 7.4 in |
Weight | 6.88 oz |
Service & Support | Limited warranty - 3 years |
Min Operating Temperature | -4 °F |
Max Operating Temperature | 104 °F |
Humidity Range Operating | 5 - 95% (non-condensing) |
Drop Specification | 5 ft |
User Guides
Frequently Asked Questions
Honeywell Fusion 3780 Barcode Scanner (MK3780-61A38)
Frequently Asked Questions (FAQ's)
What type of barcode does the Honeywell Fusion 3780 Barcode Scanner read? The Fusion 3780 can read both 1D and 2D barcodes, including QR codes and PDF417.
Is the Honeywell Fusion 3780 compatible with wireless connections? No, the Fusion 3780 is a wired barcode scanner that connects via USB or keyboard wedge interface.
What is the scanning speed of the Honeywell Fusion 3780? The scanner offers fast scanning speeds of up to 1,200 scans per second.
Does the Honeywell Fusion 3780 support both Windows and Mac operating systems? Yes, the Fusion 3780 is compatible with both Windows and Mac computers.
What is the maximum scanning distance for the Honeywell Fusion 3780? The scanning distance varies depending on the barcode size but can read barcodes from 1 inch to 12 inches away.
Is the Honeywell Fusion 3780 durable? Yes, it is built to withstand drops from up to 5 feet and has an IP42 rating for dust and water resistance.
Can the Honeywell Fusion 3780 read damaged or poorly printed barcodes? Yes, the Fusion 3780 uses advanced decoding technology to read damaged, distorted, or poorly printed barcodes.
Does the Honeywell Fusion 3780 come with a stand for hands-free use? Yes, the scanner includes a stand that allows it to be used in hands-free mode for convenience.
How do I configure the Honeywell Fusion 3780 for use with different applications? The scanner comes with configuration barcodes in the manual to set it up for specific use cases or applications.
What is the connection type for the Honeywell Fusion 3780? The scanner connects to computers or point-of-sale systems via USB or keyboard wedge interface.
Is the Honeywell Fusion 3780 compatible with mobile devices? No, the Fusion 3780 is not designed for use with mobile devices since it is a wired scanner.
What type of environment is the Honeywell Fusion 3780 suitable for? The Fusion 3780 is ideal for retail, healthcare, and light industrial environments due to its durability and fast scanning.
Can the Honeywell Fusion 3780 read codes from mobile screens? Yes, it can scan barcodes displayed on mobile device screens, such as QR codes or digital barcodes.
How do I clean the Honeywell Fusion 3780 scanner? To clean the scanner, use a soft cloth and mild detergent. Avoid using abrasive materials or strong chemicals.
Does the Honeywell Fusion 3780 have any ergonomic features? Yes, the scanner is designed with an ergonomic handle and lightweight body, making it comfortable to use for extended periods.
Can the Honeywell Fusion 3780 be used in low-light conditions? Yes, the scanner is equipped with an LED aiming system, which helps with scanning in low-light environments.
What is the warranty period for the Honeywell Fusion 3780? The Fusion 3780 typically comes with a 5-year warranty from Honeywell.
Is the Honeywell Fusion 3780 plug-and-play? Yes, the scanner is plug-and-play when connected to a compatible device, and no additional drivers are usually needed.
What is the weight of the Honeywell Fusion 3780 scanner? The Fusion 3780 weighs approximately 5.5 ounces (156 grams), making it lightweight and easy to handle.
Can the Honeywell Fusion 3780 be used with a barcode printing system? Yes, the Fusion 3780 is compatible with most barcode printing systems for scanning printed barcodes.
