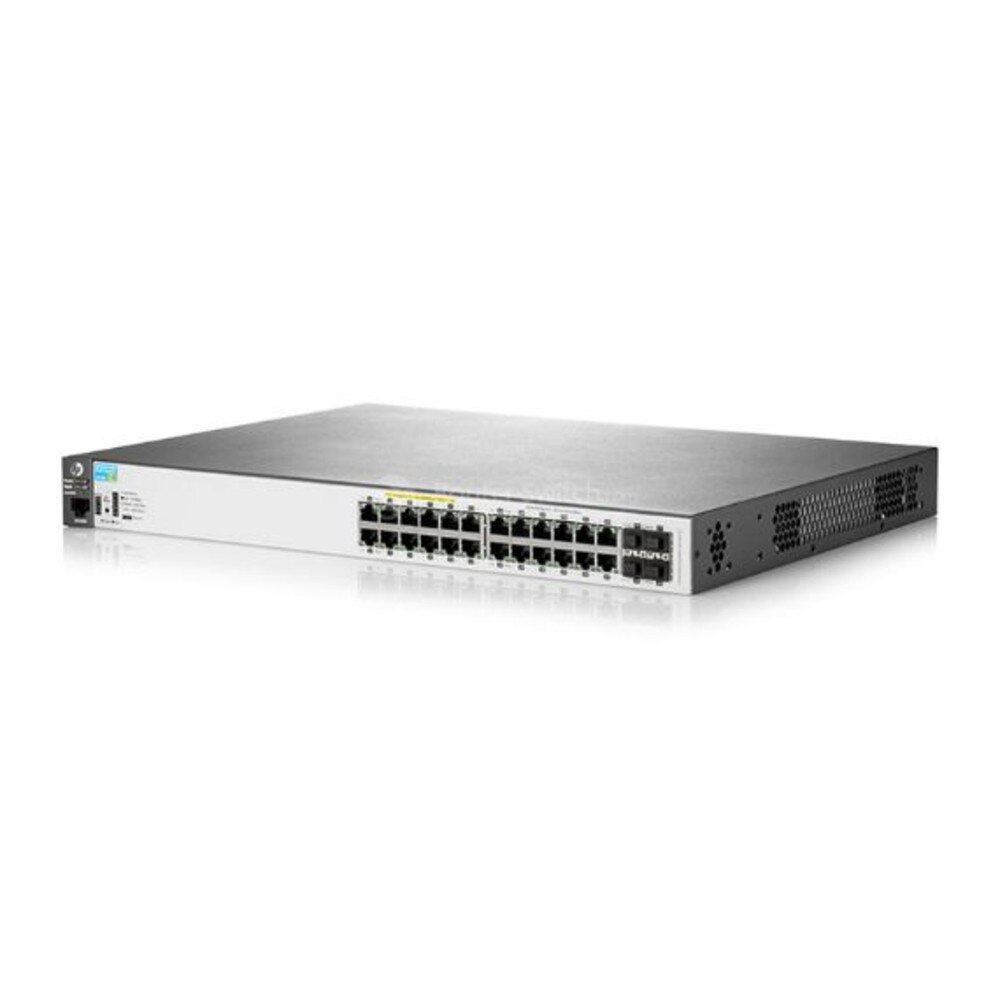

HP Aruba 2530-24G-PoE+ 24-Port Managed Switch J9773A (J9773A) | Like New

HP Aruba 2530-24G-PoE+ 24-Port Managed Switch J9773A (J9773A) | Like New

SKU: J9773A-LN
(0)No Reviews yet

Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns

$372.99 $372.99
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

Aruba 2530 24G PoE+ Switch

Aruba 2530 Series Gigabit Ethernet devices are enterprise class, fully managed, Layer 2 edge switches delivering cost effective, reliable, and secure connectivity for business networks. Designed for entry level to midsize enterprise networks, these Gigabit Ethernet switches deliver full Layer 2 capabilities with enhanced access security, traffic prioritization, IPv6 host support, and optional PoE+. The 2530 24G PoE+ model has 24 x 10/100/1000 PoE enabled ports and four Gigabit SFP ports.

Specifications

TypeAruba 2530-24G-PoE+ Switch
Ports24 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
4 fixed Gigabit Ethernet SFP ports
1 dual-personality (RJ-45 or USB micro-B) serial console port.
PoE Power195 W
ThroughputUp to 41.6 million pps (64-byte packets)
Switching Capacity56 Gb/s
Memory and ProcessorProcessor: ARM9E @ 800 MHz, 128 MB flash, 256 MB DDR3 DIMM; packet buffer size: 1.5 MB dynamically allocated
MountingMounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting.
1000 Mb Latency< 2.3 µs (LIFO 64-byte packets)
100 Mb Latency< 7.4 µs (LIFO 64-byte packets)

User Guides

Frequently Asked Questions

HP Aruba 2530-24G-PoE+ 24-Port Managed Switch J9773A
Frequently Asked Questions (FAQ's)



What is the HP Aruba 2530-24G-PoE+ switch used for?
  • It is a managed switch designed for small to medium-sized businesses, providing 24 Gigabit Ethernet ports with PoE+ support for powering devices like IP phones and access points.
  • How many ports does the HP Aruba 2530-24G-PoE+ switch have?
    It has 24 Gigabit Ethernet ports and 4 additional SFP (fiber) ports for uplinks.
    What is PoE+ support on the HP Aruba 2530-24G-PoE+?
    PoE+ (Power over Ethernet Plus) provides up to 30W of power per port, enabling the switch to power devices such as IP phones, wireless access points, and cameras over Ethernet cables.
    Does the HP Aruba 2530-24G-PoE+ support Layer 3 features?
  • While it is primarily a Layer 2 switch, it does support limited Layer 3 static routing for small-scale routing between VLANs.
  • Is the HP Aruba 2530-24G-PoE+ switch stackable?
  • No, this switch is not stackable, but it can be managed in a unified manner along with other Aruba devices via Aruba's management software.
  • Does the switch support VLANs?
  • Yes, it supports multiple VLANs to segment networks for improved security and traffic management.
  • Can the HP Aruba 2530-24G-PoE+ be used for a wireless network?
  • Yes, when paired with Aruba access points, this switch can help manage a wireless network by providing PoE+ for power and Ethernet connectivity for access points.
  • How does the HP Aruba 2530-24G-PoE+ switch handle power management?
  • The switch uses an energy-efficient design with support for IEEE 802.3az Energy Efficient Ethernet (EEE) to reduce power consumption during periods of low network activity.
  • What type of management options are available for the HP Aruba 2530-24G-PoE+ switch?
  • It can be managed through the Aruba Web GUI, CLI, and SNMP, offering flexibility for different network management needs.
  • Is the HP Aruba 2530-24G-PoE+ compatible with Aruba Central?
  • Yes, it is compatible with Aruba Central for cloud-based management, making it easier to manage the switch remotely.
  • What is the maximum power budget for PoE+ on this switch?
  • The total PoE+ power budget for the HP Aruba 2530-24G-PoE+ is 370W, providing sufficient power for connected devices.
  • Does the HP Aruba 2530-24G-PoE+ support QoS (Quality of Service)?
  • Yes, it supports QoS features like 802.1p prioritization and DiffServ to ensure critical traffic gets priority.
  • What is the warranty for the HP Aruba 2530-24G-PoE+ switch?
    The switch comes with a limited lifetime warranty, which includes 24/7 technical support for the duration of the warranty period.
    Is the HP Aruba 2530-24G-PoE+ suitable for high-traffic environments?
  • While it is ideal for small to medium-sized businesses, it can handle moderate traffic. For large enterprise environments, a more powerful switch may be needed.
  • Can I configure the HP Aruba 2530-24G-PoE+ switch without prior experience?
  • Yes, it comes with an easy-to-use web interface and setup wizard, which makes it accessible even for those with minimal networking experience.
  • What is the operating temperature range for the HP Aruba 2530-24G-PoE+ switch?
  • The switch can operate in temperatures ranging from 32°F to 104°F (0°C to 40°C).
  • Does the HP Aruba 2530-24G-PoE+ support link aggregation?
  • Yes, the switch supports IEEE 802.3ad link aggregation for higher bandwidth and redundancy.
  • What type of security features does the HP Aruba 2530-24G-PoE+ support?
  • It includes features like 802.1X authentication, MAC address filtering, and Access Control Lists (ACLs) for enhanced network security.
  • How do I monitor the HP Aruba 2530-24G-PoE+ switch's performance?
  • You can monitor the switch's performance through the Aruba Web GUI, CLI, or SNMP, which allows you to track port status, traffic, and power usage.
  • Can I upgrade the firmware on the HP Aruba 2530-24G-PoE+?
  • Yes, the switch supports firmware updates through the Web GUI or CLI, ensuring you can take advantage of the latest features and security patches.
