  • HP USB-C/A Universal Dock G2 (5TW13AA#ABA) | Like New
HP USB-C/A Universal Dock G2 (5TW13AA#ABA) | Like New

HP USB-C/A Universal Dock G2 (5TW13AA#ABA) | Like New

SKU: 5TW13AA-LN
(0)No Reviews yet

Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns

$119.99 $119.99
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

Overview of HP USB-C/A Universal Dock G2 (5TW13AA#ABA) | New

The HP USB-C/A Universal Dock G2 (5TW13AA#ABA) lets you get to work quickly by connecting your USB Type-A and USB Type-C-enabled notebooks to your displays, devices, and wired network with a single cable. The dock is powered by DisplayLink and is compatible with notebooks from HP, Apple, Dell, Lenovo, and other manufacturers. Connect your accessories as well as up to three 4K displays to the dock. Then, using a single USB Type-C cable, connect it to your notebook to access your devices and charge your PC.


Key Features of HP USB-C/A Universal Dock G2


Future-proof your fleet

This dock was created with universal compatibility in mind, and it works with both HP and non-HP USB-A, USB-C™, and Thunderbolt™ enabled notebooks.

Single-cable solution

Connect your accessories as well as up to three 4K displays to the dock. Then, using a single USB-C™ cable, connect it to your notebook to access your devices and charge your PC.

Backward compatibility

Connect your USB notebook to the dock with the included USB-A Adapter to gain access to your accessories and up to two 4K displays. To charge legacy devices, use the optional HP 4.5 mm and USB-C Dock Adapter G2.

Easily manage your commercial HP fleet

Advanced network manageability features such as PXE Boot, LAN/WLAN switching, and WoL and MAC Address Pass-Through in all power states can help IT secure and remotely manage your deployed commercial HP notebooks and dock.

Compatibility

HP, Apple, Dell, Lenovo

Specifications

Specifications for HP USB-C/A Universal Dock G2 (5TW13AA#ABA) | Like New

ManufacturerHP
Manufacturer Part Number5TW13AA#ABA
Product NameHP USB-C/A Universal Dock G2
Product TypeDocking Station
Width
4.8 in
Depth
4.8 in
Height
1.8 in
Weight
24.51 oz
Enclosure Color
Black
Localization
English / United States
Data Link Protocol
Gigabit Ethernet
Interfaces
4 x SuperSpeed USB 3.0 - 9 pin USB Type A ¦ 1 x network - 1000Base-T - RJ-45 ¦ 2 x display / video - DisplayPort ¦ 1 x USB-C ¦ 1 x display / video - HDMI ¦ 1 x audio - headphones/microphone - mini-phone stereo 3.5 mm
Cables Included
1 x USB-C cable - 3.3 ft
Features
Security lock slot (cable lock sold separately), wake on LAN, Preboot Execution Environment (PXE) support, MAC address pass-through
Security Slot Type
Kensington security slot
Power Device
Power adapter
Power Provided
100 Watt
OS Required
Apple MacOS, Microsoft Windows 7, Google Chrome OS, Windows 10
Designed For
HP 240 G8 Notebook, 245 G8 Notebook, 246 G7 Notebook, 250 G8 Notebook, 255 G7 Notebook, 255 G8 Notebook, 256 G8 Notebook, 340 G7 Notebook, 470 G7 Notebook, 470 G8 Notebook ¦ HP EliteBook 830 G6 ¦ HP Pavilion x360 Laptop 15-er1003nm ¦ HP Pro x360 435 G9 Notebook, Fortis 11 G10 Notebook, Fortis 11 G9 Notebook ¦ HP ProBook 430 G4 Notebook, 430 G5 Notebook, 430 G6 Notebook, 430 G7 Notebook, 430 G8 Notebook, 440 G5 Notebook, 440 G6 Notebook, 440 G7 Education Edition Notebook, 440 G7 Notebook, 440 G8 Notebook, 440 G9 Notebook, 445 G6 Notebook, 445 G7 Notebook, 445 G8 Notebook, 445 G9 Notebook, 445r G6 Notebook, 450 G5 Notebook, 450 G6 Notebook, 450 G7 Notebook, 450 G8 Notebook, 450 G9 Notebook, 455 G4 Notebook, 455 G6 Notebook, 455 G7 Notebook, 455 G8 Notebook, 455 G9 Notebook, 455r G6 Notebook, 470 G5 Notebook, 630 G8 Notebook, 635 Aero G8 Notebook, 640 G2 Notebook, 640 G3 Notebook, 640 G4 Notebook, 640 G5 Notebook, 645 G4 Notebook, 650 G2 Notebook, 650 G4 Notebook, 650 G5 Notebook, Fortis 14 G9 Notebook ¦ HP ProBook x360 11 G4 Education Edition Notebook, 11 G5 Education Edition Notebook, 11 G6 Education Edition Notebook, 11 G7 Education Edition Notebook, 435 G7 Notebook, 435 G8 Notebook, 440 G1 Notebook ¦ HP ZBook 14u G4 Mobile Workstation, 14u G5 Mobile Workstation, 14u G6 Mobile Workstation, 15 G5 Mobile Workstation, 15 G6 Mobile Workstation, 15u G4 Mobile Workstation, 15u G5 Mobile Workstation, 15u G6 Mobile Workstation, 17 G5 Mobile Workstation, 17 G6 Mobile Workstation, Create G7 Notebook, Power G7 Mobile Workstation, Power G8 Mobile Workstation, Power G9 Mobile Workstation, Studio G5 Mobile Workstation, Studio G8 Mobile Workstation, Studio x360 G5 Mobile Workstation ¦ HP ZBook Firefly 14 G7 Mobile Workstation, 14 G8 Mobile Workstation, 14 G9 Mobile Workstation, 15 G7 Mobile Workstation, 15 G8 Mobile Workstation, 16 G9 Mobile Workstation ¦ HP ZBook Fury 16 G9 Mobile Workstation, 17 G8 Mobile Workstation

Frequently Asked Questions

HP USB-C/A Universal Dock G2 (5TW13AA#ABA)
Frequently Asked Questions (FAQ's)



What devices are compatible with the HP USB-C/A Universal Dock G2?
  • It is compatible with HP and non-HP laptops that support USB-C or USB-A connectivity.
  • Does this dock support dual monitors?
  • Yes, it supports dual 4K displays when connected via DisplayPort and HDMI.
  • What operating systems are supported?
  • It supports Windows 10, Windows 11, and macOS, though macOS has limited functionality.
  • Can this dock charge my laptop?
  • Yes, it delivers up to 100W of power via USB-C, depending on the laptop model.
  • Does it work with USB-A connections?
  • Yes, it supports USB-A connections, but power delivery and full functionality may be limited.
  • What ports are available on the dock?

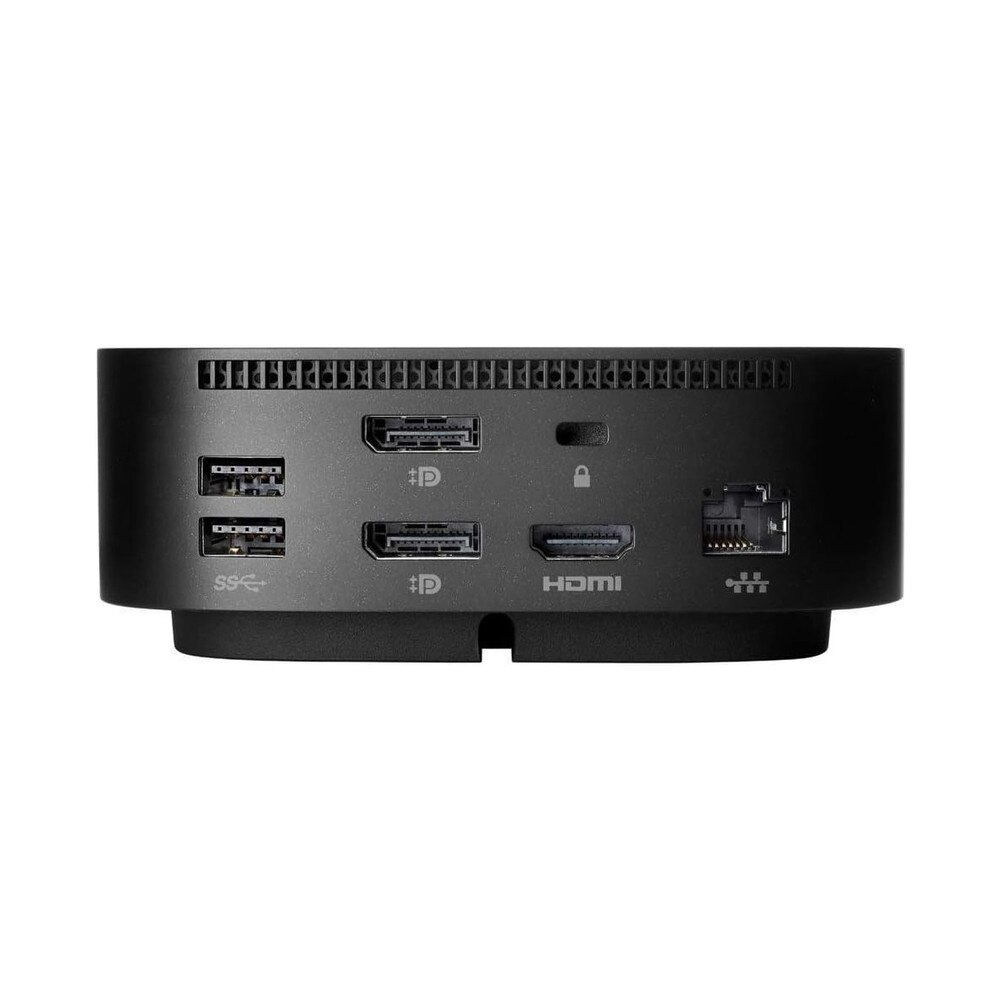

  • The dock includes: 1 x USB-C (upstream) 1 x USB-C (downstream) 4 x USB-A 3.0 2 x DisplayPort 1 x HDMI 1 x Gigabit Ethernet 1 x Audio combo jack
  • Can I connect three monitors to this dock?
  • No, it supports only two external displays at a time.
  • What resolution and refresh rates are supported?
  • Dual displays at 4K (3840x2160) @ 60Hz or a single display at 5K @ 60Hz.
  • Does the dock have a built-in Ethernet port?
  • Yes, it includes a Gigabit Ethernet port for wired network connectivity.
  • Is there an audio port on the dock?
  • Yes, it has a 3.5mm combo audio jack for headphones and microphones.
  • What is the maximum power delivery of the dock?
  • It provides up to 100W over USB-C, depending on the laptop’s power requirements.
  • Does it provide power to USB devices?
  • Yes, it supplies power to connected USB devices, including phones and peripherals.
  • Can the dock power my laptop when connected via USB-A?
  • No, USB-A does not support power delivery to charge a laptop.
  • Do I need to install drivers?
  • Windows systems typically install drivers automatically, but HP recommends downloading the latest firmware and drivers from their website.
  • Why is my laptop not charging through the dock?
  • Ensure your laptop supports USB-C Power Delivery and that the dock’s power adapter is plugged in.
  • Why is my external monitor not displaying?
  • Check that the cables are securely connected and verify that your laptop supports DisplayPort over USB-C.
  • How do I update the dock’s firmware?
  • Download the latest firmware from HP’s official website and follow the installation instructions.
  • Does this dock support HP Fast Charge?
  • Yes, for compatible HP laptops, it can charge up to 50% in 30 minutes.
  • Can I use this dock with a MacBook?
  • Yes, it works with MacBooks, but macOS may have limited support for certain features like multiple displays.
  • Can I use this dock for gaming?
  • While it supports high-resolution displays, it is not designed for gaming and may not provide the required refresh rates or latency.
