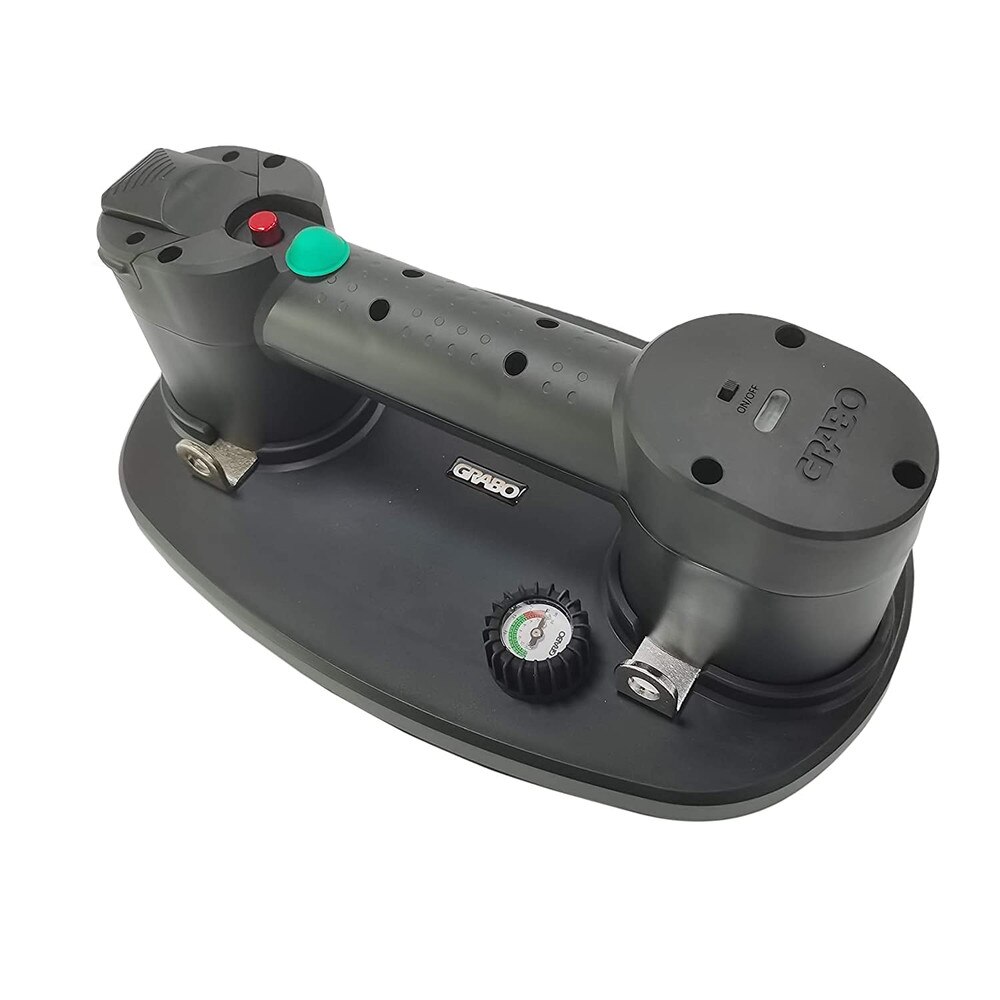

Grabo Nemo Electric Vacuum Suction Cup Lifter (2 Batt) (NG-2B-FB-2S) | New
SKU: NG-2B-FB-2S-N
Same Day Shipping Before 4PM EST
Have one to sell? Click here to sell to us
Same Day Shipping Before 4PM EST Overview
GRABO NEMO VACCUM LIFTER 375LBS, 2 BATT
Nemo GRABO is the world's first portable vacuum lifter. With this best in a class power tool, we live up to our promise of “Heavy Lifting – Made Easy”. Now you don’t have to rely on bulky and complex heavy-lifters or worry about unreliable, and often dangerous, manual suction cups for the job. With GRABO you get the best of both worlds.
- Max lifting load: 375 lbs (170 kg); Dimensions: 297mm x 181mm x 115mm
- 1 Classic GRABO tool (2021 Version — Complete with battery and seal)
- 1 mechanical built-in pressure gauge with protective rubber coating
- 1 USA charger, 1 seal (pre-installed on the tool), 2 batteries, 1 tough Oxford fabric carry bag, Operator’s manual in English
Features and further details
- The Nemo GRABO Classic is an ideal lifting tool for countertops, doors, panels, etc. The tool works perfectly with glass, wood, ceramic tiles, metals, and other materials. The tool works at a maximum vacuum capacity of 11.6 psi, with an optimum lifting capability of loads as heavy as 375 lbs or 170 kgs.
- Nemo GRABO is ergonomically designed to provide maximum work efficiency. It is lightweight and can be easily carried around in a tool kit. It is not just the portability that makes the tool unique, but it is the simple operation, performance, and overall build quality that make it premium. The tool is a game-changer for professionals in the building and construction industry.
- GRABO Classic is equipped with a strong vacuum pump, that works in tandem with a robust foam seal. To lift any flat slab of solid material, simply turn on the unit and place it straight on the surface.
- Nemo GRABO is ergonomically designed to provide maximum work efficiency. It is lightweight and can be easily carried around in a tool kit. It is not just the portability that makes the tool unique, but it is the simple operation, performance, and overall build quality that make it premium. The tool is a game-changer for professionals in the building and construction industry.
- GRABO Classic is equipped with a strong vacuum pump, that works in tandem with a robust foam seal. To lift any flat slab of solid material, simply turn on the unit and place it straight on the surface.
- Once the vacuum pump is activated, it creates a strong suction and firmly attaches to any non-porous flat surface. This makes lifting panels or slabs, or even objects of different materials, an easier job. For maximum lifting, the vacuum pump can be kept activated even while lifting or moving the load.
Specifications
Technical Details
- Battery: 14.8VDC 2600mAh Li-ion
- Rated Power: 16W
- Charger Input Voltage: 100-240VAC 50/60Hz
- Battery Charging Time: 2hrs
- Non-Stop Running Time (Full Charge): 1.5hrs
- Running Cycles (On Full Charge): 900 ON-OFF cycles of 10 seconds
- Stand-by Mode (Charge Hold): 30 days
- Pump Service Life: 100000+ ON-OFF cycles / 800+ hrs continuous
- Rated Air Flow: 0.7cfm (20 L/min)
- Maximum Vacuum Rate: 11.6Psi (0.8 Bar, 80 kPa)
- Maximum Lifting Capacity: 375Lbs (170 kg)
- Net Weight (With Battery): 3.2Lbs ( 1.5 kg )
- Working Temperature :32°F~140°F ( 0°~60 °C )
- Applicable Surface Type:
- Peak/valley heights less than 0.1” (3mm),
- arc less than 5°
Lifting Capacity:
- Glass:
- Perpendicular Hold: 375Lbs (170 kg)
- Parallel Hold: 265Lbs (120 kg)
- Ceramic Tiles:
- Perpendicular Hold: 375Lbs (170 kg)
- Parallel Hold: 265Lbs (120 kg)
- Metal:
- Perpendicular Hold: 242Lbs (110 kg)
- Parallel Hold: 242Lbs (110 kg)
- Plastic:
- Perpendicular Hold: 220Lbs (100 kg)
- Parallel Hold: 220Lbs (100 kg)
- Wood:
- Perpendicular Hold: 220Lbs (100 kg)
- Parallel Hold: 143Lbs (65 kg)
- Rough Slate:
- Perpendicular Hold: 176 Lbs (80 kg)
- Parallel Hold: 176 Lbs (80 kg)
- Rough Concrete:
- Perpendicular Hold: 176 Lbs (80 kg)
- Parallel Hold: 176 Lbs (80 kg)
- Dry Wall:
- Perpendicular Hold: 165 Lbs (80 kg)
- Parallel Hold: 143 Lbs (65 kg)
