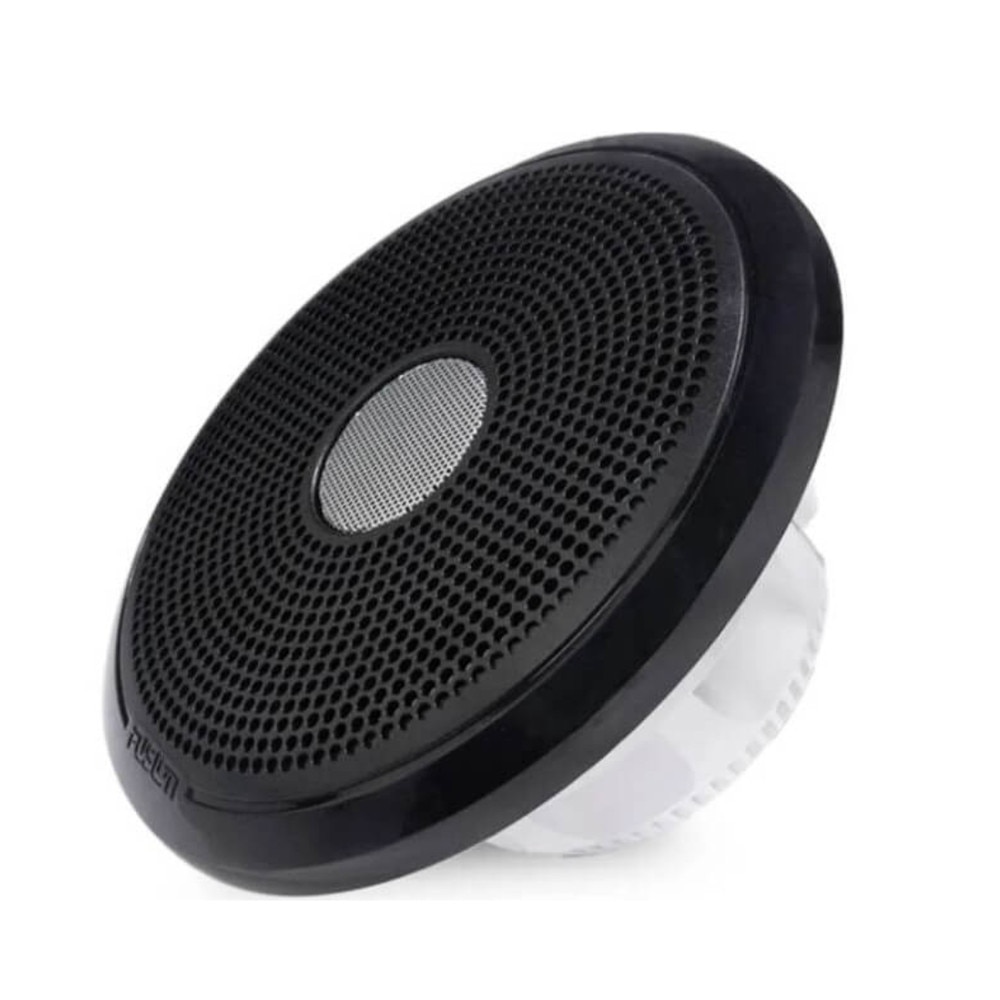

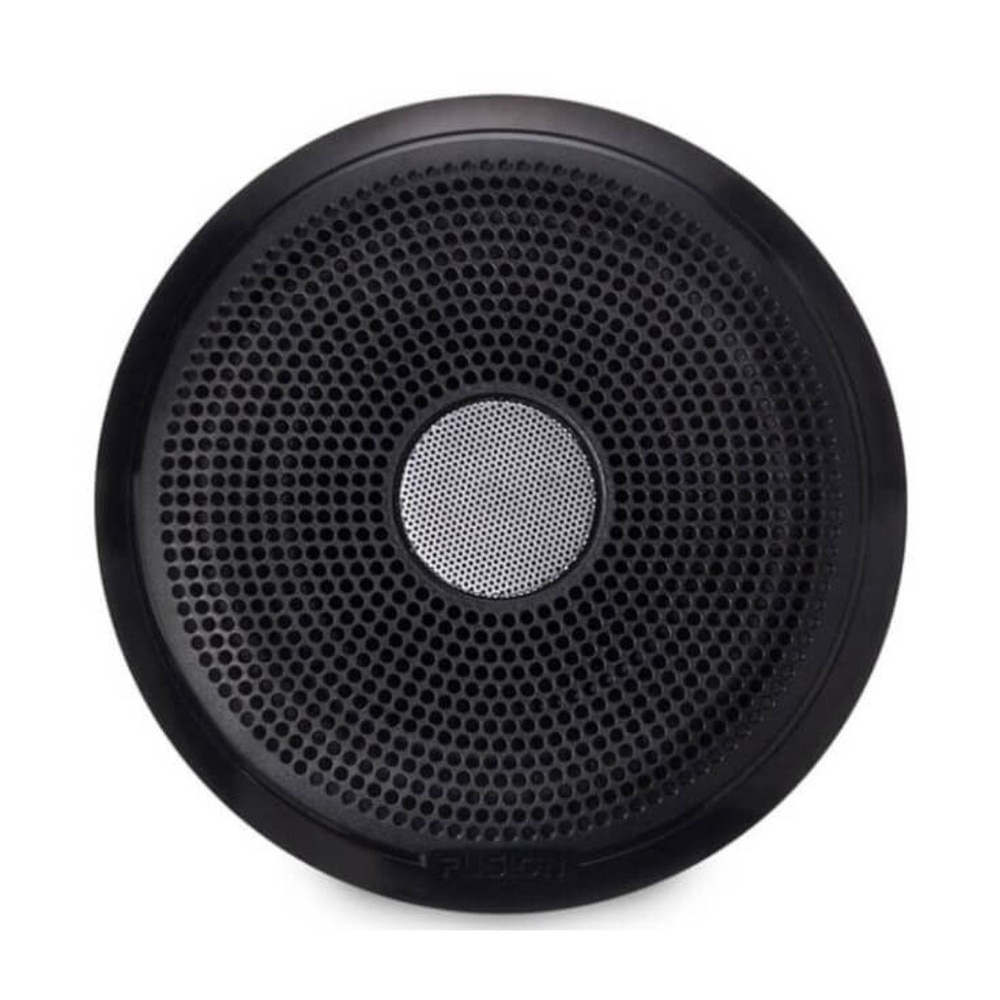

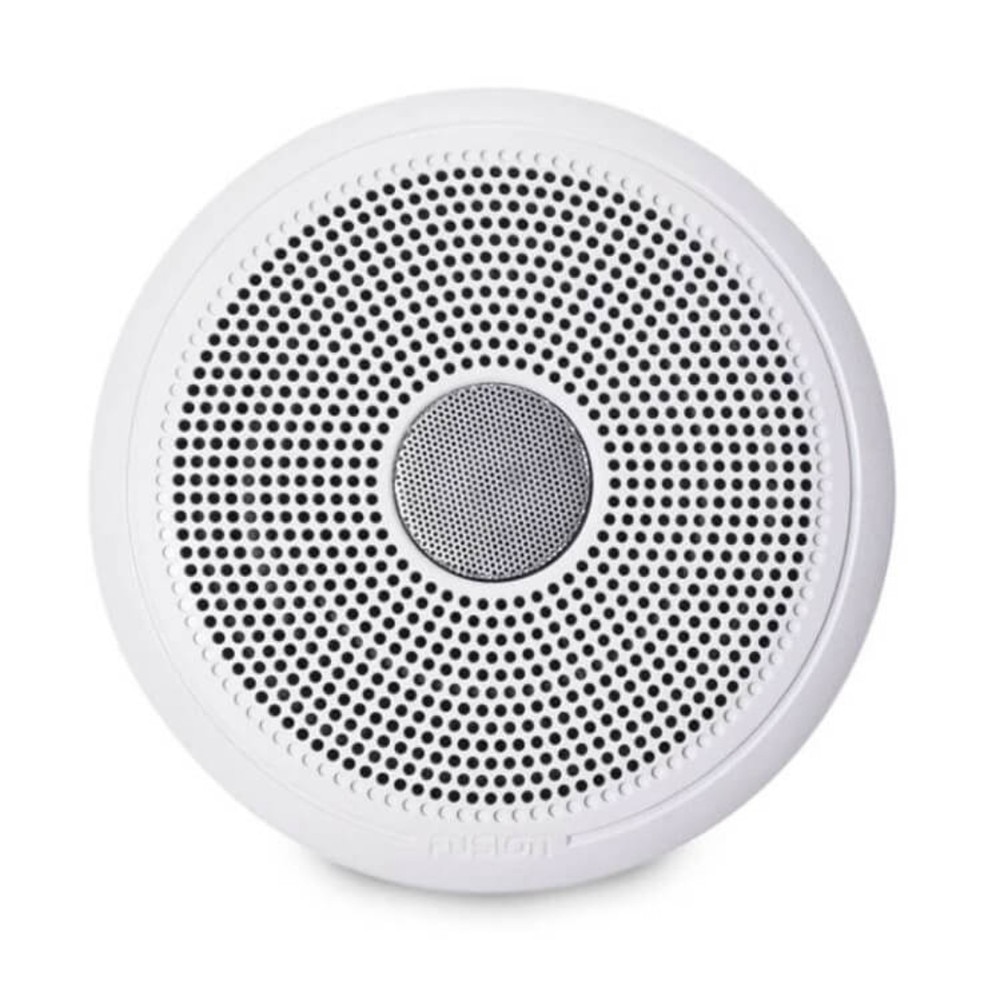

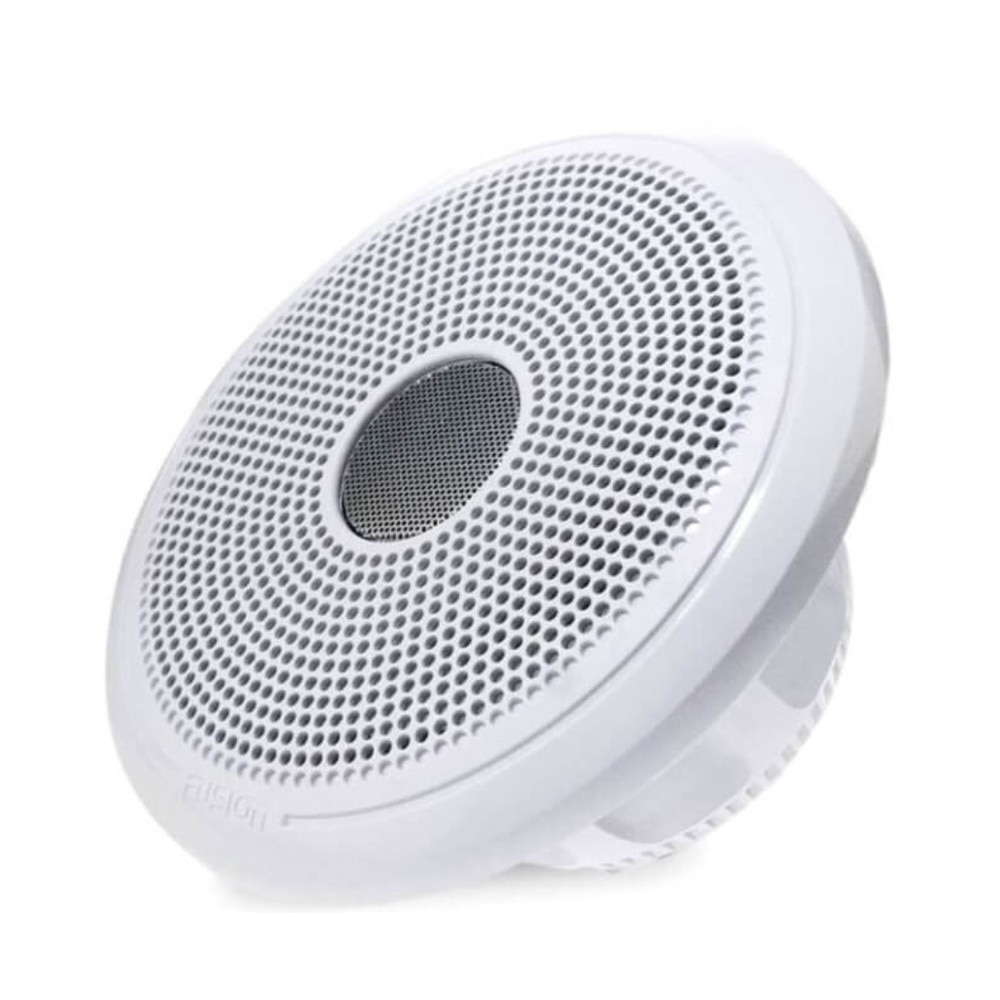

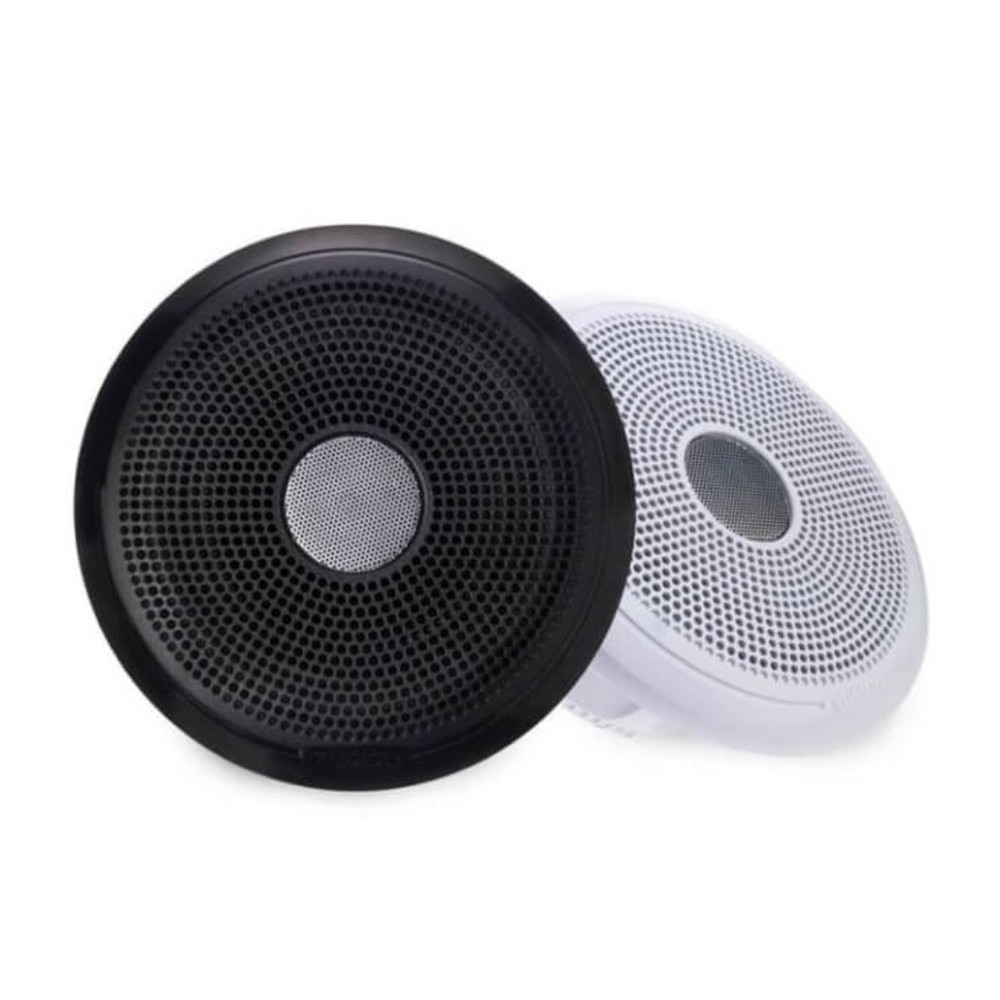

Garmin Fusion XS Series 6.5" 200-Watt Classic Marine Speakers (010-02196-00) | Like New
SKU: 010-02196-00-LN
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us
Same Day Shipping - Arrives in 3-5 Business Days 30-day Returns Overview
Overview of Garmin Fusion XS Series 6.5" 200-Watt Classic Marine Speakers (010-02196-00) | Like New
The Garmin Fusion XS Series 6.5" 200-Watt Classic Marine Speakers (010-02196-00) are intended to provide excellent sound quality in aquatic conditions. These speakers blend durability, style, and great audio performance to improve your boating experience. These 6.5-inch speakers have a sleek, classic white style that fits any boat interior or exterior. With a 200-watt power handling capacity, they produce clear, rich sound even in open water settings. The speakers are constructed from high-quality materials to survive the harsh sea environment, which includes salt spray, UV radiation, and dampness. The Fusion XS Series speakers are IP65 rated, which protects them from water and dust incursion. This makes them appropriate for both internal and exterior installation on your sailboat. The compact design makes it simple to install in a variety of positions on your yacht without sacrificing sound quality. The Garmin Fusion XS Series is a great alternative for boaters who want high-quality audio without sacrificing durability or elegance.
Key Features of Garmin Fusion XS Series 6.5" 200-Watt Classic Marine Speakers
• 200-Watt power handling delivers powerful and clear audio output.
• IP65-Rated protection resistant to water and dust, ideal for marine environments.
• Polypropylene cone with rubber surround ensures durability and high-quality sound reproduction.
• LED Lighting features customizable colors to enhance your boat's ambiance.
• Shallow mounting depth allows for flexible installation options.
• Classic white finish tht complements any boat design with a sleek look.
• 6.5-Inch Speaker size provides a balanced sound with good bass response in a compact form factor.
• UV-Resistant construction withstands prolonged exposure to sunlight without degradation.
• Easy installation designed for straightforward mounting in various boat locations.
Specifications
Specifications for Garmin Fusion XS Series 6.5" 200-Watt Classic Marine Speakers (010-02196-00) | Like New
| Manufacturer | Garmin |
| Manufacturer Part Number | 010-02196-00 |
| Product Name | Garmin Fusion XS Series 6.5" 200-Watt Classic Marine Speakers |
| Product Type | Speakers |
| Physical dimensions (Diameter x Depth) | 7.7" Classic: 7.72" x 3.70" (196 x 94 mm) |
| 7.7" Sports: 7.72" x 3.82" (196 x 97 mm) | |
| 6.5" Classic: 6.97" x 3.19" (177 x 81 mm) | |
| 6.5" Sports: 6.97" x 3.27" (177 x 83 mm) | |
| 4" Classic: 5.31" x 2.68" (135 x 68 mm) | |
| Water and dust rating | IP65 |
| Configuration | Coaxial |
| Speaker size | XS-F77CWB/XS-F77SPGW/XS-FL77SPGW: 7.7" |
| XS-F65CWB/XS-F65SPGW/XS-FL65SPGW: 6.5" | |
| XS-F40CWB: 4" | |
| Peak power (Watts) | 7.7" Speaker: 240 W |
| 6.5" Speaker: 200 W | |
| 4" Speaker: 120 W | |
| RMS power (Watts) | 7.7" Speaker: 60 W |
| 6.5" Speaker: 50 W | |
| 4" Speaker: 30 W | |
| Sensitivity (1 W / 1 m) | 7.7" Speaker: 92 dB |
| 6.5" Speaker: 91 dB | |
| 4" Speaker: 87 dB | |
| Frequency response | 7.7" Speaker: 70 Hz-18 kHz |
| 6.5" Speaker: 80 Hz-18 kHz | |
| 4" Speaker: 100 Hz-18 kHz | |
| Nominal impedance | 4 ohms |
| Recommended amplifier power (RMS) | 7.7" Speaker: 25-200 W/Ch |
| 6.5" Speaker: 20-150 W/Ch | |
| 4" Speaker: 15-80 W/Ch | |
| LED lighting | yes (RGB; XS-FL77SPGW and XS-FL65SPGW only) |
| LED Supply Voltage | 10.8-16 VDC (XS-FL77SPGW and XS-FL65SPGW only) |
| LED load current @ 14.4 VDC | 150 mA (XS-FL77SPGW and XS-FL65SPGW only) |
| Operating temperature range | 32° to 122° F (0° to 50° C) |
| Voice coil diameter | 7.7": 1.18" |
| 6.5": 1.18" | |
| 4": 1" | |
| Cone material | 7.7" / 6.5": Polypropylene cone with cloth surround |
| 4": Polypropylene cone with rubber surround | |
| Tweeter type | Aluminum dome |
| Compass-safe distance | 7.7": 157.5" (400 cm) |
| 6.5": 122" (310 cm) | |
| 4": 100.5" (255 cm) | |
| Warranty | 3 years |
| Mounting diameter clearance | 7.7": 6.38" (162 mm) |
| 6.5": 5.31" (135 mm) | |
| 4": 3.90" (99 mm) | |
| Mounting depth clearance | 7.7": 3.03" (77 mm) |
| 6.5": 2.64" (67 mm) | |
| 4": 2.13" (54 mm) | |
| Sealed enclosure volume1 | 7.7": 0.35 cubic ft (10 L) |
| 6.5": 0.28 cubic ft (8 L) | |
| 4": 0.14 cubic ft (4 L) |
