Dell USB Type-C Docking Station with 130W Power Adapter (WD19S130W) | Like New
SKU: WD19S130W-LN
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us
Same Day Shipping - Arrives in 3-5 Business Days 30-day Returns Overview
Overview of Dell WD19S130W USB Type-C Docking Station with 130W Power Adapter | Like New

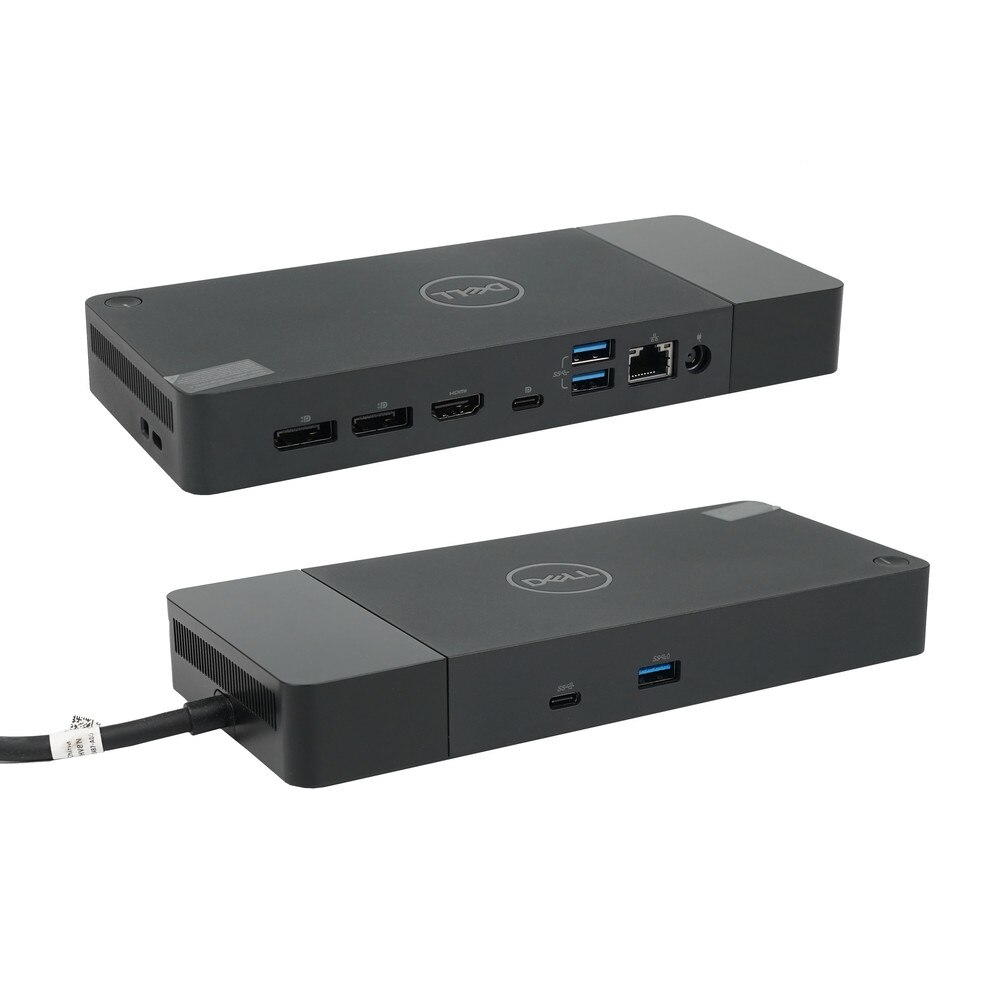

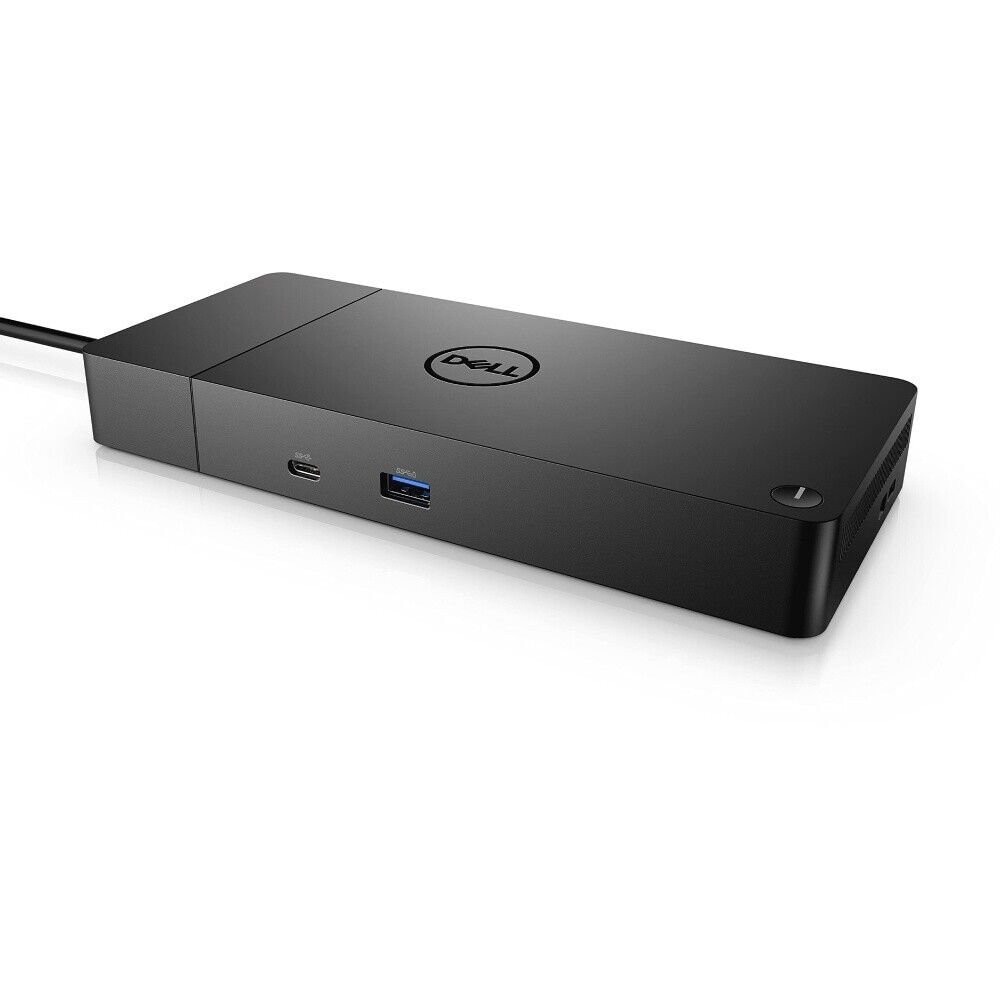

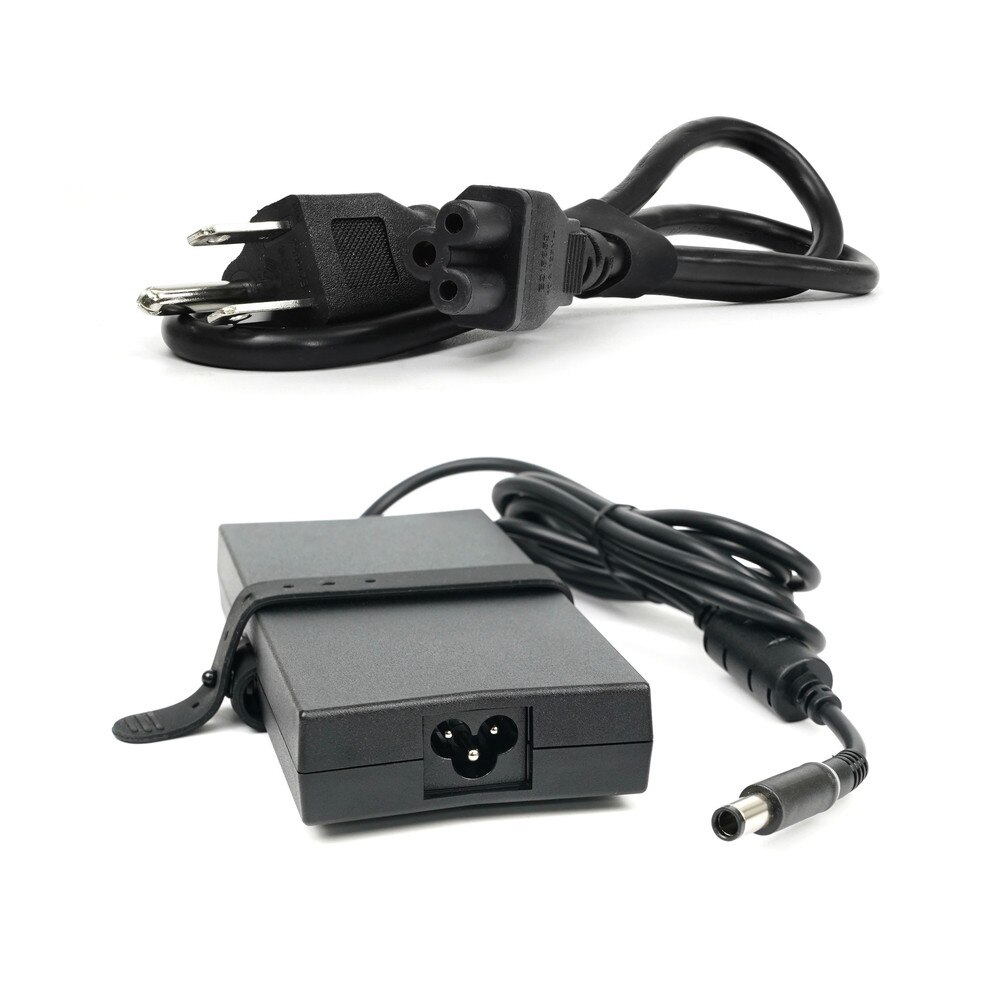

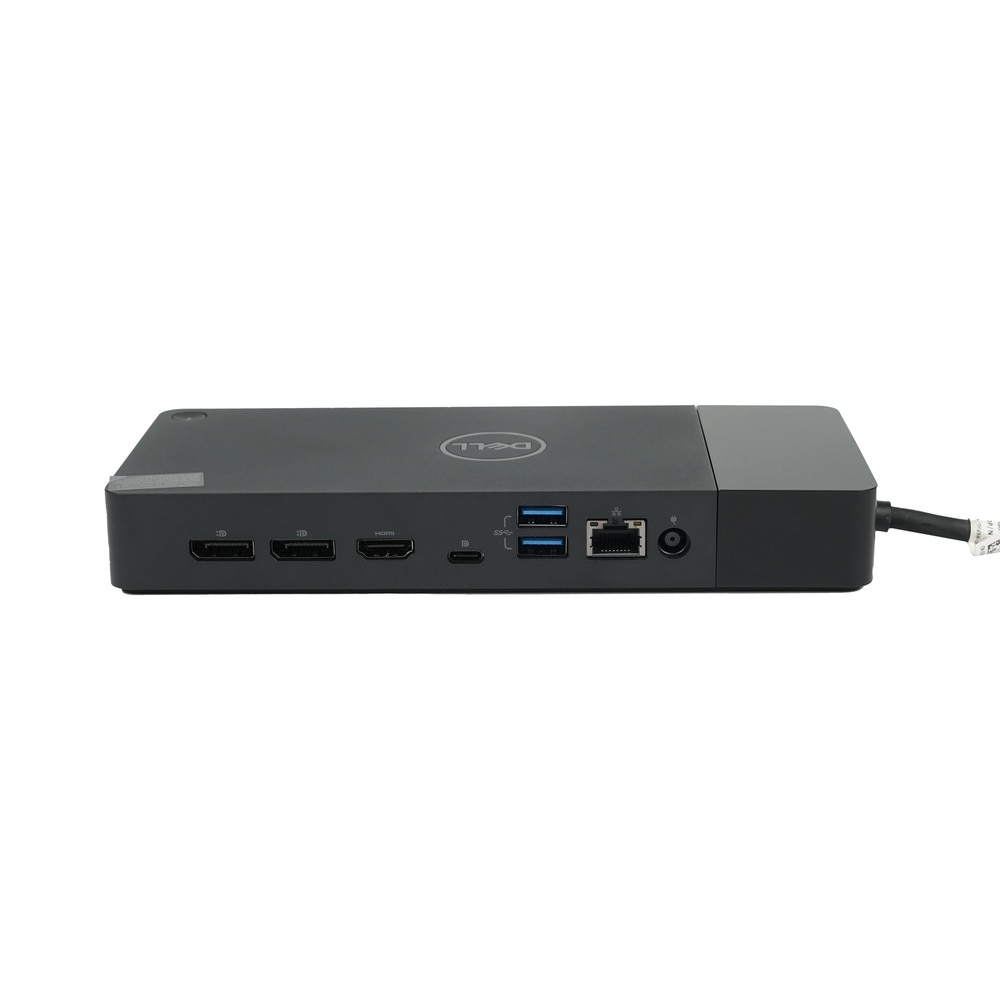

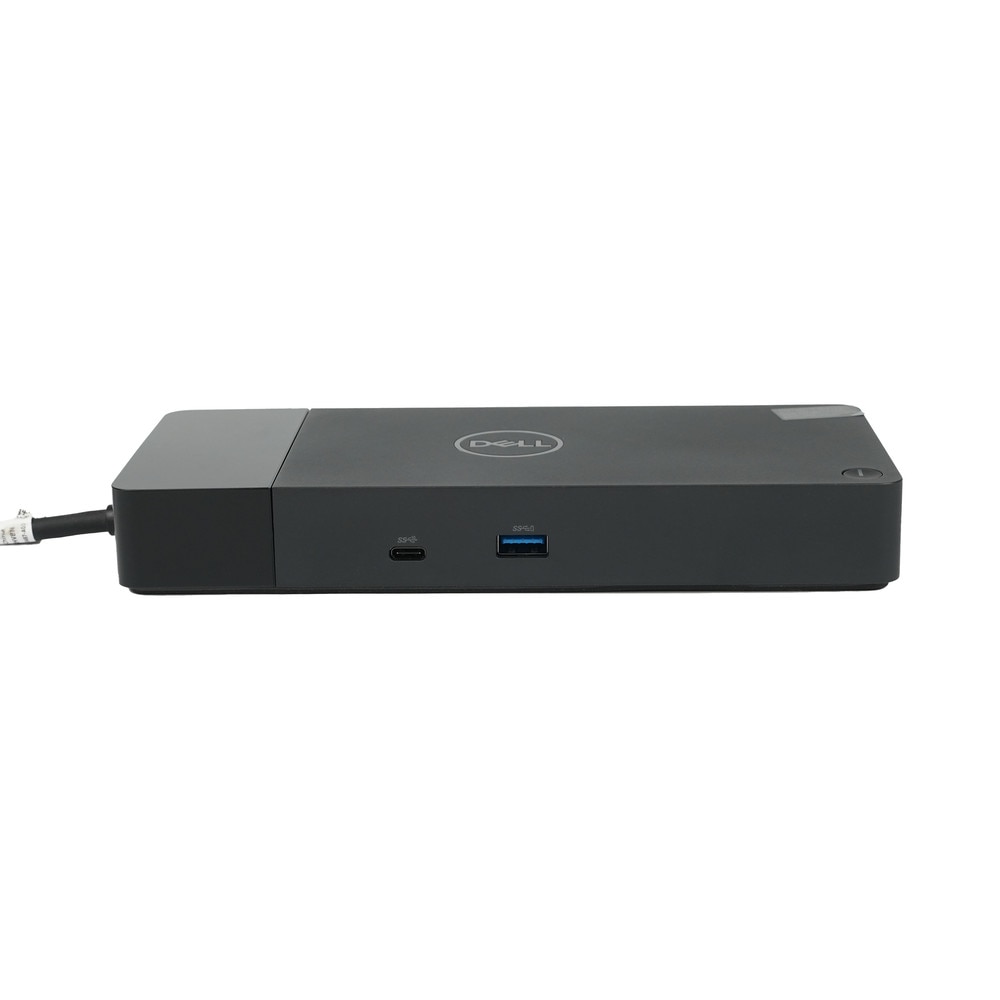

The Dell WD19S130W USB Type-C Docking Station with 130W Power Adapter has a single USB Type-C input and an included cable that provides 130W Power Delivery with compatible Dell laptops and 90W to non-Dell systems when the included 130W AC power adapter is connected, allowing you to use your notebook while charging it. When connected, this hub provides three USB 3.1 Gen 1 Type-A and two Type-C ports, allowing you to connect to a variety of compatible devices. Two DisplayPort and one HDMI inputs allow you to connect a variety of displays to the WD19S while supporting a maximum resolution of 3840 x 2160 at a refresh rate of 60 Hz, providing a crisp and fluid image. A single RJ45 Gigabit Ethernet connector is also included, providing an upgraded hardwired connection suited for uploading and downloading files. While this device can be mounted in a variety of configurations using extra mounting hardware, the Noble Wedge and Kensington slots provide a security solution, preventing theft when connected with various locking mechanisms.
Key Features of Dell WD19S130W USB Type-C Docking Station with 130W Power Adapter
Industry Standard Compatibility
Dell Commercial Docks provide the most compatibility with Dell Commercial laptops. The WD19S is also compatible with notebooks from other manufacturers, such as HP and Lenovo, that support industry USB-C docking standards.
Power your day
Dell ExpressCharge charges up to 80% of your device in one hour, making it the most effective way to manage your workday.
Energize your workload
Get more done in less time with Dell ExpressCharge Boost, a feature that charges your device by up to 35% in just 20 minutes.
Unmatched charging
Increase your power delivery and charging speed with a dock that supplies up to 90W of electricity and a 130W power converter.
Mix and match
With our most adaptable dock, you can evolve as your needs change. The future-proof architecture allows you to easily swap out modules if you need to make field replacements or upgrade your systems.
Ultimate connectivity
USB-C connectivity makes it easier than ever to transfer power, data, audio, and video in a single handy cable, regardless of system.
Clean and clutter-free
Stay busy by installing your dock beneath your display or under your desk with the optional, secure VESA mount, which provides complete versatility with a one-meter cable built in.
Information in a flash
With data transfer rates of up to 10Gbps, you can stay productive while connected to all of your devices.
Smooth and seamless
Work without interruptions by utilizing a single firmware on our most manageable docks ever. You can also upgrade your firmware without rebooting your dock using Dell Client Command Suite and Microsoft System Center Configuration Manager.
Secure manageability
With MAC Address pass-through and remote port-disablement, you can keep your data safe. Plus, with features like PXE Boot, Wake-on-LAN, and more, it's easier than ever to be working while controlling your dock.
Specifications
Specifications for Dell WD19S130W USB Type-C Docking Station with 130W Power Adapter | Like New
| Manufacturer | Dell |
| Manufacturer Part Number | WD19S130W |
| Product Name | Dell WD19S130W USB Type-C Docking Station with 130W Power Adapter |
| Product Type | Docking Station |
| Width | 8.1 in |
| Depth | 3.5 in |
| Height | 1.1 in |
| Weight | 20.63 oz |
| Enclosure Color | Black |
| Max Resolution Details | 3840 x 2160 - 60 Hz |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Interfaces | 2 x display / video - DisplayPort - 20 pin DisplayPort ¦ 1 x display / video - HDMI - 19 pin HDMI Type A ¦ 1 x USB-C ¦ 3 x USB 3.1 Gen 1 - 9 pin USB Type A ¦ 2 x USB-C 3.1 Gen 2 ¦ 1 x network - Ethernet 1000 - RJ-45 |
| Cables Included | 1 x USB-C cable - 2.6 ft |
| Features | Security lock slot (cable lock sold separately), 130W power delivery to Dell systems, 90W power delivery to non-Dell systems, wireless vPro |
| Security Slot Type | Noble Wedge security slot / Kensington security slot |
| Power Device | Power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Provided | 130 Watt |
| OS Required | Red Hat Enterprise Linux, Windows 10, Ubuntu 18.04 |
| Bundled Services | 3 years Basic Hardware Service with Advanced Exchange |
| Designed For | Dell Latitude 3310 2-in-1, 3320, 3410, 3420, 3510, 3520, 5310, 5310 2-in-1, 5320, 5410, 5510, 5520, 7320, 7320 Detachable, 7410 Chromebook Enterprise ¦ Dell XPS 13 9310 |
User Guides
Frequently Asked Questions
Dell USB Type-C Docking Station with 130W Power Adapter (WD19S130W)
Frequently Asked Questions (FAQ's)
What devices are compatible with the Dell WD19S130W docking station?
What is the total power delivery output of the WD19S130W?
Can I use the WD19S130W with non-Dell laptops?
How many external displays does it support?
Does the dock require driver installation?
What ports are available on the WD19S130W?
Is the dock hot-swappable?
Can I charge my phone or other devices via USB ports?
Does it support dual monitors on MacBooks?
Is this dock Thunderbolt compatible?
What operating systems are supported?
Can I update the firmware of the docking station?
Does it support Wake-on-LAN and PXE Boot?
Can it power external peripherals like external hard drives?
Is the dock portable?
What is the difference between WD19S and WD19?
Does it support daisy chaining of monitors?
Will it work if connected via a USB-C hub or adapter?
Can I use the dock with a USB-C to USB-A adapter?
Will the dock work if my laptop doesn’t support USB-C charging?
