Crown XLS 2502 DriveCore Power Amplifier (NXLS2502-0-US) | Like New
SKU: NXLS2502-0-US-LN
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us
Same Day Shipping - Arrives in 3-5 Business Days 30-day Returns Overview
Overview of Crown XLS 2502 DriveCore Power Amplifier (NXLS2502-0-US) | New
The Crown XLS 2502 DriveCore Power Amplifier (NXLS2502-0-US) is a two-channel amplifier designed for professional audio applications, offering a versatile and efficient solution for powering speakers. Here's an overview of its key features and best uses:
Features:
- DriveCore Technology: Crown's patented technology ensures high efficiency and low weight, with a Class D amplifier design.
- Power Output: 775W per channel at 4Ω, and 2400W bridged at 4Ω with tons of headroom for clean, undistorted sound.
- DSP Capabilities: Higher DSP capabilities include bandpass filters per channel for precise crossover tuning, loudspeaker matching, and system EQ.
- Flexibility: Can power 2-, 4-, or 8-ohm loads and can be bridged for 4-ohm or 8-ohm mono operation.
- LCD Display: A three times larger LCD display for monitoring parameters.
- Selectable Input Sensitivity: 1.4Vrms and .775Vrms options for driving the amplifier at full power.
- Sleep Mode: Automatically shuts down the unit after a specified time without pressing a button.
- Security Settings: Disables menu buttons for safety.
- System Reset: Allows factory settings to be restored.
- Peak-x Limiters: Protect speakers while providing maximum output.
- Input Options: XLR, 1/4", and RCA inputs for flexibility.
- Integrated PureBand Crossover System: Enhances performance and control.
- Efficient Forced-Air Fans: Prevent excessive thermal buildup.
- Portable PA Systems: The XLS 2502 is recommended for portable PA systems due to its lightweight design and efficient power delivery.
- Live Sound: Its high power output and versatile load handling make it suitable for live sound reinforcement in various venues.
- Installations: The amplifier's ability to power different loads and its DSP capabilities make it a good choice for fixed installations.
- Studio Monitoring: The XLS 2502 can be used for studio monitoring, especially when paired with speakers that require high power and precise crossover tuning.
Specifications
Specifications for Crown XLS 2502 DriveCore Power Amplifier (NXLS2502-0-US) | New
| Brand | Crown |
| Sensitivity | 1.4Vrms |
| Frequency Response | +0dB, -1dB |
| Signal to Noise | >103dB (at .775Vrms, 6dB lower) |
| Intermodulation Distortion | < 0.3% |
| Damping Factor | > 200 |
| THD | < 0.5% |
| Crosstalk | At 1kHz > 85dB, At 20kHz > 55dB |
| Dimensions | 19" x 3.5" x 10.7" |
| Weight | 10.8 lbs |
User Guides
Frequently Asked Questions
Crown XLS 2502 DriveCore Power Amplifier (NXLS2502-0-US)
Frequently Asked Questions (FAQ's)
What is the power output of the Crown XLS 2502? The Crown XLS 2502 delivers 775W per channel at 8 ohms, 1200W per channel at 4 ohms, and 2400W bridged at 4 ohms.
What is DriveCore technology in the Crown XLS 2502? DriveCore technology is a patented Crown innovation that integrates the amplifier's drive stage into the power supply, resulting in highly efficient performance with reduced heat generation and improved reliability.
Does the Crown XLS 2502 have built-in DSP (Digital Signal Processing)? Yes, the Crown XLS 2502 features built-in DSP, including a high-pass filter, low-pass filter, EQ, delay, and crossover.
What is the weight of the Crown XLS 2502 amplifier? The Crown XLS 2502 weighs approximately 10.8 lbs (4.9 kg).
Can the Crown XLS 2502 be used in bridge-mono mode? Yes, the Crown XLS 2502 can operate in bridge-mono mode, providing up to 2400 watts at 4 ohms.
What types of inputs are available on the Crown XLS 2502? The amplifier has balanced XLR, 1/4" TRS, and RCA inputs.
What kind of outputs does the Crown XLS 2502 offer? The amplifier features binding post and Speakon outputs.
Is the Crown XLS 2502 amplifier fan-cooled? Yes, the Crown XLS 2502 has a variable-speed fan that adjusts cooling based on temperature to ensure quiet operation.
What is the frequency response of the Crown XLS 2502? The frequency response is 20 Hz to 20 kHz, +0/-1 dB.
Does the Crown XLS 2502 have protection features? Yes, the amplifier includes protection against short circuits, thermal overload, and more to safeguard both the amp and connected speakers.
What is the total harmonic distortion (THD) of the Crown XLS 2502? The THD is less than 0.5% at rated power across the full frequency range.
Can the Crown XLS 2502 amplifier be rack-mounted? Yes, the amplifier is designed to fit standard 19" racks and takes up 2U of rack space.
What is the signal-to-noise ratio of the Crown XLS 2502? The signal-to-noise ratio is greater than 103 dB (A-weighted).
Is the Crown XLS 2502 amplifier suitable for home audio use? Yes, while it's commonly used in professional settings, it can also be used in home audio systems for high-performance amplification.

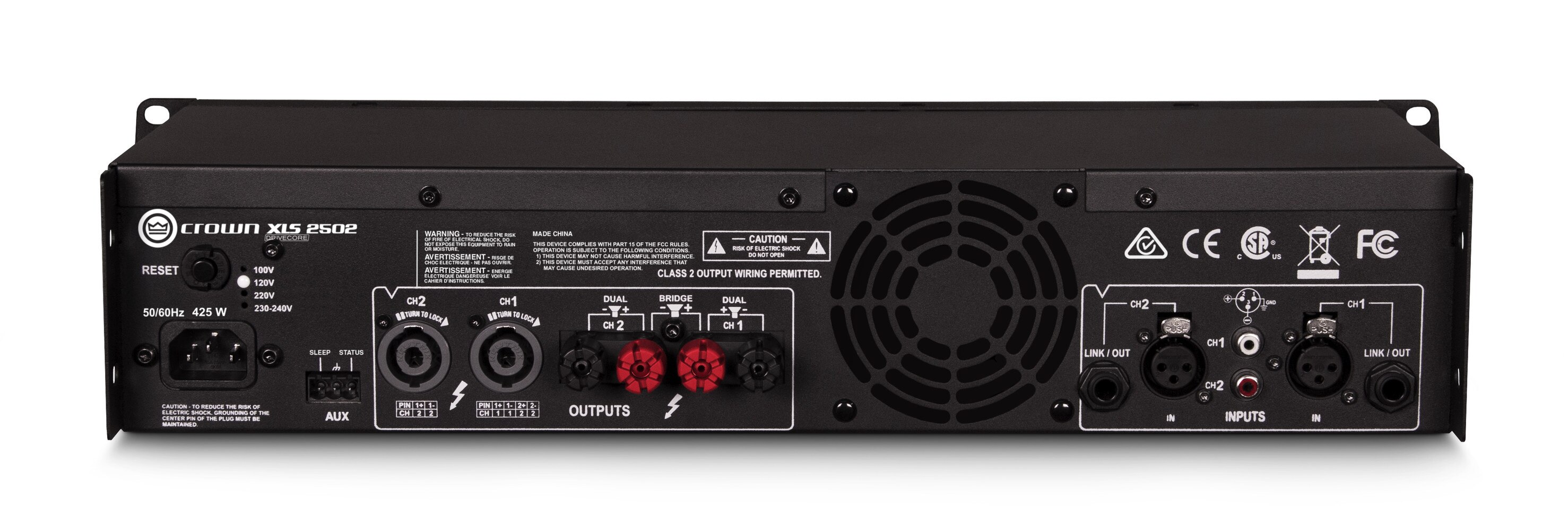

How do I connect the Crown XLS 2502 to speakers? You can connect speakers using the Speakon connectors or binding posts on the rear panel.
What is the maximum input level for the Crown XLS 2502?
The maximum input level is +20 dBu.
Does the Crown XLS 2502 have a sleep mode? Yes, the amplifier has a sleep mode that reduces power consumption when the amplifier is not in use.
What is the voltage operating range of the Crown XLS 2502? The amplifier operates on 100V-240V, 50/60 Hz, making it suitable for international use.
How do I reset the Crown XLS 2502 to factory settings? To reset the amplifier, hold the "Menu" and "Next" buttons simultaneously while powering on the amplifier until the display reads "RESET."
