Corsair SF1000L Fully Modular SFX Power Supply (CP-9020246-NA) | New
SKU: CP-9020246-NA-N
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us
Same Day Shipping - Arrives in 3-5 Business Days 30-day Returns Overview
Overview of Corsair SF1000L Fully Modular SFX Power Supply (CP-9020246-NA) | New
The Corsair SF1000L Fully Modular SFX Power Supply (CP-9020246-NA) with ATX 3.0 and PCIe 5.0 compliance provides the continuous high wattages required by today's PC hardware, all in a compact SFX-L form factor. Micro-fit PSU connectors and fully modular, flexible cables enable even the most powerful systems to be constructed neatly and compactly. At low loads, a 120mm rifle bearing PWM fan runs in Zero RPM mode, resulting in exceptionally quiet performance. Japanese 105°C electrolytic capacitors are long-lasting and dependable, with a seven-year warranty. Modern Standby sleep mode wakes your computer up faster and uses less power. The SF-L Series is your small form X-factor, delivering high-wattage, 80 PLUS Gold power in a compact package.
Features of the Corsair SF1000L Fully Modular SFX Power Supply
Compact SFX-L Form Factor
SF-L Series power supplies are ideal for small form factor (SFF) PCs that require a lot of power for their size.
ATX 3.0 Certified
The ATX 3.0 standard requires high reliability and power efficiency. While many CORSAIR power supplies meet these specifications, the SF-L Series is officially certified for ATX 3.0 compliance.
The PCIe 5.0 12VHPWR GPU cable is included for use with modern graphics cards like the NVIDIA® GeForce RTX™ 40 Series.

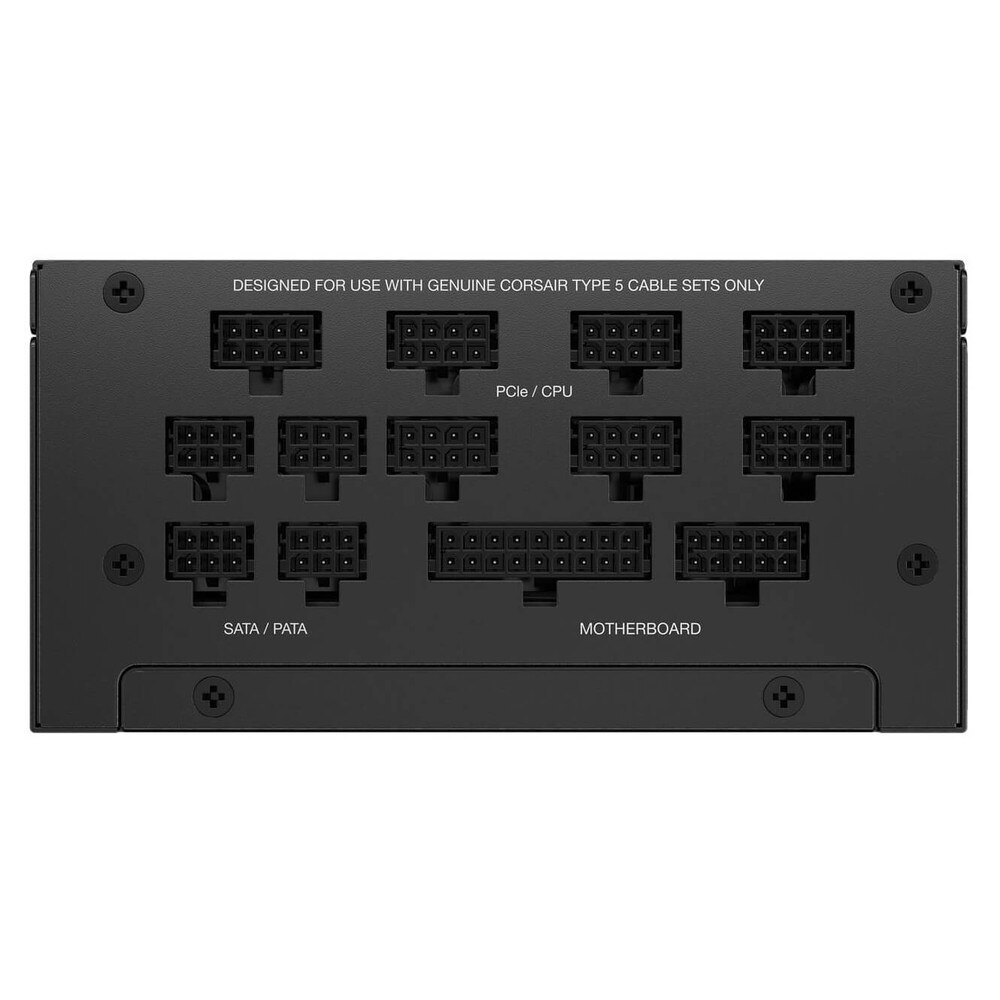

Corsair Type 5 Micro-fit Connectors
Fully modular, CORSAIR Type 5 Gen 1 micro-fit PSU cables allow you to connect only the cables your system requires while taking up less space.

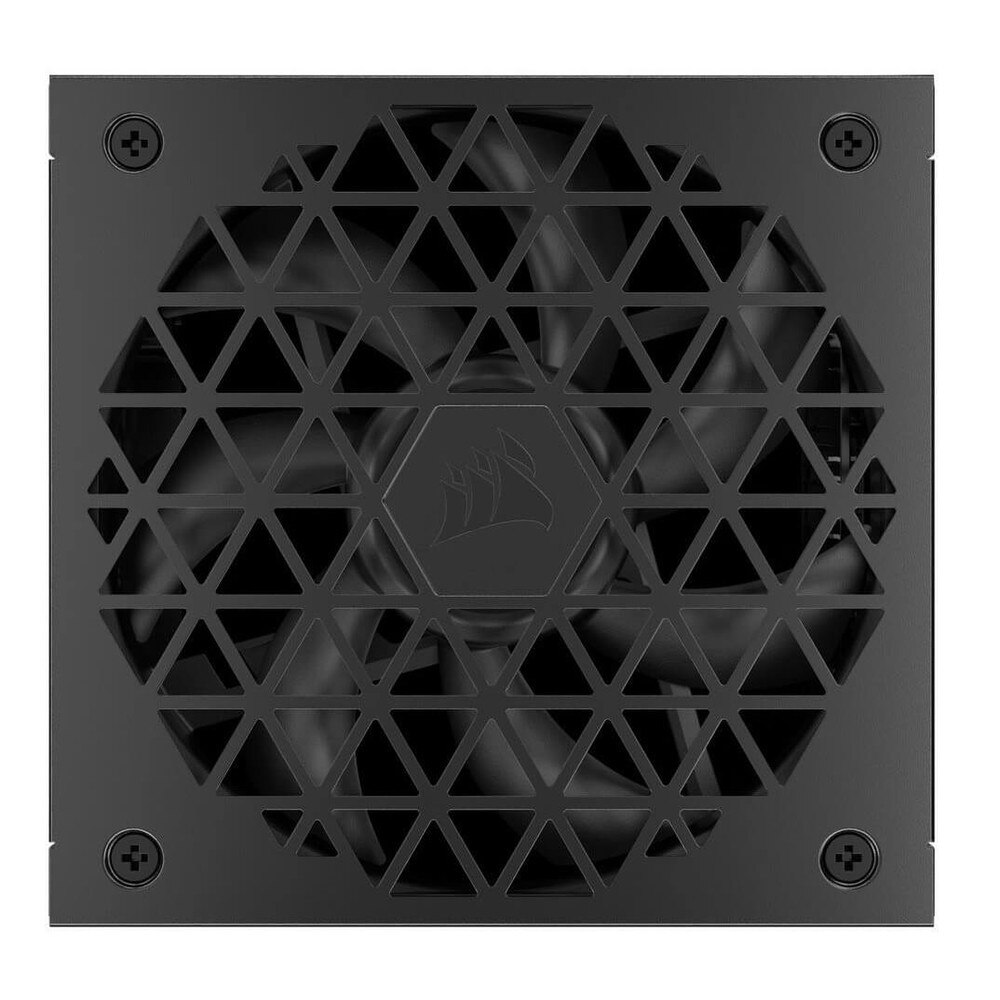

120mm Fan with Zero RPM Mode Support
A powerful and quiet 120mm rifle bearing fan cools your PSU, and Zero RPM mode ensures it remains virtually silent when not under load.
80 PLUS GOLD Certified
Consistent power output at up to 90% efficiency, and Cybenetics-certified for lower power consumption, less noise, and cooler temperatures.
105°C-RATED Capacitors
Designed with 100% industrial-grade, 105°C-rated Japanese primary electrolytic capacitors for consistent power and dependability.
40°C Maximum Operating Temperature
Capable of producing 100% output at temperatures up to 40°C, ensuring consistent power even under high-stress conditions.
Specifications
Specifications of Corsair SF1000L Fully Modular SFX Power Supply (CP-9020246-NA) | New
| Manufacturer | Corsair |
| Manufacturer Part Number | CP-9020246-NA |
| Product Name | Corsair SF1000L Fully Modular SFX Power Supply |
| Product Type | Power Supply |
Total Connectors | 1 x 24-Pin ATX Motherboard |
| 2 x 4+4-Pin EPS CPU | |
| 1 x 16-Pin PCIe (12VHPWR) | |
| 5 x 8-Pin PCIe | |
| 8 x 15-Pin SATA | |
| 3 x 4-Pin Peripheral / Molex | |
| Cable Design | Modular |
| PCIe Connector Distances | 15.7" / 400 mm |
| 19.7" / 500 mm | |
| SATA Connector Distances | 3.9" / 100 mm |
| 8.5" / 215 mm | |
| 13" / 330 mm | |
| 17.5" / 445 mm | |
| Peripheral Connector Distances | 3.9" / 100 mm |
| 8.5" / 215 mm | |
| 13" / 330 mm | |
| ATX Connector Distance | 11.8" / 300 mm |
| EPS Connector Distances | 15.7" / 400 mm |
| Total Wattage | 1000 W |
| Number of +12 V Rails | 1 |
| Combined Power for +12 V | 1000 W |
| Max Load for +12 V | 83.3 A |
| Combined Power for +3.3/+5 V | 150 W |
| Max Load for +3.3 V | 20 A |
| Max Load for +5 V | 20 A |
| Max Power for +5 Vsb | 15 W |
| Max Load for +5 Vsb | 0.125 |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Efficiency Rating | 80 PLUS Gold |
| Active Power Factor Correction | No |
| Fan Size | 120 mm |
| Bearing Type | Fluid Dynamic Bearings (FDB) |
| Fan Life Expectancy | 100,000 Hours |
| Form Factor | SFX-L |
| Compliance | ATX 12 V v3.0 |
| Dimensions | 4.9 x 2.5 x 5.1" / 125 x 63.5 x 130 mm |
User Guides
Frequently Asked Questions
Corsair SF1000L Fully Modular SFX Power Supply (CP-9020246-NA)
Frequently Asked Questions (FAQ's)
What is the form factor of the Corsair SF1000L? The Corsair SF1000L has an SFX form factor.
What is the power output of the SF1000L? The SF1000L provides 1000 watts of power.
Is the SF1000L fully modular? Yes, the SF1000L is a fully modular power supply.
What type of cables are included with the SF1000L? The SF1000L includes fully modular, sleeved cables.
What is the efficiency rating of the SF1000L? The SF1000L has an 80 PLUS Platinum efficiency rating.
Does the SF1000L support ATX motherboards? Yes, with the included SFX-to-ATX bracket, the SF1000L can be used with ATX motherboards.
What kind of cooling system does the SF1000L use? The SF1000L uses a low-noise, 120mm fan with Zero RPM mode.
What protections are included in the SF1000L? The SF1000L includes over-voltage, under-voltage, short circuit, over-power, and over-temperature protections.
Is the fan in the SF1000L replaceable? No, the fan is not user-replaceable.
Can the SF1000L be used in a standard ATX case? Yes, with the included SFX-to-ATX bracket, it can be installed in a standard ATX case.
What are the dimensions of the SF1000L? The dimensions are approximately 100mm x 63mm x 125mm (W x H x D).
Does the SF1000L support multi-GPU configurations? Yes, it supports multi-GPU configurations.
What kind of capacitors are used in the SF1000L? The SF1000L uses 100% Japanese 105°C capacitors.
Is the SF1000L compatible with all SFX cases? Yes, the SF1000L is designed to be compatible with all standard SFX cases.
What input voltage range does the SF1000L support? The SF1000L supports a universal input voltage range of 100-240V.
Is the SF1000L suitable for high-performance gaming PCs? Yes, the SF1000L is suitable for high-performance gaming PCs.
How many PCIe connectors does the SF1000L have? The SF1000L comes with four PCIe 8-pin connectors.
What is the MTBF (Mean Time Between Failures) for the SF1000L? The MTBF is 100,000 hours.
Does the SF1000L come with a power cord? Yes, the SF1000L includes a power cord.
Ratings & Reviews
1 review
Works well
by Hunter F.
Works well and as it should. Low noise and no complaints.
