  • Corsair RMx Series RM1000x 1000 Watt 80 PLUS Gold Fully Modular ATX Power Supply (CP-9020201-NA) | New

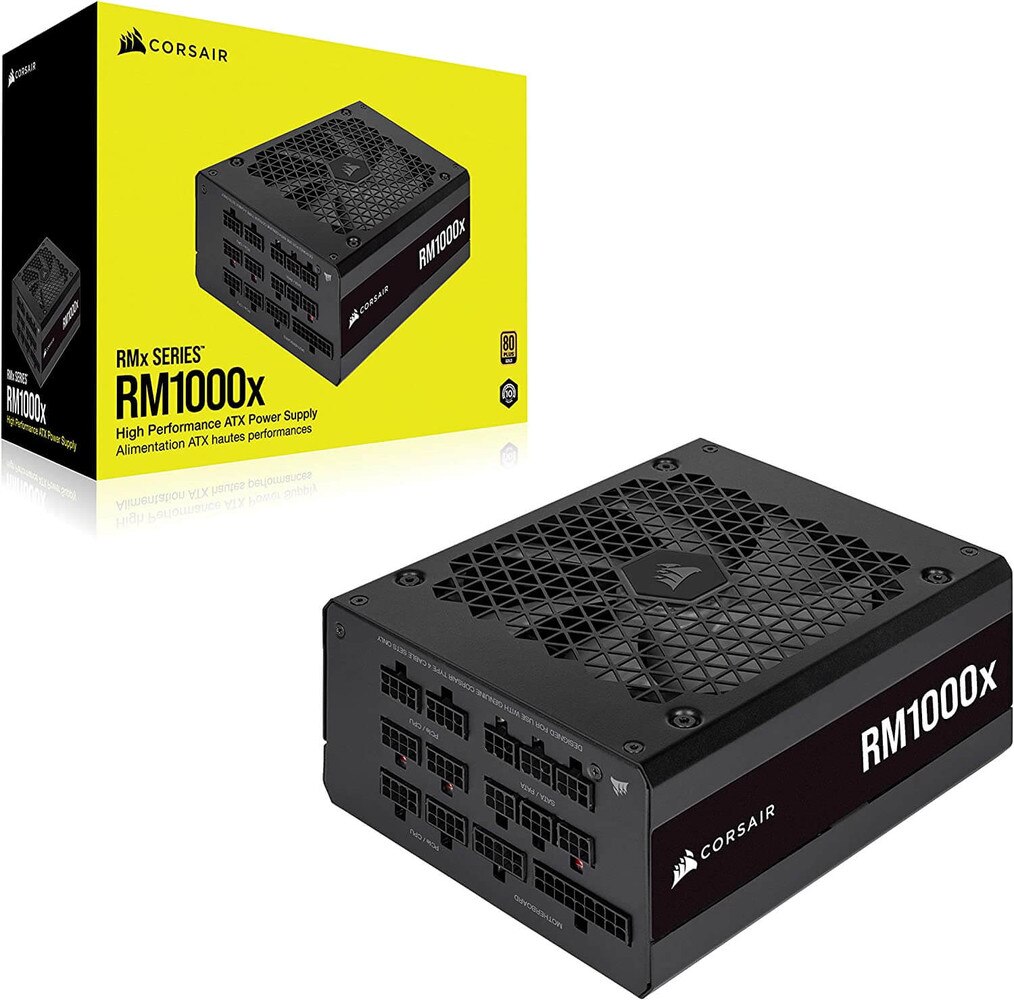

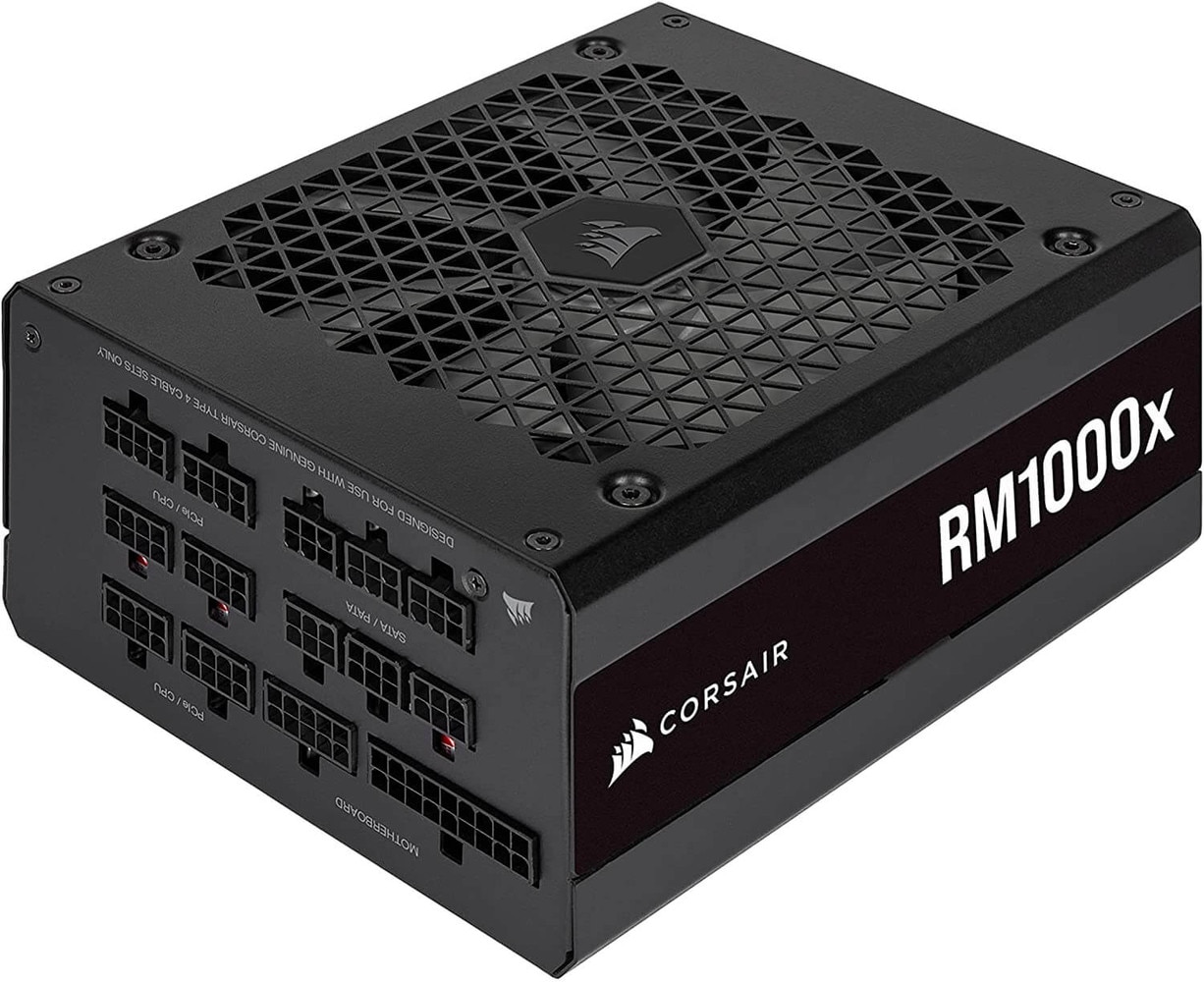

Corsair RMx Series RM1000x 1000 Watt 80 PLUS Gold Fully Modular ATX Power Supply (CP-9020201-NA) | New

Corsair RMx Series RM1000x 1000 Watt 80 PLUS Gold Fully Modular ATX Power Supply (CP-9020201-NA) | New

SKU: CP-9020201-NA-N
(0)No Reviews yet
Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns
$164.99 $164.99
Available Quantity:
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

Corsair CP-9020201-NA RMX Series (2021), RM1000x, 1000 Watts, Gold, Fully Modular PSU



Overview



The Corsair CP-9020201-NA RMX Series (2021), RM1000x, 1000 Watts, Gold, Fully Modular PSU are built with the highest quality components to deliver 80 PLUS Gold efficient power to your PC. RM1000x PSUs use only Japanese 105°C capacitors, for long life and reliability backed by a ten-year warranty. A 135mm magnetic levitation bearing fan ensures high performance coupled with low noise. Wake your computer faster and consume less power with support for Modern Standby sleep mode. Zero RPM mode ensures virtually silent operation at low and medium loads. Fully modular cables make PC builds and upgrades easy, as you need only connect the cables your system requires. An RM1000x PSU is quiet, efficient and dependable enough to power your high-performance PC for years to come.


Features


  • Fully modular, so you only connect the cables that your system needs.
  • A 135mm ML fan utilizes a magnetic levitation bearing and custom engineered rotors for high performance, low noise, and superior reliability.
  • EPS12V connector for compatibility with modern graphics cards and motherboards.
  • 100% Industrial-grade, 105°C rated Japanese capacitors ensure unwavering power and reliability.
  • Supports Modern Standby sleep mode for extremely fast wake-from-sleep times and better low-load efficiency.
  • Zero RPM fan mode for near-silent operation at low to medium loads.
  • Resonant LLC topology with DC-to-DC conversion provides clean, consistent power, reduces coil whine for quieter operation, and enables use of more energy efficient sleep states.

Specifications

Corsair CP-9020201-NA RMX Series (2021), RM1000x, 1000 Watts, Gold, Fully Modular PSU Specifications



Specifications


AC Input100–240V
Input Current12A-6A
Frequency47~63Hz
Adjustable Single/Multi 12V RailNo
ATX Connector1
ATX12V Version2.53
EPS12V Connector3
EPS12V VersionV2.92
PCIe Connector6
SATA Connector14
Continuous Output Rated Temperature50°C
Continuous Power1000 Watts
MTBF Hours100,000 hours
Multi-GPU ReadyYes
80 PLUS Efficiency80 PLUS Gold Certified
Cable TypeSleeved and flat, black cables
ModularFully Modular
Special TechnologyMagnetic Levitation Fan
Fan Size135mm
Fan Bearing TechnologyMagnetic Levitation Bearing
Zero RPM ModeYes
ProtectionsOVP (Over Voltage)



UVP (Under Voltage)

SCP (Short Circuit)

OTP (Over Temp)

OPP (Over Power)

iCUE CompatibilityNo
PSU Form FactorATX
Weight2 Kg

Frequently Asked Questions

Corsair RMx Series RM1000x 1000 Watt 80 PLUS Gold Fully Modular ATX Power Supply (CP-9020201-NA)
Frequently Asked Questions (FAQ's)



What is the total power output of the RM1000x?
  • The RM1000x offers a maximum continuous output of 1000 watts, making it ideal for high-performance gaming PCs and workstations.
    • What is the efficiency rating of the RM1000x?
  • It has an 80 PLUS Gold certification, which guarantees up to 90% efficiency at average loads while decreasing heat and energy consumption.
    • Is the RM1000x fully modular?
  • Yes, it's a fully modular power supply, which means you may connect only the connections you need for cleaner construction and better ventilation.
    • What type of cooling does the RM1000x use?
  • It employs a 140mm rifle-bearing fan with Zero RPM mode to provide quiet operation at low and medium loads.
    • Does the RM1000x support modern graphics cards?
  • Yes, it has several PCIe 8-pin (6+2) ports that support high-end GPUs such as the NVIDIA RTX 40 series and the AMD Radeon RX 7000 series.
    • What is the input voltage range?
  • The unit has a wide input voltage range of 100V to 240V, making it universally compatible.
    • Is the RM1000x compatible with ATX 3.0?
  • This specific model (CP-9020201-NA) adheres to the ATX 2.x standard yet can still power contemporary GPUs with proper wiring.
    • What protections does the RM1000x offer?
  • It has several protections: over voltage (OVP), under voltage (UVP), over power (OPP), over current (OCP), short circuit (SCP), and over temperature (OTP).
    • How quiet is the RM1000x during operation?
  • Under low to moderate loads, the fan fully stops for silent operation; even at larger loads, it stays very quiet due to its designed fan curve.
    • What cables are included with the RM1000x?
  • It has ATX 24-pin, EPS/CPU 8-pin (4+4), PCIe 8-pin (6+2), SATA power, and peripheral/Molex cables.
    • Can I use the RM1000x for overclocking?
  • Yes, with its high wattage, consistent voltage management, and high-quality components, it is suitable for overclocked CPUs and GPUs.
    • Is the RM1000x suitable for multi-GPU setups?
  • Yes, it supports NVIDIA SLI and AMD CrossFire configurations that have enough PCIe connectors.
    • What are the dimensions of the RM1000x?
  • The PSU measures approximately 160mm (L) x 150mm (W) x 86mm (H), fitting most ATX cases.
    • Does the RM1000x have a Zero RPM fan mode?
  • Yes, the fan stays off at low loads, reducing noise and wear.
    • What type of capacitors are used?
  • It makes use of 100% Japanese electrolytic capacitors rated at 105°C for increased longevity and performance.
    • Is the RM1000x compatible with all motherboards?
  • Yes, it is compatible with all modern ATX, Micro-ATX, and Mini-ITX motherboards, as long as your case accepts a standard ATX power supply.
    • Can I mount the RM1000x in any orientation?
  • Yes, it can be fitted with the fan facing up or down, depending on the airflow architecture of your case.
    • What is the weight of the RM1000x?
  • It weighs around 1.7 kg (3.75 lbs) without cables.
    • Is the RM1000x ready for high-end gaming PCs and workstations?
  • Yes, it is intended for demanding systems with multiple GPUs, high-core CPUs, and numerous peripherals.
    • Does the RM1000x come with sleeved cables?
  • No, it comes with standard black, flat modular cables for easy cable management.
