Cisco Meraki MX68W Wireless Network Security/Firewall (MX68W-HW) (Unclaimed) | New
SKU: MX68W-HW-N
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us
Same Day Shipping - Arrives in 3-5 Business Days 30-day Returns Overview

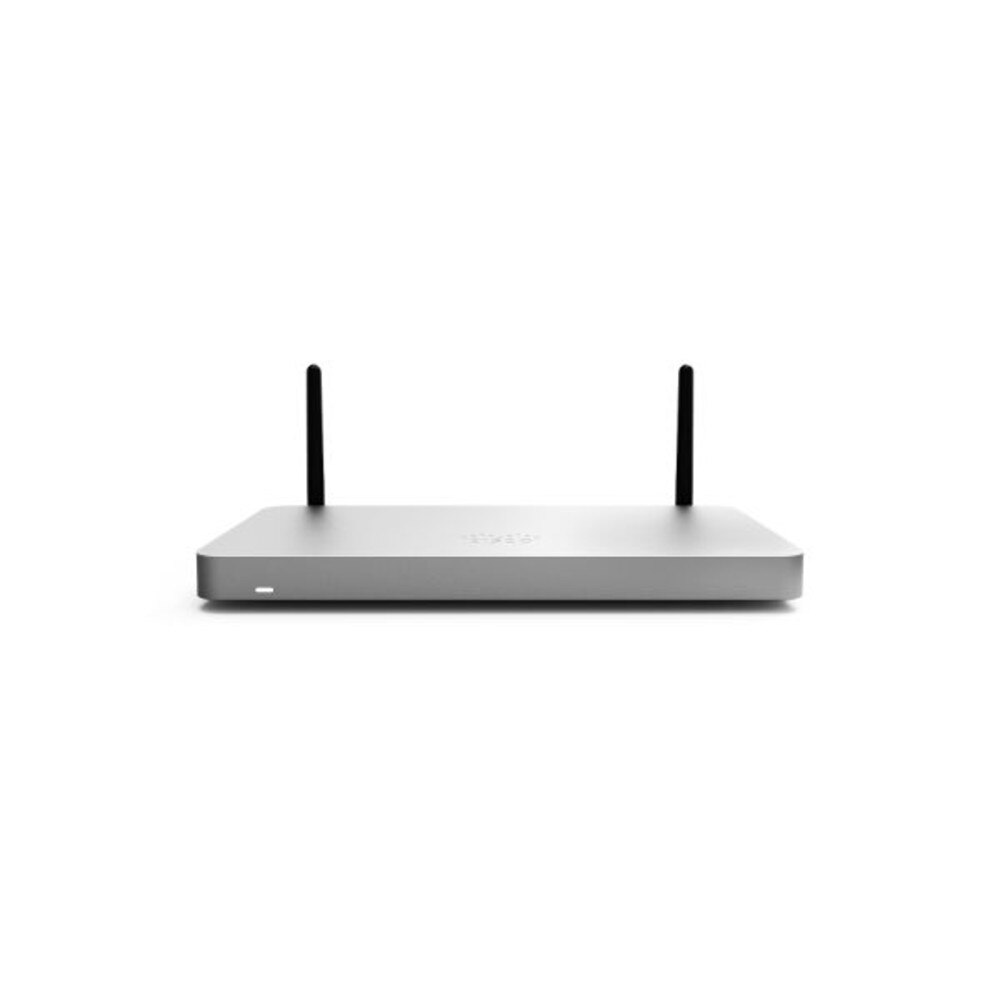

Overview of Cisco Meraki MX68W Wireless Network Security/Firewall (MX68W-HW) | New
The Cisco Meraki MX68W Wireless Network Security/Firewall (MX68W-HW) is ideal for organizations considering a Unified Threat Management (UTM) solution, for small branch networks. Since the MX is 100% cloud managed, installation and remote management is simple. The MX has a comprehensive suite of network services, eliminating the need for multiple appliances. These services include SD-WAN capabilities, application-based firewalling, content filtering*, web search filtering, SNORT® based intrusion detection and prevention*, Cisco Advanced Malware Protection (AMP)*, 4G cellular failover and more.
Key Features of Cisco Meraki MX68W Wireless Network Security/Firewall
Identity-Based Firewall
Assigns firewall and traffic shaping rules, VLAN tags, and bandwidth limitations automatically to enforce the appropriate policies for each user class.
Auto VPN
Securely connects branch locations utilizing mesh or hub-and-spoke topologies. Provides convenient VPN connection to Amazon Web Services and Microsoft Azure.
Advanced Malware Protection
Protect your network from malware with the most recent threat intelligence, and discover previously undisclosed hazardous files with retrospective detection.
Application Visibility & Control
Determine which programs are being used, then prioritize vital apps while restricting recreational apps.
Intrusion Prevention
Safeguards important network resources against the most recent security threats and vulnerabilities.
Content Filtering
Block unwanted web content in 70+ categories and use cloud lookups to filter billions of URLs.
High Availability & Failover
Multiple uplinks, warm spare failover, and self-healing VPN ensure device and connection integrity.
Centralized Management
Manage campus-wide WiFi deployments and scattered multi-site networks from a single point of control.
Specifications
Specification for Cisco Meraki MX68W Wireless Network Security/Firewall (MX68W-HW) | New
| Manufacturer | Cisco |
| Manufacturer Part Number | MX68W-HW |
| Product Name | Cisco Meraki MX68W Wireless Network Security/Firewall |
| Product Type | Security and Firewall |
Built-in Devices | Modem |
Width | 11.2 in |
Depth | 7 in |
Height | 1.1 in |
Weight | 2.6 lbs |
Form Factor | Desktop |
Ports Qty | 10 |
Connectivity Technology | Wireless, wired |
Data Transfer Rate | 1.3 Gbps |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
Network / Transport Protocol | L2TP, IPSec, PPPoE, DHCP |
Routing Protocol | Static IP routing, MPLS |
Remote Management Protocol | HTTP |
Frequency Band | 2.4 GHz, 5 GHz |
Performance | Firewall throughput: 450 Mbps ¦ VPN throughput: 200 Mbps ¦ Advanced security throughput: 300 Mbps |
Capacity | Maximum number of users: 50 ¦ Maximum number of configured SSIDs: 4 |
Features | Firewall protection, DHCP support, NAT support, load balancing, layer 7 switching, VLAN support, traffic shaping, content filtering, Intrusion Detection System (IDS), Intrusion Prevention System (IPS), firmware upgradable, wall mountable, IPSec Virtual Private Network (VPN), Quality of Service (QoS), MPLS VPN, 3G/4G USB Dongle Support, static routing, 802.1x authentication, Link Aggregation, VPN client, IP Security (IPSec) support, DMZ support |
Encryption Algorithm | WPA, WPA-PSK, WPA2-Enterprise, WEP |
Authentication Method | Radio Service Set ID (SSID) |
Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac |
Antenna | External detachable |
Antenna Qty | 2 |
Directivity | Omni-directional |
Cellular Protocol | LTE |
Interfaces | 2 x 1000Base-T - RJ-45 (WAN) ¦ 8 x 1000Base-T - RJ-45 ¦ 2 x 1000Base-T (PoE+) - RJ-45 ¦ 1 x USB 2.0 - Type A ¦ 2 x antenna - RP-SMA |
Compliant Standards | C-Tick, CB, IC, FCC, RoHS, CISPR, IPsec/IKE |
Power Over Ethernet (PoE) Supported | PoE+ |
Power Device | External power adapter |
Installed Qty | 1 |
Max Supported Qty | 1 |
Power Consumption Operational | 89 Watt |
Power Provided | 100 Watt |
Service & Support | Limited warranty - advance hardware replacement - lifetime - response time: next day |
Min Operating Temperature | 32 °F |
Max Operating Temperature | 104 °F |
Humidity Range Operating | 5 - 95% |
User Guides
Frequently Asked Questions
Cisco Meraki MX68W Wireless Network Security/Firewall
Frequently Asked Questions (FAQ's)
What is the Cisco Meraki MX68W? The Cisco Meraki MX68W is a cloud-managed security and firewall appliance that combines advanced security features with built-in wireless capabilities, ideal for small to medium-sized businesses.
What wireless standards are supported by the MX68W? The MX68W supports Wi-Fi 5 (802.11ac Wave 2) standards, providing high-speed wireless connectivity with both 2.4 GHz and 5 GHz bands.
How do I manage the Meraki MX68W? The Meraki MX68W is managed through the Meraki Dashboard, a cloud-based platform that allows for easy configuration, monitoring, and management from anywhere.
Does the MX68W support VPN connections? Yes, the MX68W supports site-to-site VPNs (Auto VPN) as well as client VPNs for secure remote access.
What kind of security features are built into the MX68W? The MX68W includes advanced security features such as intrusion prevention, content filtering, malware protection, and application-level visibility.
Can I use the MX68W as a wireless access point? Yes, the MX68W functions as a wireless access point, providing Wi-Fi coverage for your office or remote locations.
How many devices can connect to the MX68W's Wi-Fi network? The MX68W can handle hundreds of devices depending on the environment, but it is best suited for small to medium-sized businesses with moderate wireless device density.
What is the difference between the MX68 and MX68W? The MX68W includes built-in Wi-Fi capabilities, whereas the MX68 requires an external wireless access point for Wi-Fi coverage.
Can the Meraki MX68W be used for multi-site networks? Yes, the Meraki MX68W can be deployed in multi-site networks and managed from a single, centralized dashboard for easy configuration and monitoring.
Does the MX68W have load balancing capabilities? Yes, the MX68W supports WAN load balancing, which distributes traffic across multiple WAN connections for improved performance and reliability.
What is the maximum throughput of the MX68W? The MX68W offers a maximum throughput of up to 450 Mbps for VPN traffic and up to 1 Gbps for non-VPN traffic.
Does the Meraki MX68W support Quality of Service (QoS)? Yes, the MX68W supports Quality of Service (QoS) for prioritizing traffic, ensuring critical applications have the bandwidth they need.
Can I monitor the MX68W's performance in real-time? Yes, the Meraki Dashboard provides real-time monitoring, including traffic analysis, security alerts, and system health.
Is the MX68W suitable for home use? While designed for businesses, the MX68W can be used in home offices that require advanced security features and robust wireless networking.
How is firmware updated on the MX68W? Firmware updates for the MX68W are automatically handled through the Meraki Dashboard, ensuring the appliance is always up-to-date with the latest security patches.
Does the Meraki MX68W support VLANs? Yes, the MX68W supports VLANs (Virtual Local Area Networks) to segment network traffic for better performance and security.
What is the maximum number of VPN connections the MX68W can handle? The MX68W can handle up to 50 concurrent client VPN connections and supports multiple site-to-site VPN tunnels for remote connectivity.
Can I use the MX68W with a third-party wireless network? While the MX68W is designed to be used as an integrated wireless device, it can also be configured to work with third-party wireless networks if needed.
Does the MX68W support 4G LTE failover? No, the MX68W does not have built-in 4G LTE failover. However, Meraki offers other models like the MX67C that include cellular failover support.
Is the MX68W compatible with Meraki's other hardware and cloud services? Yes, the MX68W is fully compatible with other Meraki hardware, such as switches, access points, and security cameras, and is managed through the same cloud-based Meraki Dashboard.
