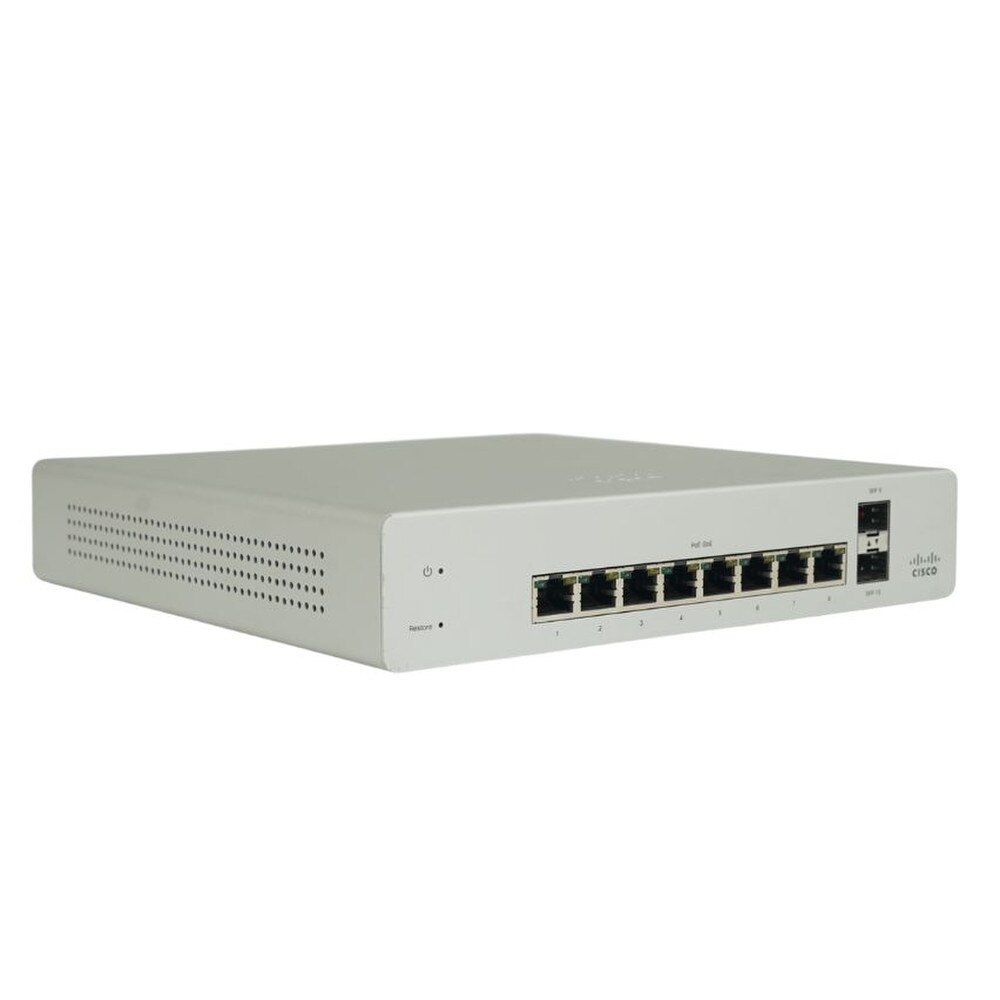

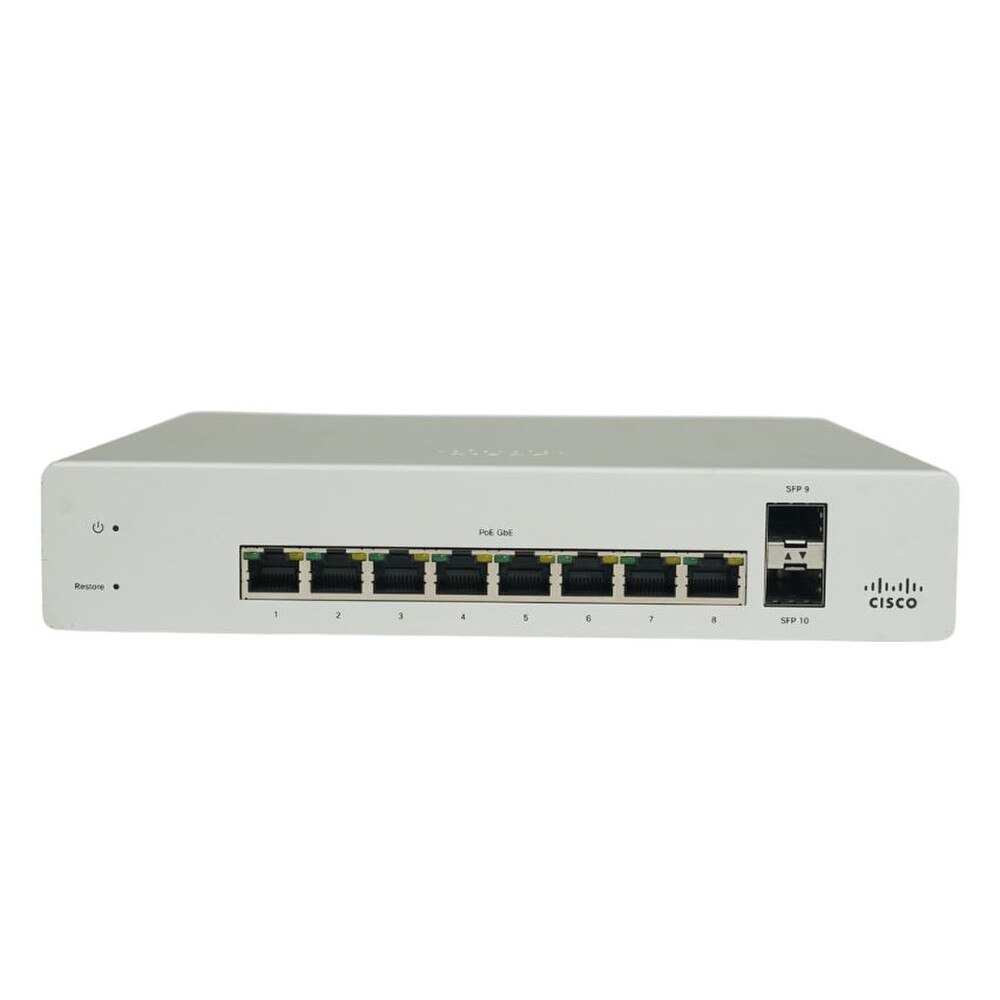

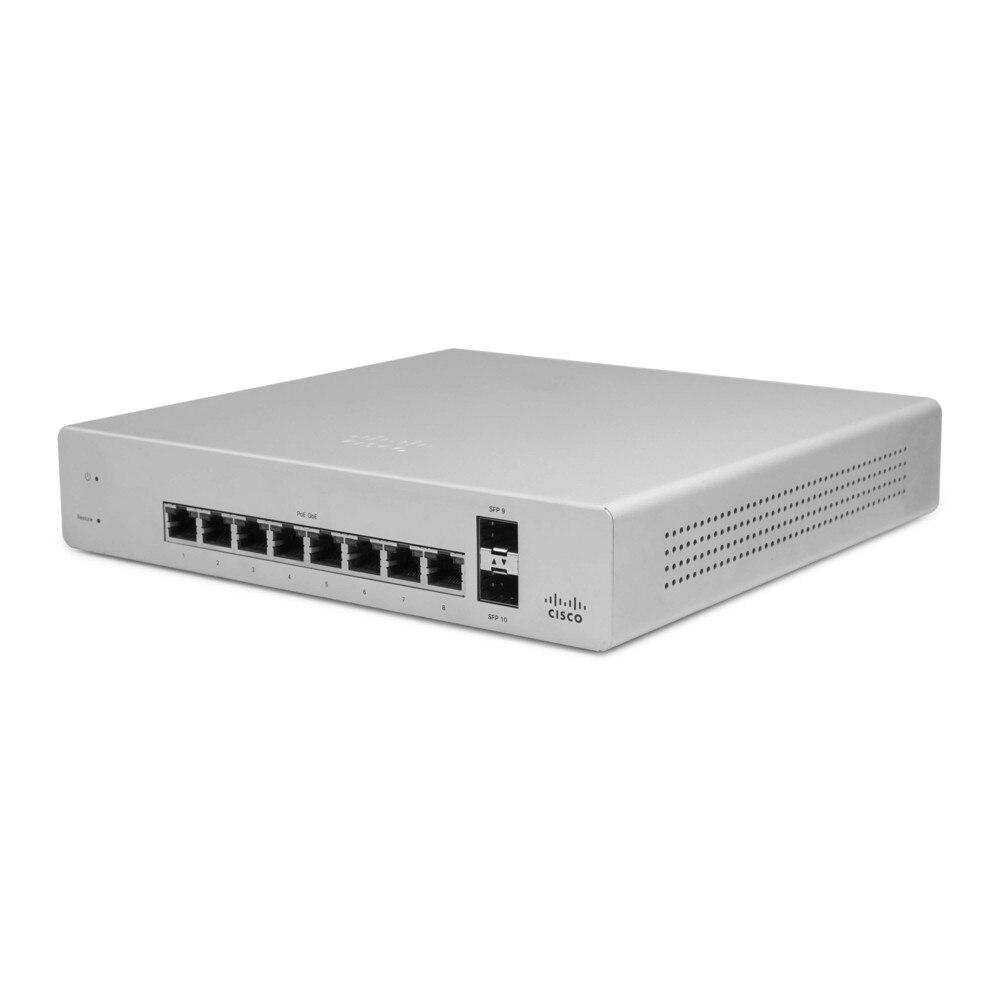

Cisco Meraki MS220 8-Port Cloud Managed PoE+ Gigabit Switch (MS220-8P-HW) (Unclaimed) | Like New

Cisco Meraki MS220 8-Port Cloud Managed PoE+ Gigabit Switch (MS220-8P-HW) (Unclaimed) | Like New

SKU: MS220-8P-HW-LN
(0)No Reviews yet
Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns
$59.99 $59.99
Available Quantity:
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

Overview of Cisco Meraki MS220 8-Port Cloud Managed PoE+ Gigabit Switch (MS220-8P-HW) | Like New

The Cisco Meraki MS220 8-Port Cloud Managed PoE+ Gigabit Switch (MS220-8P-HW) is made to provide secure power over Ethernet, reliable connection and simplicity in cloud management. With eight gigabit ports and a 124W PoE budget, this effective Layer 2 switch makes network installations easier by powering VoIP phones, WLAN access points and IP cameras all at once without the need for extra power adapters. With two dedicated SFP uplinks for fast backbone connectivity, fanless silent operation and sophisticated Layer 2 security features, the MS220-8P unifies management via the user-friendly Meraki Dashboard and offers dependable performance in small form factors. To optimize uptime and save operating expenses, this switch blends enterprise-grade functionality with easy remote administration, making it perfect for branch offices, classrooms and retail settings.


Key Features of Cisco Meraki MS220 8-Port Cloud Managed PoE+ Gigabit Switch


• 8 x 10/100/1000BASE-T RJ45 PoE+ Ports where each port delivers up to 30W PoE+ power and auto-MDIX for easy device connection.

• 2 x Gigabit SFP Uplink Ports with dedicated fiber optic links for scalable high-speed uplinks or network aggregation.

• 124W PoE Power Budget with flexible power delivery across all PoE ports simultaneously supports multiple devices.

• Cloud Management via Meraki Dashboard with zero-touch remote provisioning, centralized monitoring, firmware upgrades and alerts.

• Layer 2 Features with Advanced Security that supports VLAN tagging, QoS, IGMP snooping, RADIUS/MAC authentication, 802.1X port security.

• Fanless and Silent Operation that is perfect for noise-sensitive environments like offices, classrooms and retail spaces.

• Non-Blocking Switching Capacity with 20 Gbps switching fabric delivering low latency and reliable throughput.

• Compact Rack or Desktop Mount with small footprint with integrated mounting brackets for wall or desk placement.

• Extended Environmental Tolerance operates reliably between 0°C to 40°C with 5–95% humidity non-condensing.


Benefits of Cisco Meraki MS220 8-Port Cloud Managed PoE+ Gigabit Switch


🗹 Simplified Network Management where you can manage from anywhere with intuitive cloud interface that reduces IT burden.

🗹 Power and Connect Devices Seamlessly that supports IP phones, cameras and wireless APs without extra power cables.

🗹 Enhanced Security & Compliance with built-in port security and policy enforcement protects network assets.

🗹 Quiet and Efficient with fanless design reduces noise and improves energy efficiency in office environments.

🗹 Scalable Network Backbone with high-speed SFP uplinks enable easy expansion and integrate with enterprise networks.

Specifications

Specifications for Cisco Meraki MS220 8-Port Cloud Managed PoE+ Gigabit Switch (MS220-8P-HW) | Like New

ManufacturerCisco
Manufacturer Part NumberMS220-8P-HW
Product NameCisco Meraki MS220 8-Port Cloud Managed PoE+ Gigabit Switch
Product TypeNetworking Switch
Enclosure Type
Desktop
Subtype
Gigabit Ethernet
Ports
8 x 10/100/1000 (PoE+) + 2 x Gigabit SFP
Power Over Ethernet (PoE)
PoE+
PoE Budget
124 W
Performance
Switching capacity: 20 Gbps
MAC Address Table Size
8000 entries
Remote Management Protocol
SNMP 2c
Features
DHCP support, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, E-mail alert, Broadcast Storm Control, firmware upgradable, Quality of Service (QoS)
Compliant Standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.3at
Interfaces
8 x 1000Base-T RJ-45 PoE+ - 25.5 W ¦ 2 x Ethernet 1000 - SFP (mini-GBIC)
Power Device
Internal power supply
Voltage Required
AC 120/230 V (50/60 Hz)
Power Consumption Operational
159 Watt
Width
9.1 in
Depth
8.7 in
Height
1.7 in
Weight
2.87 lbs
Service & Support
Limited warranty - replacement - lifetime
Min Operating Temperature
32 °F
Max Operating Temperature
104 °F
Humidity Range Operating
5 - 95% (non-condensing)

User Guides

Cisco Meraki MS220 8-Port Cloud Managed PoE+ Gigabit Switch (MS220-8P-HW) Data Sheet

Frequently Asked Questions

Cisco Meraki MS220 8-Port Cloud Managed PoE+ Gigabit Switch (MS220-8P-HW)
Frequently Asked Questions (FAQ's)



How many ports does the Cisco Meraki MS220-8P-HW have?
  • It has 8 Gigabit Ethernet ports with PoE+ support and 2 SFP uplink ports.
    • Does the switch support Power over Ethernet (PoE)?
  • Yes, it supports PoE+ with up to 30W per port, ideal for powering APs, IP cameras and VoIP phones.
    • Is this a managed switch?
  • Yes, it is cloud-managed through the Cisco Meraki dashboard.
    • What kind of uplink connectivity is available?
  • The switch includes 2 SFP uplink interfaces for fiber connectivity.
    • Can the MS220-8P be managed without the internet?
  • Basic local operation is possible, but full management requires cloud connectivity.
    • Is it fanless?
  • Yes, it operates silently, making it suitable for quiet environments.
    • Does it support VLANs?
  • Yes, it offers full Layer 2 switching with VLAN configuration.
    • Can I monitor traffic remotely?
  • Yes, the Meraki dashboard allows real-time monitoring and packet capture.
    • Is Quality of Service (QoS) available?
  • Yes, QoS ensures prioritization of latency-sensitive applications like voice and video.
    • What type of businesses is this switch best for?
  • It’s ideal for small offices, branch sites and distributed enterprises.
    • Does it work with other Cisco devices?
  • Yes, it integrates seamlessly with Cisco Meraki access points, firewalls and security appliances.
    • Can I configure this switch using CLI?
  • No, all configuration is done through the Meraki cloud dashboard.
    • How secure is the cloud management system?
  • Meraki employs enterprise-grade encryption and secure authentication for cloud access.
    • Does the switch require a license?
  • Yes, a Meraki license is required for cloud management and feature access.
    • Can it be rack-mounted?
  • It is a compact desktop switch, but rack-mount kits may be available separately.
    • How much PoE power budget does it provide?
  • The total available PoE budget depends on the power adapter used with the unit.
    • Can I use it for surveillance networks?
  • Yes, its PoE+ capability makes it ideal for powering IP security cameras.
    • Is the switch energy-efficient?
  • Yes, it uses efficient hardware design for reduced power consumption.
    • Can I expand my network later?
  • Absolutely, the Meraki dashboard allows seamless scaling across multiple sites.
    • Does it support link aggregation?
  • Yes, link aggregation is supported for increased bandwidth and redundancy.
