Cisco FirePOWER 1120 NGFW Firewall (FPR1120-NGFW-K9) | New
SKU: FPR1120-NGFW-K9-N
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us
Same Day Shipping - Arrives in 3-5 Business Days 30-day Returns Overview

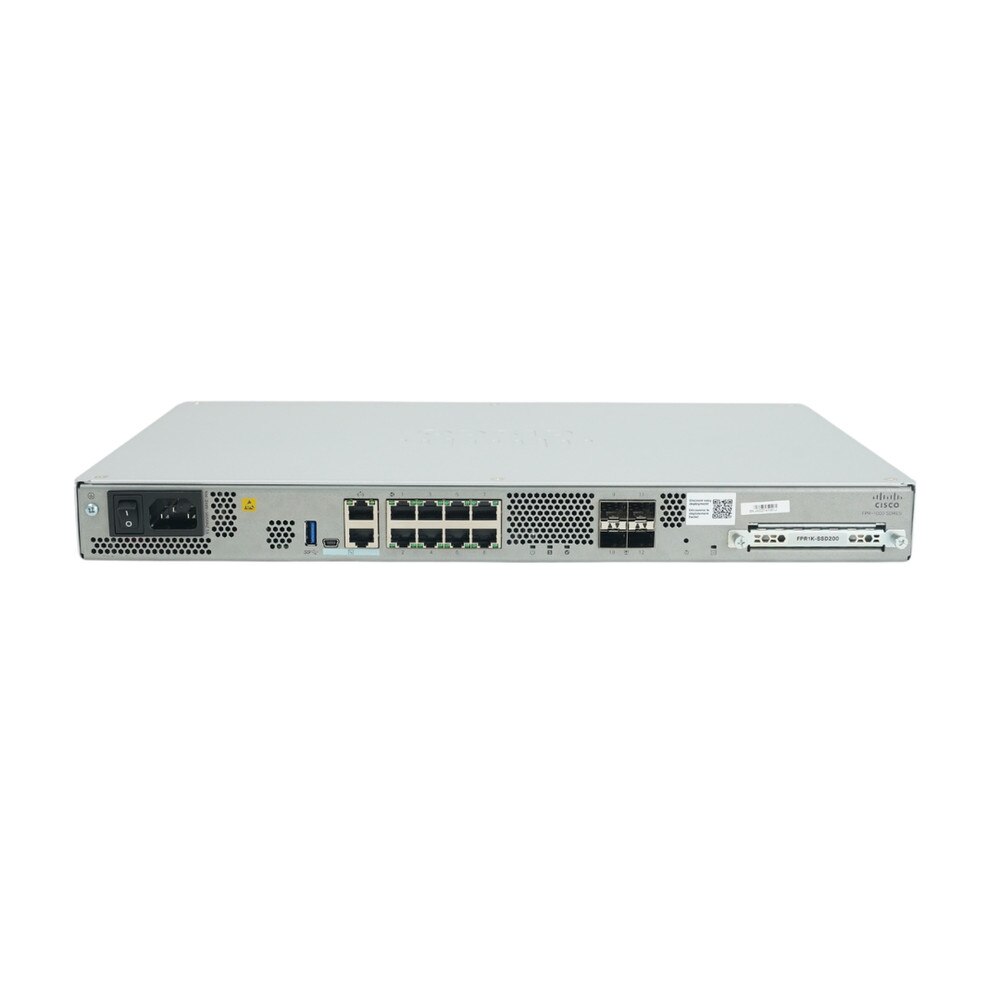

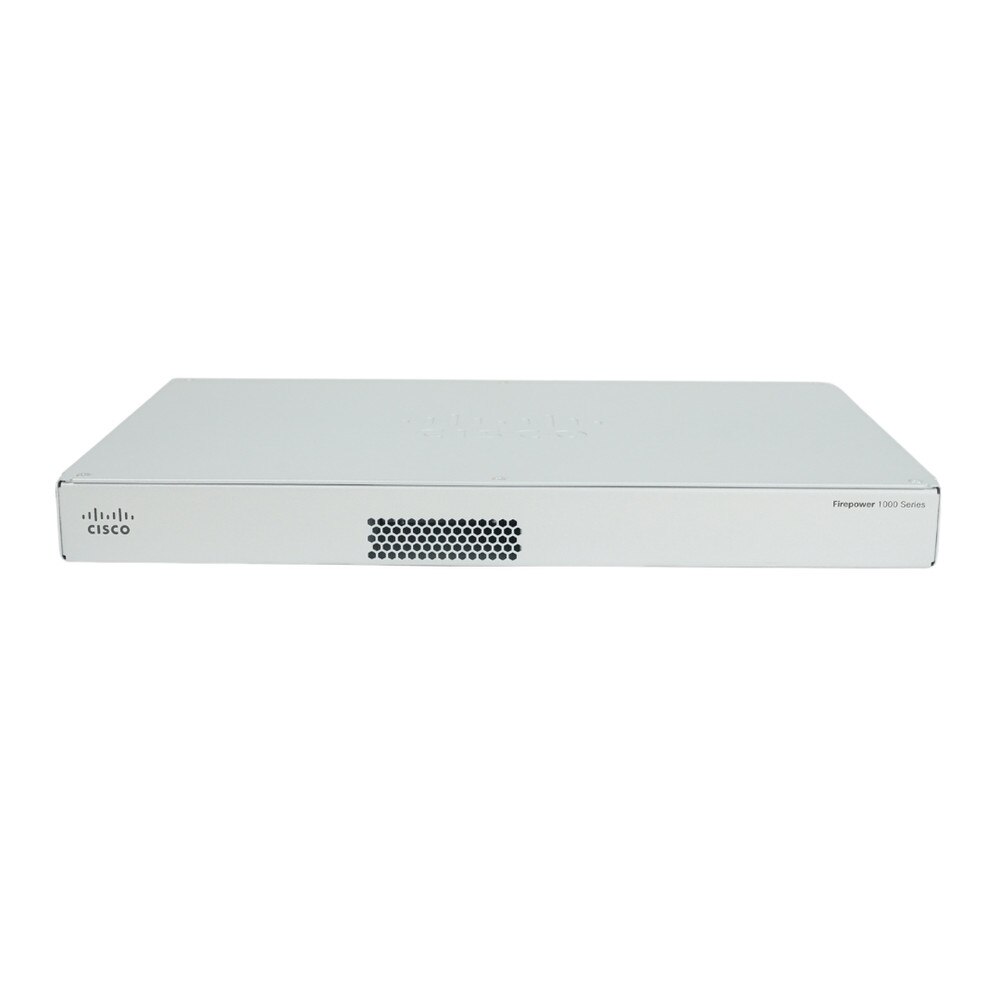

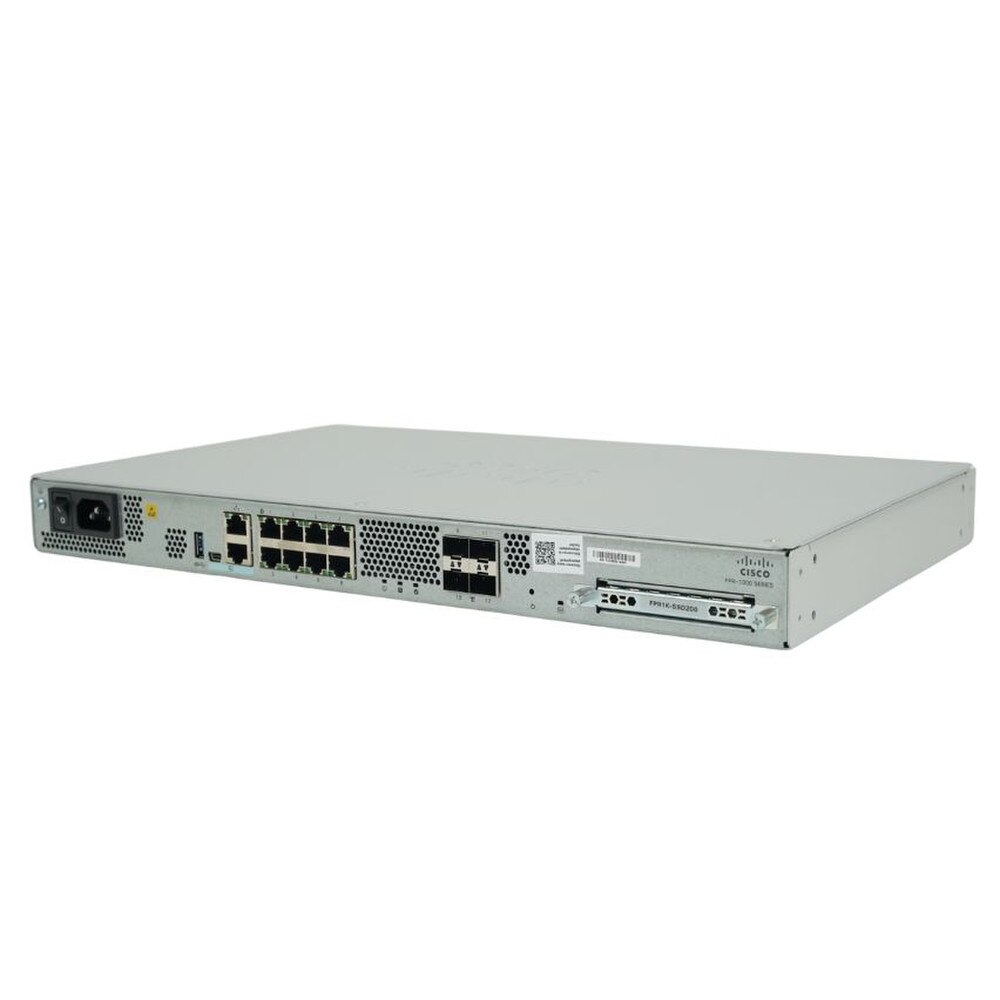

Overview of Cisco FirePOWER 1120 NGFW Firewall (FPR1120-NGFW-K9) | New
The Cisco FirePOWER 1120 NGFW Firewall (FPR1120-NGFW-K9) is a high-performance next-generation firewall aimed at small to medium-sized organizations and branch locations. This adaptable security appliance combines comprehensive threat protection with easy management, making it an excellent choice for businesses looking for enterprise-grade security in a small package. The FPR1120-NGFW-K9 takes advantage of Cisco's cutting-edge security solutions, such as intrusion prevention, malware protection, and application visibility and management. With its powerful performance and numerous deployment choices, this firewall provides comprehensive network protection and streamlines security operations.
Key Features of Cisco FirePOWER 1120 NGFW Firewall
• 1.5 Gbps firewall throughput for efficient traffic processing
• 1.5 Gbps NGIPS throughput for advanced threat detection
• 8 built-in 1 Gigabit Ethernet RJ45 ports and 4 SFP ports for flexible network integration
• Supports up to 200,000 concurrent sessions and 15,000 new connections per second
• Next-Generation Intrusion Prevention System (NGIPS) for sophisticated threat detection
• Cisco Advanced Malware Protection (AMP) for comprehensive malware defense
• Application Visibility and Control (AVC) for granular application management
• URL filtering for web traffic control and protection
• Cisco Talos Intelligence integration for real-time threat updates
• Supports both Cisco Firepower Threat Defense (FTD) and ASA software
• Centralized management through Firepower Management Center or Cisco Defense Orchestrator
• 1RU form factor ideal for rack-mounted deployments
• Dual power supplies for enhanced reliability
• Energy-efficient design with ENERGY STAR certification
• Limited lifetime warranty with next-business-day replacement
Specifications
Specifications for Cisco FirePOWER 1120 NGFW Firewall (FPR1120-NGFW-K9) | New
| Manufacturer | Cisco |
| Manufacturer Part Number | FPR1120-NGFW-K9 |
| Product Name | Cisco FirePOWER 1120 NGFW Firewall |
| Product Type | Firewall |
Height (Rack Units) | 1U |
Width | 17.2 in |
Depth | 10.6 in |
Height | 1.7 in |
Weight | 8 lbs |
Hard Drive | 200 GB x 1 |
Form Factor | Rack-mountable |
Connectivity Technology | Wired |
Performance | Firewall and Application Visibility and Control (AVC) throughput (1024B): 1.5 Gbps ¦ Firewall and Application Visibility and Control (AVC) and Intrusion Prevention System (IPS) throughput (1024B): 1.5 Gbps ¦ Firewall and Application Visibility and Control (AVC) throughput (450B): 550 Mbps ¦ Firewall and Application Visibility and Control (AVC) and Intrusion Prevention System (IPS) throughput (450B): 550 Mbps ¦ Transport Layer Security (TLS) throughput: 700 Mbps ¦ NGIPS throughput (1024B): 1.5 Gbps ¦ NGIPS throughput (450B): 550 Mbps ¦ IPSec VPN throughput (1024B TCP w/Fastpath): 1 Gbps |
Capacity | Maximum concurrent sessions with AVC: 200000 ¦ New connections per second with AVC: 15000 |
Features | 1 fan |
Interfaces | 8 x - RJ-45 ¦ 4 x - SFP (mini-GBIC) ¦ 1 x 1000Base-T (management) - RJ-45 ¦ 1 x serial - RJ-45 ¦ 1 x USB 3.0 - Type A |

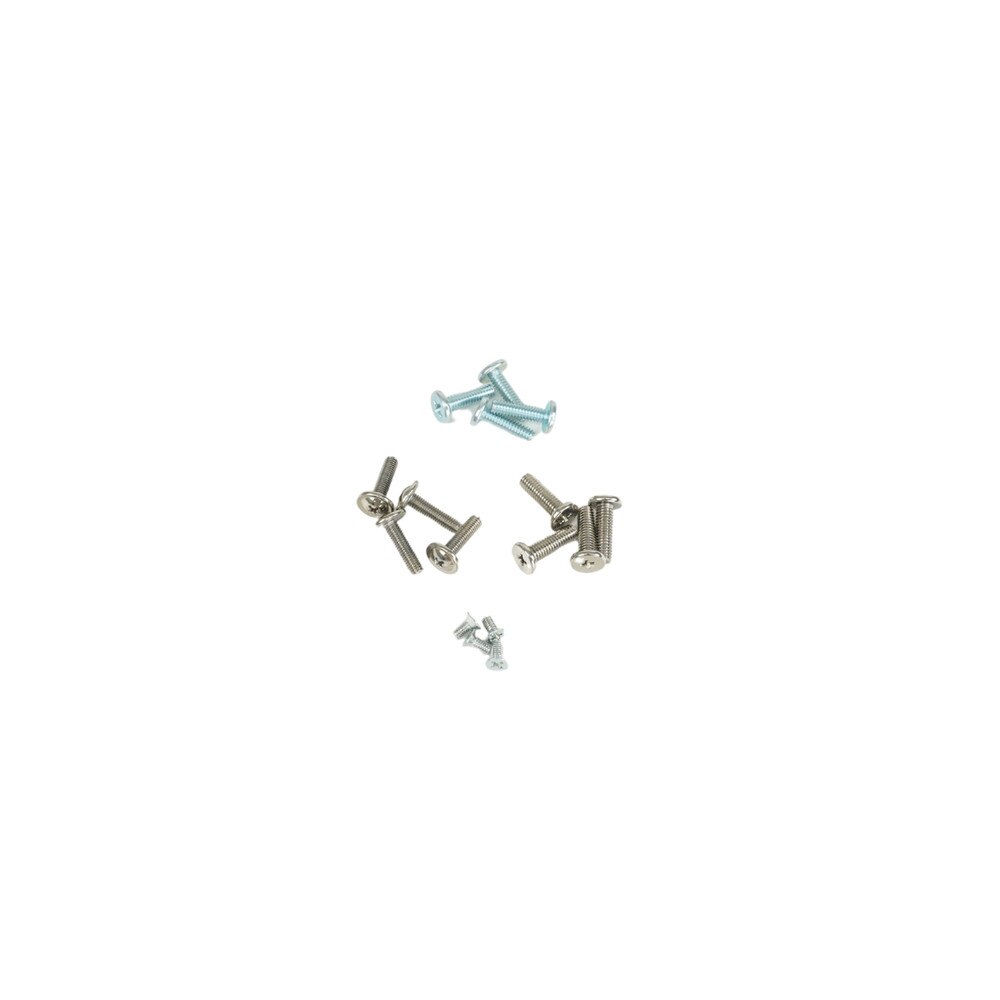

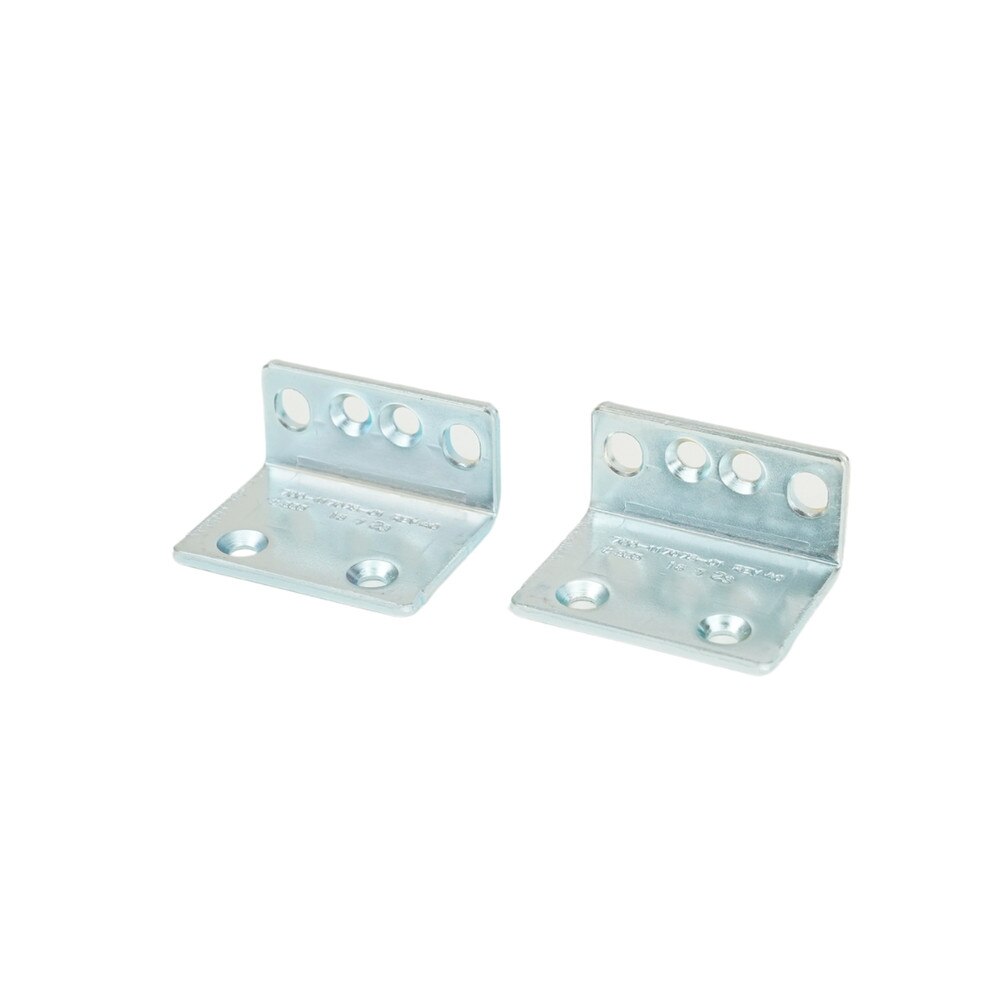

Included Accessories | Mounting brackets |
Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, GB 4943, Directive 2004/108/EC, VCCI Class A, KN24, KN22 Class A, EN 55022 Class A, FCC CFR47 Part 15 A, CNS 13438 Class A, EN 300 386, TVCN 7317, Directive 2006/108/EC, TCVN 7189, CAN/CSA-C22.2 No. 60950-1, AS/NZS CISPR22 Class A |
Power Device | Internal power supply |
Voltage Required | AC 120/230 V (50/60 Hz) |
Software Included | Cisco Threat Defense 6.4 |
Service & Support | Limited warranty - advance hardware replacement - 90 days - response time: 10 days |
Min Operating Temperature | 32 °F |
Max Operating Temperature | 104 °F |
Humidity Range Operating | 90% (non-condensing) |
User Guides
Frequently Asked Questions
Cisco FirePOWER 1120 NGFW Firewall (FPR1120-NGFW-K9)
Frequently Asked Questions (FAQ's)
What is the maximum firewall throughput of the Cisco FirePOWER 1120?The Cisco FirePOWER 1120 provides a maximum firewall throughput of 1.5 Gbps.
How many Ethernet ports does the Cisco FirePOWER 1120 have?It includes eight RJ-45 Ethernet connections and four SFP interfaces.
Does the Cisco FirePOWER 1120 support VPN connections?Yes, it supports IPsec VPN at speeds of up to 1 Gbps.
What are the dimensions of the Cisco FirePOWER 1120?The dimensions are 10.5 inches in width, 17.2 inches in depth, and 1.7 inches in height.
Is the Cisco FirePOWER 1120 rack-mountable?Yes, it is designed to be mounted in a 1U rack.
What is the power consumption of the Cisco FirePOWER 1120?The maximum power consumption is 100 watts.
Does the Cisco FirePOWER 1120 support Wi-Fi?No, it lacks built-in Wi-Fi capabilities.
What type of storage does the Cisco FirePOWER 1120 use?It uses a 200 GB SSD for storage.
What security features are included in the Cisco FirePOWER 1120?It features Stateful Packet Inspection (SPI), intrusion prevention, and advanced malware protection.
What is the operating temperature range for the Cisco FirePOWER 1120?The working temperature varies from 0°C to 40°C.
How many maximum firewall connections can the Cisco FirePOWER 1120 handle?It can support up to 200,000 simultaneous firewall connections.
Does the Cisco FirePOWER 1120 support URL filtering?Yes, it allows you to control web access through URL filtering.
What management interfaces are available for the Cisco FirePOWER 1120?Management can be done using either the Cisco Firepower Management Center (FMC) or the integrated Firepower Device Manager (FDM).
Is the Cisco FirePOWER 1120 suitable for small businesses?Yes, it is designed to suit the security requirements of small and medium-sized enterprises.
What is the weight of the Cisco FirePOWER 1120?The weight is roughly 5.78 kg.
Does the Cisco FirePOWER 1120 support Power over Ethernet (PoE)?No, it doesn't support PoE.
What is the maximum operating altitude for the Cisco FirePOWER 1120?It can operate at heights of up to 3,000 meters.
Does the Cisco FirePOWER 1120 have USB ports?Yes, it contains a single USB 3.2 Gen 1 (3.1 Gen 1) Type-A port.
What type of processor does the Cisco FirePOWER 1120 use?It is powered by a 12-core Intel processor.
How many Ethernet ports does the Cisco FirePOWER 1120 have?It includes eight RJ-45 Ethernet connections and four SFP interfaces.
